Name: ZONESUN ZS-XG16V Automatic Essential Oil Dropper Bottle Cap Tightening Screw Lid Vial Capping Machines With Cap Feeder
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 01200300010-0003
Price: 5932.49 USD
Availability: InStock

This full automatic capping machine is equipped with a cap feeder,which can orient bottle caps. Typically the cap feeder can be customized by making adjustments to the bowl for different sizes of caps. Larger caps and higher speeds may require larger bowls.These two machine can achieve automatically feeding caps and cap bottles,save labor and reduce production error.

Parameter

Machine model:ZS-XG16V
Bottle height:30-300mm
Cap Diameter:18-70mm
Botle Diameter:20-160mm
Working speed:20-60 bottles / minute (depending on bottle and cap size and shape)
Working voltage:AC220V/110V 50-60HZ
Wokingn pressure:0.4-0.6MPa
Machine size:About 1930*740*1600mm
Package size:About 2000*820*1760mm
Machine weight:About 150kg

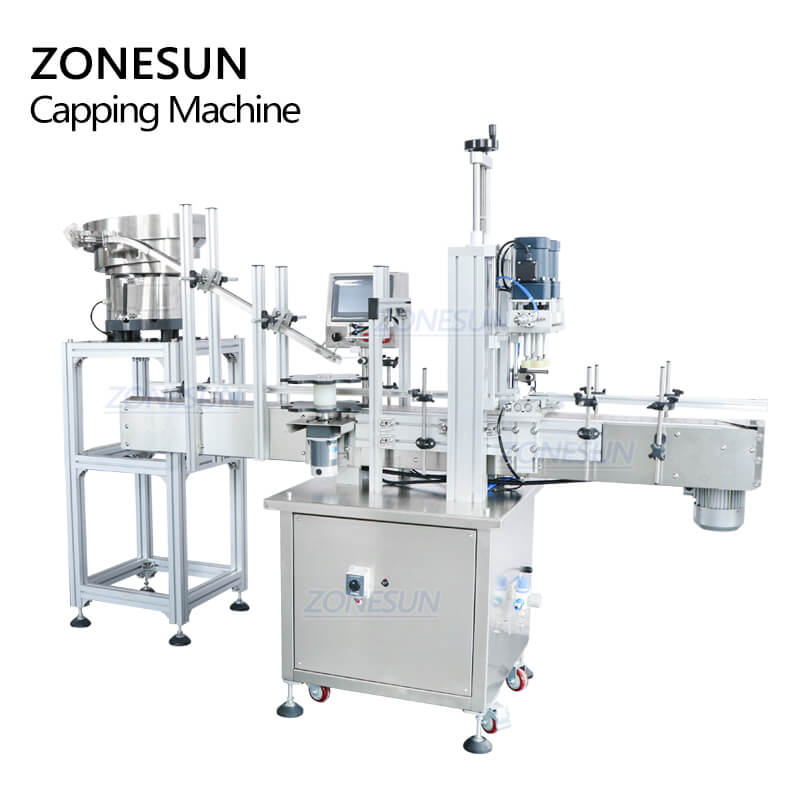

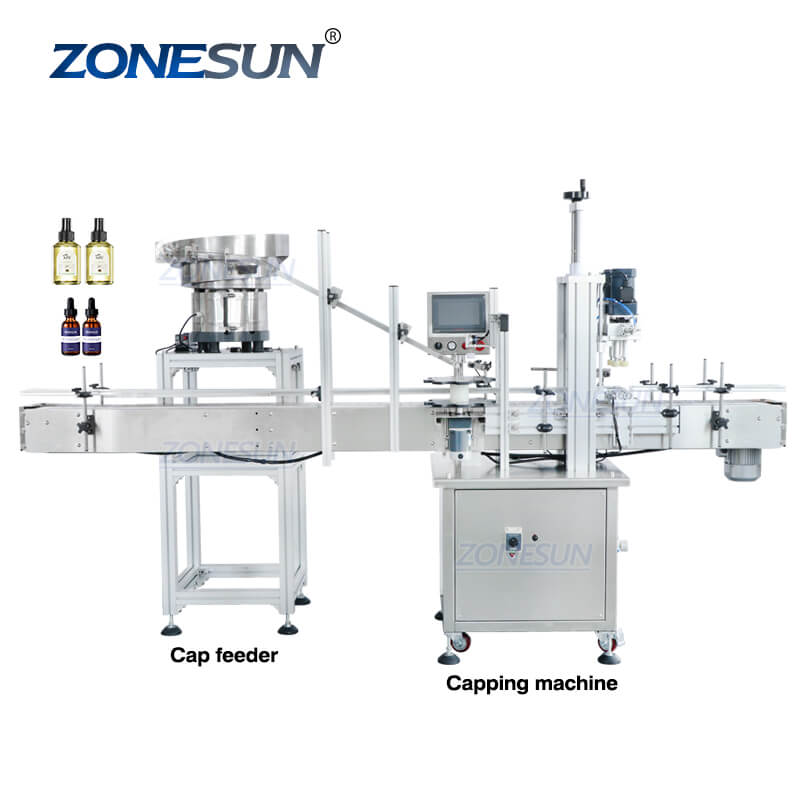

Automatic Capping Machine With Cap Feeder

Application of Automatic Capping Machine With Cap Feeder

Dimension of Automatic Capping Machine With Cap Feeder

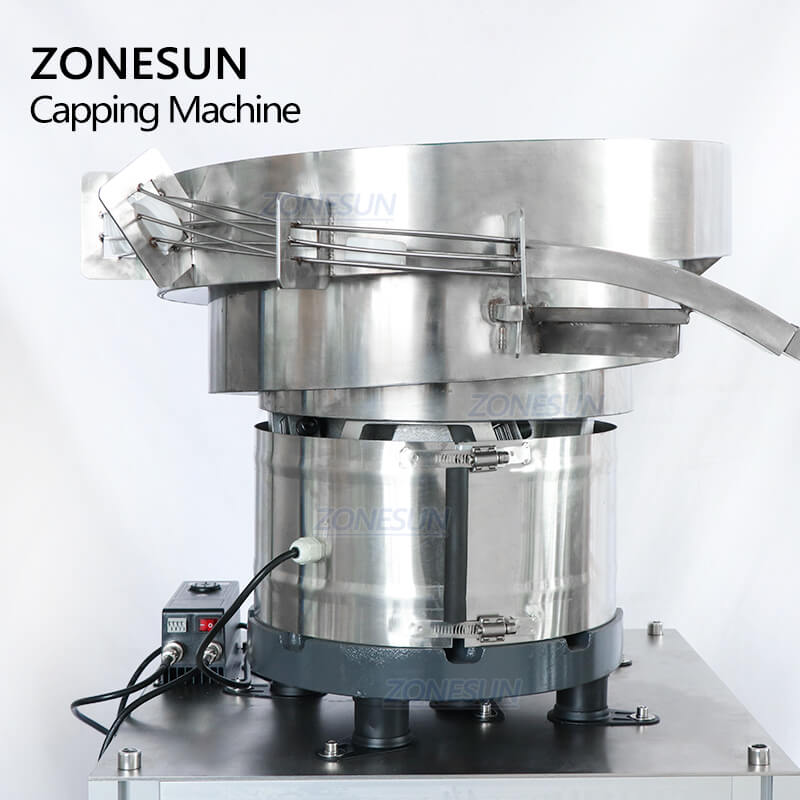

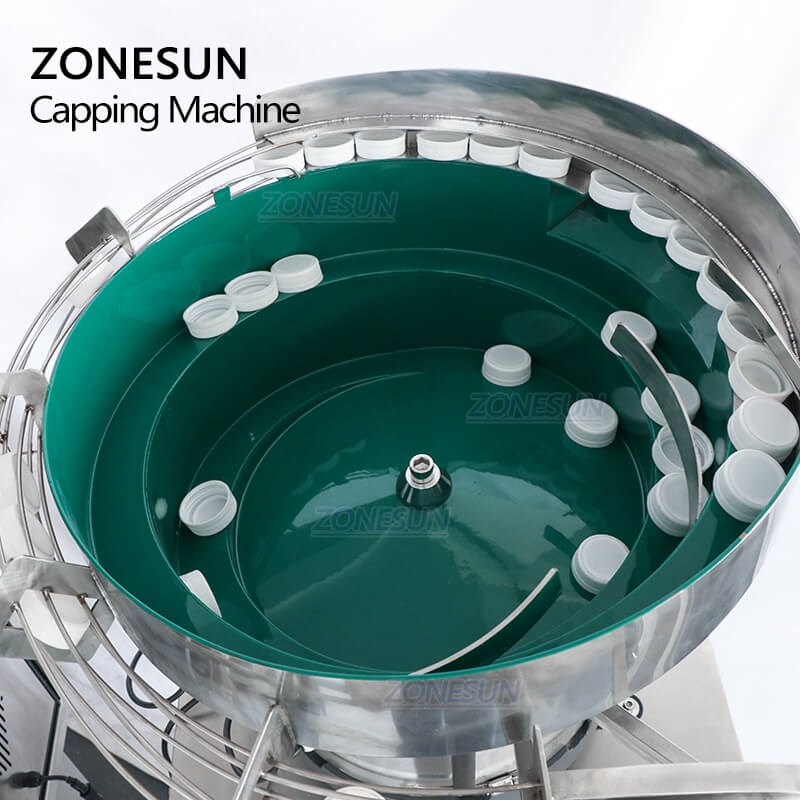

Vibratory Cap Sorter of Automatic Capping Machine With Cap Feeder

With bottle cap feeder which can feed lids before capping bottle.This one needs to be customized according to cap size.

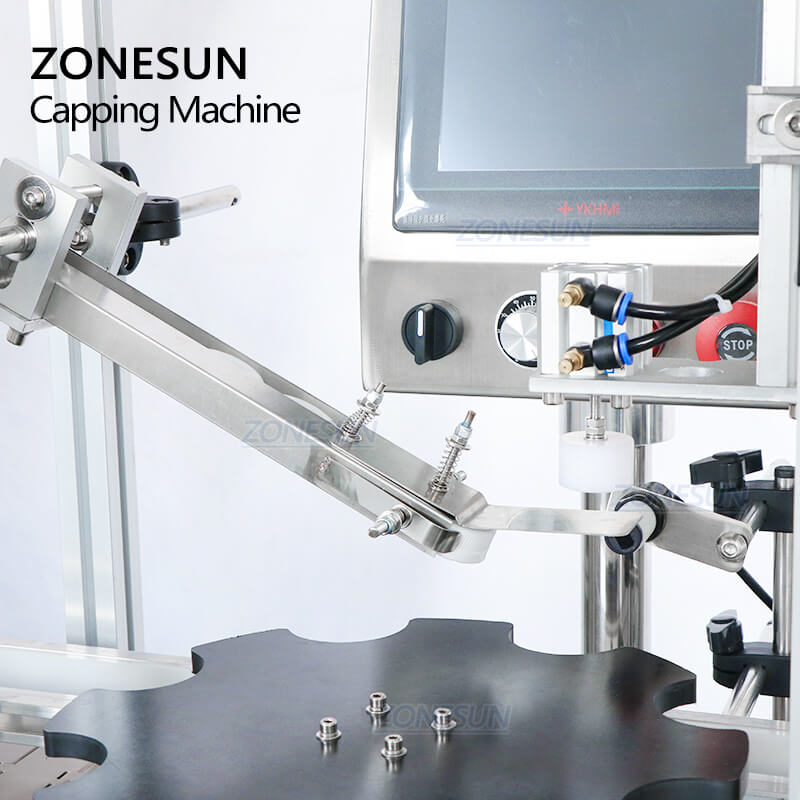

Feeding Structure of Automatic Capping Machine With Cap Feeder

Equipped with a cap feeder,it will automatically feed bottle caps and tighten caps accurately.Improve production quality.

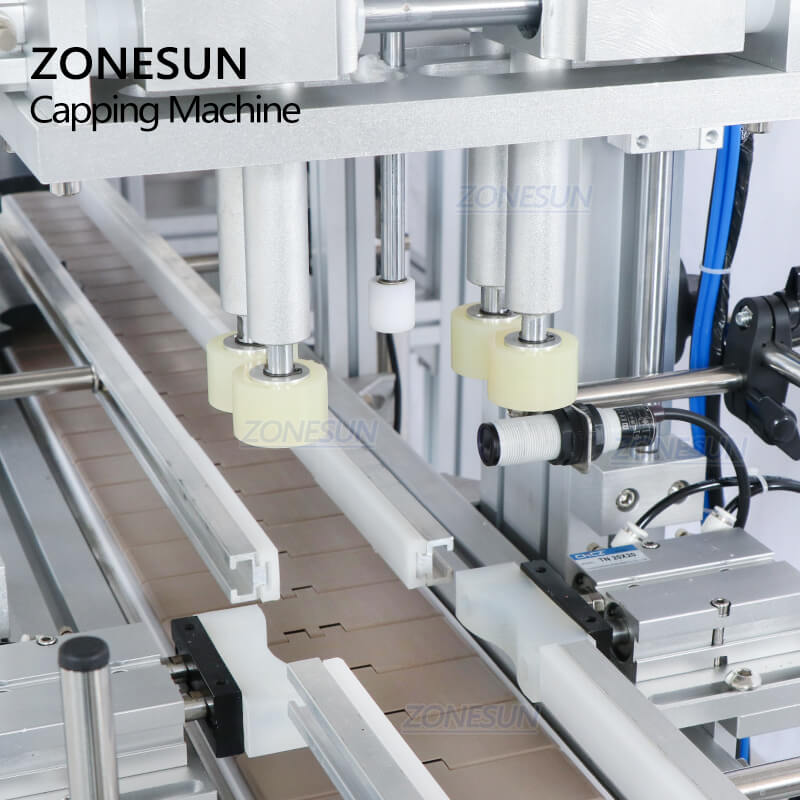

Capping Head of Automatic Capping Machine With Cap Feeder

Suitable for different kinds of bottle caps.The capping time,pressing time can be adjusted by operation panel.

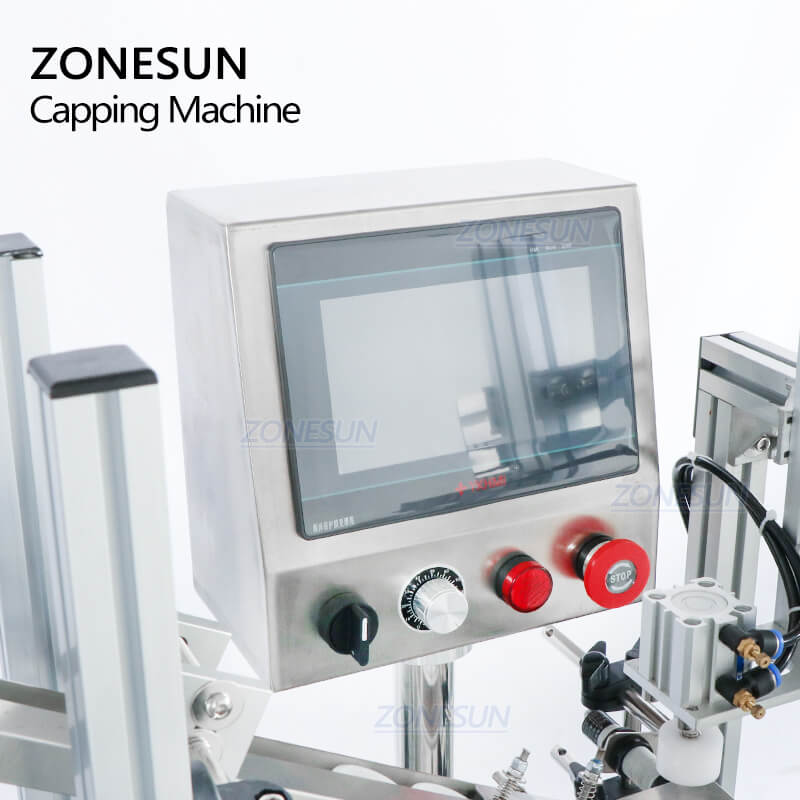

Operation Panel of Automatic Capping Machine With Cap Feeder

Intelligent operation panel and is with English version,can control working time and set working mode.The Stop button can protect the machine from damage and keep the operator safe during working.

Conveyor Belt of Automatic Capping Machine With Cap Feeder

The suitable transfer speed is set previously,but customer can adjust it if they need to do this.
