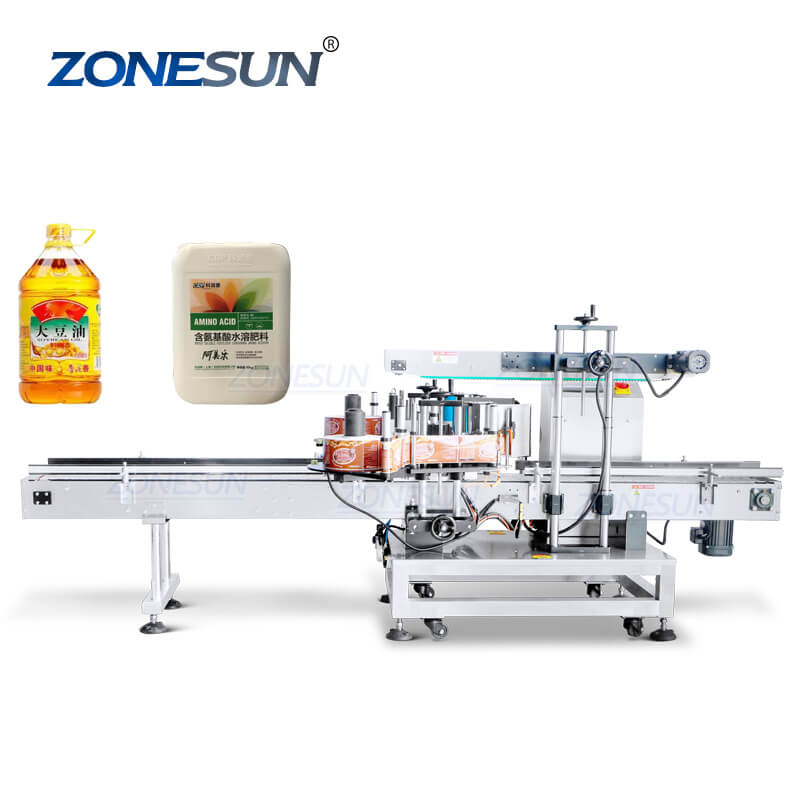

ZONESUN ZS-TB300R Automatic Double Sides Flat Bottle Engine Oil Jerry Can Laundry Detergent Jug Bottle Self-adhesive Labeling Machine

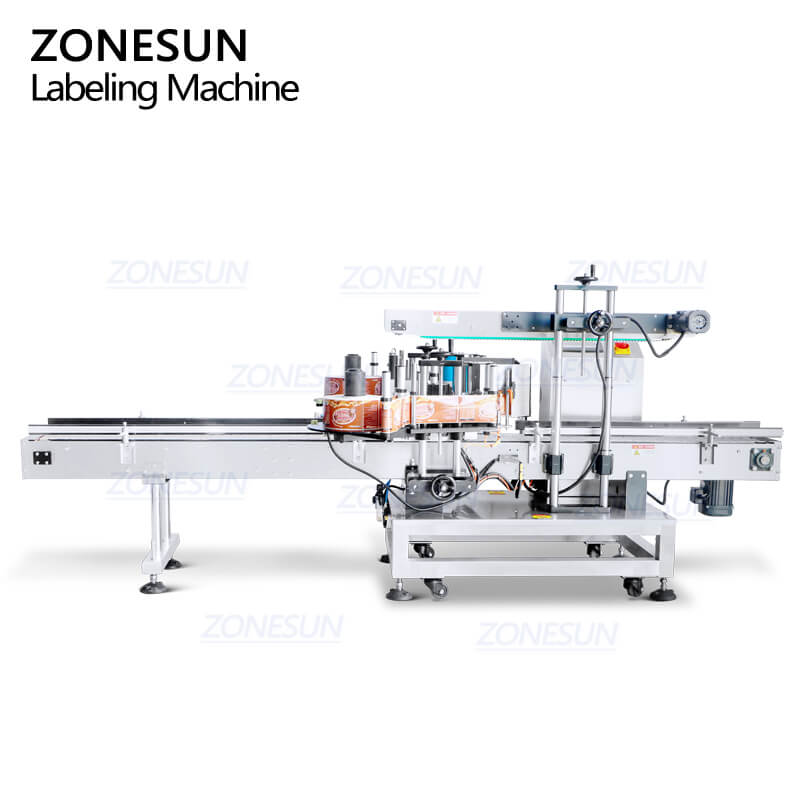

This automatic labeling machine is used to labeling self-adhesive sticker on double sides of large flat bottle. Wider chain conveyor belt can ensure products can be transported smoothly.It is widely used in food, daily chemical industries.

Parameter

• Machine Model: ZS-TB300R
• Voltage: 220V/110V 50-60Hz
• Power: About 2500W
• Labeling Speed: About 10-60 bottles/min (depending on bottle and label size)
• Suitable Product Size: About 150-310 mm(H)*150-250(W)
• Label Size: 15-300 mm(W)*15-200 mm(H)
• Label Roll Inner Diameter: Φ75 mm
• Label Roll Outer Diameter: Φ350 mm
• Machine Size: About 3000×1400×1750 mm
• Machine Weight: About 320 kg
• Package Size: About 2060*1110*1410 mm
• Package Weight: About 393 kg

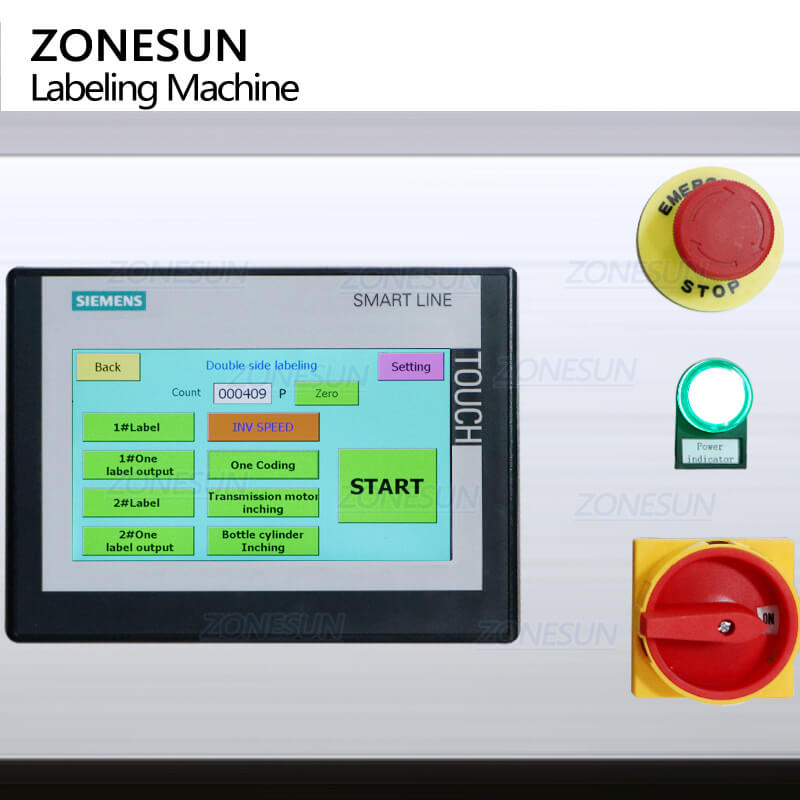

Equipped with touch screen control panel, it shows working data more intuitively. Customizable interface simplifies operation process, independent electric box makes it more convenient to debug machine

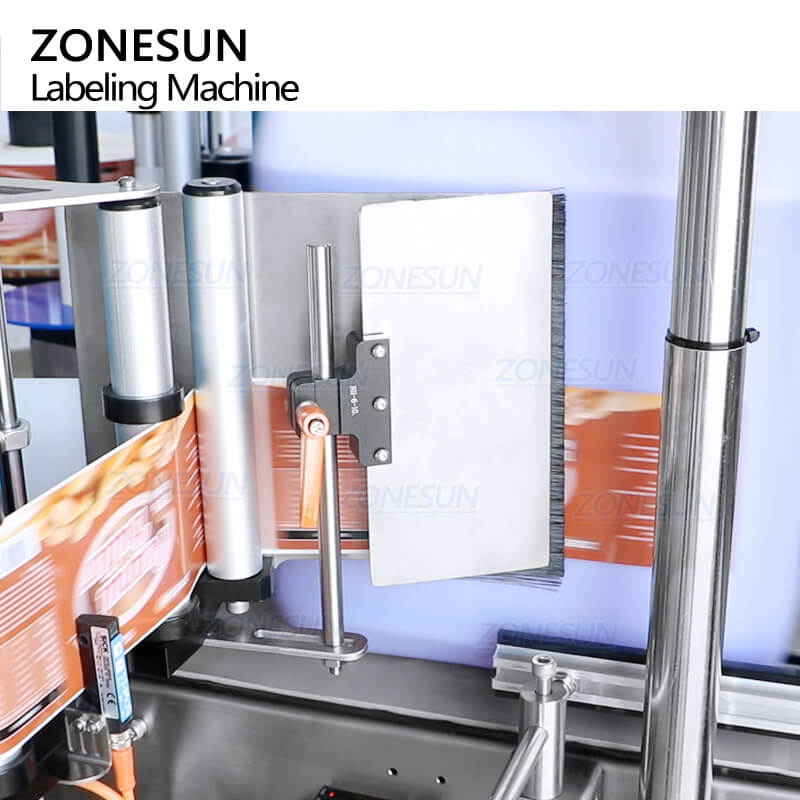

Designed for double sides labeling on larger flat bottle, one side of labeling structure can work separately, so it is also suitable for single side on the flat bottles.

Designed for double sides labeling on larger flat bottle, one side of labeling structure can work separately, so it is also suitable for single side on the flat bottles.

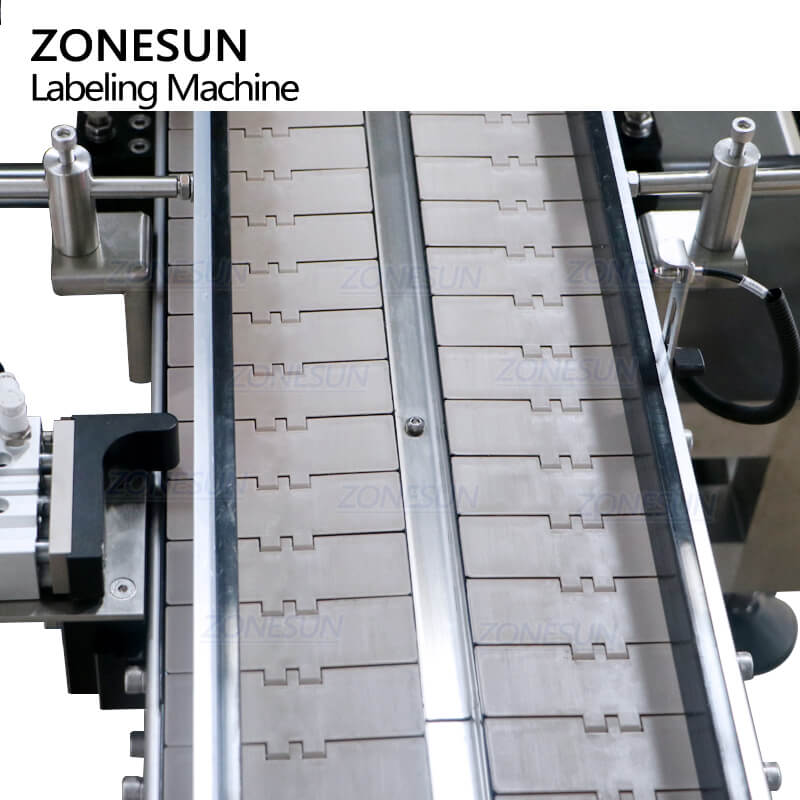

Customized wider chain conveyor, this ensures larger flat bottle can be transported smoothly. Conveyor length can be customized as production need.
