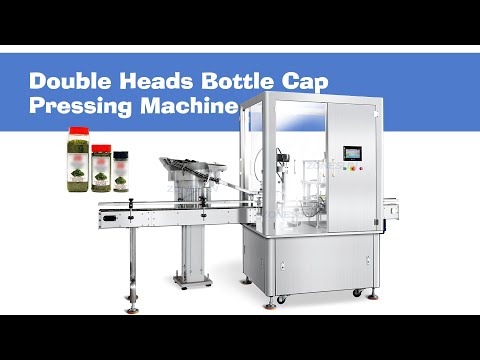

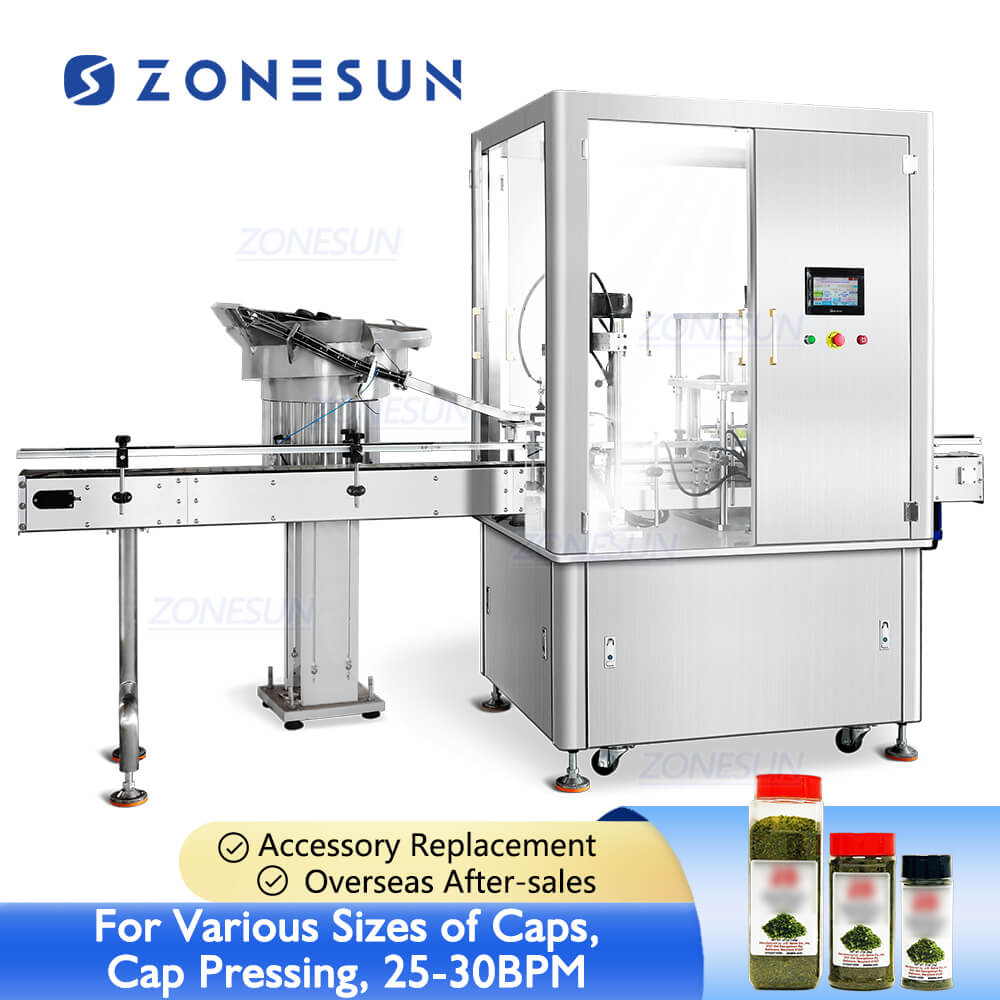

ZONESUN ZS-VTYG02S Automatic Double Heads Coffee Powder Seasoning Bottle Jar Cap Pressing Machine
Earn 0 points on this purchase.
Regular price
$16,999.00 USD
Regular price
Sale price
$16,999.00 USD
Save $-16,999 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Working with vibratory bowl sorter to feed caps in time, this capping machine can pass caps and press caps automatically, it is suitable for packaging coffee powder, herb seasoning, spice powder.It is also suitable for working with filling and labeling machine to finish completed packaging work.
Parameter
- Machine model: ZS-VTYG02S
- Machine voltage: 110/220V 50-60HZ 2KW
- Suitable bottle size: ①83*107*170mm②78*69*132mm③56*67*110mm(Customizable)
- Suitable cap size: ①83*107*27 ②78*69*24 ③56*67*19 mm(Customizable)
- Working speed: 25-30 BPM
- Working pressure: 0.4-0.6MPa
- Machine size: About 2420*1172.5*2169 mm(L*W*H)
- Package size: About 1910*1150*2200 mm(L*W*H)-Main Machine
About 160*980*800 mm(L*W*H)-Vibratory Bowl Sorter 1
About 1100*900*940 mm(L*W*H)-Vibratory Bowl Sorter 2
- Package weight: About 520 kg-Main Machine
About 225 kg-Vibratory Bowl Sorter 1
About 161 kg-Vibratory Bowl Sorter 2

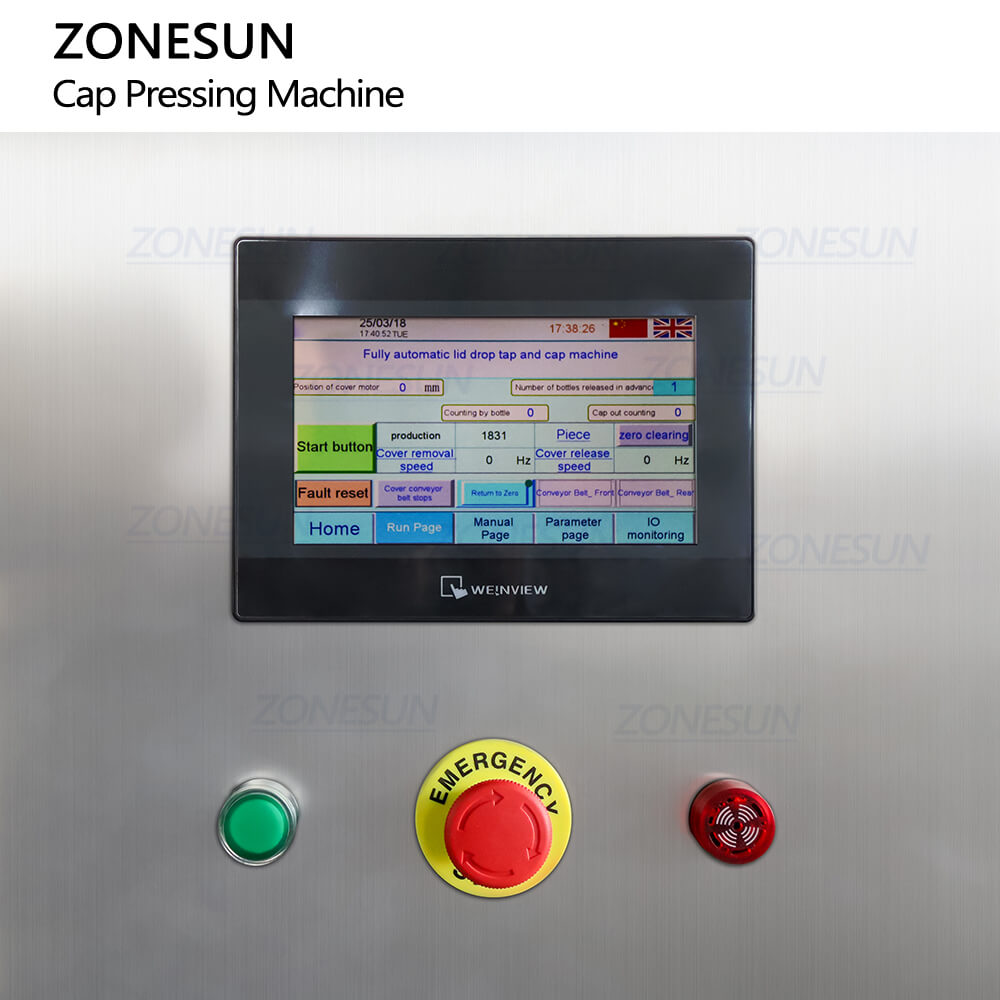

Touchscreen Control Panel
Intuitive HMI interface for easy operation and parameter adjustment.
Intuitive HMI interface for easy operation and parameter adjustment.

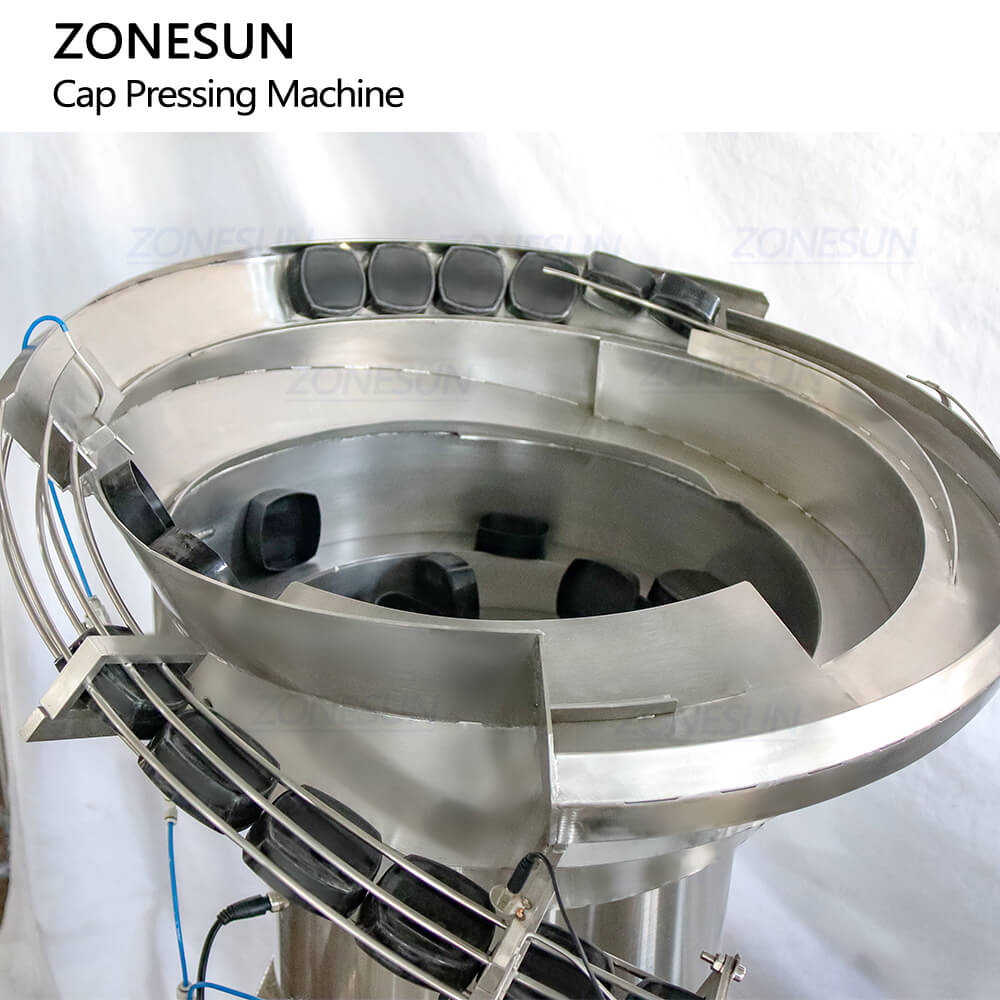

Vibratory Bowl Feeder
Automatically aligns and feeds caps for continuous operation.It is customizable as needed.
Automatically aligns and feeds caps for continuous operation.It is customizable as needed.

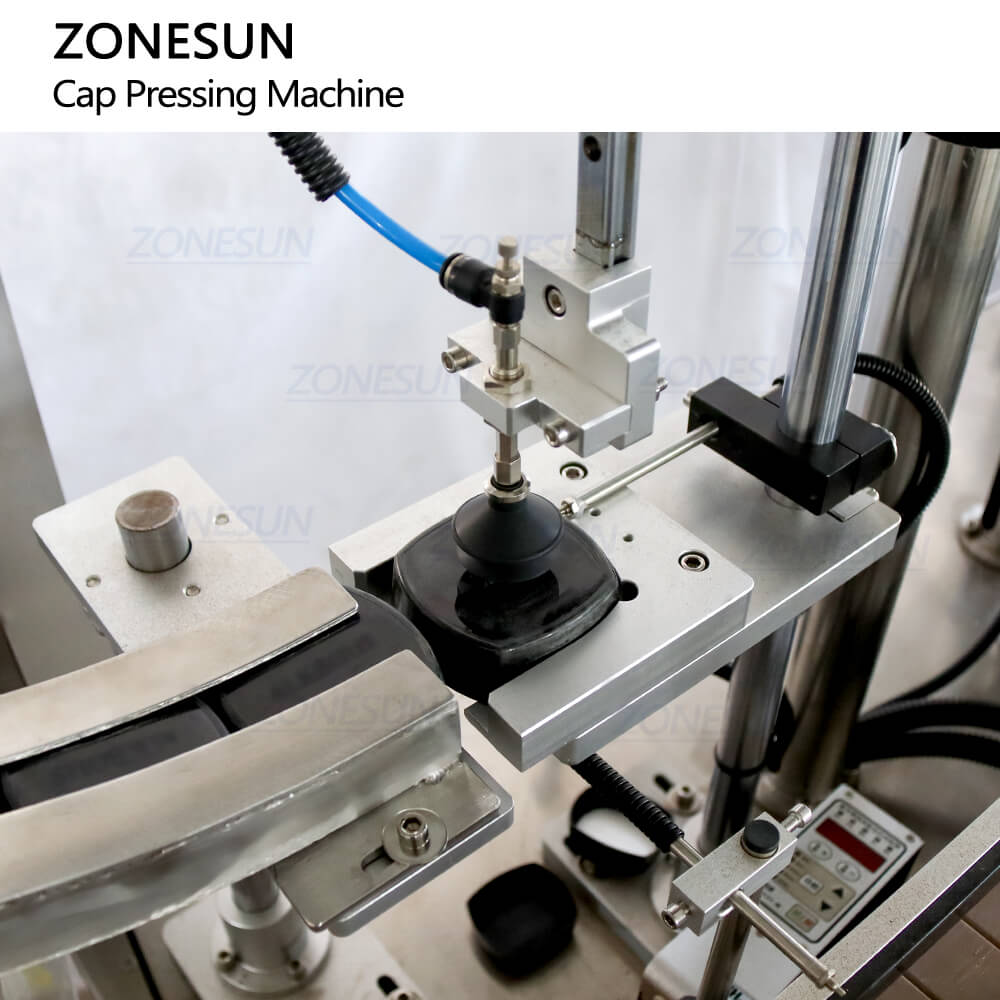

Cap Passing
Using suction cups, it accurately picks and places caps onto bottles.
Using suction cups, it accurately picks and places caps onto bottles.

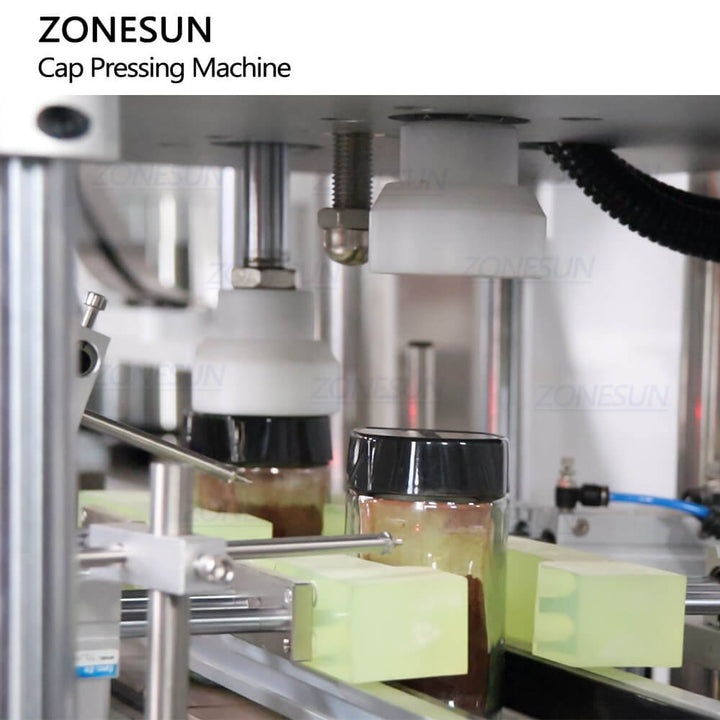

Cap Pressing Structure
Double pressing heads, it can reach 30 bottles/min, working height is adjustable.
Double pressing heads, it can reach 30 bottles/min, working height is adjustable.

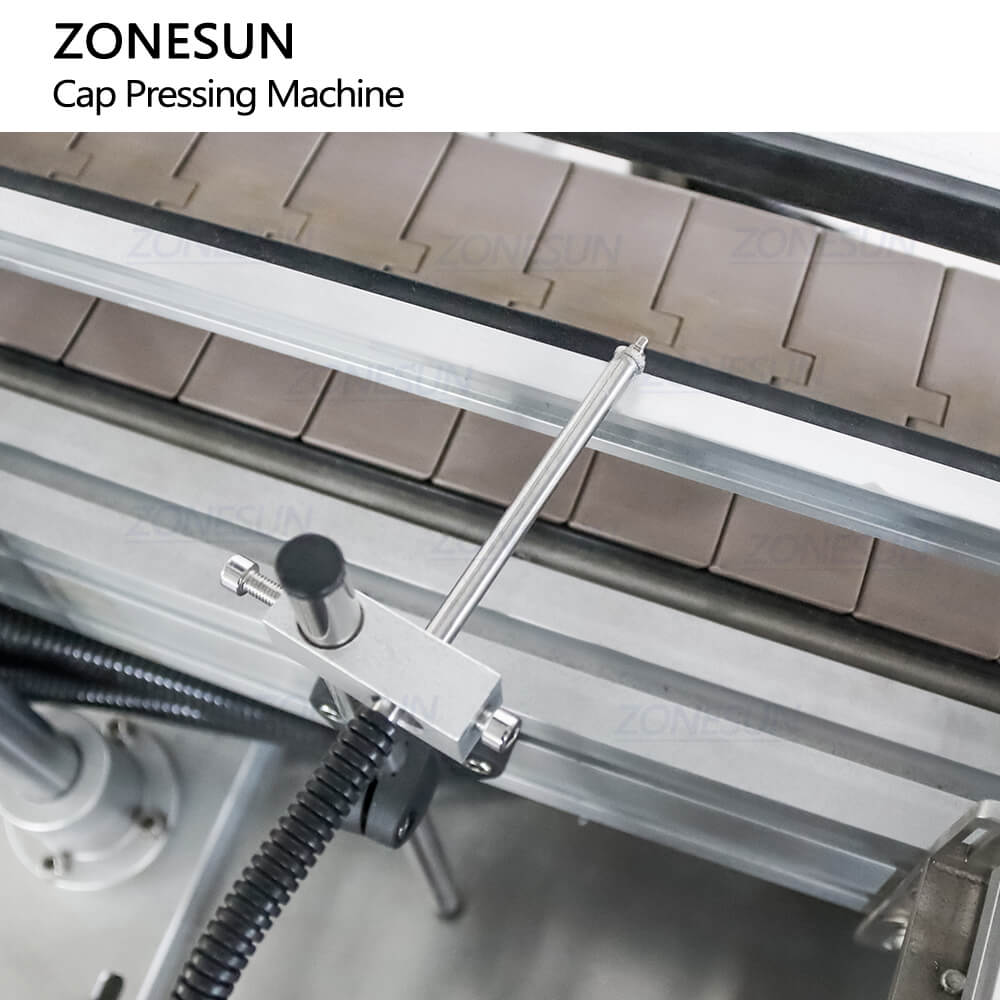

Sensing Electric Eye
Photoelectric sensor detects bottle position for precise capping.
Photoelectric sensor detects bottle position for precise capping.
Dust-Proof Cover
Protects internal components from contamination, ensuring long-term reliability.
Protects internal components from contamination, ensuring long-term reliability.
