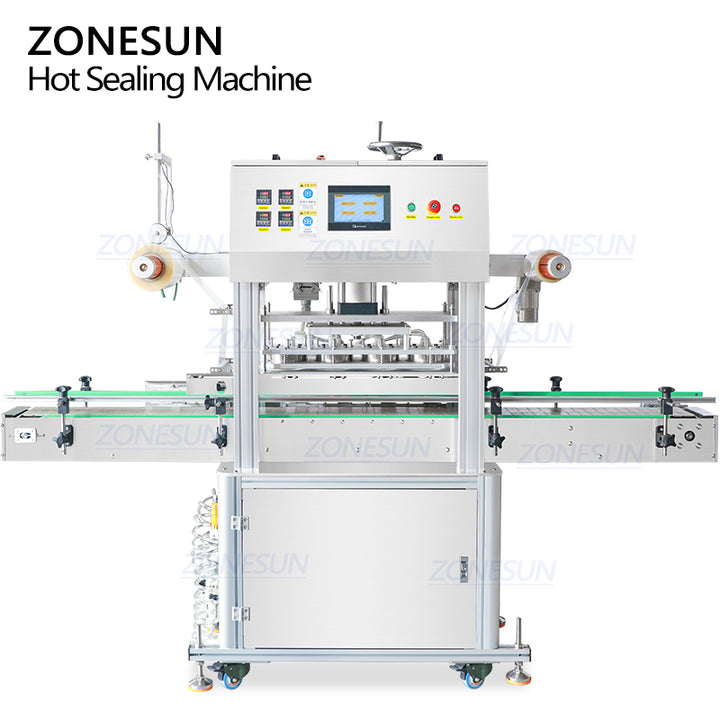

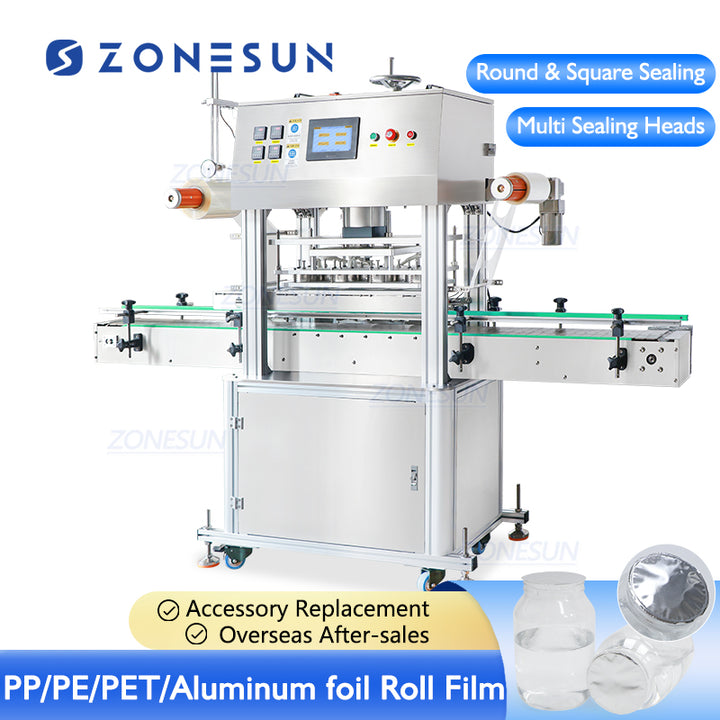

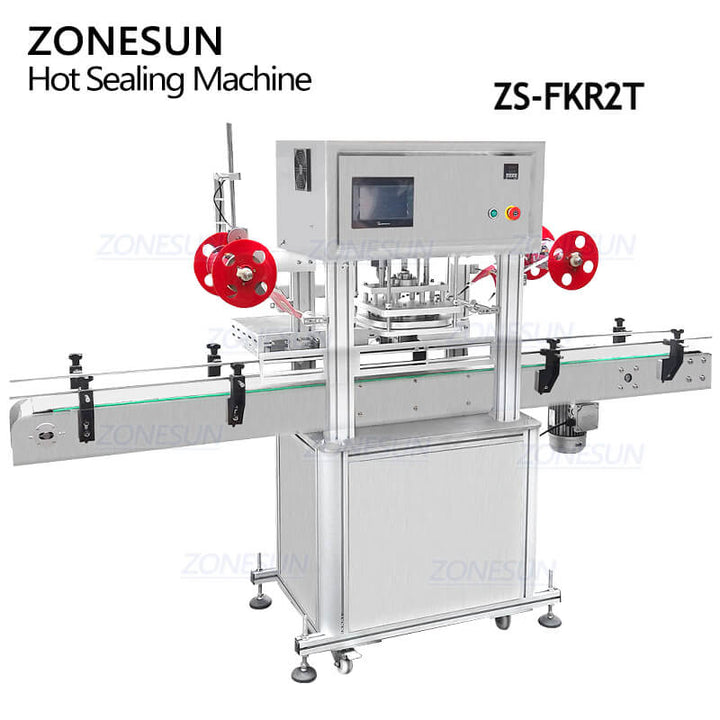

ZS-FKR2T Automatic Double Head Plastic PET Film Jar Top Sealer Wet Tissue Bucket Aluminum Foil Roll Film Bottle Heat Press Sealing Machine

Voltage
Sealing Heads
Price
Regular price $10,299.00 USD
Regular price Sale price $10,299.00 USD
Save $-10,299 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

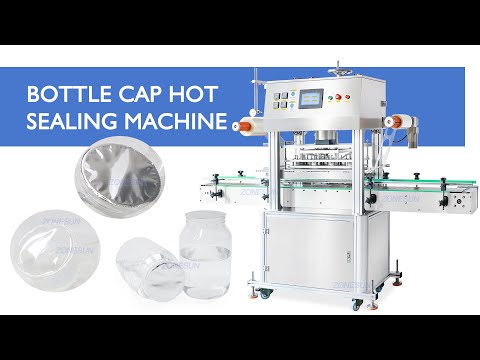

Video For Roll Film Sealing Machine For Jars

This sealing machine is designed for sealing bottles with roll film instead of precut packaging film..The sealing temperature can be customized as production need. It is widely used in food, chemical, cosmetics and other industries.

Parameter

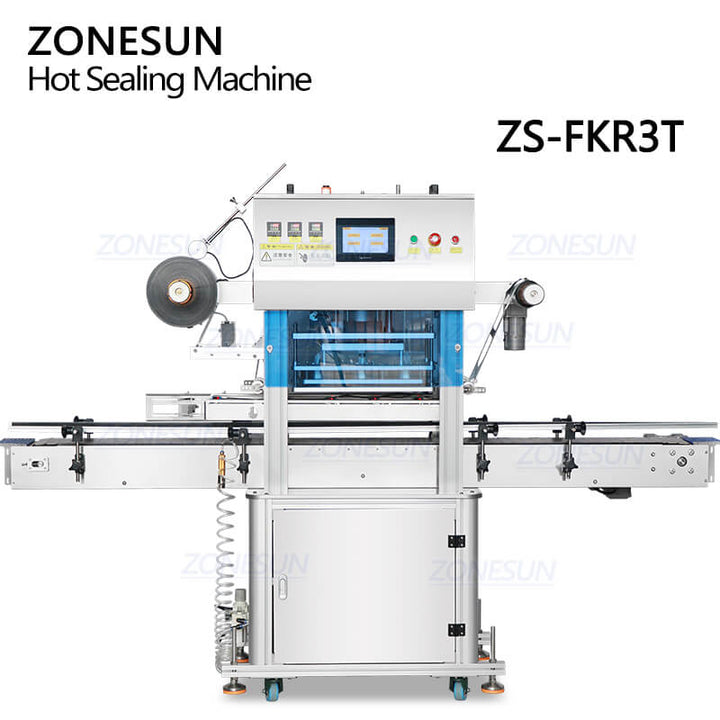

  • Machine model:ZS-FKR2T/ZS-FKR4T
  • Machine voltage:110/220V 50-60HZ 2KW
  • Quantity of sealing heads:1/2/3/4 (can be customized based on bottle size)
  • Working speed:About 900-1200BPH/1400-1800BPH
  • Heating temperature:About 0-300℃
  • Sealing diameter:50-250mm( round or square can be customized )
  • Suitable film size:2-3mm larger than bottle mouth
  • Suitable film material:PP/PE/PET/PS/ Aluminum foil film
  • Aire pressure:4-8kg/cm²
  • Machine size: About 2400*870*1700 mm
  • Package size: About 2450*830*2040 mm
  • Machine weight:About 450kg
roll film cup sealing machine
application of roll film sealing machine
datasheet of roll film sealing machine

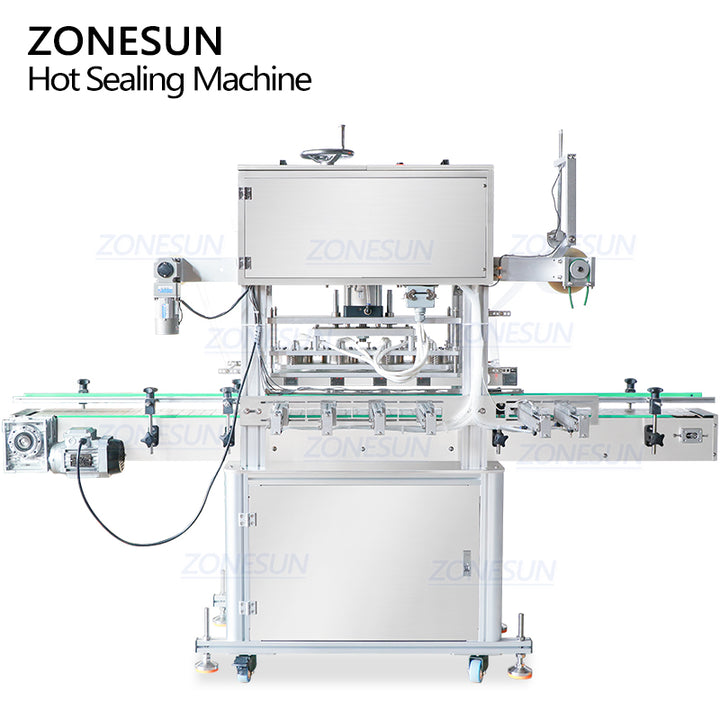

machine component of roll film sealing machine

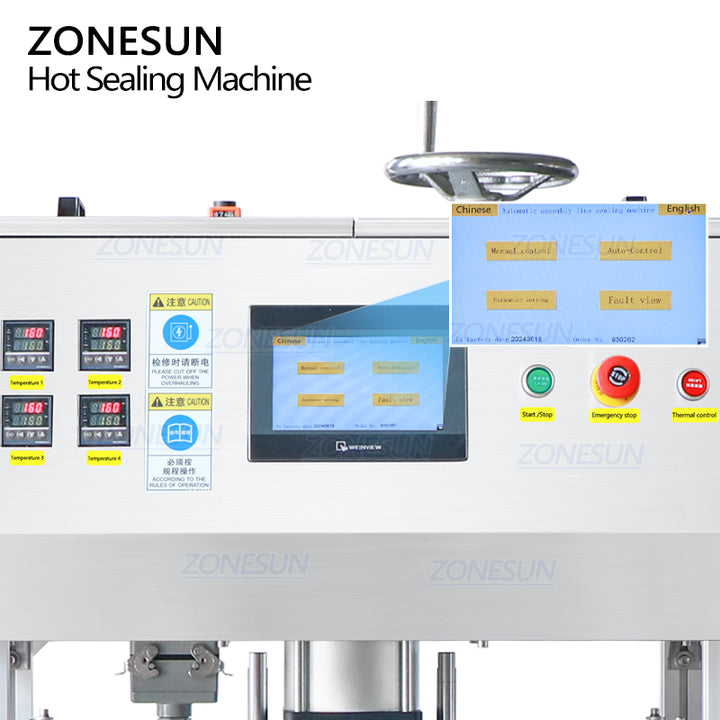

control panel of roll film sealing machine
Control Panel
Sealing temperature and other working data can be set conveniently

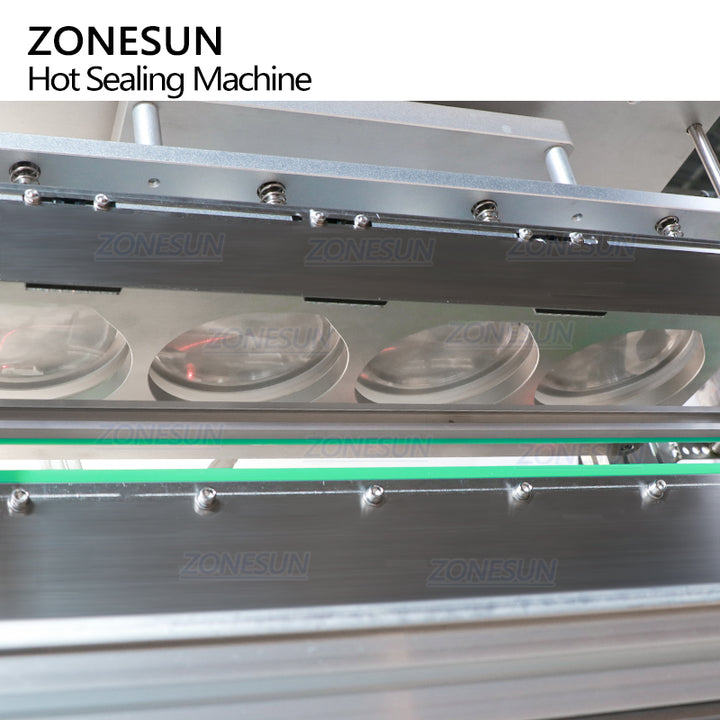

sealing structure of roll film sealing machine
Sealing Structure
Molds can be changed for different size and shape

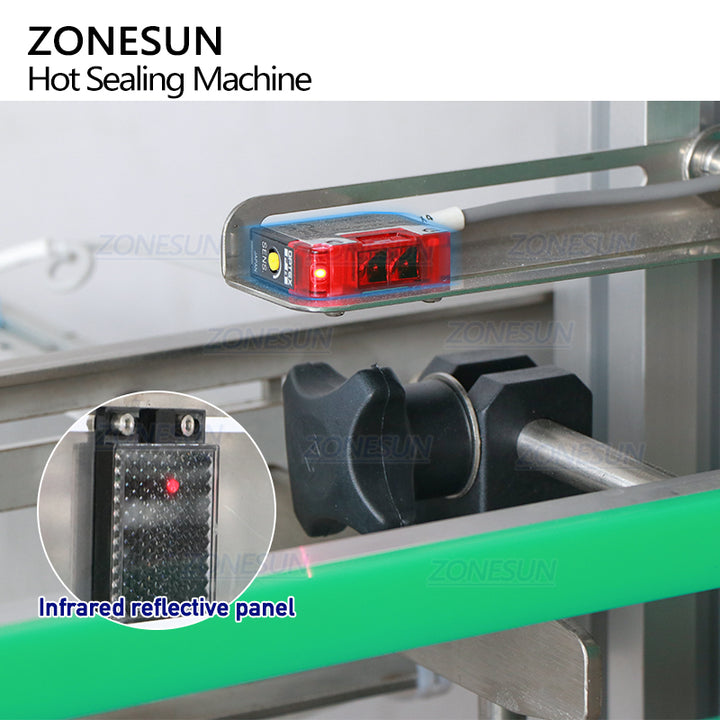

electric eye of roll film sealing machine
Electric Eye
Detect bottles and control the sealing work automatically

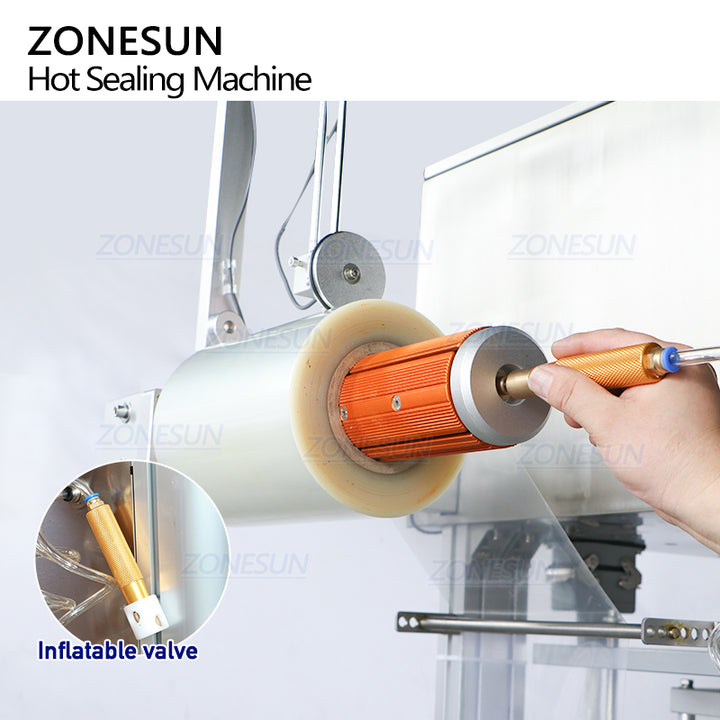

roll film holder of roll film sealing machine
Roll Film Holder
With fixing components to ensure packaging film can be pulled smoothly
rotary knob of roll film sealing machine
Rotary Knob
This is for adjusting machine working height according to bottle size
conveyor of roll film sealing machine
Conveyor
Larger weight capacity, width and length can be customized as needed



wet tissue bucket sealing machine
wet tissue bucket sealing machine-1
