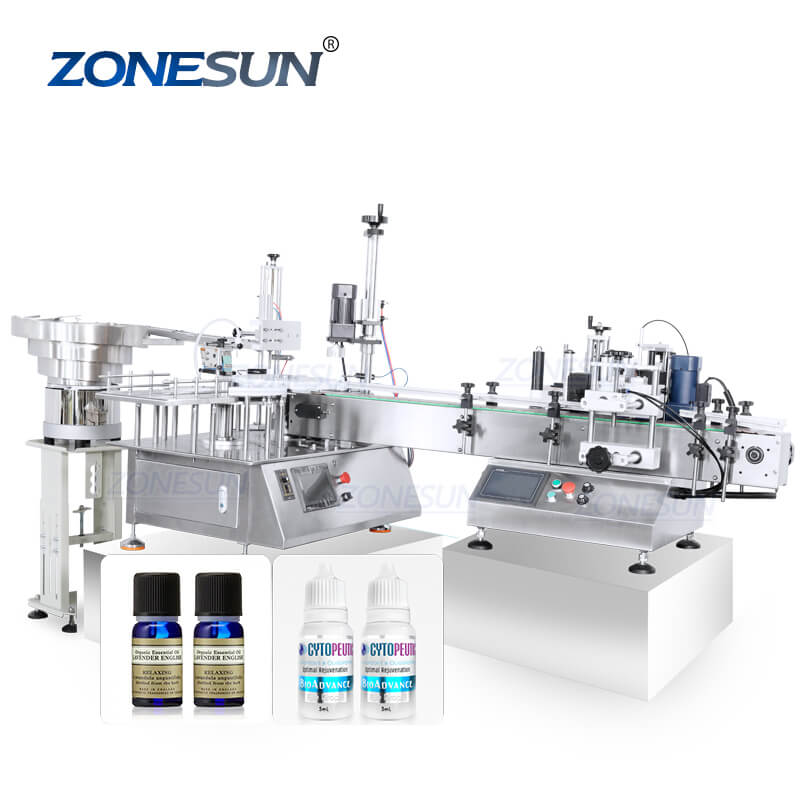

This desktop filling line is consist of small monoblock filling capping machine and labeling machine, it is used to package liquid products into small bottles like essential oil, alcohol sprays.

Parameter

Filling Capping Machine

• Machine Model:ZS-AFC7B
• Voltage:220V/110V 50-60Hz
• Power:1000W
• Filling Pump:Magnetic Pump
• Working Capacity:About 20-30 bottles/min(based on bottle size)
• Filling Range:10-100ml
• Suitable Bottle Height:About 30-60mm
• Suitable Bottle Diameter:About 20-50mm
• Bottle Cap Size:Can be customized
• Max Flow Rate:3L/min(based on water)

Labeling Machine

• Machine Model:ZS-TB500
• Voltage:110V- 60HZ / 220V-50HZ
• Working Speed:About 20-50bottles/min
• Suitable Labeling Size:15-140mm(W)*25-300mm (L)
• Roll Inside Diameter:φ76mm
• Roll Outside Diameter:φ350mm
• Suitable Bottle Diameter:≤100mm
• Package Size:About 1290*860*900mm
• Package Weight:About 130kg

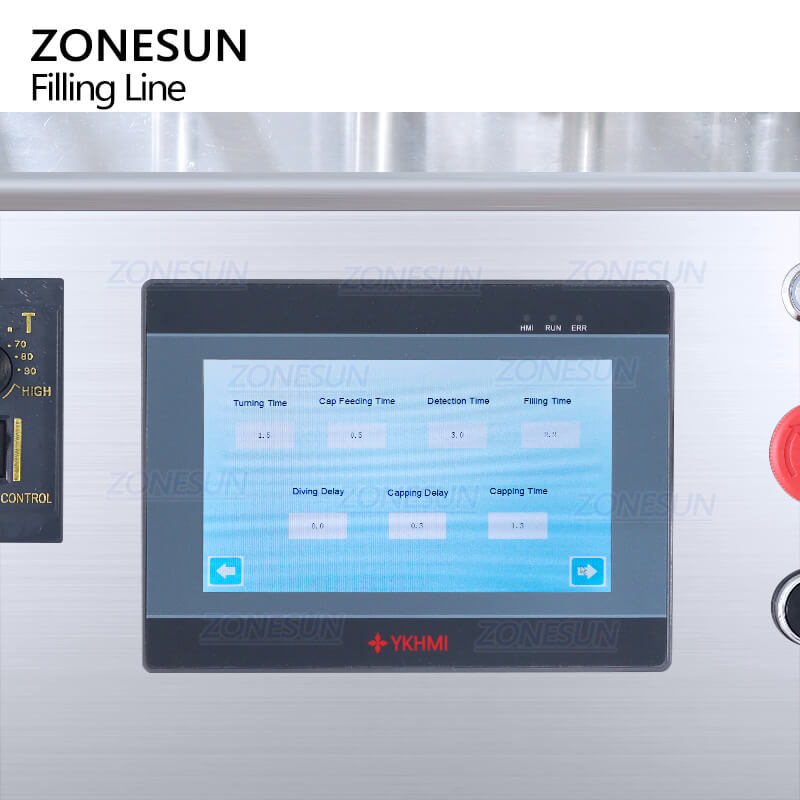

Equipped with PLC panel, it is easier to set and adjust working parameters. The language of panel can be customized as your need.

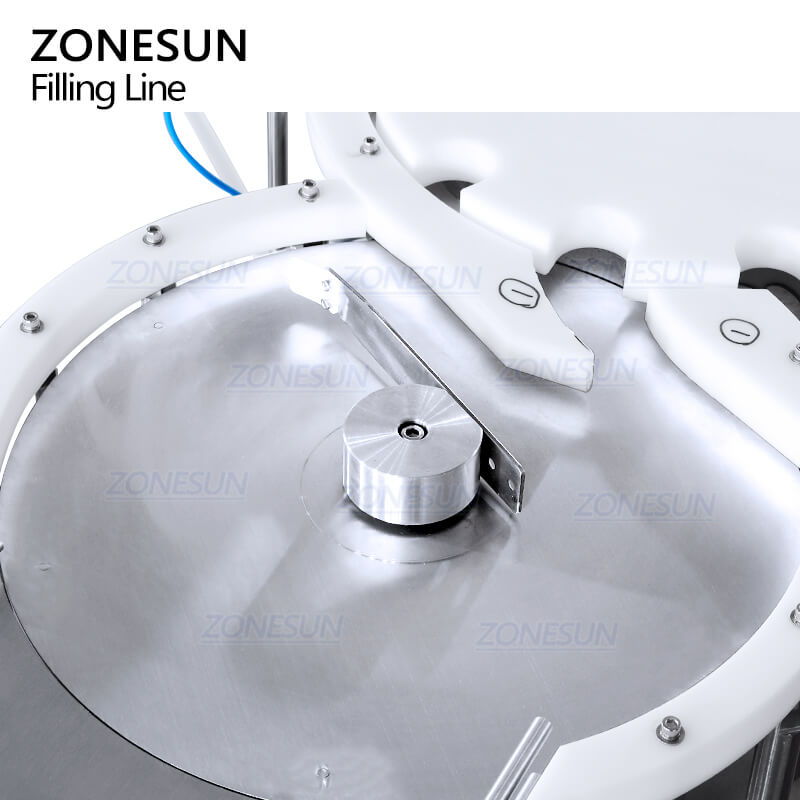

The turntable is designed for arranging bottles in order before production. The rotating speed can be adjusted as production need.

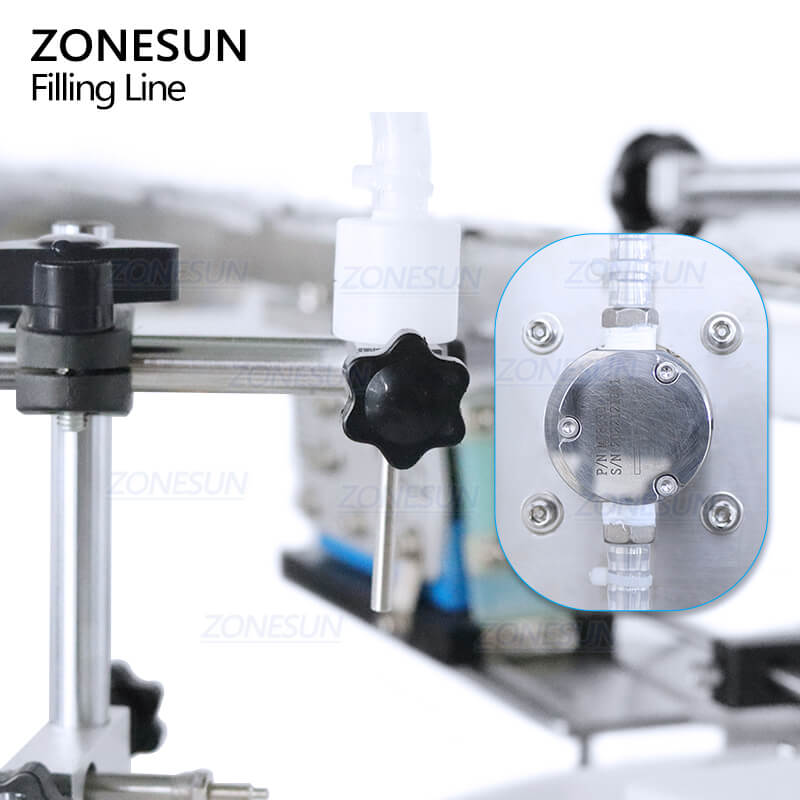

Equipped with magnetic pump, it has high filling accuracy, suitable for filling essential oil, perfume. The working height of nozzle can be adjusted according to bottle height.

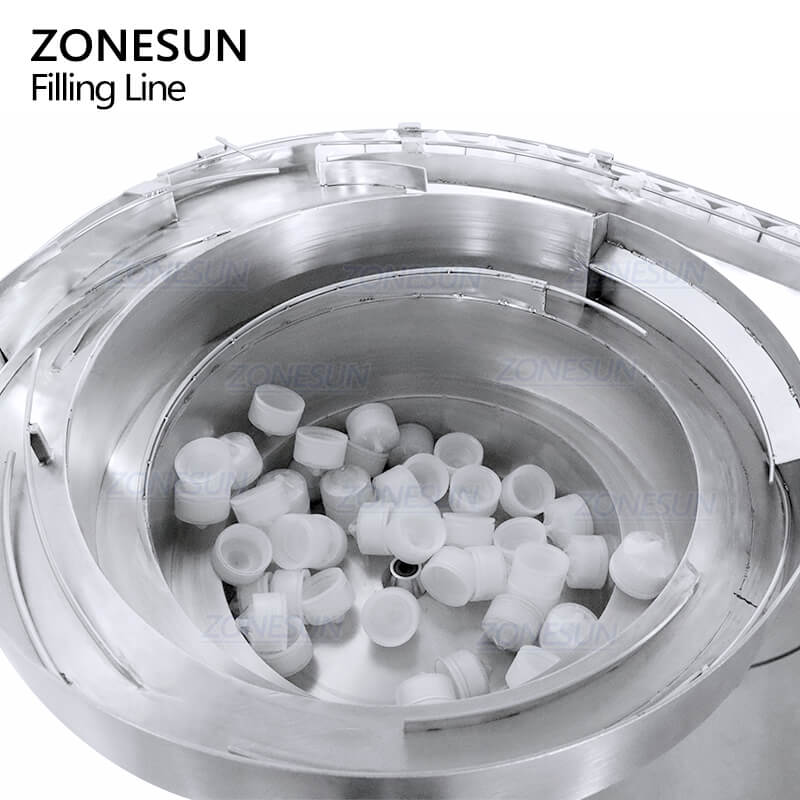

The vibratory bowl is used for feeding bottle caps, saving labor cost. Its size can be customized according to cap size and shape.

Driven by powerful motor, it can tighten bottle caps well. The capping torque can be adjusted as production need. It can be customized according to your cap size.

With 3 rollers, the machine can label bottles accurately. It can be used for single side or double sides or full circle labeling on round bottles. It can also be equipped with date coder to print batch automatically.
