ZS-DTGT4T Automatic Desktop Lotion Cream Jam Bottle Piston Pump Liquid Paste Filling Machine

Voltage
Price
Regular price $3,899.00 USD
Regular price Sale price $3,899.00 USD
Save $-3,899 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Description

Designed for filling paste or thick liquid,this machine can work with desktop capping machine and labeling machine to save your working space and improve your production efficiency.Each nozzle of this machine can be controlled separately,we can customize multiple filling nozzles as your production need.This machine is widely used in food,daily chemical,cosmetics industries.

Parameter

Machine model:ZS-DTGT4T
Power:110/220V 50-60HZ About 300W
Filling range:10-100ml/30-300ml/50-500ml/100-1000ml
Working speed:20-30bottles/min(based on liquid&filling volume)
Hopper size:90L
Conveyor size:About 1300*100mm
Filling nozzle size:OD 10mm(can choose other size)
Filling accuracy:≤±1%
Machine size:About 1300*1440*1200 mm
Machine weight:About kg
Package size:About 1550*1400*1330mm
Package weight:About 237kg

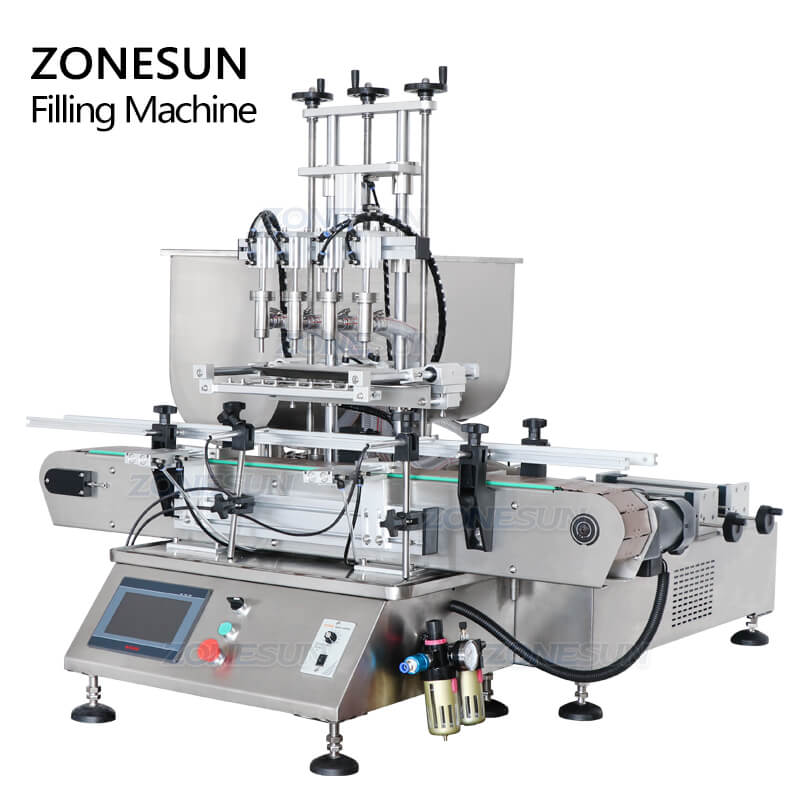

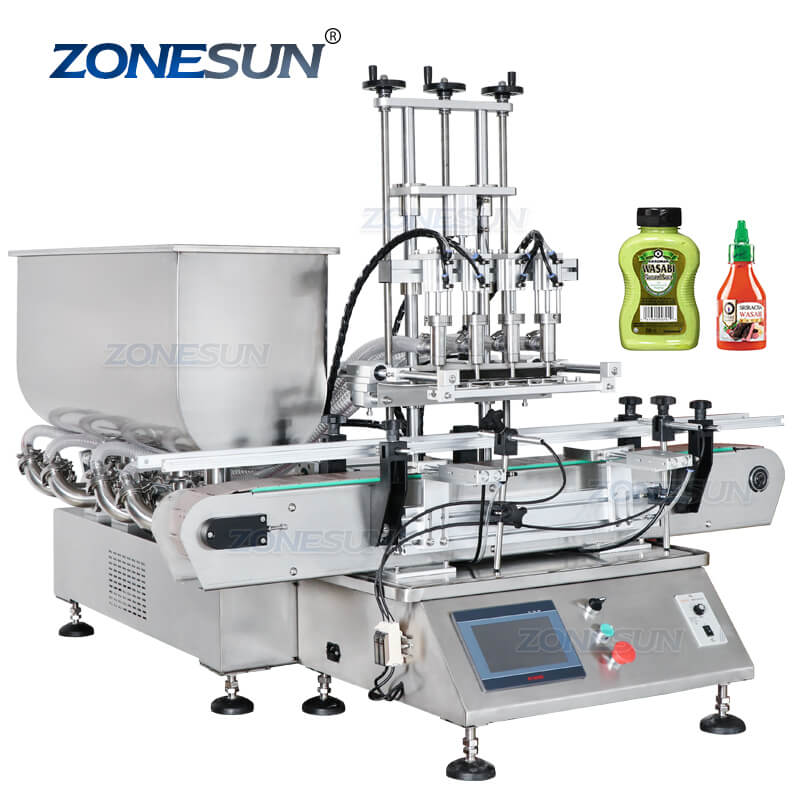

Automatic Desktop Paste Filling Machine

Application of Automatic Desktop Paste Filling Machine

Details of Automatic Desktop Paste Filling Machine

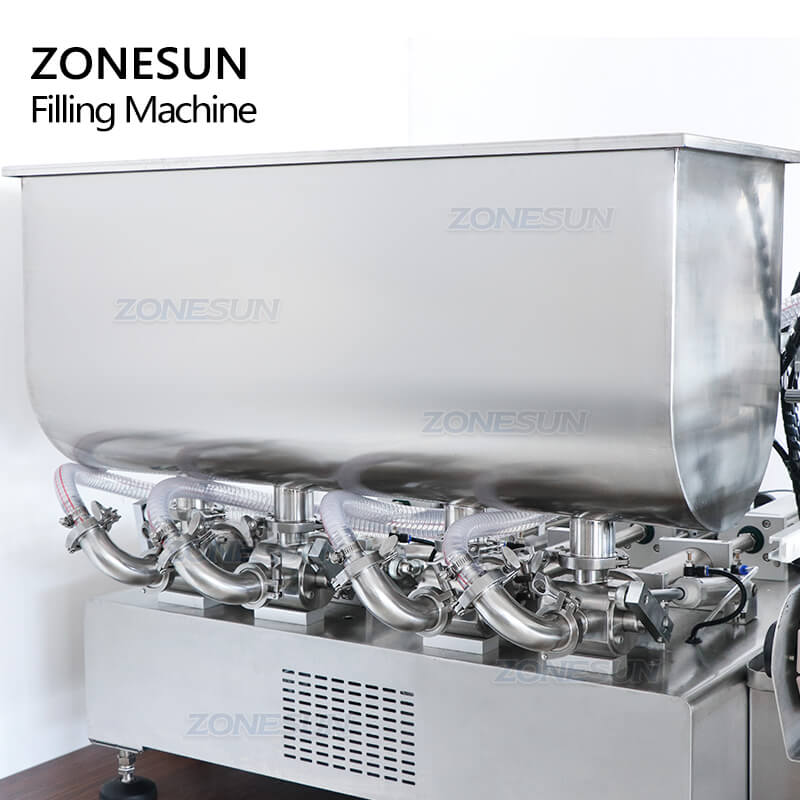

Hopper of Automatic Desktop Paste Filling Machine

Equipped with 90L large hopper,this better for making the liquid flow faster and can feed filling material in time,improves working speed.

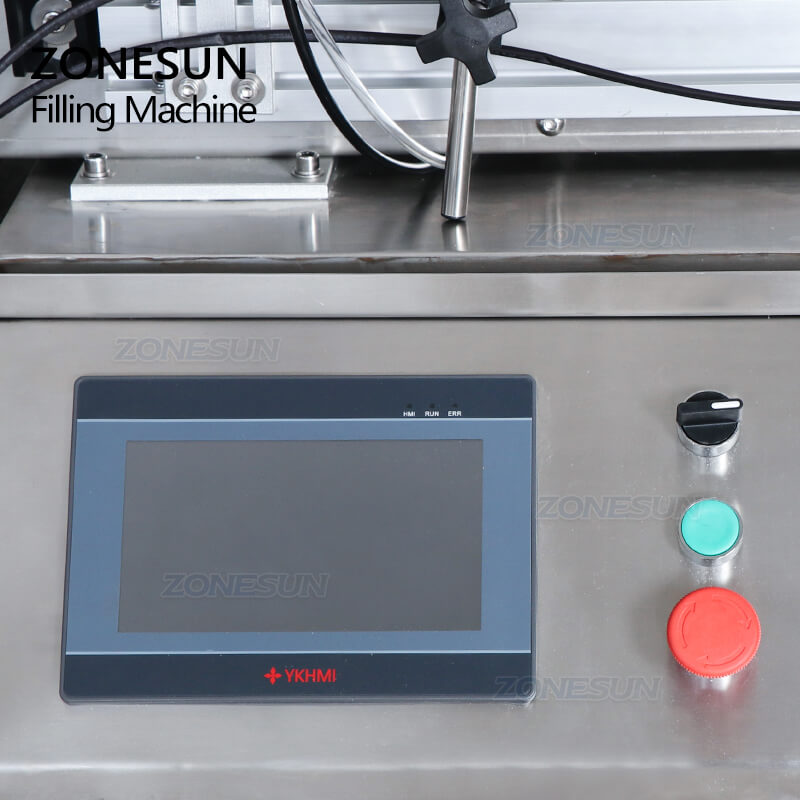

Operation Panel of Automatic Desktop Paste Filling Machine

Designed with PLC touch screen control panel,the digital display makes the working data be visual  and can watch the working status of the machine in real time,reduce production error.

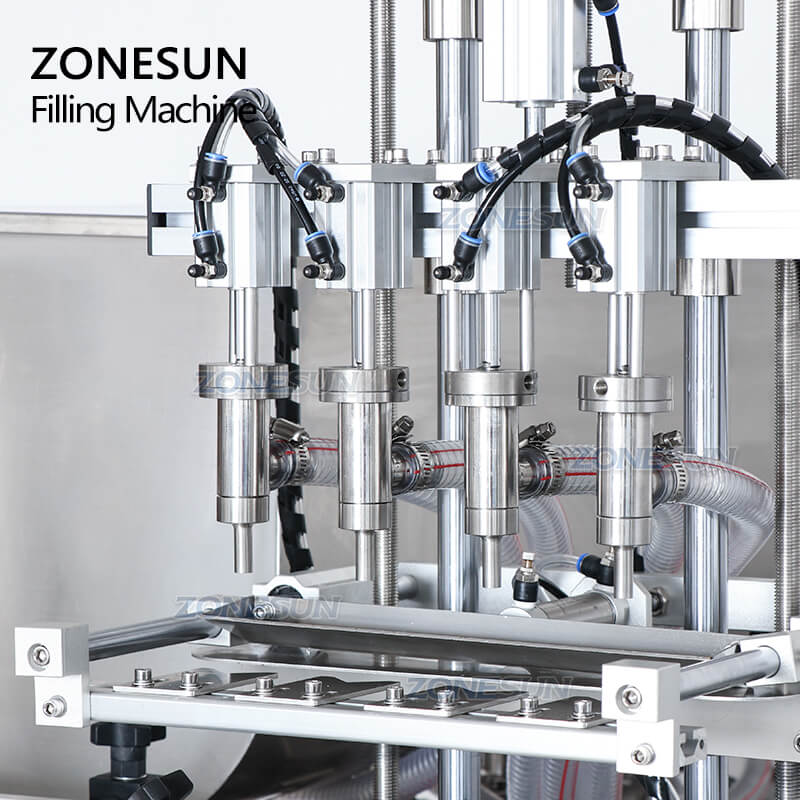

Filling Nozzle of Automatic Desktop Paste Filling Machine

Equipped with the pneumatic filling nozzle,which has larger power and can improve filling speed when fill thicker liquid.There is a anti-dripping slot,it can ensure the production cleanliness.The bottle clamping plate will fixed bottles ,this prevent that bottles fall down during filling.

Electric Eye of Automatic Desktop Paste Filling Machine

High quality electric eye can detect bottles when they pass by,prevent from missing or wasting filling material during producing,the sensitivity of the electric eye can be adjusted according to operation need.

Cylinder of Automatic Desktop Paste Filling Machine

The filling volume can be adjusted by the black rotary knob.Through the small knob to adjust the air intake and air output, you can indirectly control the filling speed and waiting time of the machine

Conveyor of Automatic Desktop Paste Filling Machine

The chain conveyor belt is with larger weighing capacity,it is suitable for filling large volume.The conveying speed can be adjusted according to operation need.It can transport bottle smoothly.The length and width of conveyor can be customized according to production need.

Automatic Desktop Paste Filling Machine
