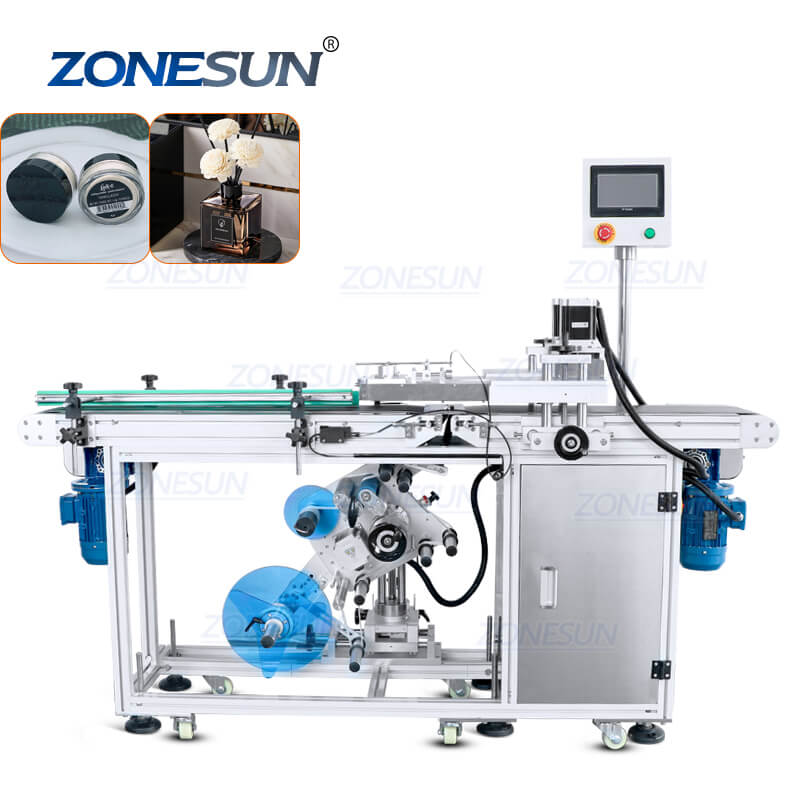

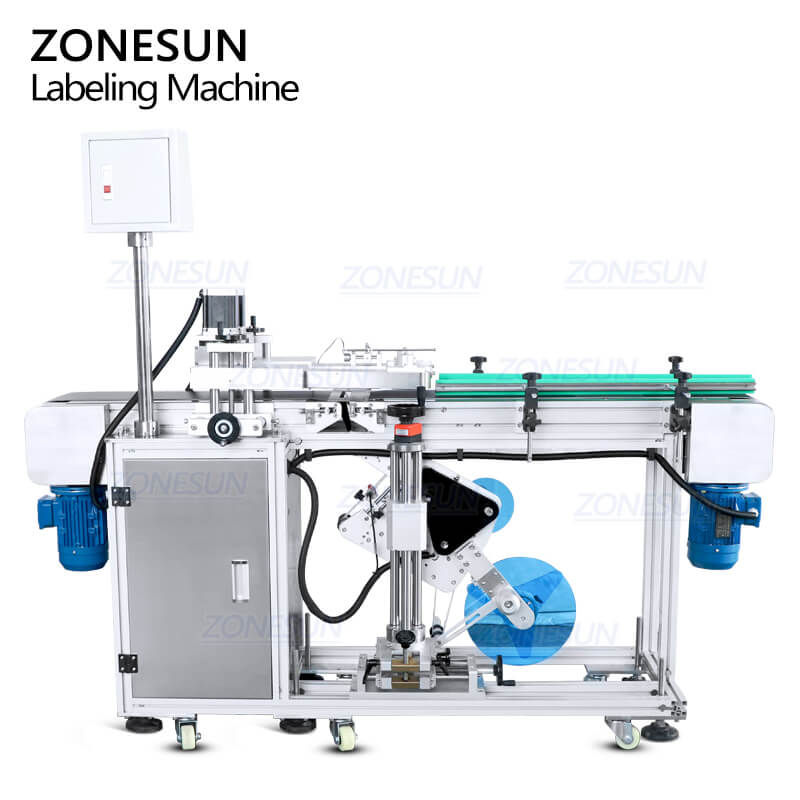

This automatic labeling machine is designed for labeling stickers on the bottom side of bottles.It is not only good for flat surface,but also the slightly arc surface.The high accuracy labeling makes it can be widely used in food,daily chemicals, cosmetics industries.

Parameter

Model:ZS-TB125 Labeling Machine
Power supply:AC220V 50Hz/60Hz （2000W）
Labeling capacity(bottles/min):25-150 pieces/min(depends on bottle size)
Labeling accuracy(mm):±1.0mm
Suitable product size:About 40-400mm*40-100mm*30-100mm(L*W*H)
Label size(mm):(L)6-250mm* (W)20-160mm
Roll inside diameter(mm):Φ76mm
Roll outside diameter(mm):Φ280mm
Conveyor Size:200*1900mm(W)
Machine size:About (L)1900*(W)800*(H)1550(mm)
Machine weight:About 217kg
Packing Size:About (L)2050*(W)950*(H)1715(mm)
Package weight:About 315.5kg

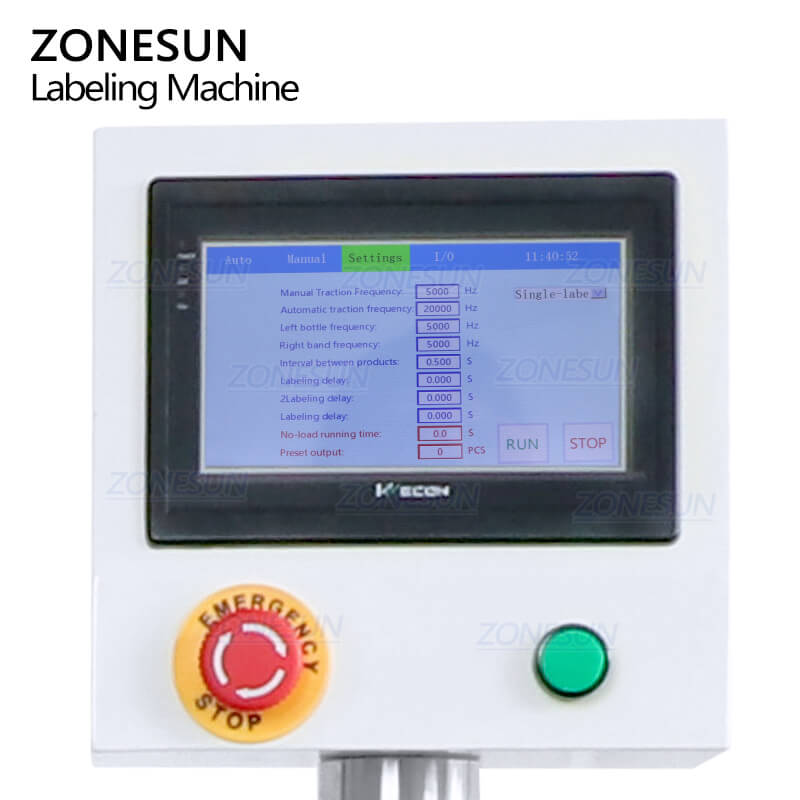

This machine is designed with high quality touch screen control panel,which shows parameter more clear,the visual parameter can be adjusted easier as well.This is good for production management.

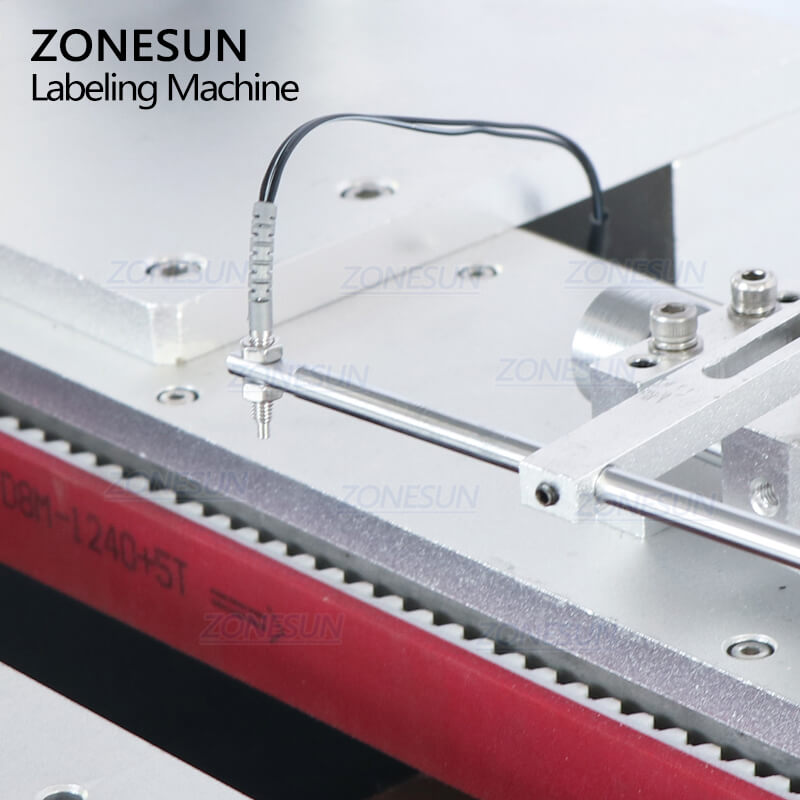

The machine is equipped with high quality electric eye,which is designed for detecting bottles and send signal to control the labeling work.The bottle guiding device can make bottles be in order during labeling,improve labeling quality.

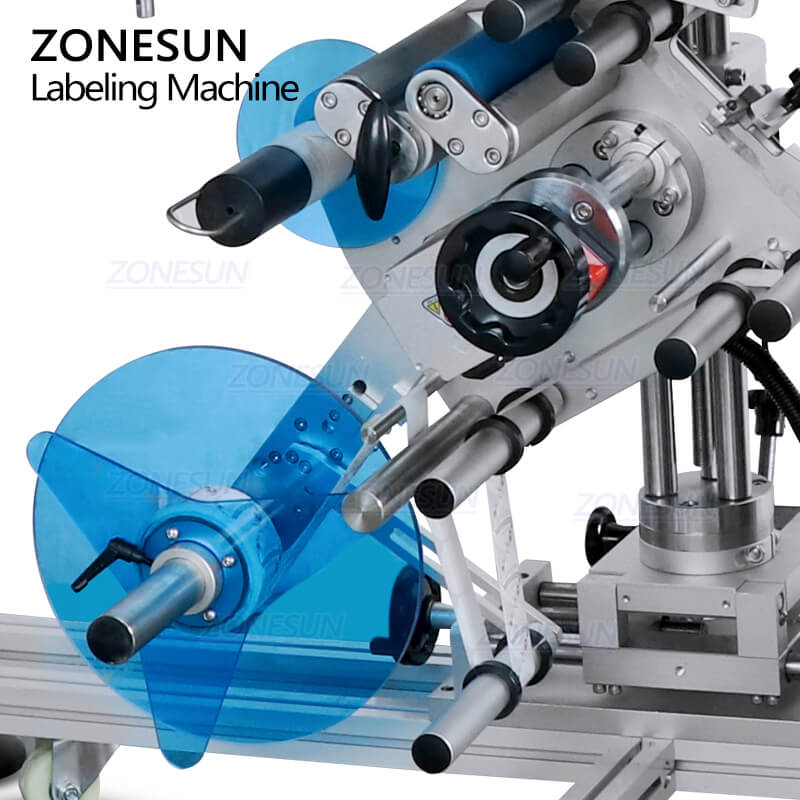

High quality labeling structure,it is suitable for flat surface labeling,the label separating blade can be adjusted according to labeling products.This improves labeling effect and working efficiency.

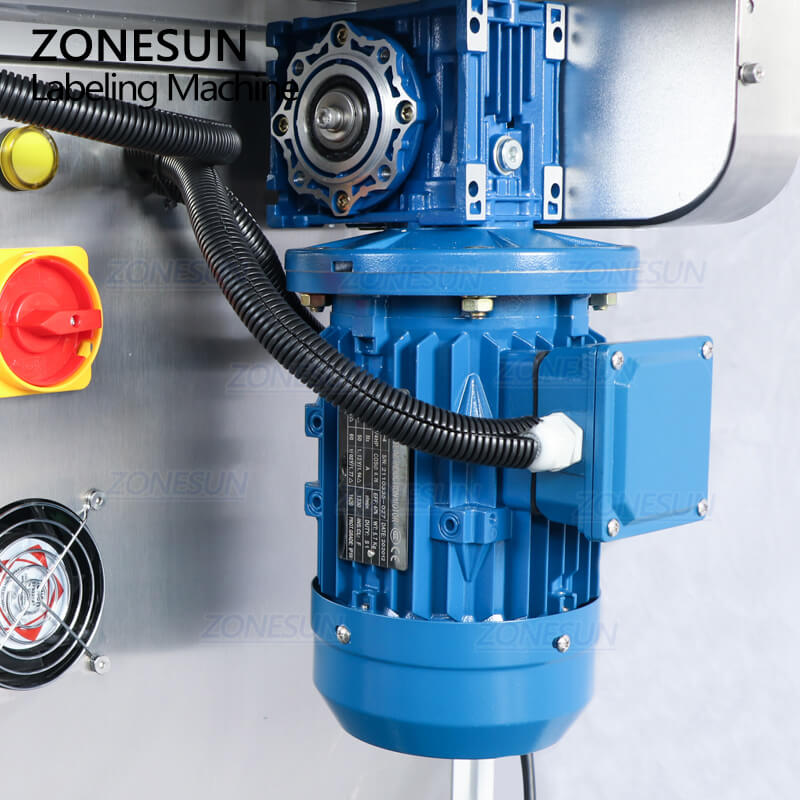

The wider conveyor belt can help to transport bottles smooth and faster, protective bar can be adjusted according to bottle diameter,prevents that bottles fall down during working.
