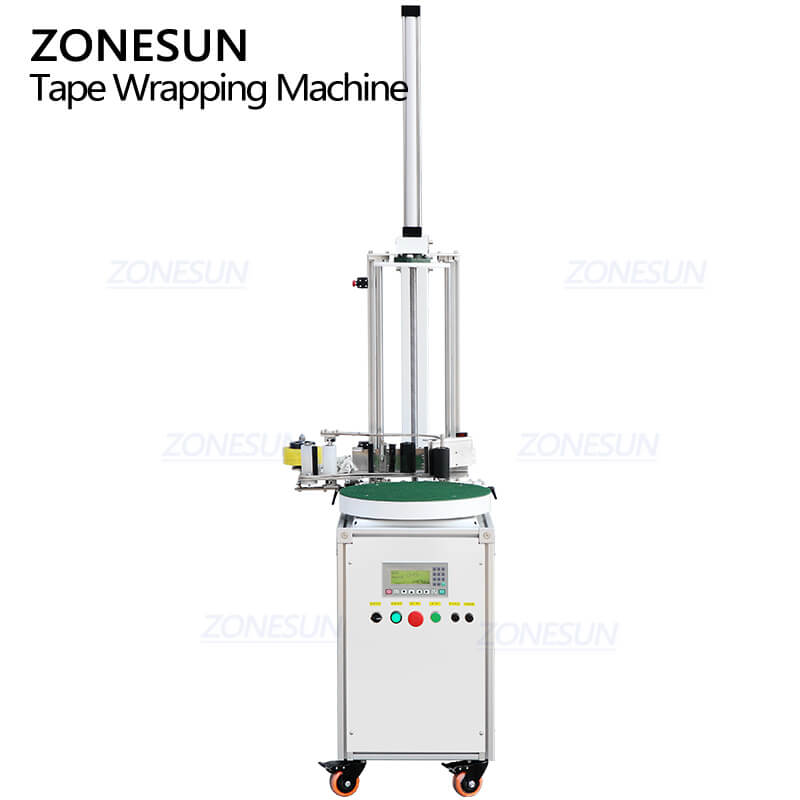

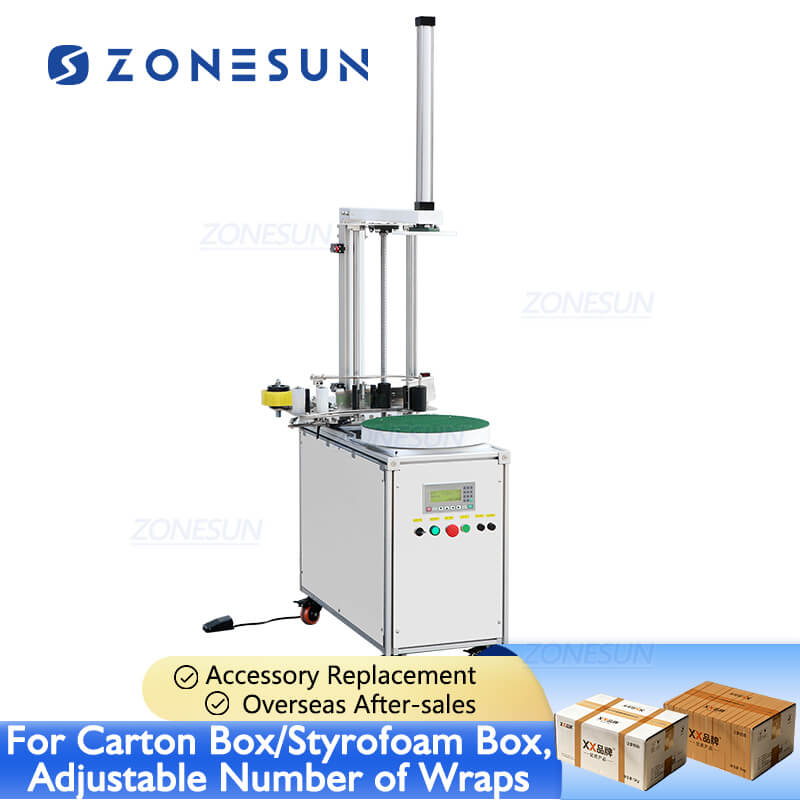

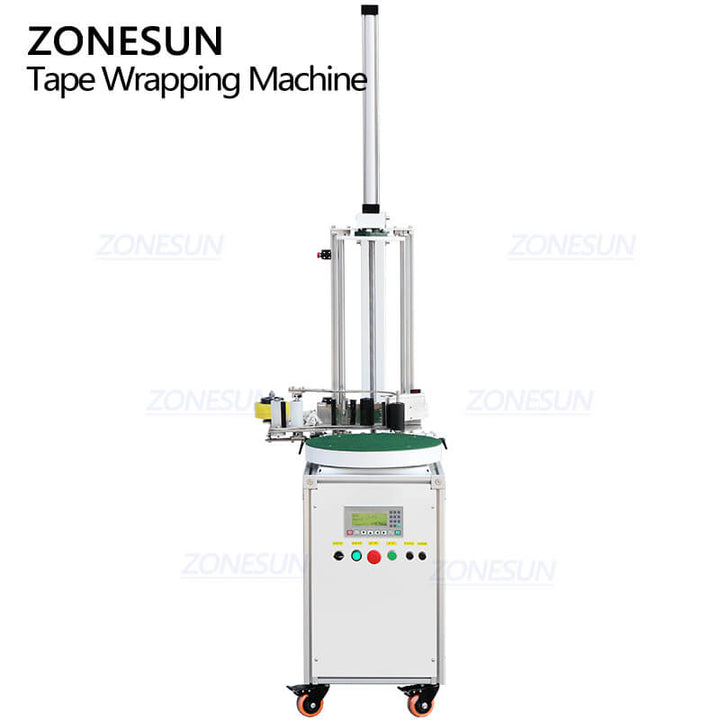

ZONESUN ZS-TW5050 Automatic Paper Carton Turntabl Tape Wrapping Vertical Strapping Binding Sealing Machine for Box Reinforcement

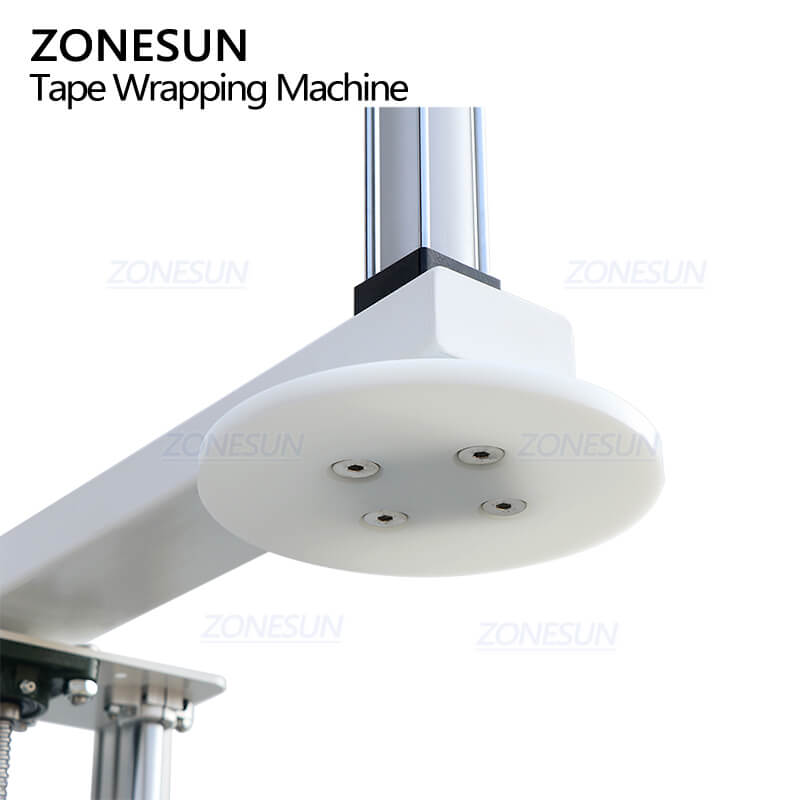

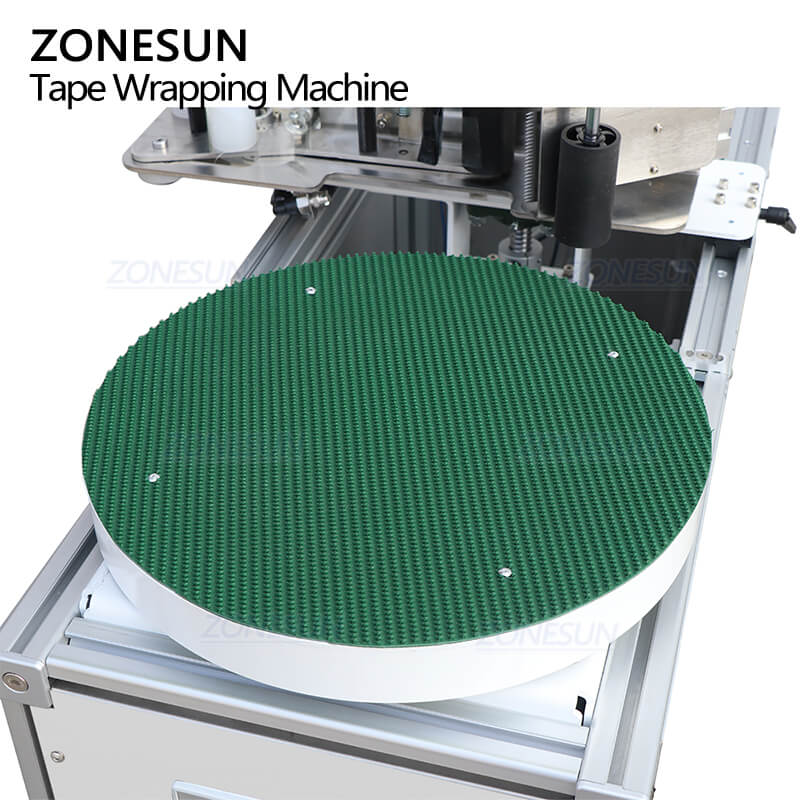

This ZONESUN carton turntable tape wrapping machine is designed to provide full-surface reinforcement for carton boxes and styrofoam boxes, making them more stable during storage and transportation. By applying adjustable layers of tape in a continuous wrapping motion, it effectively strengthens the overall structure of the package and reduces the risk of deformation or damage. Equipped with a rotating turntable and pneumatic pressure head, the machine securely holds each carton in place while completing smooth and consistent wrapping. The number of wraps and rotation speed can be freely adjusted, allowing it to adapt to different packaging requirements and box sizes. Compared with manual taping or traditional strapping methods, this machine delivers a more efficient, cost-effective, and visually clean packaging solution—ideal for e-commerce, logistics, food industries.

Turntable Tape Wrapping Machine Parameter

• Machine Model: ZS-TW5050
• Voltage: AC 110V/220V, 50/60Hz
• Power: 300 W

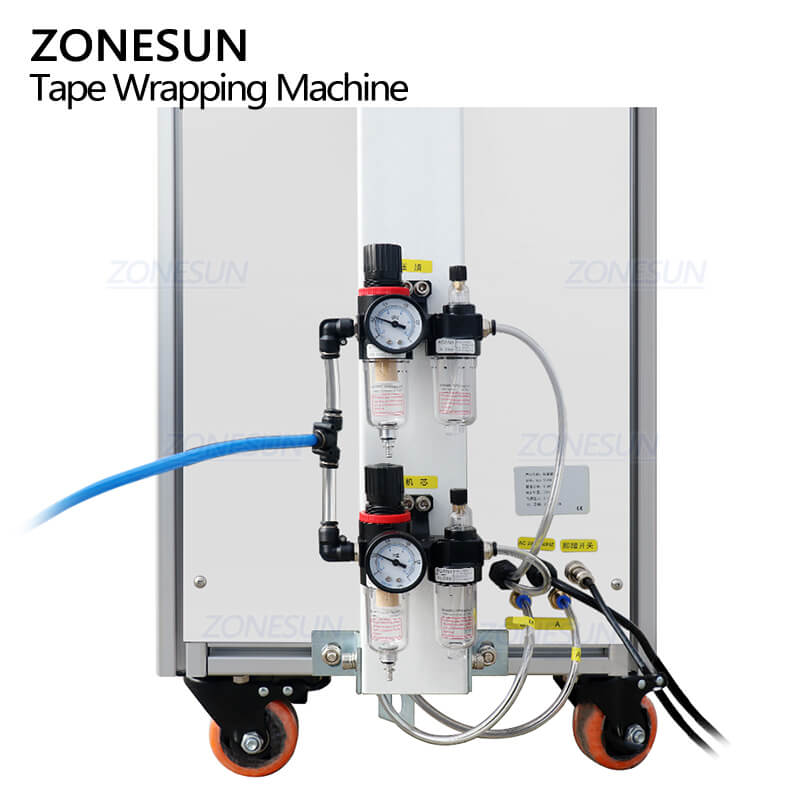

• Air Supply: 2 Mpa
• Load Capacity: ≤30 kg
• Tape Size: Applicable Width: ≤60mm, Thickness Range: ≥45, Core Inner Diameter(ID): ≥75 mm, Roll Outer Diameter(OD): ≤200 mm
• Min. Carton Wrapping Size: 250*250*150 mm(L*W*H)
• Max. Carton Wrapping Size: 500*500*500 mm(L*W*H)
• Turntable Speed: 0–30 rpm
• Machine Weight: About 120 kg
• Machine Size: 617*971*2027 mm
• Package Weight: 140 kg
• Package Size: 1200*670*1650 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
