ZONESUN ZS-FAL180A11 Automatic Carbonated Drinks Ring-Pull Can Rinsing Filling Sealing Machine Production Line
Regular price
$31,049.00 USD
Regular price
Sale price
$31,049.00 USD
Save $-31,049 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

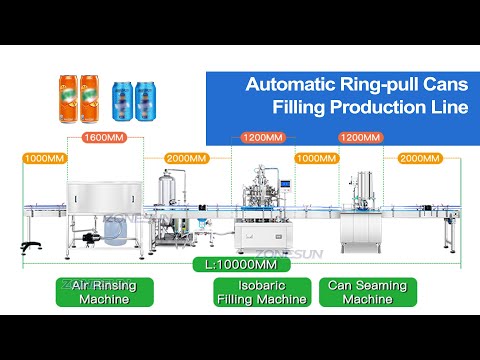

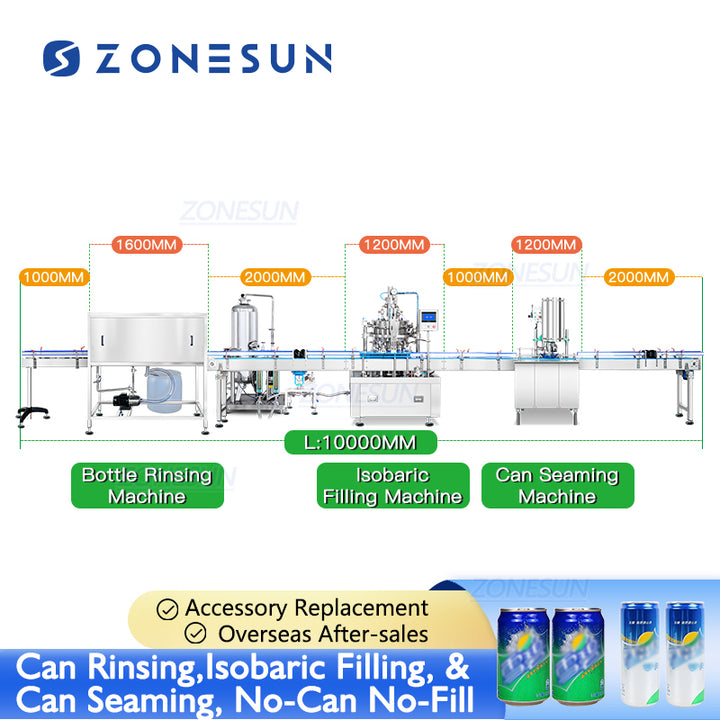

This can filling packaging line consists of a rinsing unit, an isobaric filling machine to a mixing tank, and a can capping machine. It features a can turnover conveyor, dedicated filling valves for high accuracy, automatic no-can-no-fill protection, and automatic liquid level control. The system is designed for stable, hygienic carbonated beverage can packaging.
Bottle Rinsing Machine Parameter
- Machine Model: ZS-WBC1
- Machine Voltage: 110/220V/380V 50-60 Hz (Customizable)
- Machine Power: 0.45 kW
- Working Capacity: 1000-2000 BPH
- Suitable Can Size: Customizable
- Machine Size: 2500*600*1650 mm
- Package Size: 2210*970*1850 mm
- Package Weight: 370 kg
Isobaric Filling Machine Parameter
- Machine Model: ZS-AFI12
- Voltage: 380V/50HZ
- Power: 1.1 kW
- Production Capacity: 1000-2000 BPH
- Suitable Can Diameter: ф40-80 mm (Specify One Size)
- Suitable Can Height: 50-150 mm (Specify One Size)
- Machine Size: 1200*1100*1600 mm
- Machine Weight: 700 kg
- Package Size: 1460*1310*2210 mm
- Package Weight: 1005 kg
Can Seaming Machine Parameter
- Machine Model: ZS-AFK300S
- Power: 0.75 kW
- Capping Heads Quantity: 1 (Customizable)
- Production Capacity: 2000 BPH
- Suitable Can Diameter: ф40-80 mm (Specify One Size)
- Suitable Can Height: 50-150 mm (Specify One Size)
- Machine Size: 3910*700*1820 mm
- Package Size: 1060*960*1880 mm
- Package Weight: 340 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

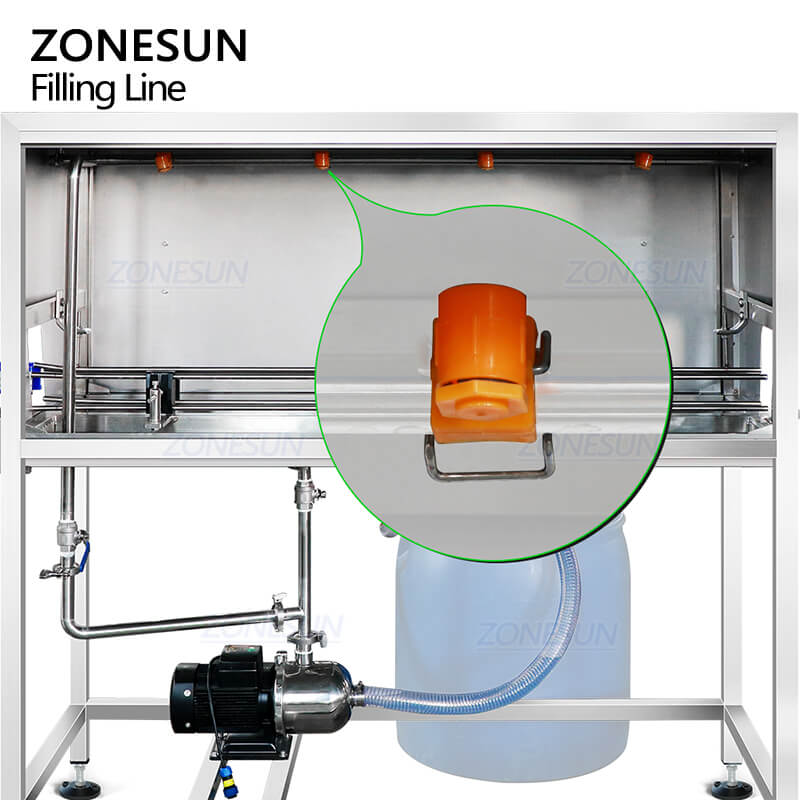

Rinsing Structure
Cleans cans before filling to ensure hygiene and product safety.
Cleans cans before filling to ensure hygiene and product safety.

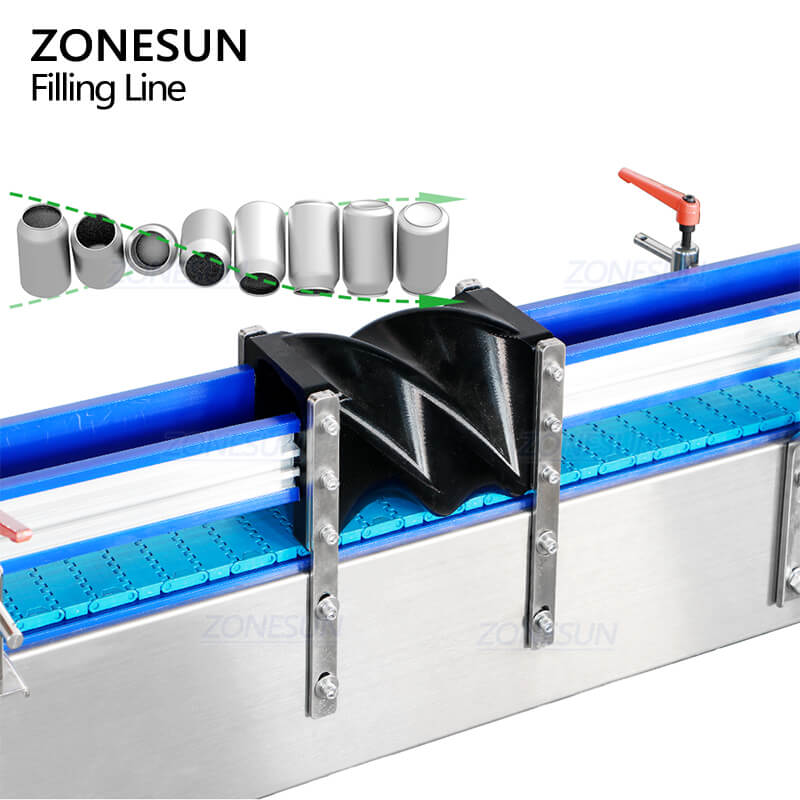

Can Turnover Conveyor System
Flips cans automatically on the conveyor to meet process requirements.
Flips cans automatically on the conveyor to meet process requirements.

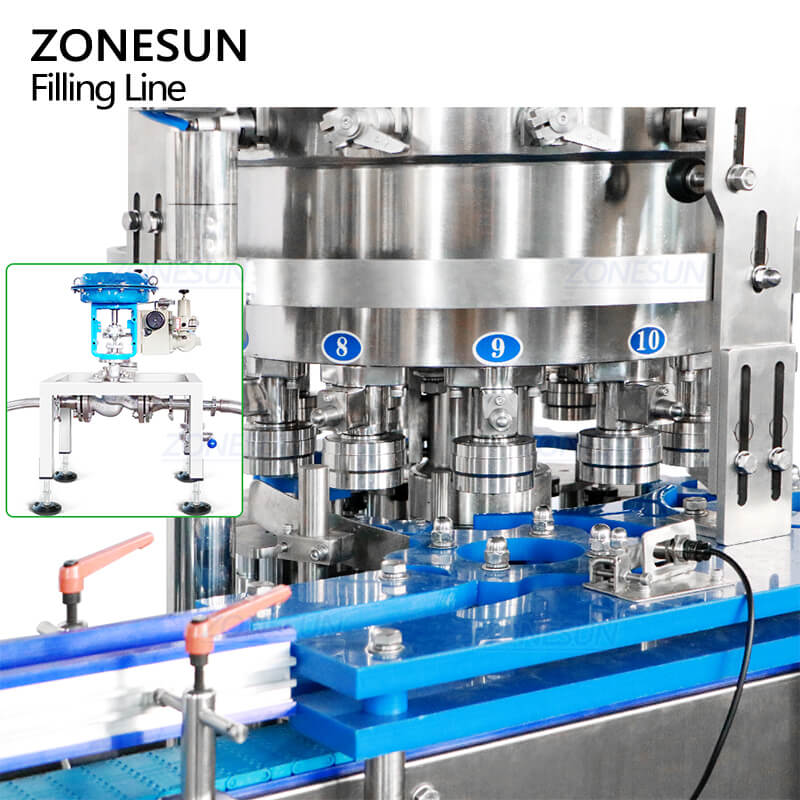

Isobaric Filling System
Uses specialized diaphragm valves to achieve accurate filling and stable liquid levels.
Uses specialized diaphragm valves to achieve accurate filling and stable liquid levels.

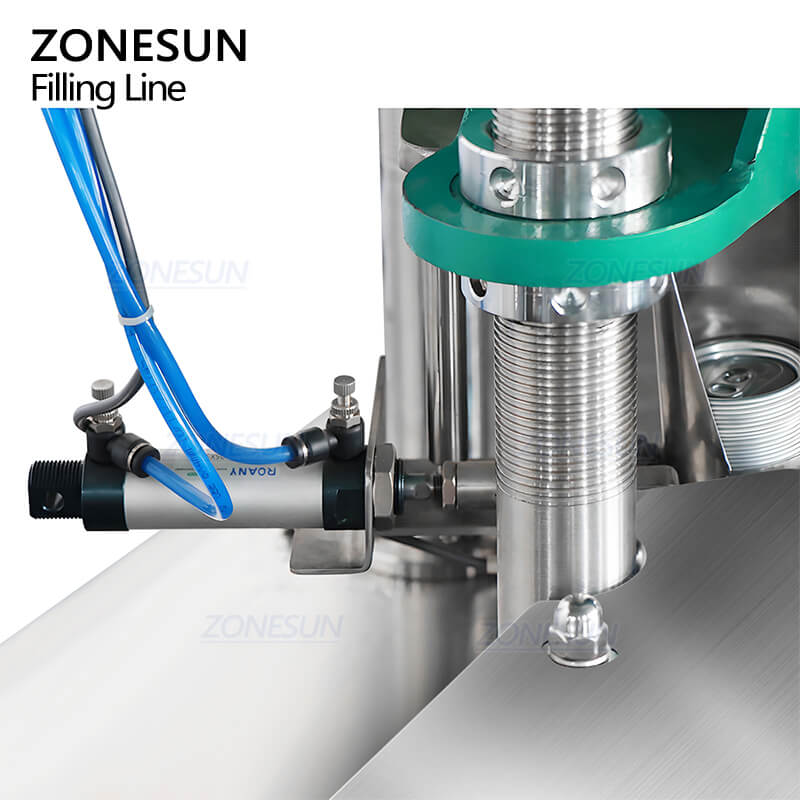

Cap Positioning & Feeding System
Ensures accurate cap feeding with protective mechanisms for smooth operation.
Ensures accurate cap feeding with protective mechanisms for smooth operation.

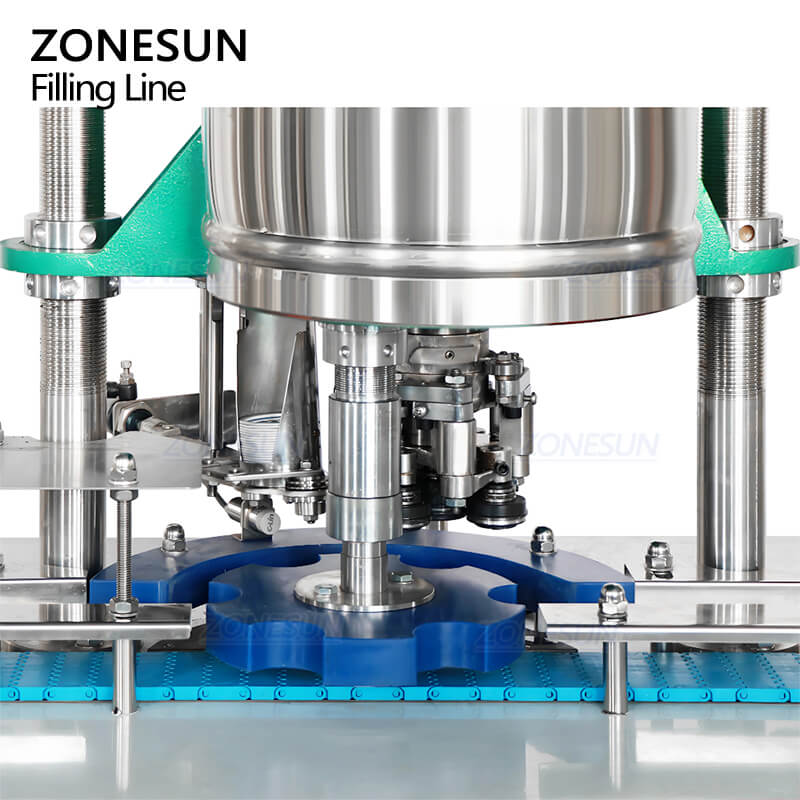

Magnetic Torque Capping System
Applies constant torque during capping to ensure secure sealing without damage.
Applies constant torque during capping to ensure secure sealing without damage.
