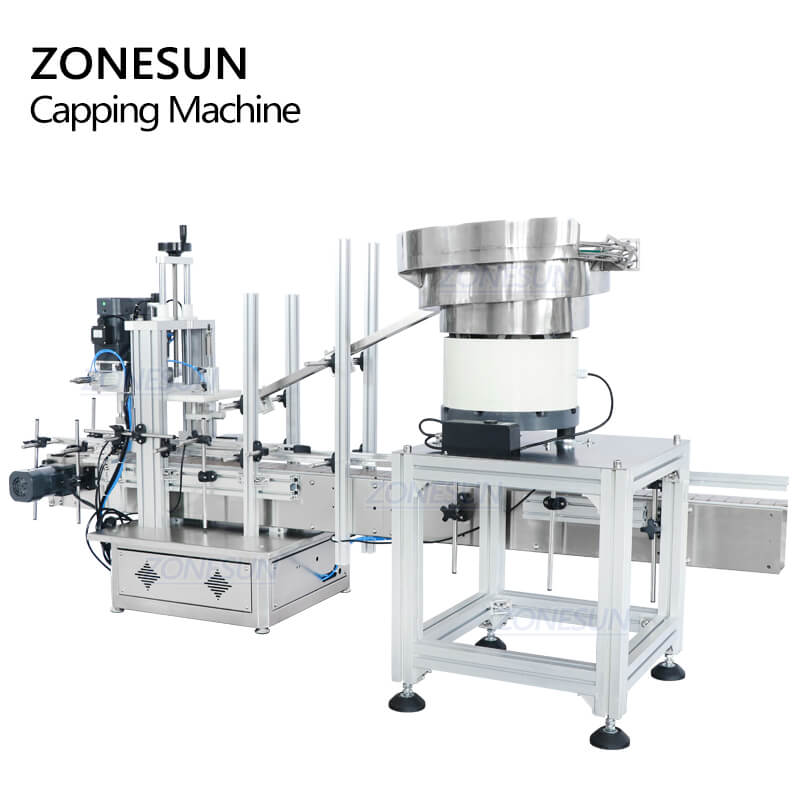

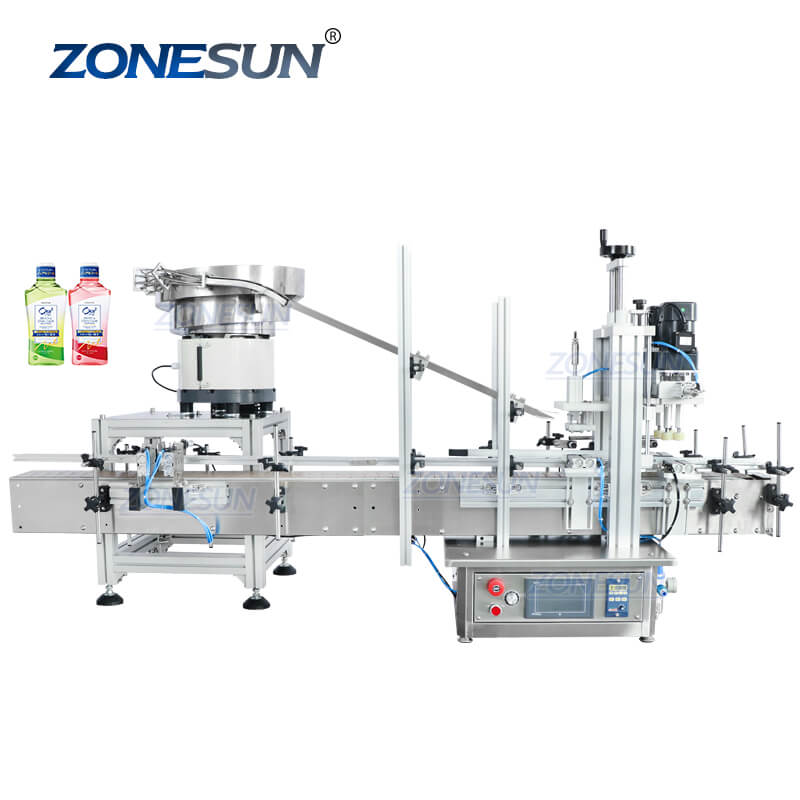

ZONESUN ZS-XG1870V Automatic Bottle Screw Capping Machines With Cap Feeder Vibratory Bowl Sorter
ZONESUN ZS-XG1870V Automatic Bottle Screw Capping Machines With Cap Feeder Vibratory Bowl Sorter
Regular price
$5,599.00 USD
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

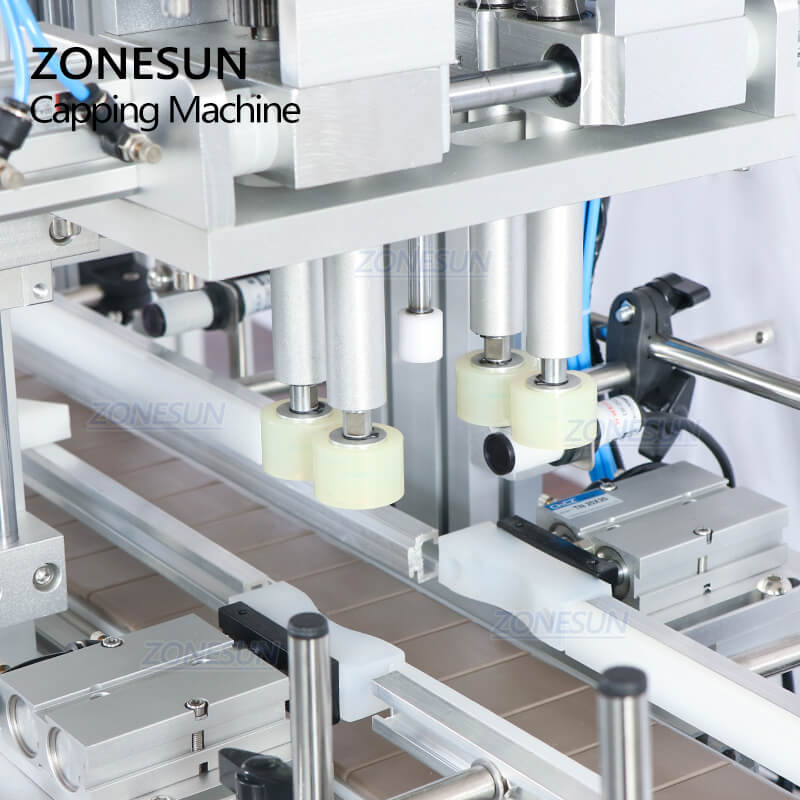

This tabletop automatic capping machine tighten bottle caps by screwing 4 rubber wheels.This kinds of capping method makes it has wider application range.It is suitable for spray bottles,dropper bottles etc.It is equipped with vibratory bowl,which can arrange bottle caps and feed bottle caps automatically,helps you save labor.
Parameter
Bottle height:60-270mm
Bottle Caps Diameter:18-70mm
Working speed:20-40 bottles/minute(depending on bottle and caps)
Working voltage:AC220V/110V 50-60HZ
Working pressure:0.4-0.6 MPa
Machine size:About 1120*580*1110mm
Package size:About 1160*610*1140mm
Package weight:About 97.5kg
Conveyor length:1117mm
Size of air compressor connector:OD 8mm
With PLC control panel,it is more convenient to adjust working parameter The language can be customized according to operation need.If you need this,please contact us.

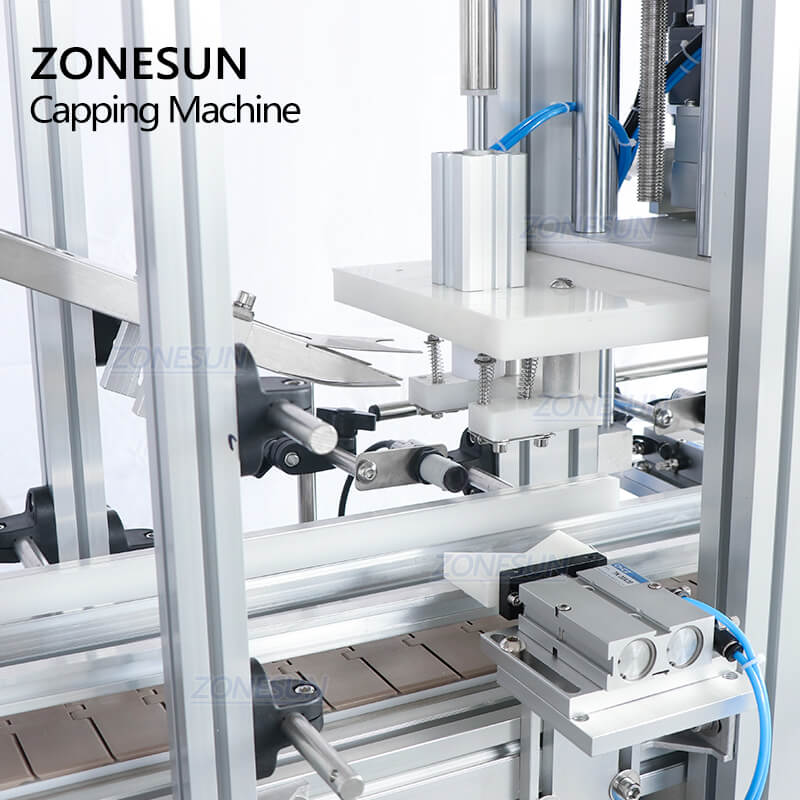

Designed for various shapes of bottle caps,like dropper bottles,spray bottles beverage bottle caps.It will press the bottle caps and tight it automatically Improve working efficiency greatly.
This machine is with electric eyes,can prevent from missing bottles,reduce the working error,the sensitivity of the electric eye can be adjusted by the black machine part during working.
With conveyor,this machine can transfer bottles automatically,save labor ,reduce the production process and improve the working accuracy.

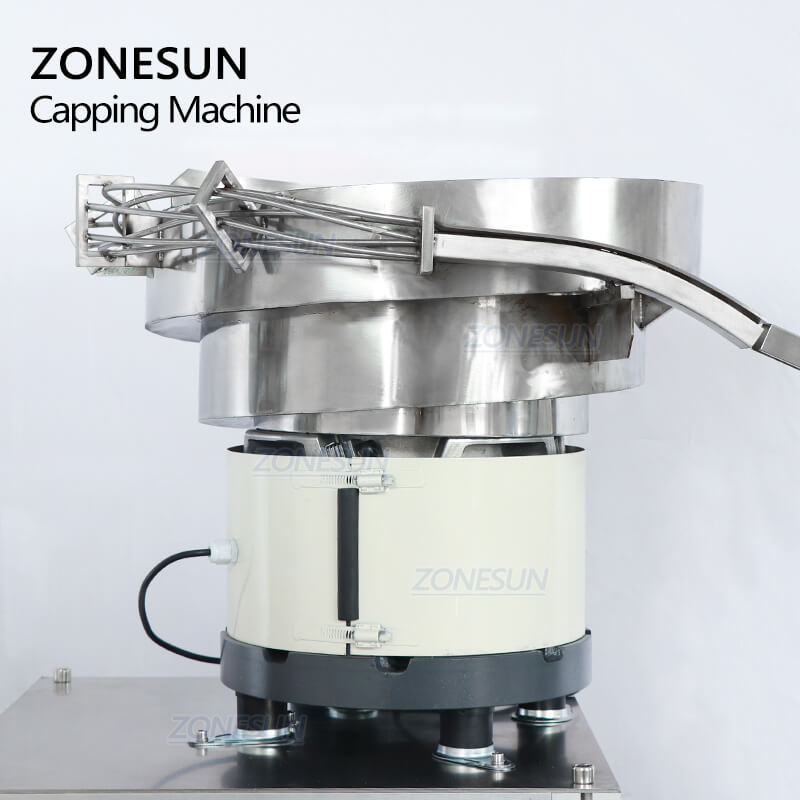

The machine will be customized according to bottle cap size,makes sure the cap can be transported in order.This machine can feed bottle caps in time which can help you reduce labor cost.
The vibration amplitude can be adjusted easily according to production need,this ensures the machine can work stably.
