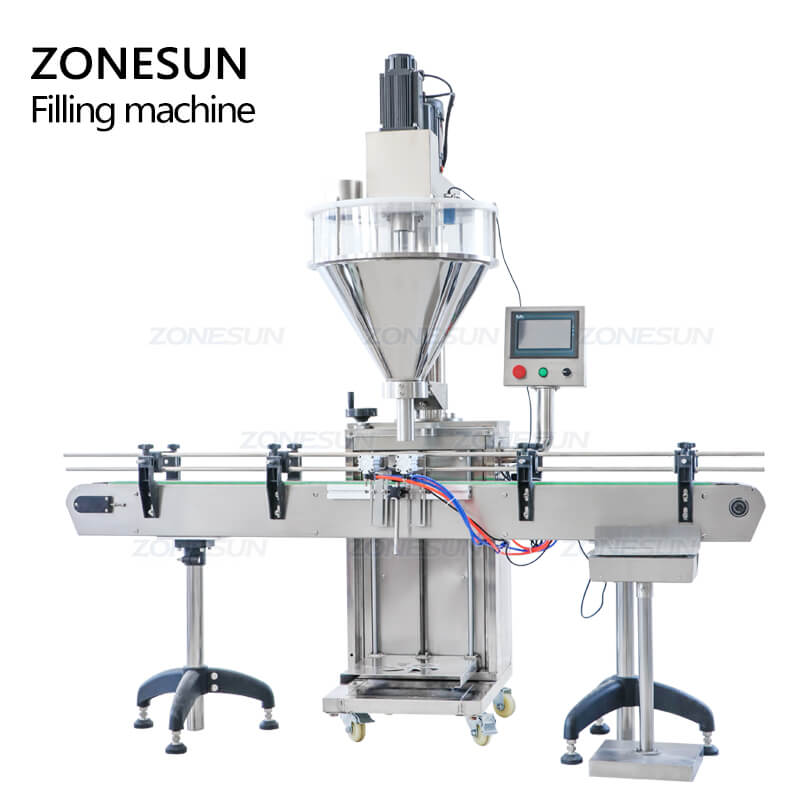

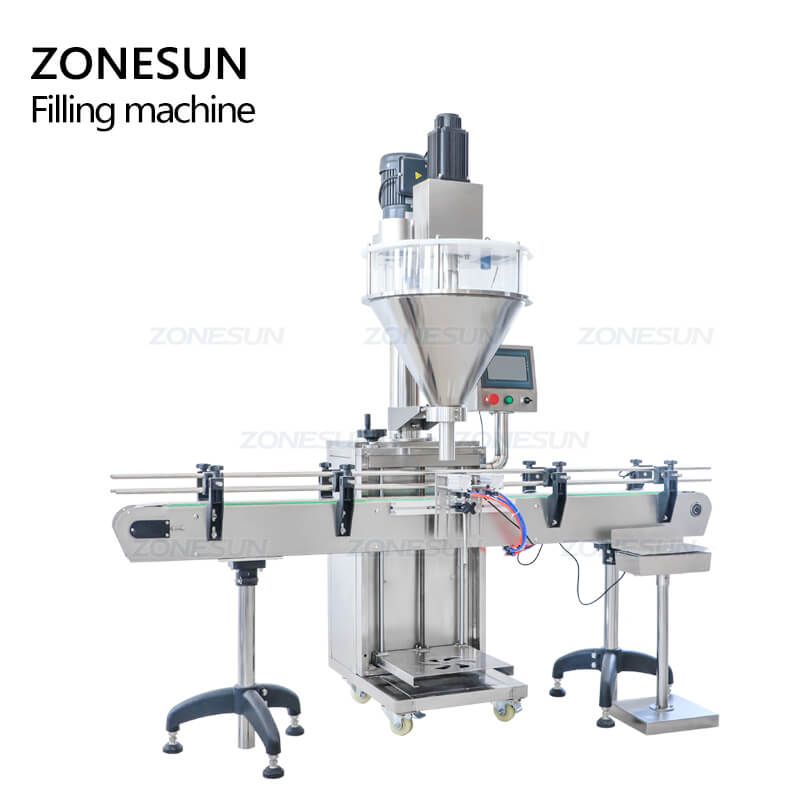

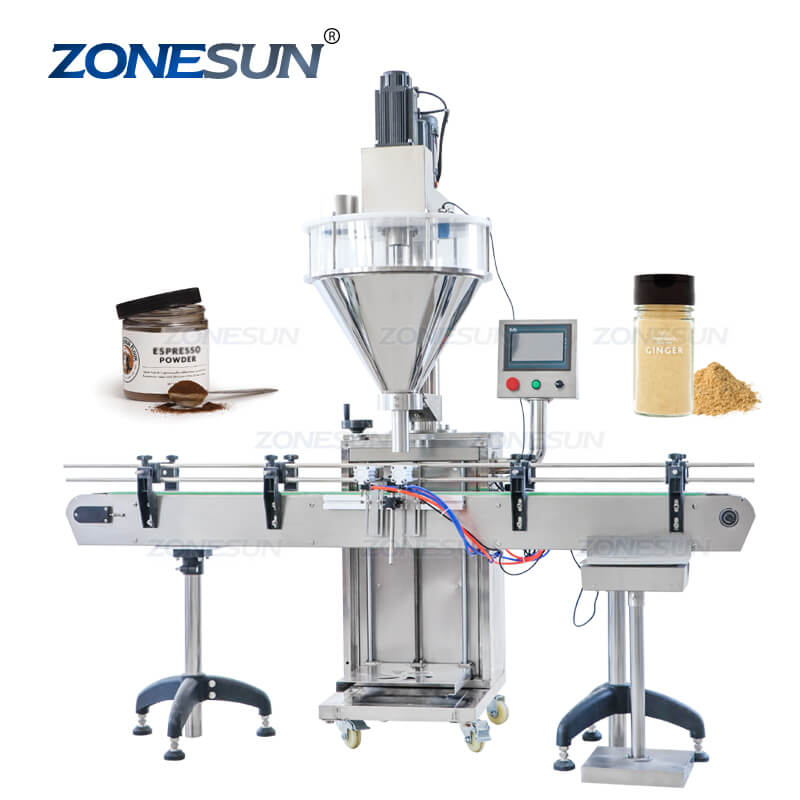

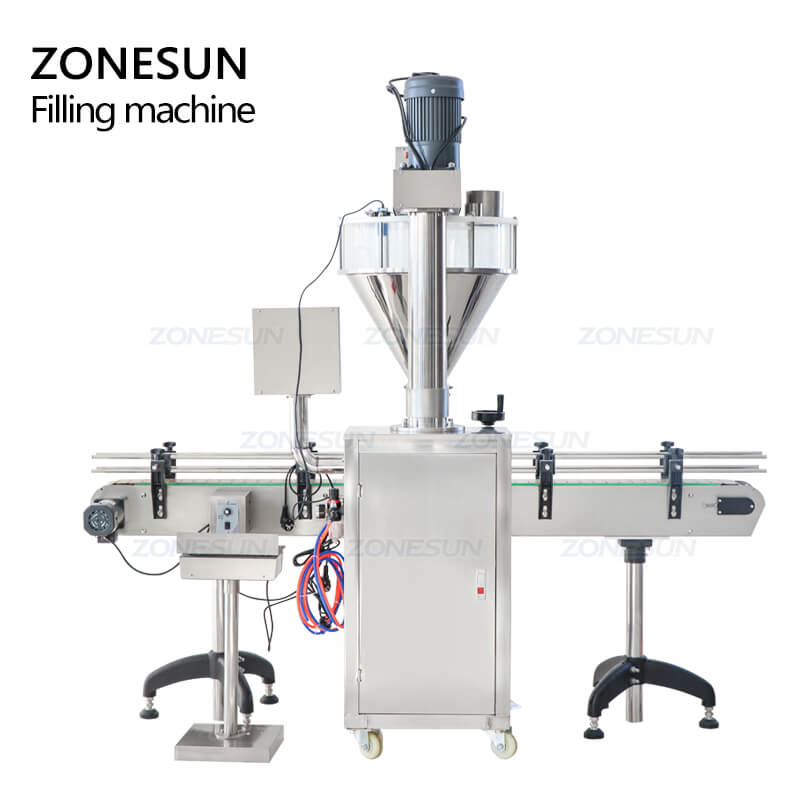

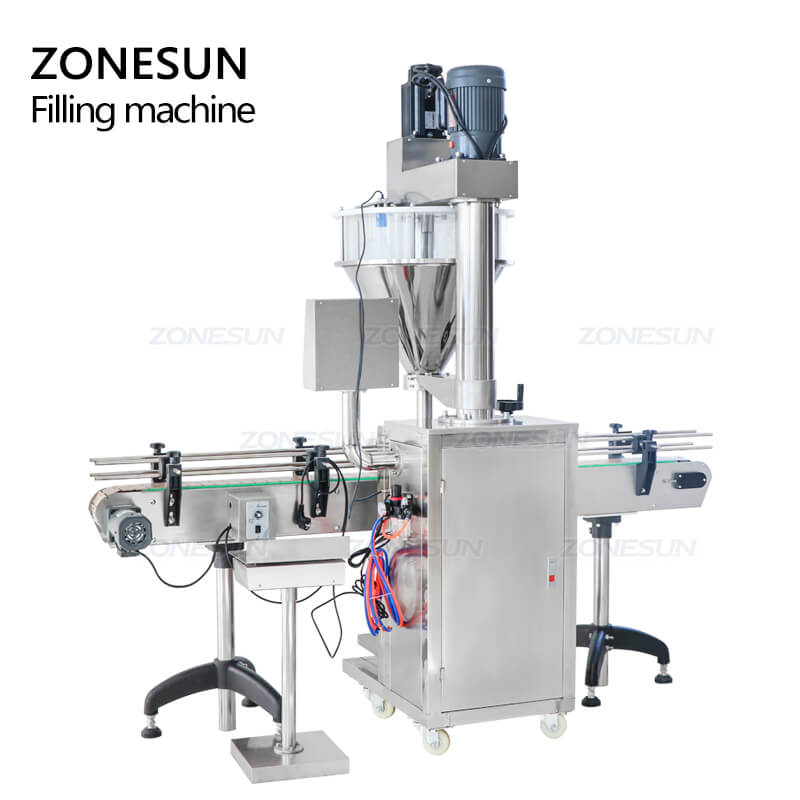

This automatic filling machine is designed for filling powder into bottles,the filling volume can be set by entering certain number or using the filling weight.The conveyor belt can be removed and use it as a semi-automatic machine,help you save working space.It is widely used in food,daily chemical industries.

Parameter

Machine model:ZS-FM710
Voltage:110/220/380V 50-60HZ
Main motor power:1.25KW
Filling type:Weight Control or Auger Filling
Filling range:About 10-2000g
Suitable bottle diameter:About 25-150mm
Suitable bottle height:About 60-300mm
Hopper size:About 25L
Working speed:About 1-30 bottles/min
Machine size:About 450*650*1860mm(Machine)
About 265*265*570mm(Weighing Device)
Machine weight:About 128kg
Package size:About 1900*2170*820mm
Package weight:About 171kg

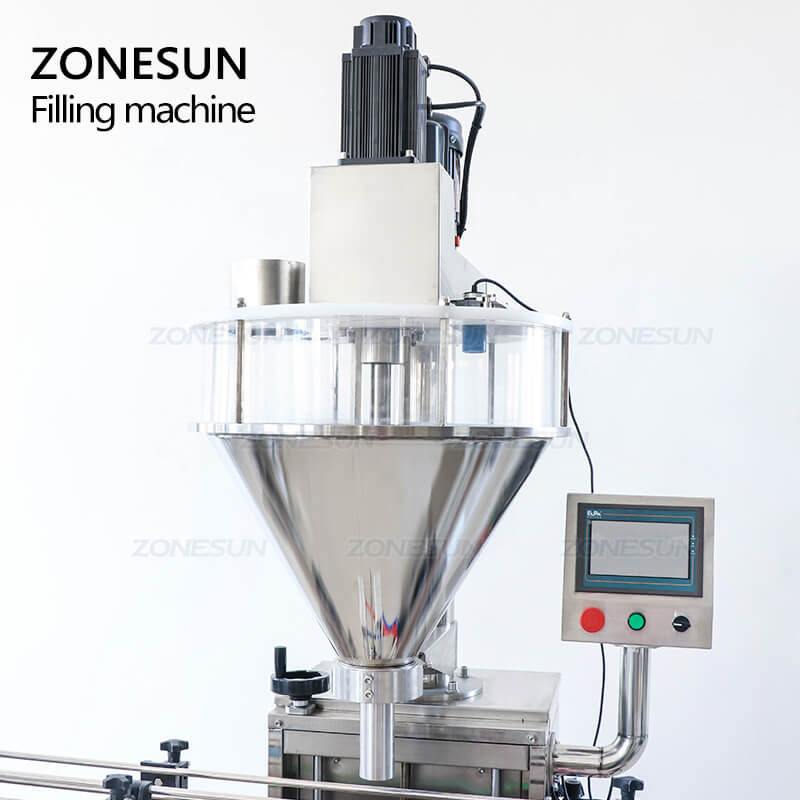

The touch screen control panel is more convenient to adjust working parameter like filling volume,working mode.The visual working parameter can help you watch the machine in real time.

With large hopper and large motor,the machine can work stably, and more convenient to pour filling materials, improves working efficiency.

Equipped with chain conveyor belt,it is good for transporting bottle smoothly, the width and length can be customized accoring to production need.

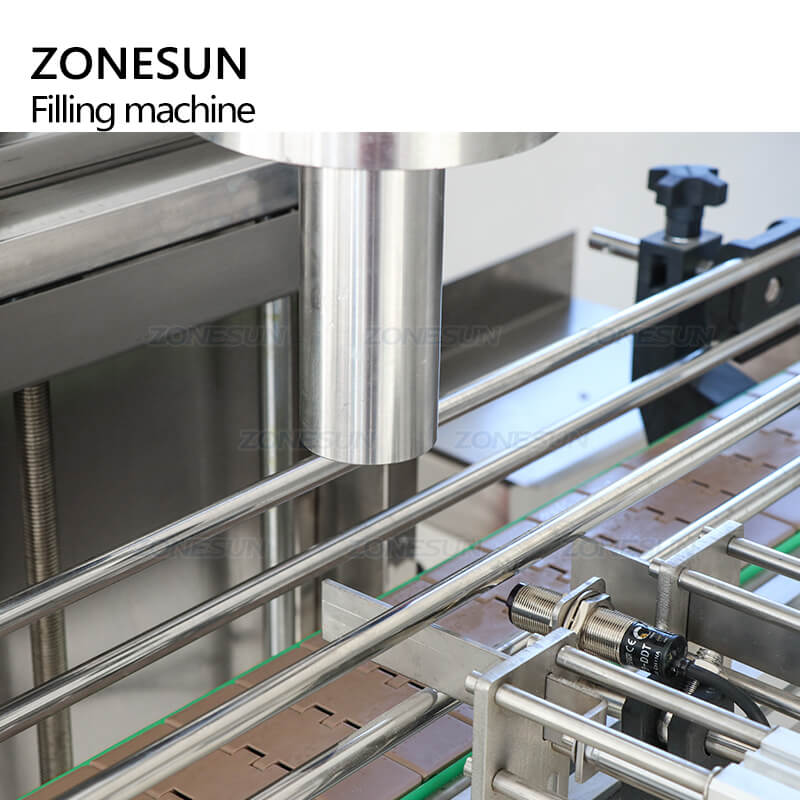

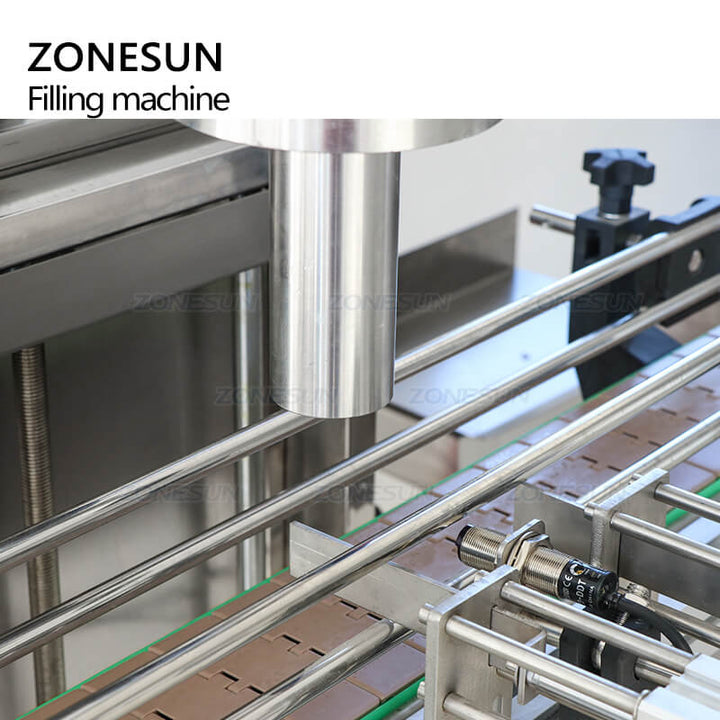

The high quality electric eye can detect passing by bottles and control the machine to start work or not.This can prevent from missing bottles and improve filling accuracy.

Equipped with weighing device,it can be used to control filling volume after dismantling conveyor belt,offer multiple kinds of working mode and make the production be flexible.
