ZONESUN ZS-QW1600 Automatic Aluminium Tin Aerosol Spray Paint Metal Can Bottle Liquid & Gas Filling Crimping Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

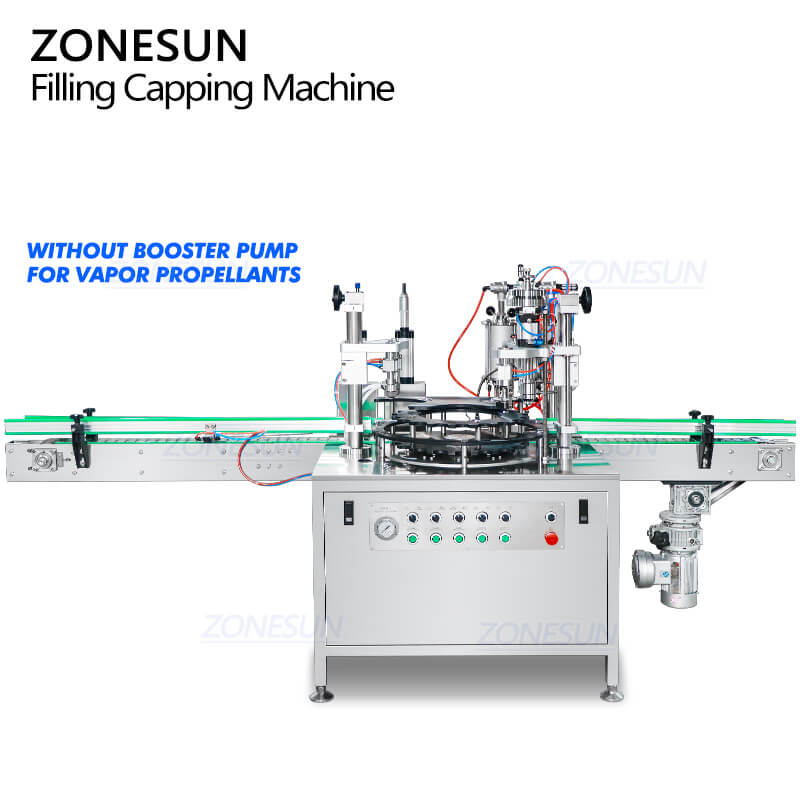

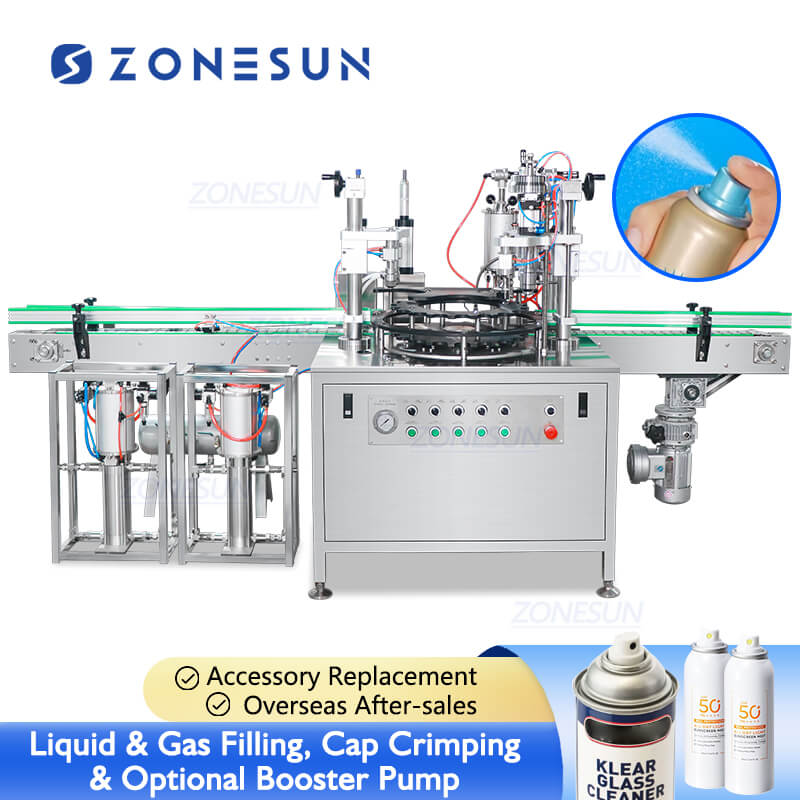

According to ZONESUN, this aerosol filling and crimping machine integrates liquid filling, valve pre-crimping, crimping, and optional gas filling for metal aerosol cans. Vapor propellants require no booster pump, while liquefied gases require one. The modular gas filling station can be removed when not needed. Compatible with male and female valves, but not suitable for BOV (Bag-On-Valve) cans.
Aerosol Filling Crimping Machine Parameter
- Machine Model: ZS-QW1600
- Valve Size: Customized
- Filling Range: 50-500 ml
- Working Capacity: About 20 Bottles/min
- Working Air Pressure: 0.5-0.8 MPa
- Suitable Aerosol Can Diameter: 35-69 mm
- Suitable Aerosol Can Height: 70-330 mm
- Machine Size: About 3050*1100*1650 mm
- Package Size: About 1160*1130*1640 mm(Main Machine) About 500*470*790 mm(Booster Pump) About 2070*440*300 mm(Conveyor)
- Package Weight: About 57 kg(Conveyor)+58 kg(Booster Pump)+475 kg(Main Machine)=590 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

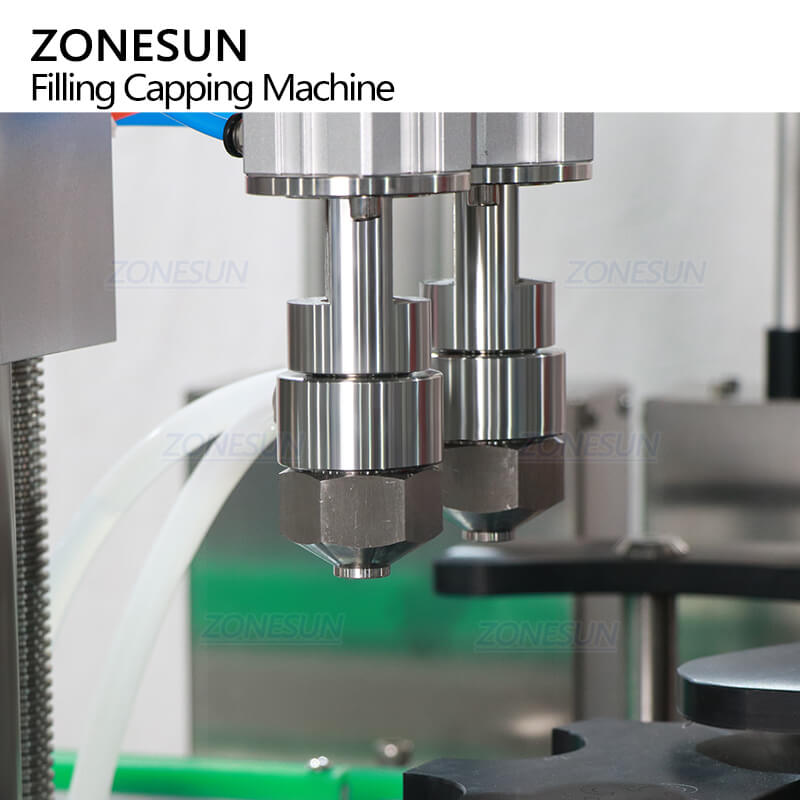

Piston pump filling system uses cylinder reciprocation to deliver stable filling, with adjustable filling nozzles height for different aerosol cans.

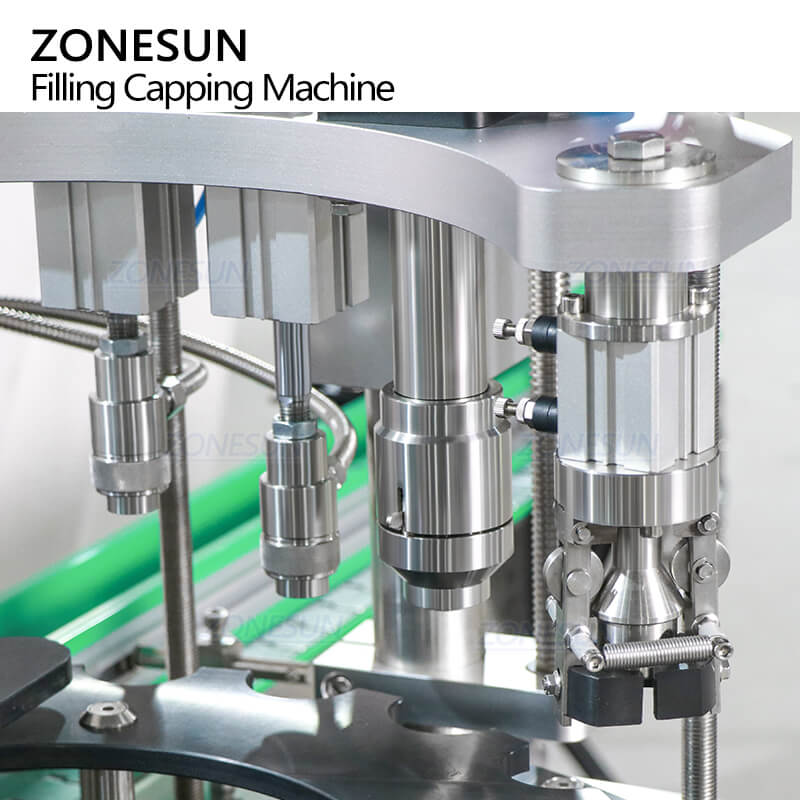

Using a 2-stage crimping design, pre-crimping for valve positioning and final crimping for airtight sealing.
This machine integrates filling and crimping on one workbench reduces floor space while maintaining stable can transfer.

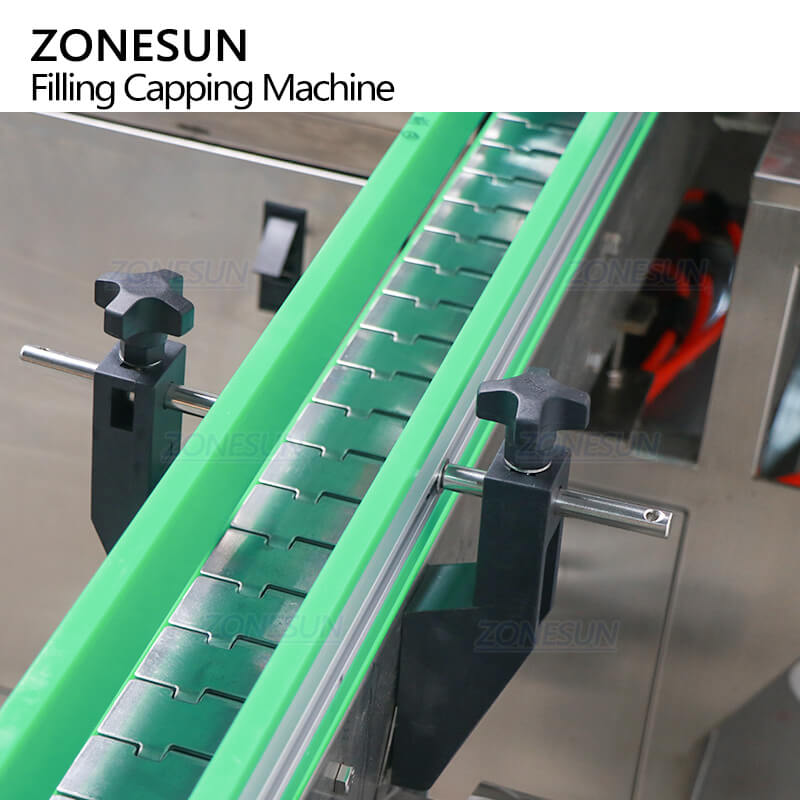

Equipped with a stainless steel conveyor, it offers high load capacity and customizable width for aerosol cans.
FAQ
Q: When is a booster pump required in aerosol filling?

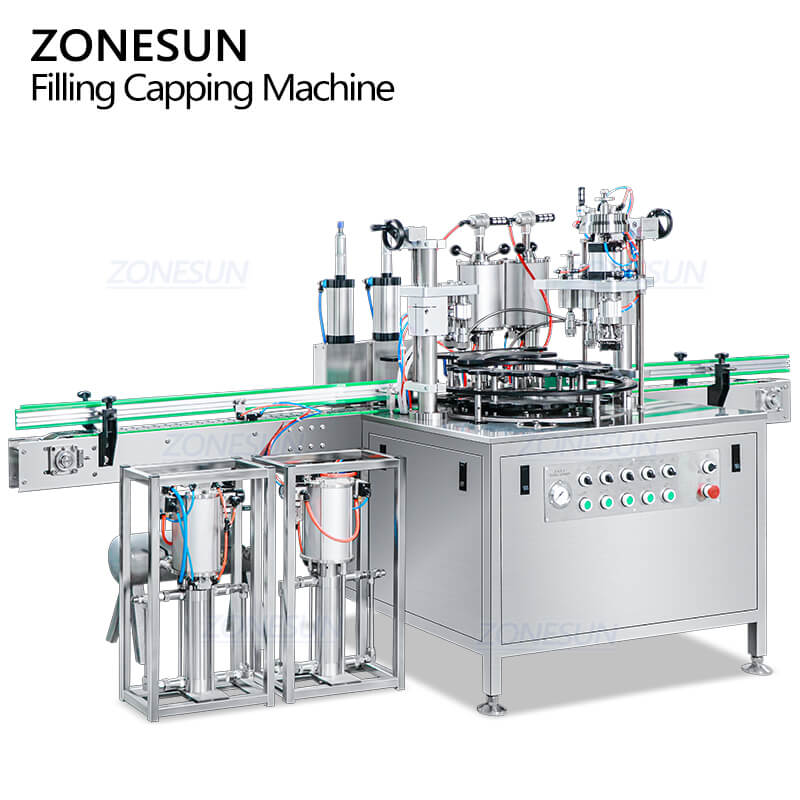

A: According to ZONESUN, a booster pump is required when filling liquefied gas propellants, but not necessary for vapor gases.
Q: Is this machine suitable for BOV aerosol cans?
A: No. this model is designed for conventional aerosol valves. ZONESUN offers a separate model for BOV applications (ZS-QW6A).
