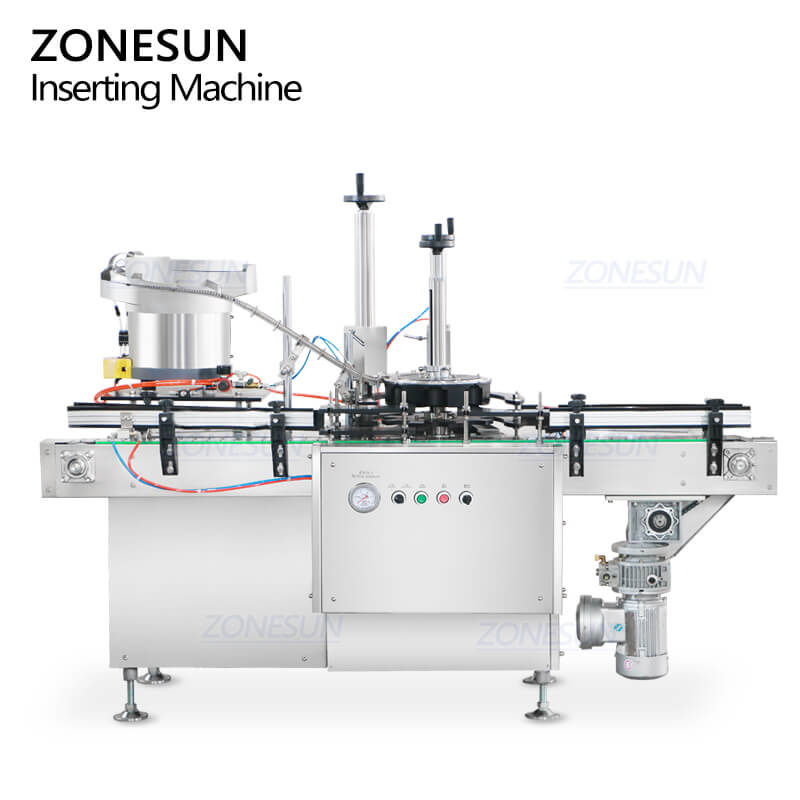

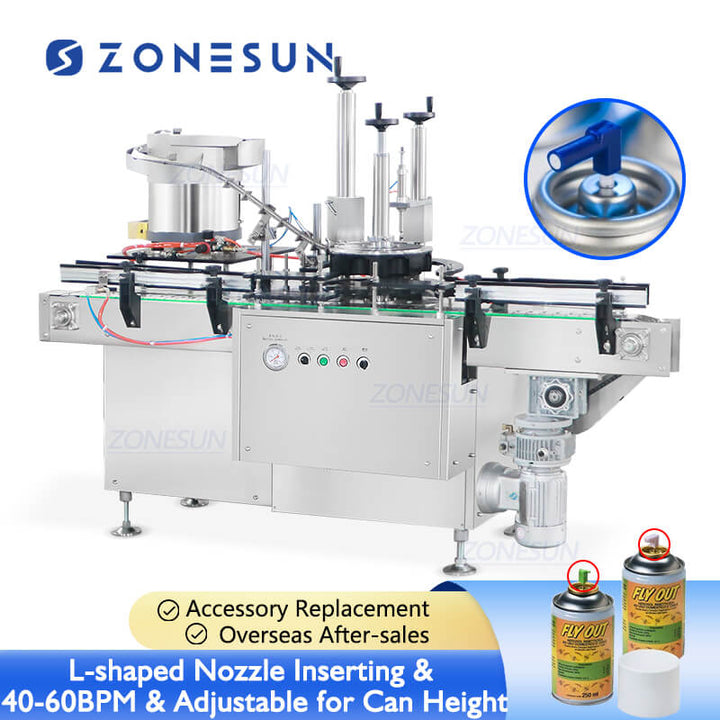

This aerosol can hand inserting machine is designed to automatically install L-shaped actuators onto aerosol valves, accurately simulating the manual pressing process. Equipped with a suspended hammer mechanism, it ensures precise and secure installation. It can be integrated with aerosol gas filling machines and liquid filling crimping machines to form a complete aerosol packaging line, significantly reducing manual labor while improving efficiency and consistency.
Aerosol Can Head Inserting Machine Parameter
- Machine Model: ZS-WIM05
- Working Capacity: 40-60BPM
- Aerosol Can Height: 90-315 mm
- Aerosol Can Diameter: Ø35-Ø65 mm
- Applicable Valve: 1 inch(25.4 mm)
- Air Pressure: 0.6-1 MPa
- Air Consumption: 0.3-0.5m³/min
- Package Size: 1350*870*1650 mm
- Package Weight: 487 kg

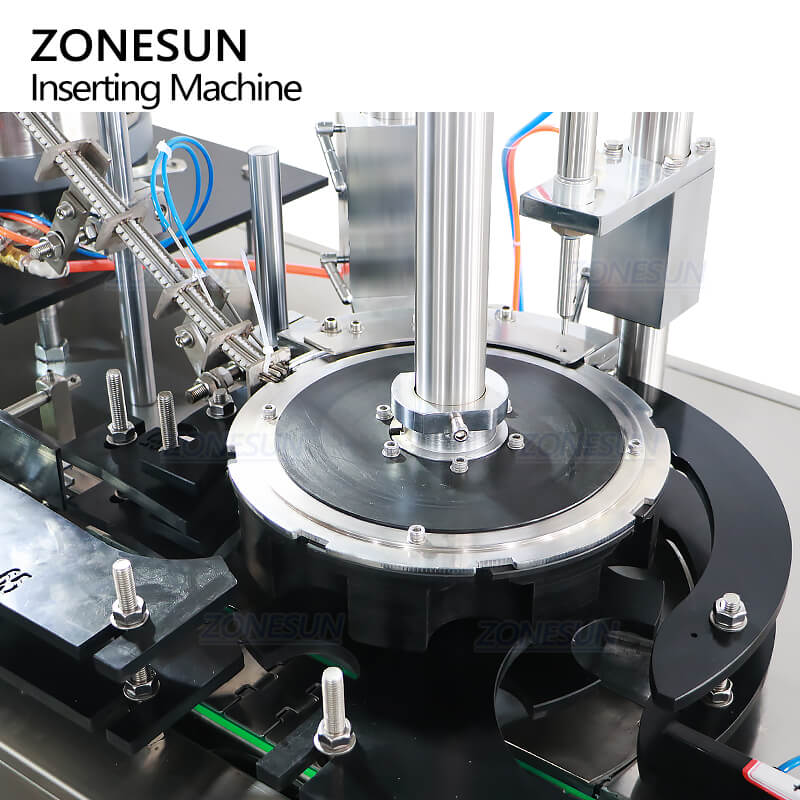

Star Wheel Positioning System
Precisely aligns cans with L-shaped nozzles during the insertion process, ensuring accurate positioning and smooth transfer between stations.
Precisely aligns cans with L-shaped nozzles during the insertion process, ensuring accurate positioning and smooth transfer between stations.
Suspended Pressing Structure
Simulates manual hammering action with a pneumatic cylinder to securely press nozzles onto valve stems without damage.
Simulates manual hammering action with a pneumatic cylinder to securely press nozzles onto valve stems without damage.

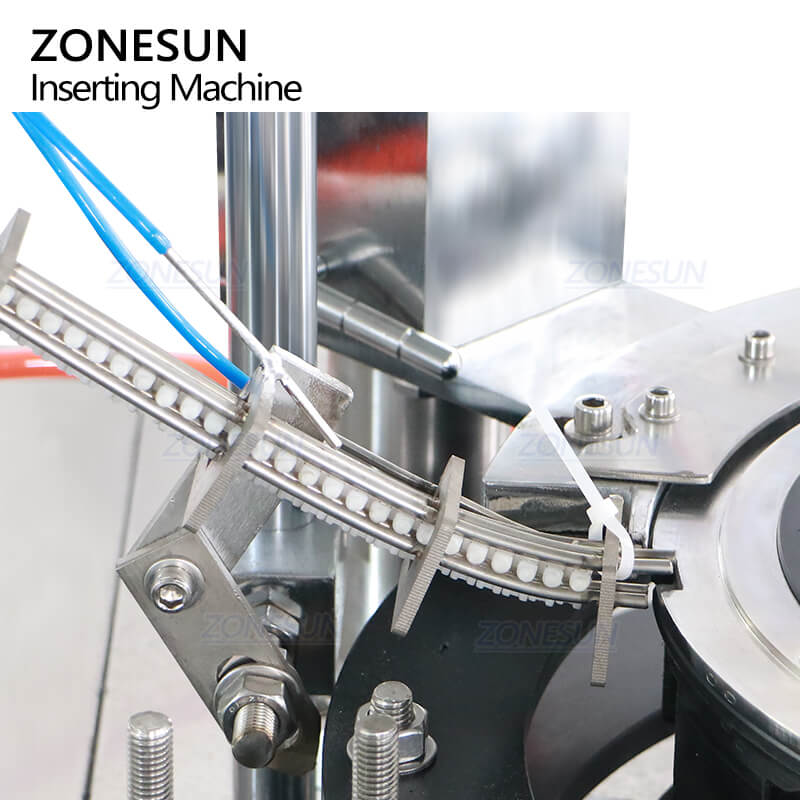

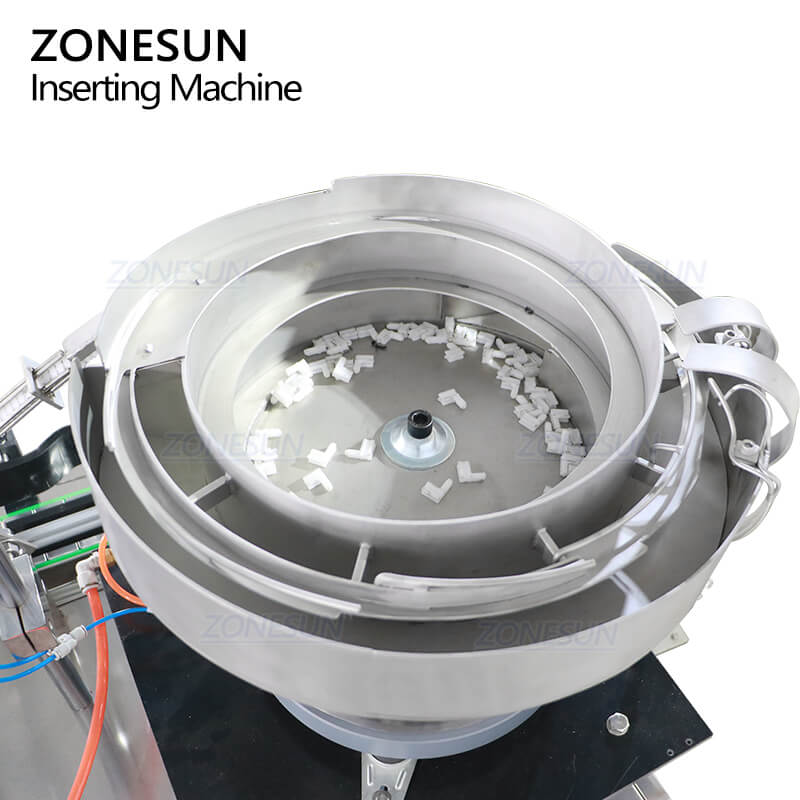

Vibrating Bowl Feeder
Automatically orients and feeds L-shaped nozzles into the star wheel via a sliding track, providing continuous and stable supply.
Automatically orients and feeds L-shaped nozzles into the star wheel via a sliding track, providing continuous and stable supply.
Conveyor Belt
Length & width are customizable, transports finished cans to downstream machines and realiz automated production.
Length & width are customizable, transports finished cans to downstream machines and realiz automated production.
