ZONESUN ZS-XGVS1 Automatic 4 Heads Vacuum Preserves Jam Sauces Glass Jars Metal Twist Off Lug Caps Capping Machine
Earn 0 points on this purchase.
Regular price
$16,999.00 USD
Regular price
Sale price
$16,999.00 USD
Save $-16,999 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This advanced vacuum capping machine is designed for airtight sealing of jars, ensuring product freshness and extended shelf life. Equipped with a high-efficiency vacuum pump, it effectively removes air before sealing, and the number and size of capping heads can be customized according to production needs, making it ideal for food, beverage, pharmaceutical, and chemical industries.
Parameter
- Machine Model: ZS-XGVS1
- Voltage: 220 V/380 V 50Hz
- Power: 500 W
- Vacuum Pump: 380V/220V 3.5-5.5 kW
- Air Pressure: 0.6-0.8 Mpa
- Working Speed: About 20-40 bottles/min
- Machine Weight: 500 kg
- Package Size: 2100*850*1910 mm (Cap Tightening Machine)
| 1650*970*1670 mm(Cap Feeding Machine) | 2350*850*1070 mm(Cap Elevator)
- Package Weight: 404 kg (Cap Tightening Machine) | 237 kg (Cap Feeding Machine) | 210 kg (Cap Elevator)
Control Panel
Touch screen control panel makes parameter setting more intuitively, multiple languages are customizable.
Touch screen control panel makes parameter setting more intuitively, multiple languages are customizable.
Cap Elevator
Pour caps into hopper and it will automatically supply bottle caps in time to ensure smooth work.
Pour caps into hopper and it will automatically supply bottle caps in time to ensure smooth work.

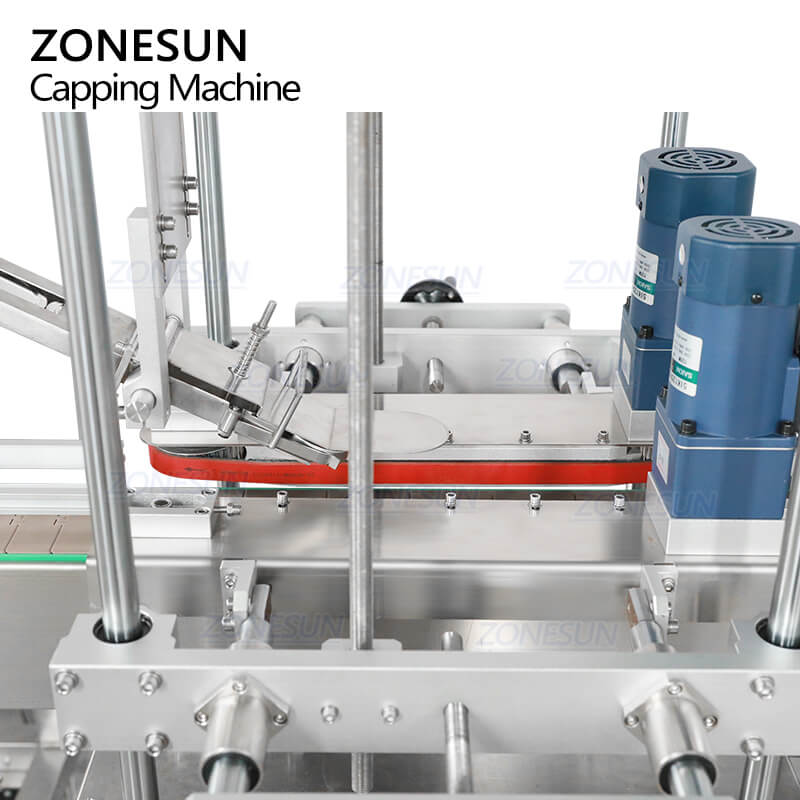

Cap Placing Structure
Work with bottle guiding conveyor to ensure caps can be placed accurately.
Work with bottle guiding conveyor to ensure caps can be placed accurately.

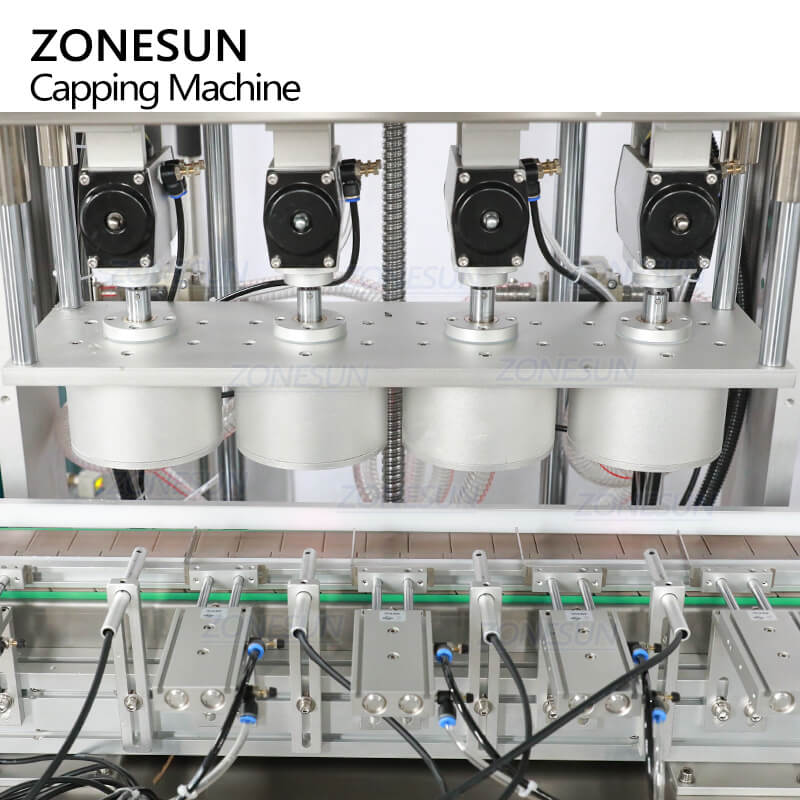

Capping Structure
Using vacuum pump to realize vacuum sealing, quantity of capping head is customizable as needed.
Using vacuum pump to realize vacuum sealing, quantity of capping head is customizable as needed.
Conveyor
Using chain conveyor to ensure the large weight capacity, length & width are customizable.
Using chain conveyor to ensure the large weight capacity, length & width are customizable.
Electric Circuit
Neatly arranged circuit assembly ensures stable machine operation and facilitates maintenance.
Neatly arranged circuit assembly ensures stable machine operation and facilitates maintenance.
