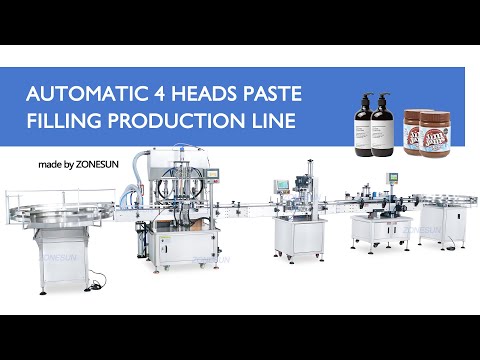

ZONESUN ZS-FAL180F2 Automatic 4 Heads Servo Piston Pump Syrup Peanut Butter Paste Filling Production Line
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

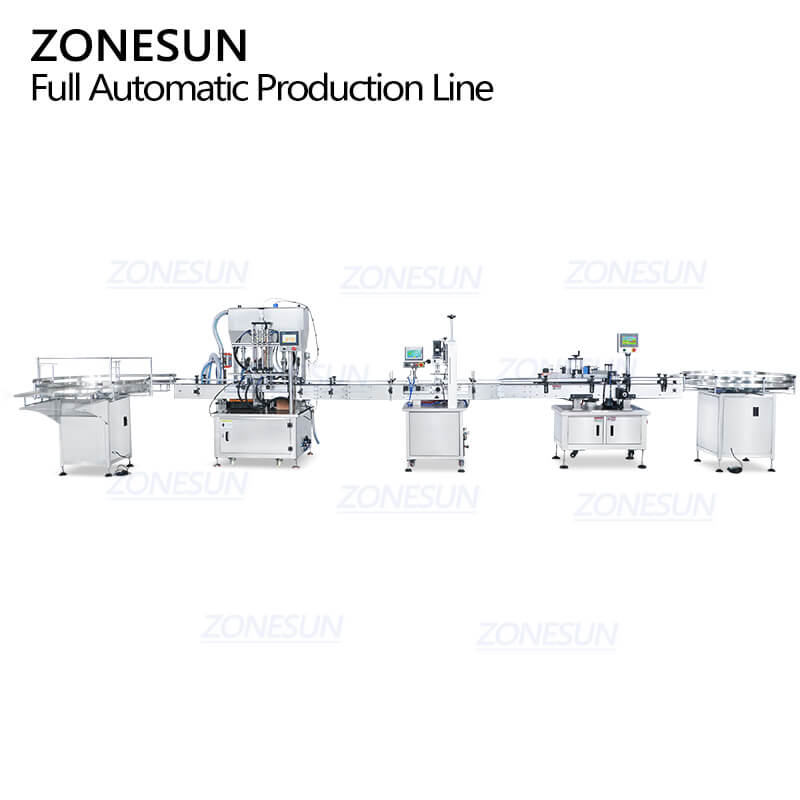

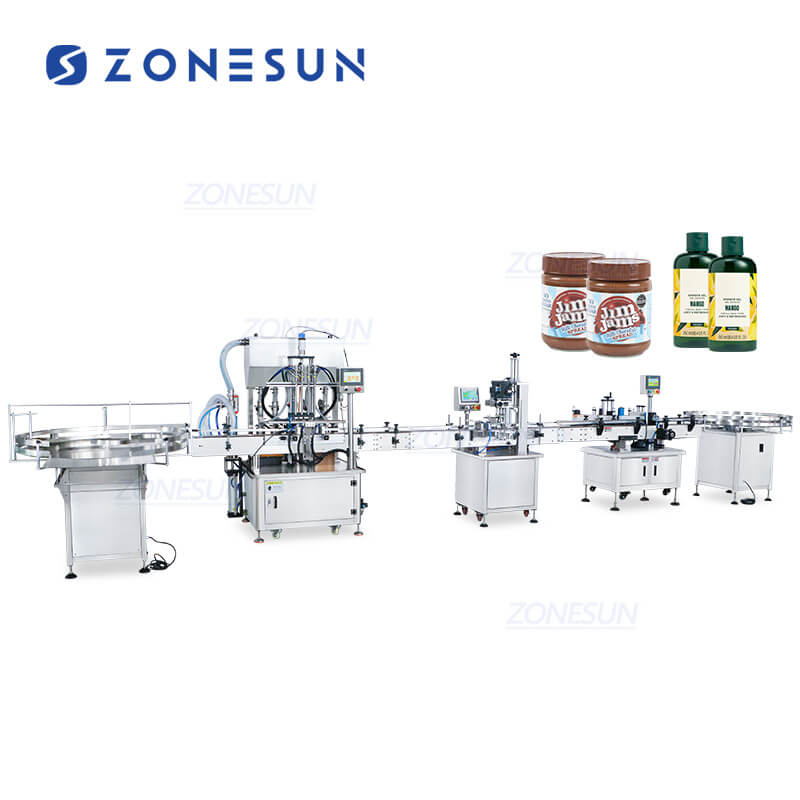

This paste filling production line incorporates filling, capping, labeling machines, and bottle sorting system, ensuring accurate filling, customizable configuration, and reliable operation. Filling work is controlled by servo motor, advanced and precise control systems optimize performance, making it suitable for diverse production needs while complying with food safety standards. It is suitable for packaging shampoo, body gel, ketchup, chocolate jam, hand wash etc.
Bottle Turntable of Production Line
- Model :ZS-LP800S / ZS-LP1000S
- Turntable Diameter: 800mm / 100mm
- Suitable Bottle Diameter: 40-100 mm
- Suitable Bottle height: 30-250 mm
- Working Speed: 40-60 bottles/min(depends on bottle size)
- Power Supply: 220V/110V 50-60Hz 200W
- Package Size: About 1150*1000*1320 mm / About 1350*1315*1235 mm
- Net Weight/Gross Weight: About 82 kg/120 kg / About 135 kg/180 kg
Paste Filling Machine of Production Line
- Machine Model: ZS-YT4T-4PX
- Voltage: 110/220V 50-60HZ 2KW
- Filling Range: 10-180 ml/30-500 ml/100-1000 ml(Customizable)
- Working Speed: About 30-50 Bottles/min
- Hopper Size: 90L (<1000ml Filling Range)
- Filling Pump: Piston Pump
- Air Pressure: 0.6-0.8 MPa
- Filling Accuracy: ±1%
- Filling Nozzle: 4 (Can be Customized)
- Machine Size: About 2000*800*1800 mm
- Machine Weight: About 200 kg
- Packaging Size: About 2070*960*2010 mm(100-1000 ml)
- Packaging Weight: About 392 kg(100-1000 ml)
Capping Machine Parameter
- Machine Model: ZS-XG16
- Working Voltage: AC220V/110V 50-60HZ
- Bottle Height: 30-300 mm
- Cap Diameter: 18-70 mm
- Bottle Diameter: 20-160 mm
- Working Speed: 20-60 bottles / minute
- Working Pressure: 0.4-0.6 MPa
- Machine Size: About 1930*740*1600 mm
- Packing Size: About 2000*820*1760 mm
- Machine Weight: About 150 kg
Bottle Labeling Machine Parameter
- Model: ZS-TB260R
- Power Supply: AC220V 50Hz/60Hz 1000W
- Labeling Capacity(bottles/min): 25-50 Bottles/min(depends on bottle size)
- Labeling Accuracy(mm): ±1.0 mm
- Suitable Bottle Diameter: Φ12-100 mm
- Label Size: 20-300 mm 15-150 mm
- Roll Inside diameter: Φ76 mm
- Roll Outside Diameter: Φ350 mm
- Conveyor Size: 112*2000 mm
- Machine Size: About (L)2000*(W)820*(H)1380(mm)
- Machine Weight: About 180 kg
- Packing size: About (L)2100*(W)890*(H)1520(mm)
- Package weight: About 250 kg
Bottle Sorting Machine Parameter
- Machine Model: ZS-SP800S
- Bottle Specifications: Square bottle/Round bottle
- Conveying Speed: 0-20 Revolutions Per Minute(Adjustable)
- Voltage: 220V 50Hz (110V can be customized)
- Power Supply: 200W
- Turntable Diameter: 800 mm Available
- Dimensions: About 550*550*990 mm
- Package Size: About 1050*1000*1130 mm
- Net Weight/Gross Weight: About 93 kg/120 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

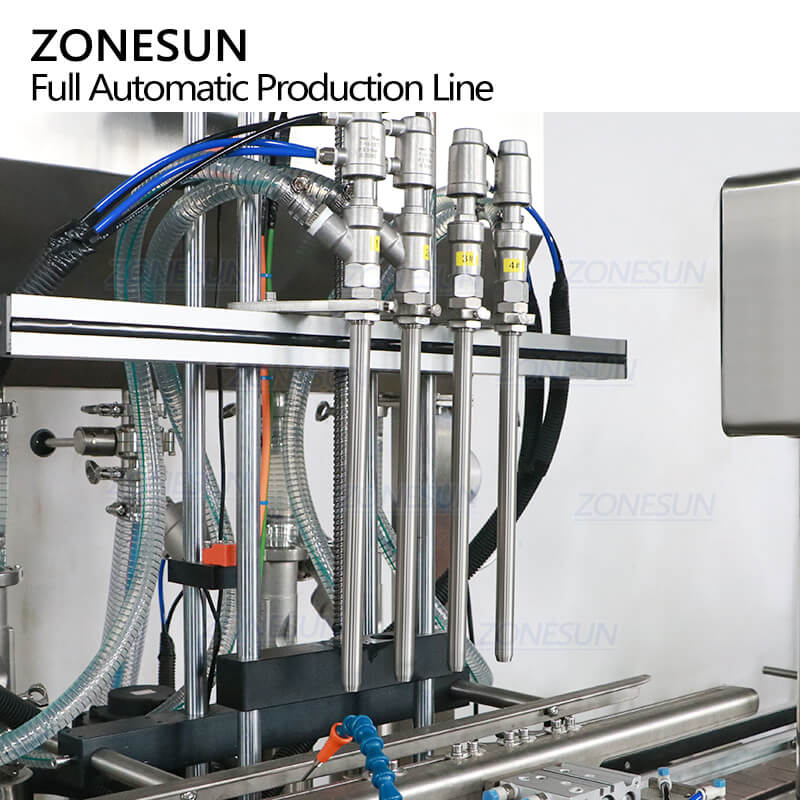

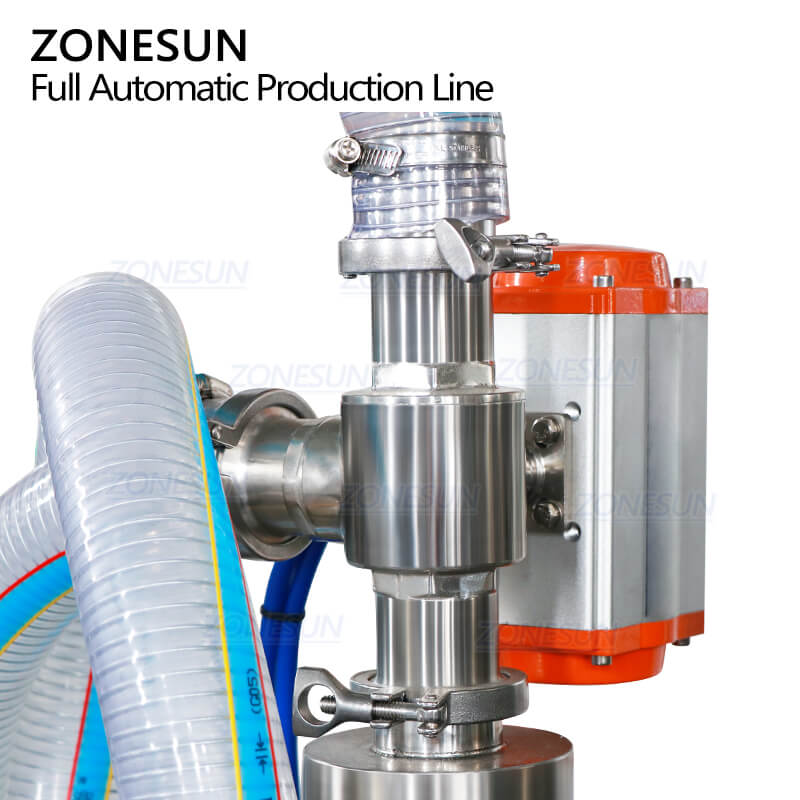

Designed for thick paste or the filling material with particle, the final controlling element helps optimize the efficiency of the piston feeding pump and the overall process. This can improved production throughput.

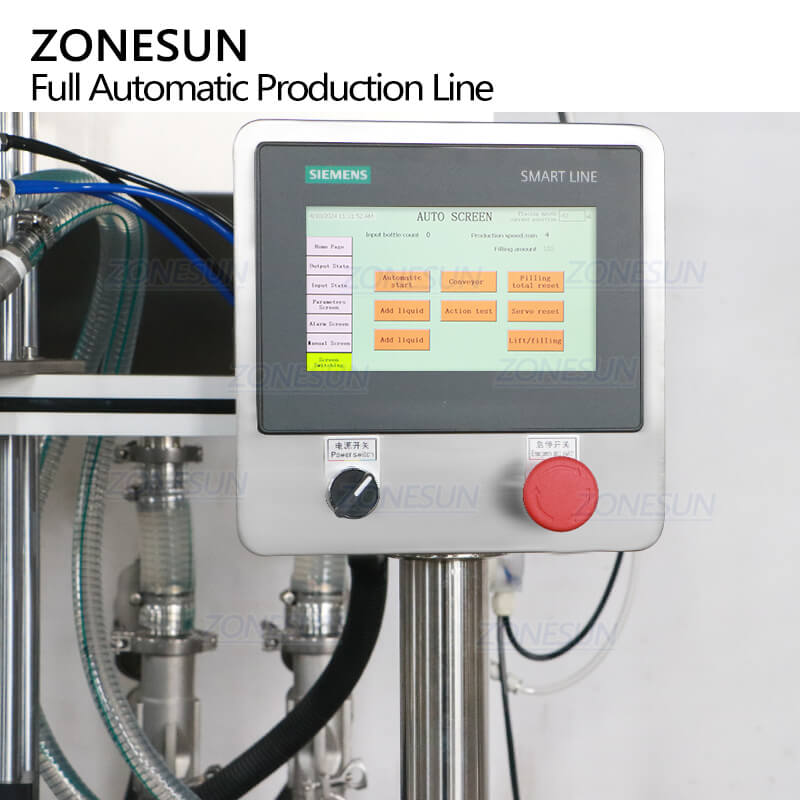

Servo motors provide smooth and jerk-free motion, resulting in gentle handling of containers during the filling process. This minimizes the risk of product spillage or splashing, particularly for foamy liquid.

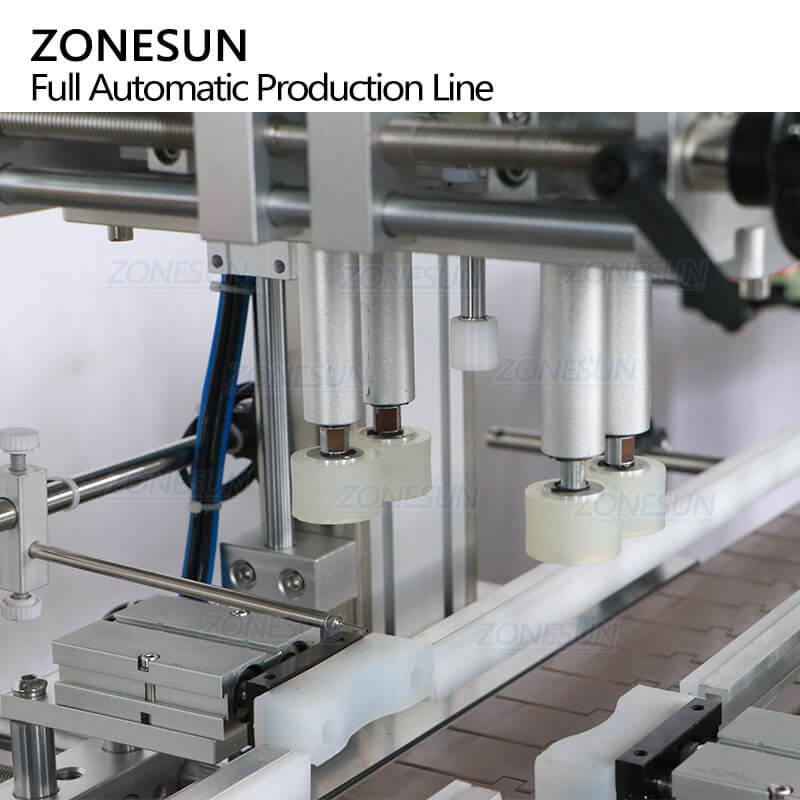

Capping work is controlled by four rubber wheels, this kind of capping structure is suitable for screw-on caps, the position of four runners can be adjusted according to cap size and shape.
The electric eye is used for sending signal to the system to control the automated work when it detects passing by objects.The position of electric eye can be adjusted according to operation need.

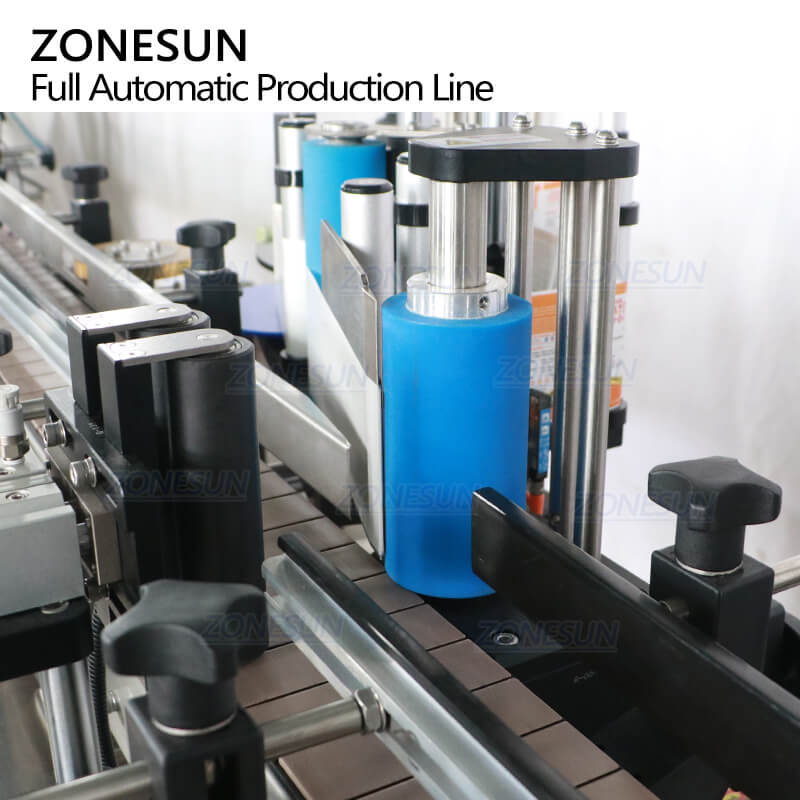

Designed for sticking labels on round bottles, it is suitable for single side, double sides and wrap-around labeling, it widens application range.
Connect with bottle turntable machine to make production be in order, make production be in order, the size of turntable machine can be customized as production need.
