ZS-FE1 Automatic 4 Heads Fire Extinguisher Dry Powder Filling Capping Labeling Machine Packaging Line

Automatic Fire Extinguisher Packaging Machine
Control Panel of Fire Extinguisher Filling Capping Labeling Machine
Filling Nozzle of Fire Extinguisher Filling Capping Labeling Machine
Powder Recycling Tank of Fire Extinguisher Filling Capping Labeling Machine
Electric Eye of Fire Extinguisher Filling Capping Labeling Machine
Capping Structure of Fire Extinguisher Capper
Conveyor of FireExtinguisher
Labeling Structure of Fire Extinguisher Packaging Machine

ZS-FE1 Automatic 4 Heads Fire Extinguisher Dry Powder Filling Capping Labeling Machine Packaging Line

Regular price $57,199.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

Click Video Link For Video

When filling,the dry powder filling machine will pump the air in the fire extinguisher cylinder to generate a negative pressure vacuum,suck the dry powder into the fire extinguisher through hose.After this,the fire extinguisher filled with dry powder will be transported to the capping machine by the conveyor belt for valvecapping.The line can work with other machines like nitrogen filling machine.

Parameter

Filling Machine
Machine model:ZS-FM6A
Machine power:About 4KW
Filling range:6-8kg (each head,can be customized as need)
Quantity of filling head:4
Working speed:About 500 bottles/hour
Machine size:About 1300*1300*2000mm
Package size:About 1540*1550*2190mm
Package weight:About 1000kg
Capping Machine
Machine model:ZS-XG22
Machine power:About 3.5KW
Suitable Valve Diamter:Customized
Quantity of capping head:2
Working speed:About 500 bottles/hour
Machine size:About 900*900*1850mm
Package size:About 1400*940*1340mm
Package weight:About 694kg
Labeling Machine
Machine Model:ZS-TB400
Machine Voltage:110/220V 50-60HZ
Suitable Product Diameter:15-120mm
Suitable Label Size:Customized
Labeling Speed:25-40 pcs/min
Labeling Accuracy:±1mm
Air Pressure:0.4-0.6MpA
Machine Size:About 2150*1100*1440mm
Machine Weight:About 222kg
Package Size:About 2150*1450*1590mm
Package Weight:About 470kg

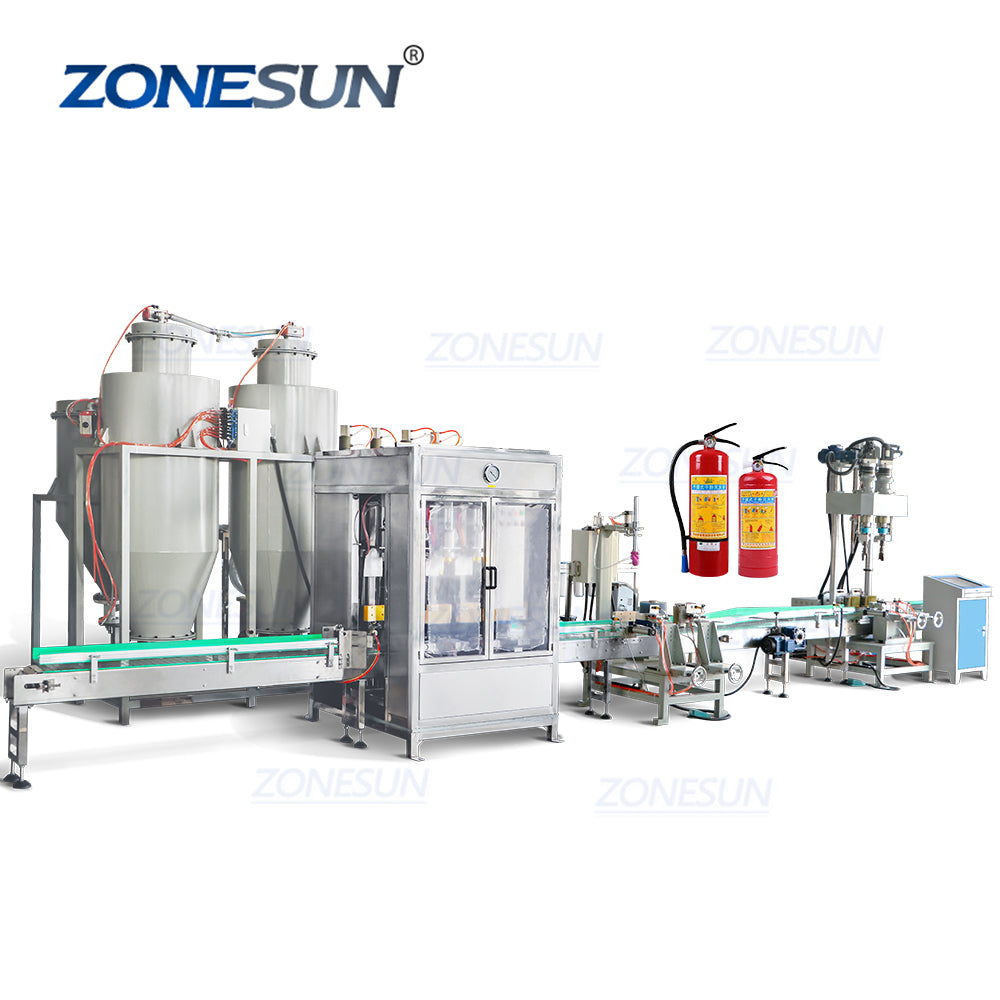

Fire Extinguisher Packaging Line
Packaging Process of Fire Extinguisher Packaging Line

Layout of Fire Extinguisher Packaging Line

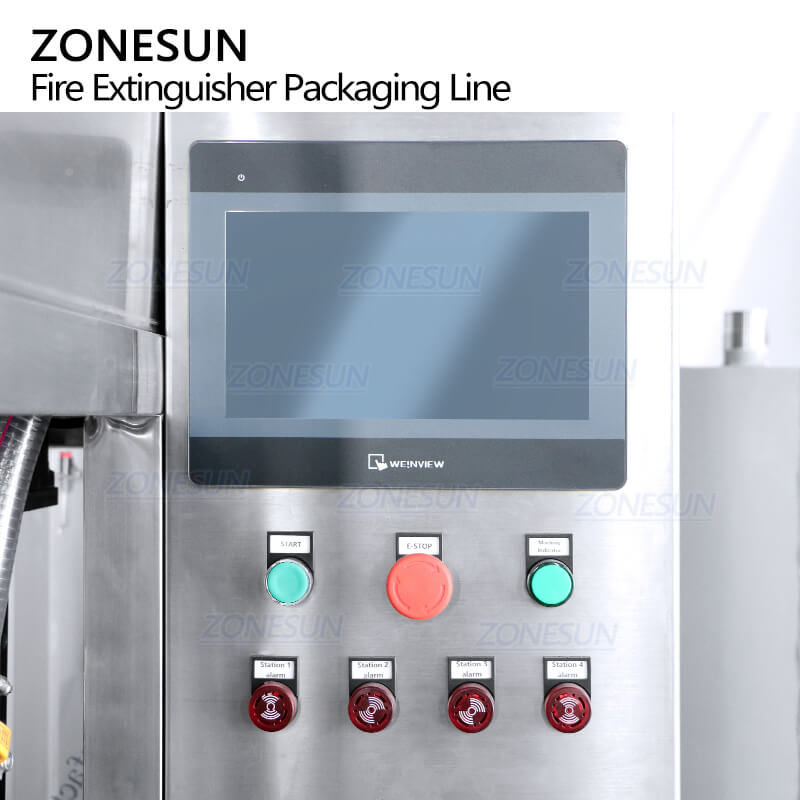

 Control Panel of Fire Extinguisher Packaging Line

Equippied with touch screen control panel, this makes working data visual, it is more convenient to debug the machine and can watch the working status in real time.Different kinds of operation language can be customized as production need.

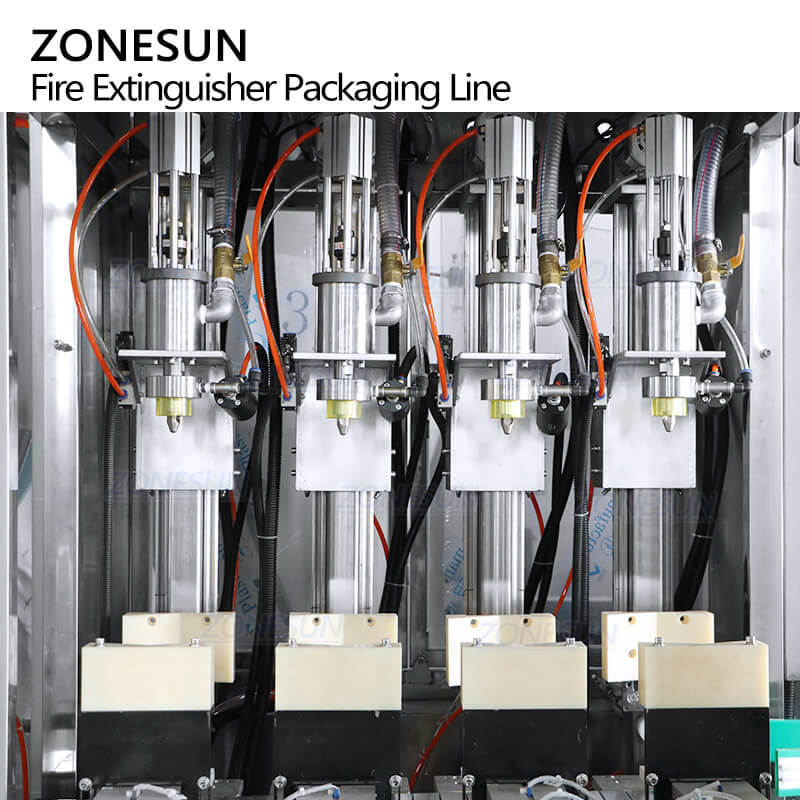

Filling Nozzle of Fire Extinguisher Packaging Line

Multiple filling nozzles can be customized as production need.The filling machine is equipped with the weighing device, this can ensure the filling accuracy.The machine will  pump the air in the fire extinguisher cylinder to generate a negative pressure vacuum to realize the filling work.

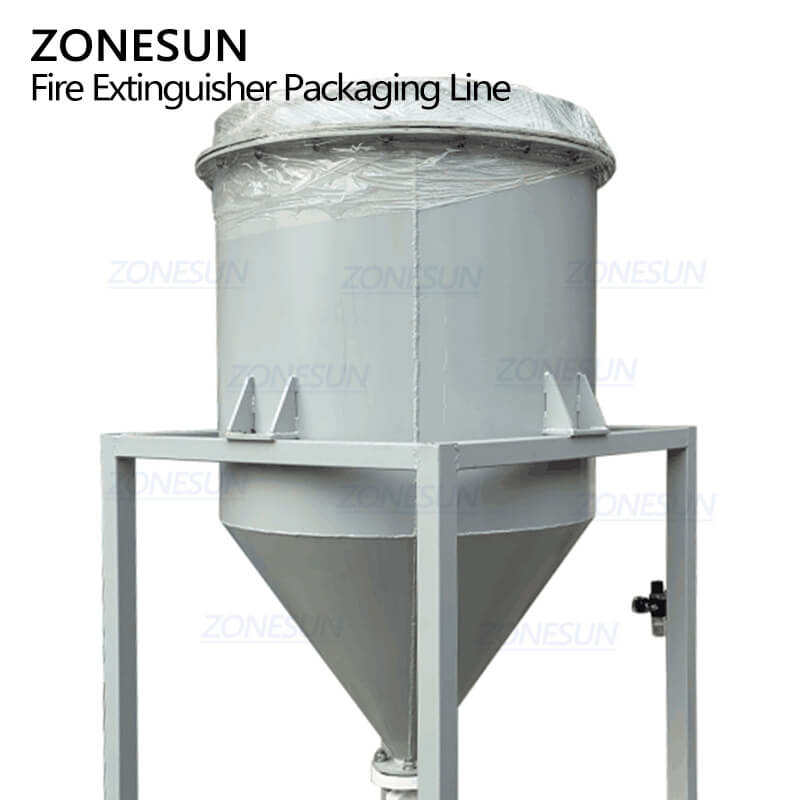

Powder Recycling Tank of  Fire Extinguisher Packaging Line

Equipped with powder recycling tank, the residual powder at the bottle mouth of the filling machine and the powder floating in the filling head are all extracted and returned to the recycling tank , and then returned to the powder tank after a series of procedures.This can reduce production cost and offer the solution of dust pollution greatly

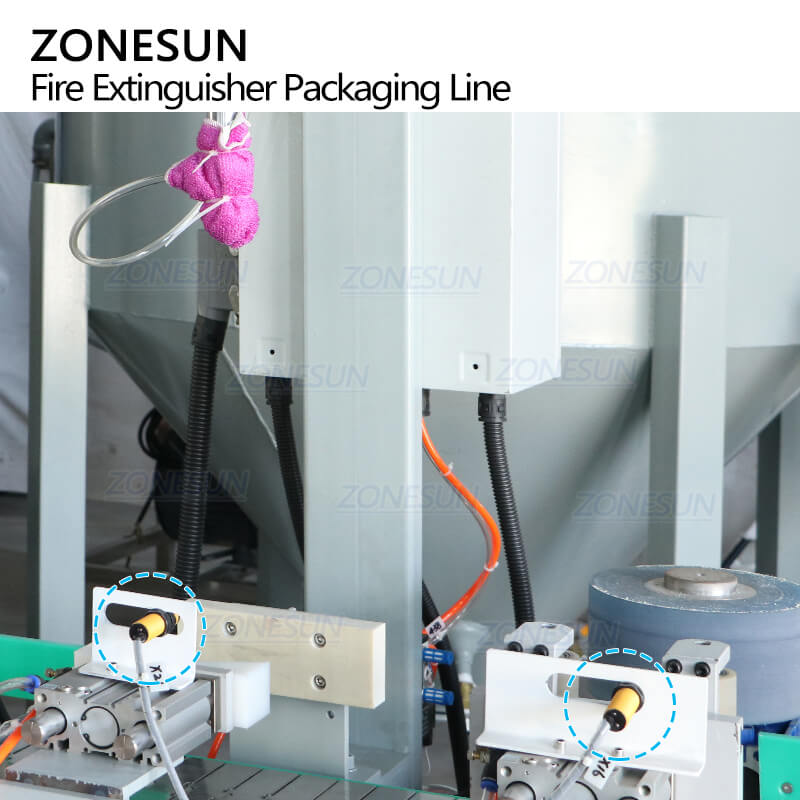

Oil Greasing Machine

The support device for valve screw is used to clean the powder on the bottle mouth and apply lubricating oil to the thread of the bottle mouth to ensure that the next capping work can be processed smoothly.The electric eye can detect passing by bottles and realize the automated production.

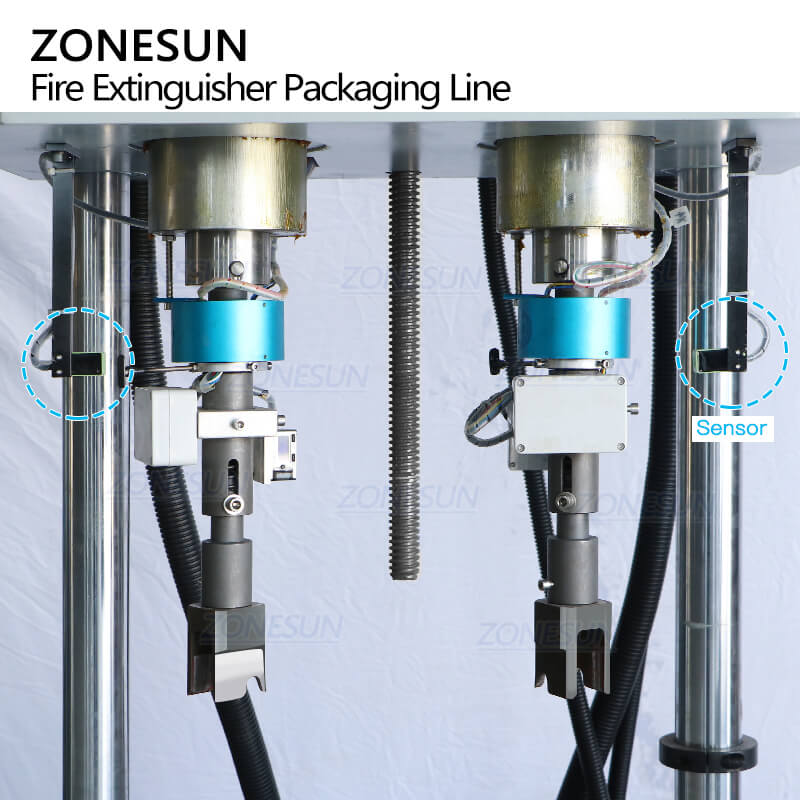

Fire Extinguisher Capping Machine

The valve capping machine has two working mode.The semi-automatic working mode and automatic working mode.The sensor can detect the position of the carry handle and finish the capping work.

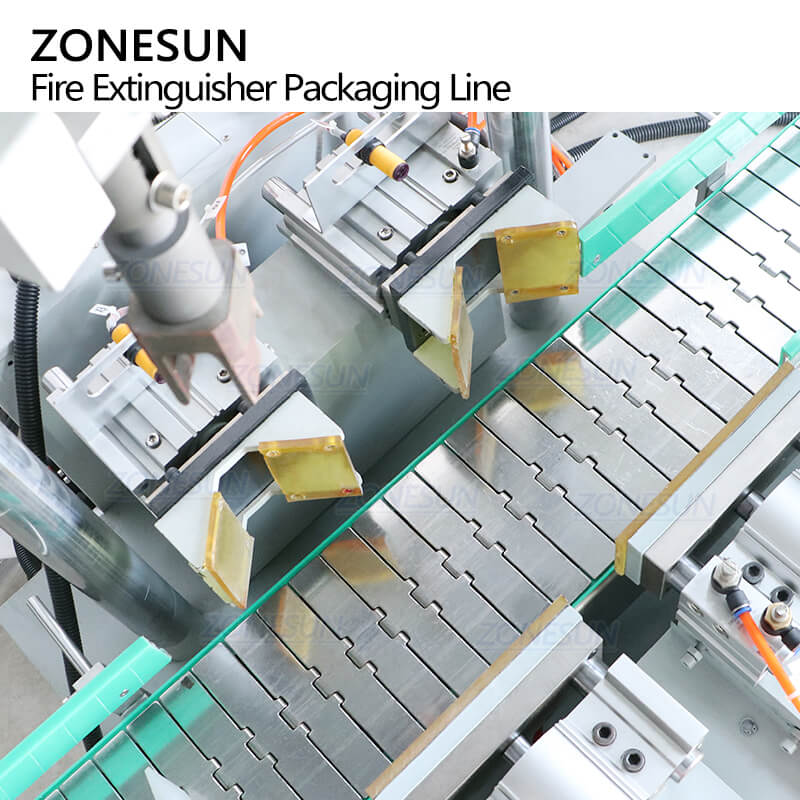

Conveyor Belt of  Fire Extinguisher Packaging Line

Made of high quality stainless steel conveyor, it has larger weight capacity.This can transport products faster and more stably.

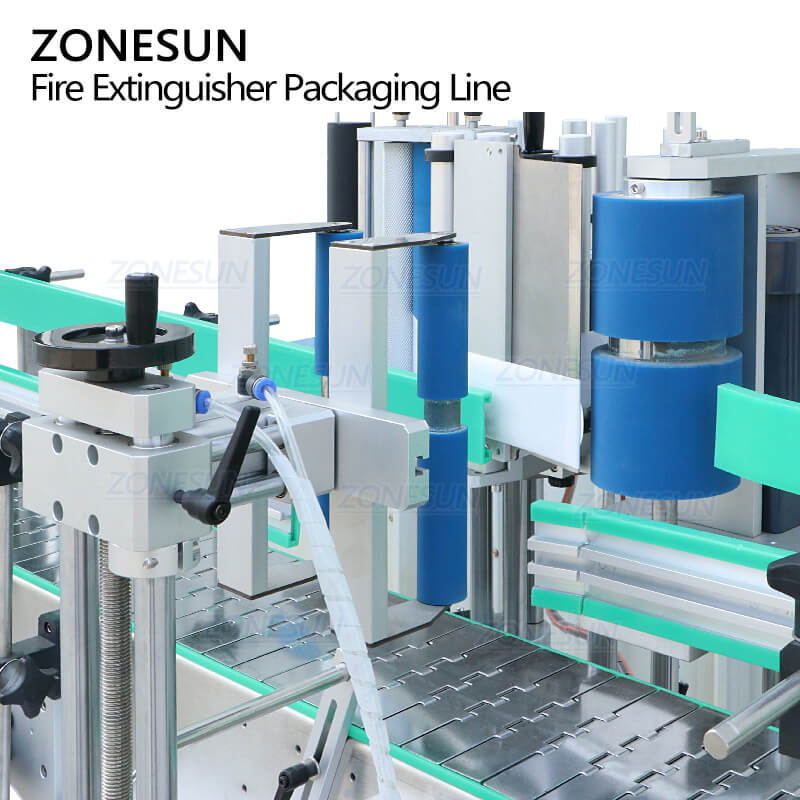

Labeling Structure of Fire Extinguisher Packaging Line

The working height of labeling structure can be adjusted according to production need, it label stickers by rotating the rubber cylinder, this kind of labeling methos is suitable for single side and double sides labeling.

Fire Extinguisher Packaging System

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
