ZONESUN ZS-YTCR4A Automatic 4 Heads Bleach Toilet Cleaner Thinner Corrosive Chemical Liquid Fertilizer Anti-corrosion Gravity Bottle Filling Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Machine Video

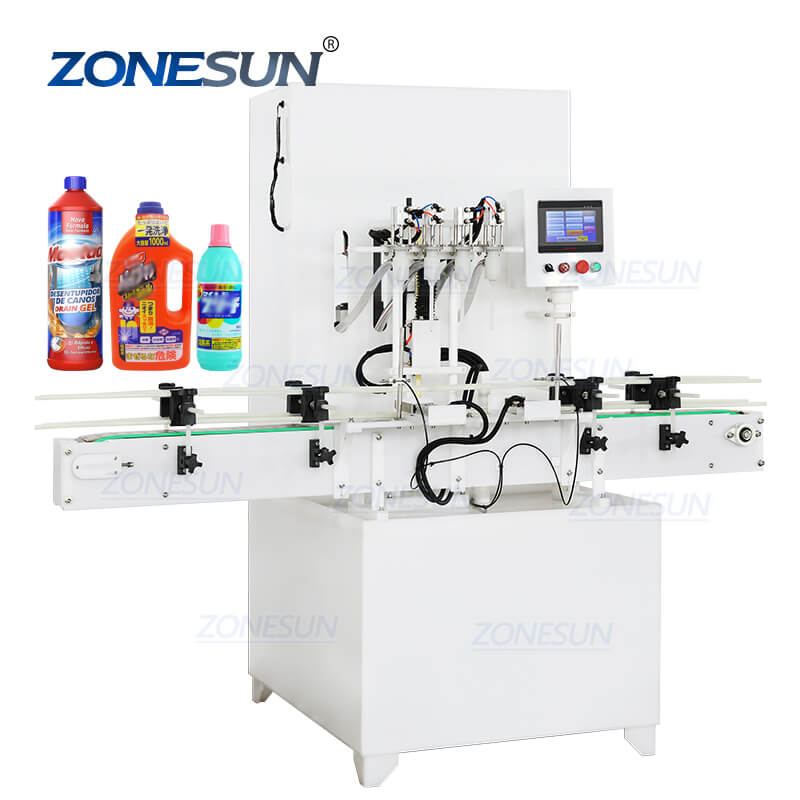

This machine is specially developed for filling corrosive liquids and cosmetic liquids that cannot come into contact with metal. The main body of the equipment is made of PP material, and the part where the liquid passes is made of PTFE and PVC materials.It is widely used in daily chemical, agriculture indusrtries.
Parameter
- Machine model:ZS-YTCR4A
- Voltage:110/220V 50-60HZ 550W
- Air pressure:0.4-0.7MPa
- Suitable bottle diameter:φ60mm--φ120mm
- Suitable bottle height:60mm--300mm
- Hopper size:About 90L
- Filling range:100ml--3000ml
- Filling speed:200-2500 BPH (based on filling volume)
- Machine dimension:About 2000mm*1300mm*1900mm
- Machine weight:About 200kg

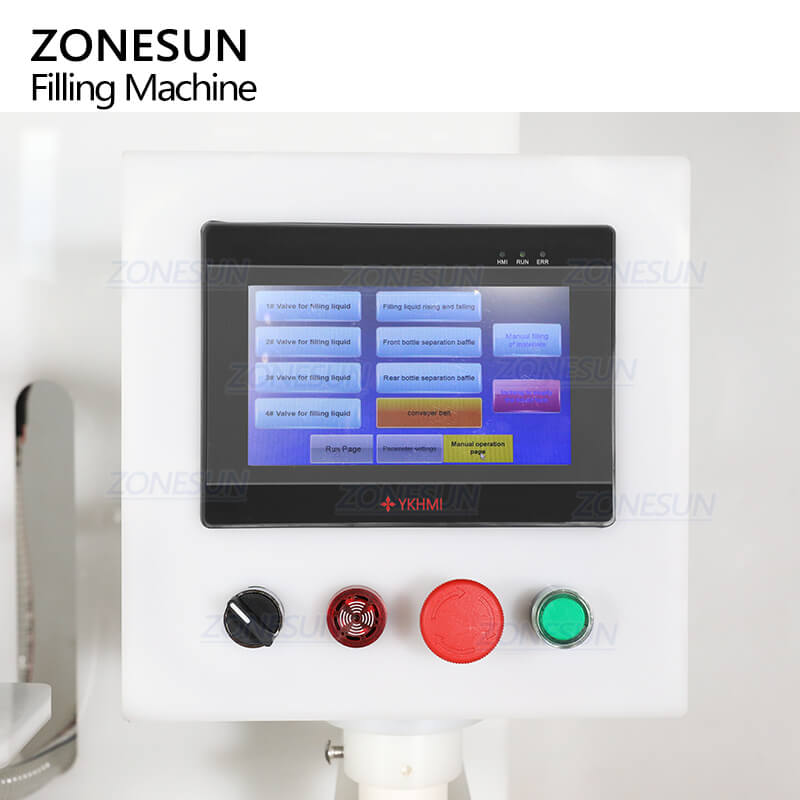

Equipped with touch screen control panel, it shows machine working data and production status in real time, simplifies production process.Different kinds of operation language can be customized as production need.

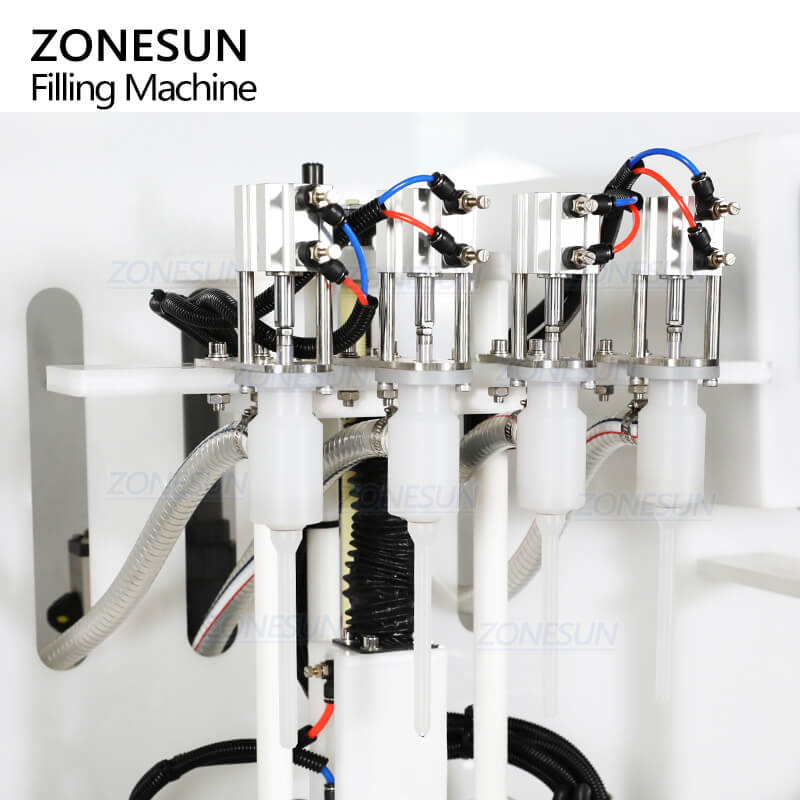

The quantity of filling nozzles can be customized as production need.Anti-corrosion filling nozzles can ensure there is no dripping during filling, improves filling accuracy.

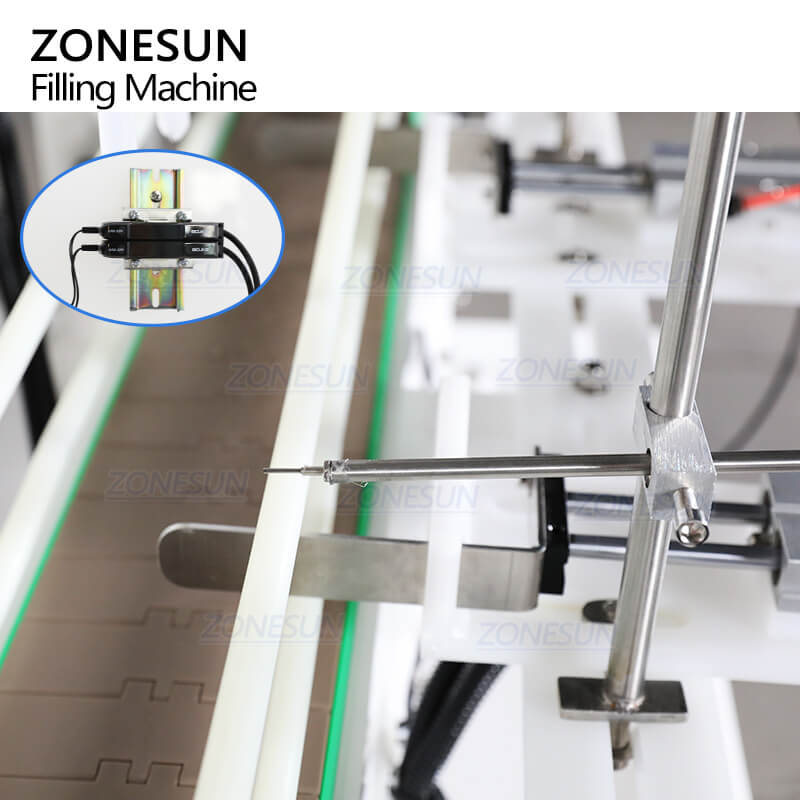

Equipped with fiber bottle inductor, it can detect passing by bottles and control the machine to start the filling work.The sensitivity of it can be adjusted according to production need.

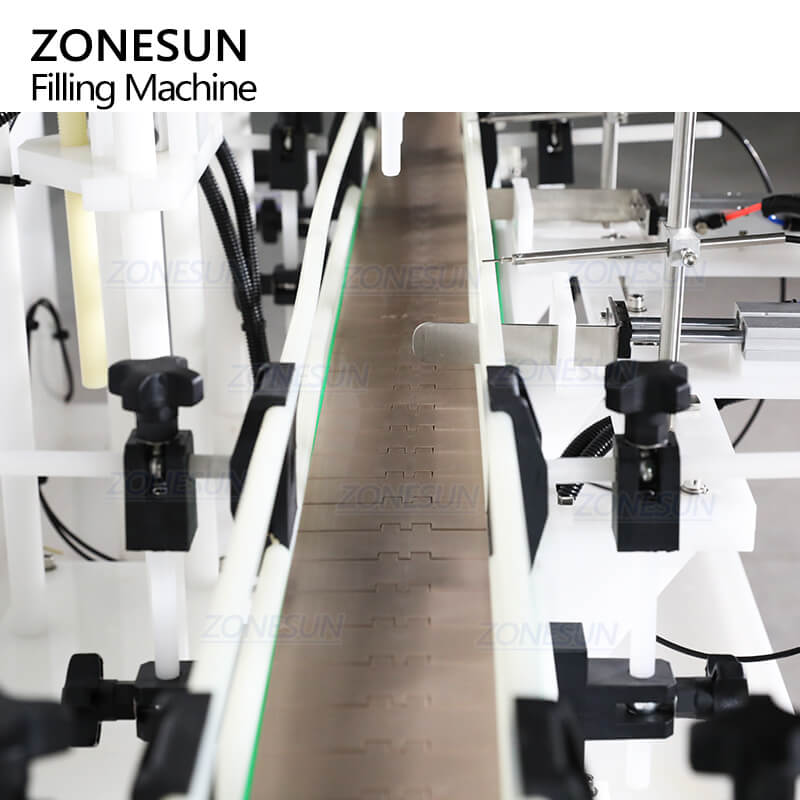

Equipped with high quality chain conveyor, it has larger weight capacity, ensures product can be conveyed smoothly.
