ZONESUN ZS-CFC4 Automatic 4 Heads Beer Soda Carbonated Drinks Glass Bottle Crown Caps Bottling Isobaric Filling Capping Machine

Voltage
Price
Regular price $51,999.00 USD
Regular price Sale price $51,999.00 USD
Save $-51,999 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For Beer Filling Capping Machine

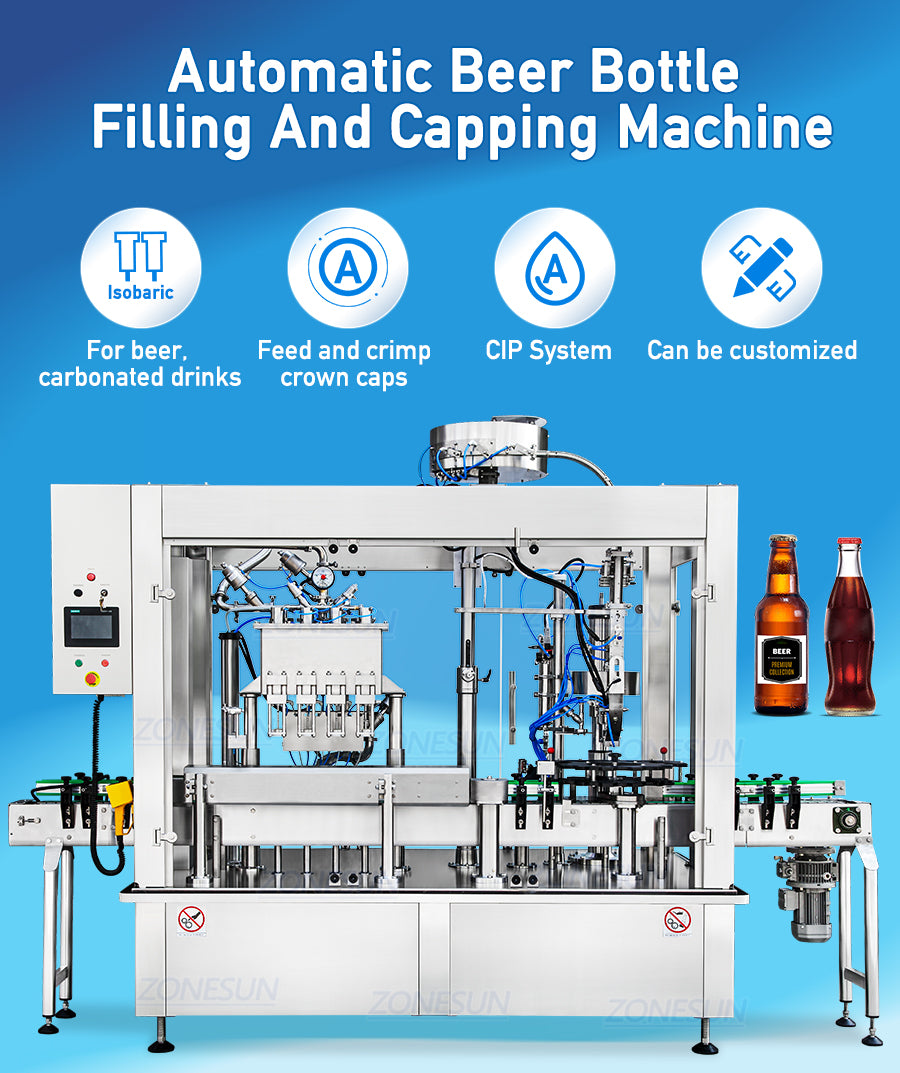

This machine has vacuum, carbon dioxide and liquid filling functions, suitable for carbonated beverages such as beer and soda water. Equipped with automatic feeding and crimping systems to achieve production automation.

Parameter

  • Machine Model: ZS-CFC4
  • Voltage: 220V/110V 50-60Hz
  • Power: About 5.1kW
  • Production Speed: About 800BPH (based on 500ml/bottle)
  • Filling Range: 300ml-1.5L (Can be customized)
  • Filling Method: Isobaric Filling
  • Liquid Level Error: ±2.5mm
  • Suitable Bottle Height: 200-320mm
  • Suitable Bottle Diameter: Φ50-Φ100mm
  • Bottle Mouth Inner Diameter: The position 35mm below the bottle mouth should be >20mm.
  • Bottle Mouth Outer Diameter: <28mm
  • Machine Size: About 2600*1400*2200mm
beer filling capping machine
application of beer filling capping machine
parameter of beer filling capping machine
isobaric filling & capping structure of beer filling capping machine
star wheel & air compressor of beer filling capping machine
integrated filling capping machine
