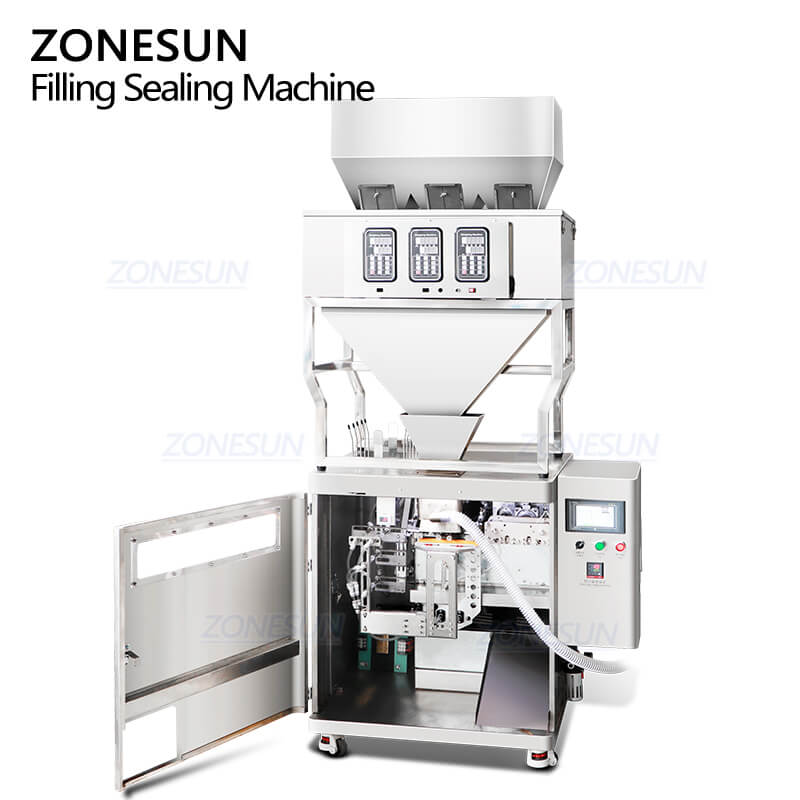

ZONESUN ZS-AFS04F Automatic 3 Weighing Heads Larger Capacity Granule Premade Pouch Packing Machine For Bath Salt Pet Food Grain

This premade pouch packing machine is equipped with a four-head electronic scale for sequential material filling, making it suitable for packaging either a single material or a mixture of multiple materials. Moreover, it can accommodate various bag sizes within a specified range and can be customized for zipper pouches. As such, it is an ideal choice for packaging products like bath salts, herb seasoning, and pet food.

Premade Pouch Packing Machine Parameter

• Machine Model: ZS-AFS04F
• Machine Voltage: 110/220V 50-60HZ 960W
• Filling Range: 100-1000g
• Working Capacity: 22-30 BPM
• Suitable Bag Size: 50*70 mm(L*W)-180*260 mm(L*W)
• Air Pressure: 0.6-0.8 MPa 0.83 m³/min
• Filling Accuracy: ± 0.5g
• Hopper Size: 50 kg
• Machine size: About 990*650*1980 mm (Only Packing Machine)

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

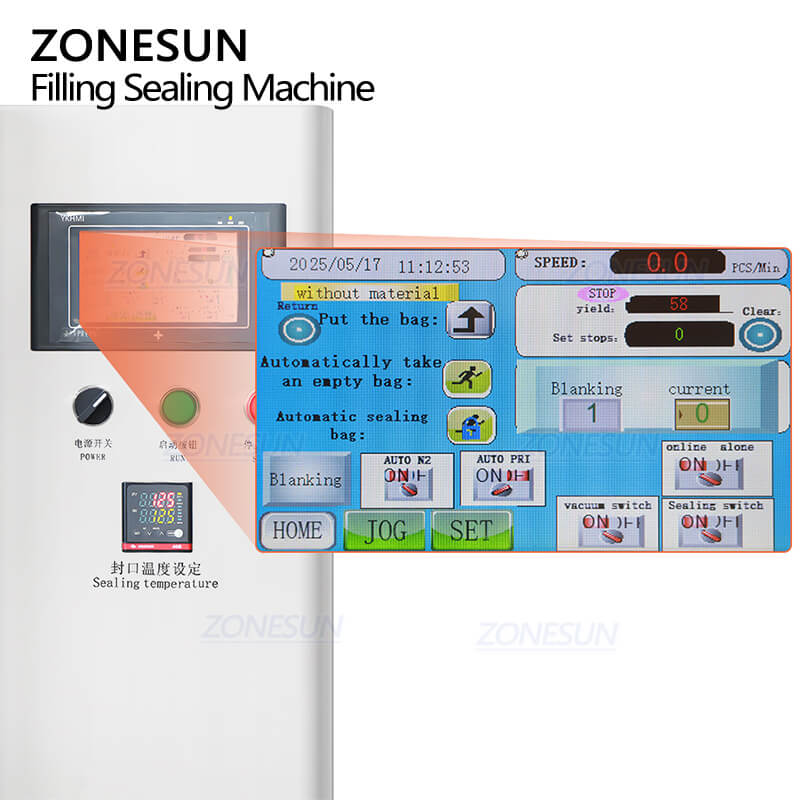

Touchscreen Control Panel

The machine features a PLC-controlled system with a user-friendly touchscreen interface. You can simply set the desired quantity, which is easy to adjust and ensures high weighing accuracy.

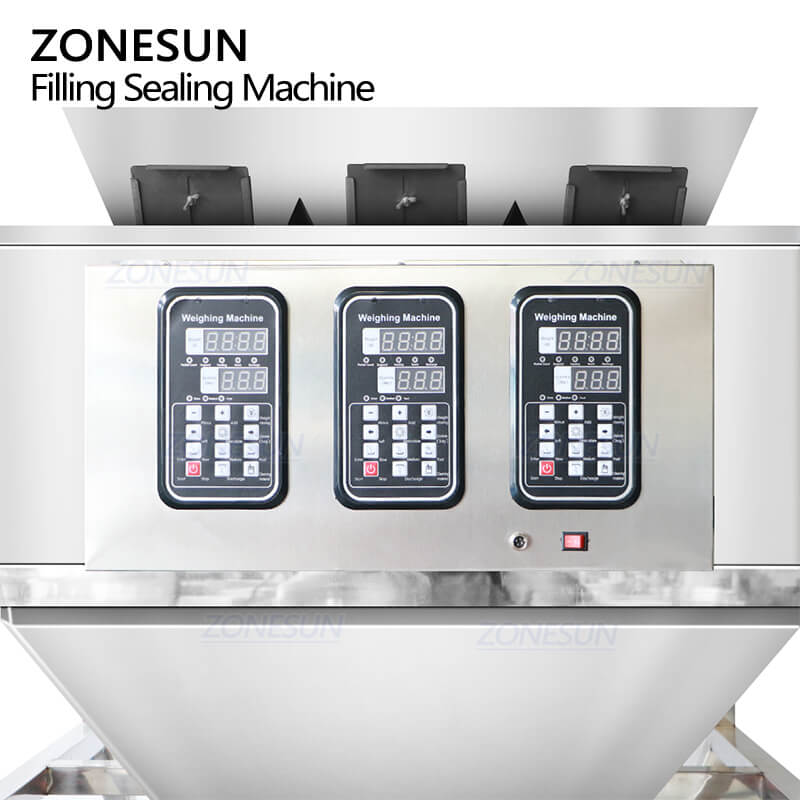

Electronic Weighing Scales

Equipped with a four-head electronic scale to precisely control the filling volume, this machine is suitable for packaging either single materials or mixtures of multiple materials.

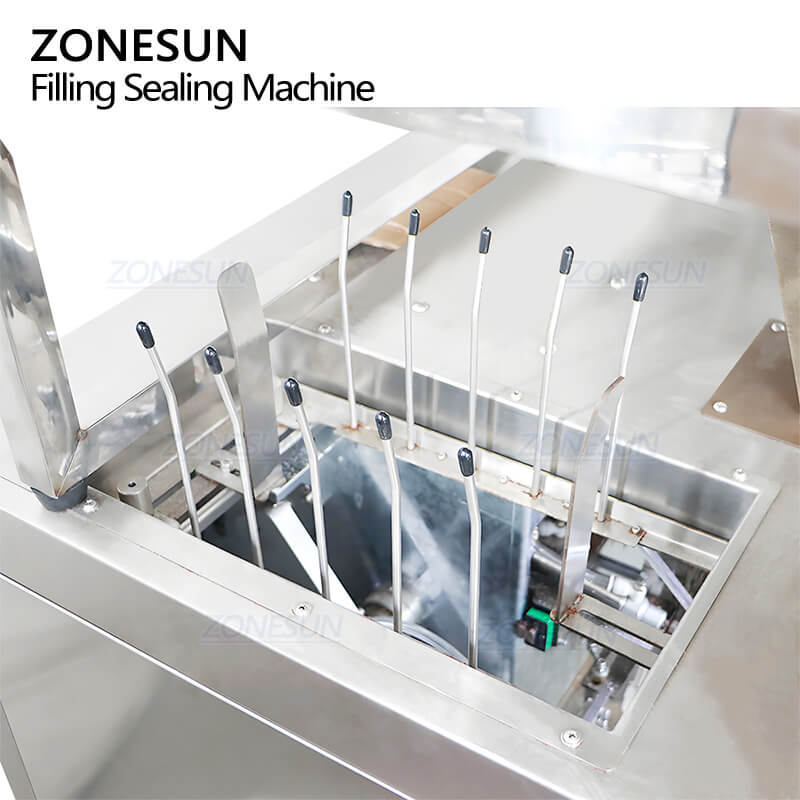

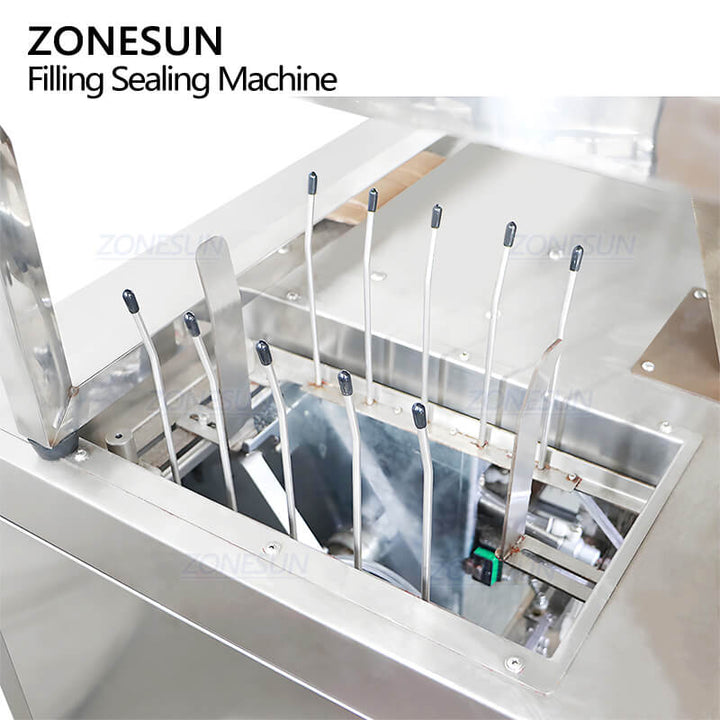

Bag Placement Rack

The machine handles a wide range of bag sizes, from 50×70 mm to 180×260 mm. And you can adjust it to suit different requirements, and customize it for zipper bags.

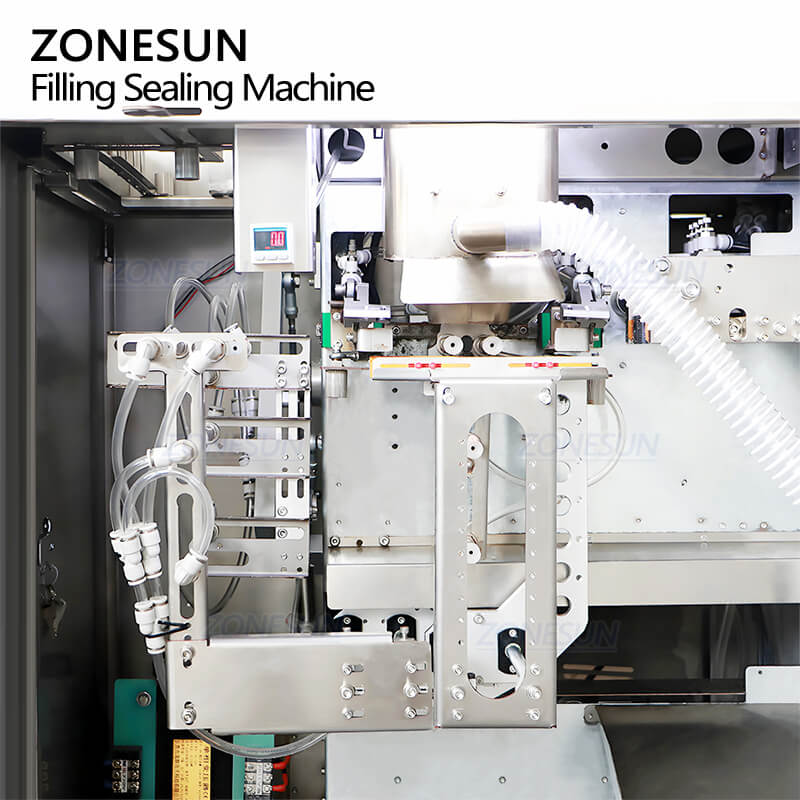

Bag Feeding & Sealing Unit

The granule dosing machine and packaging unit adopt a modular (split) design, which can operate independently or in combination for greater flexibility.

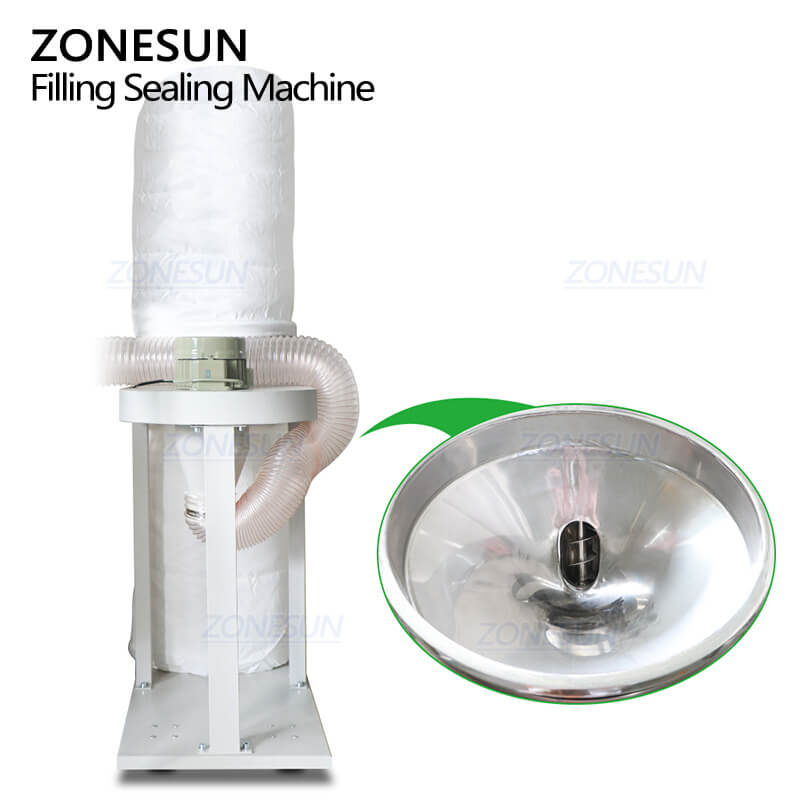

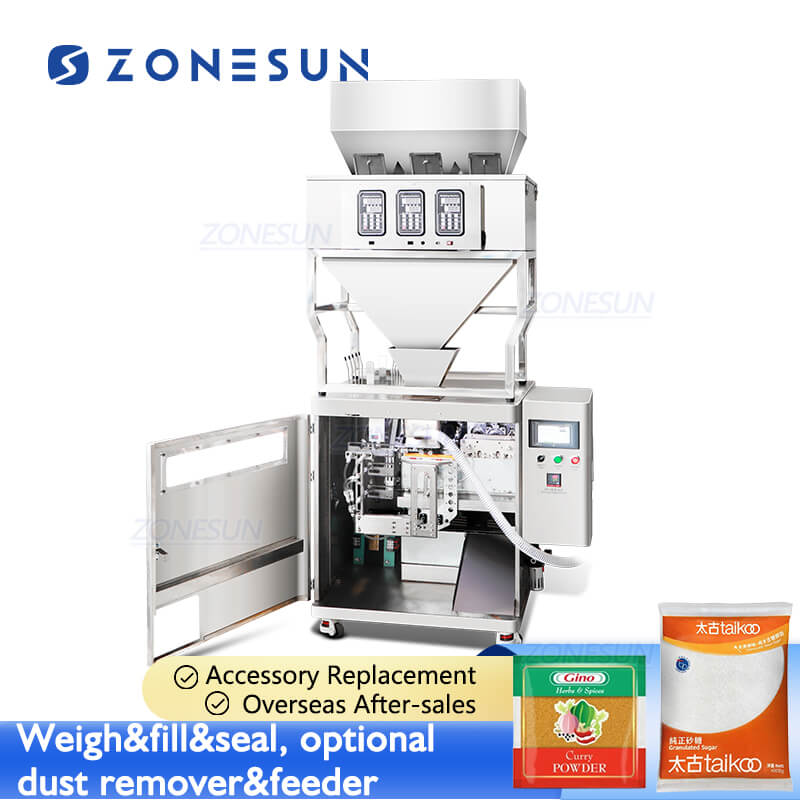

Premade Pouch Packing Machine Optional Features

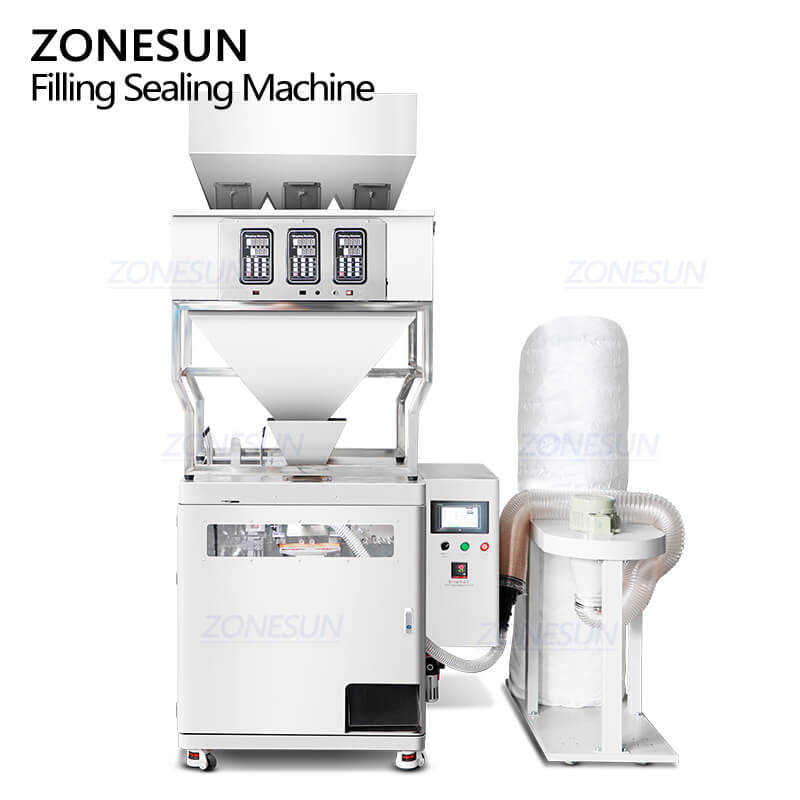

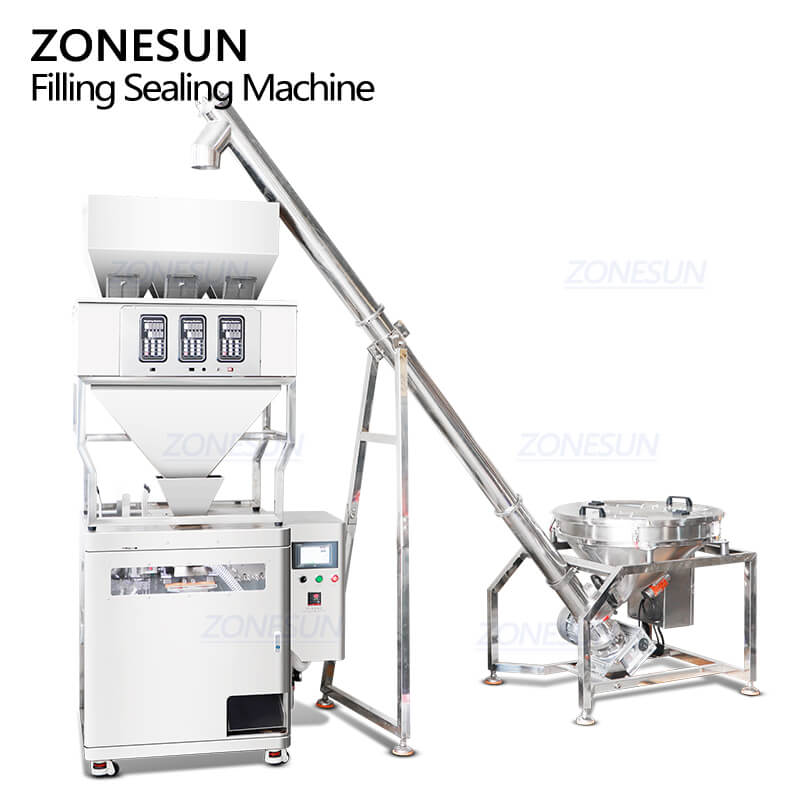

Can optionally configure a dust remover and feeding machine based on production needs to enhance overall efficiency.
