ZONESUN ZS-AFC6P Automatic 3 in 1 Mono-block Pocket Perfume Card Spray Bottles Peristaltic Pump Hand Sanitizer Filling Cap Pressing Capping Machine

Voltage
Price
Regular price $20,799.00 USD
Regular price Sale price $20,799.00 USD
Save $-20,799 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This mono-block filling capping machine is designed for feeding pocket card spray bottle, filling perfume into bottles, feeding spray caps and cap pressing bottles automatically.Mono-block machine design saves working space.It is good for packaging perfume, hand sanitizer.

Parameter

  • Machine Model:ZS-AFC6P
  • Voltage:220V/110V 50-60Hz
  • Power:About 3kW
  • Filling Pump:Peristaltic Pump
  • Production Speed:About 2200-2500pcs/h(depending on product size and filling material)
  • Filling Range:Can be customized
  • Suitable Product Size:Can be customized
  • Suitable Cap Size:Can be customized
  • Air Pressure:0.6-0.8MPa
  • Package Size:1230*1000*1790mm(Main Machine)
  • 1900*560*650mm(Brackets)+940*780*670mm(Vibratory Bowl 1)+1420*790*710mm(Vibratory Bowl 2)
  • Package Weight: 283KG(Main Machine)+67KG(Brackets)+90KG(Vibratory Bowl 1)+153KG(Vibratory Bowl 2)

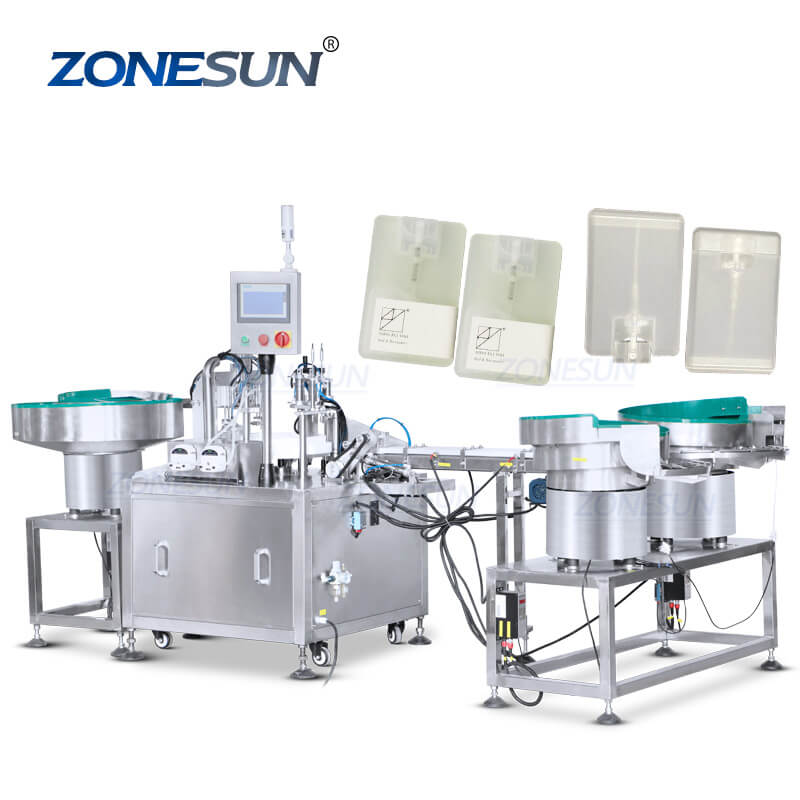

pocket perfume filling machineapplication of pocket perfume filling machinepocket perfume filling capping machine

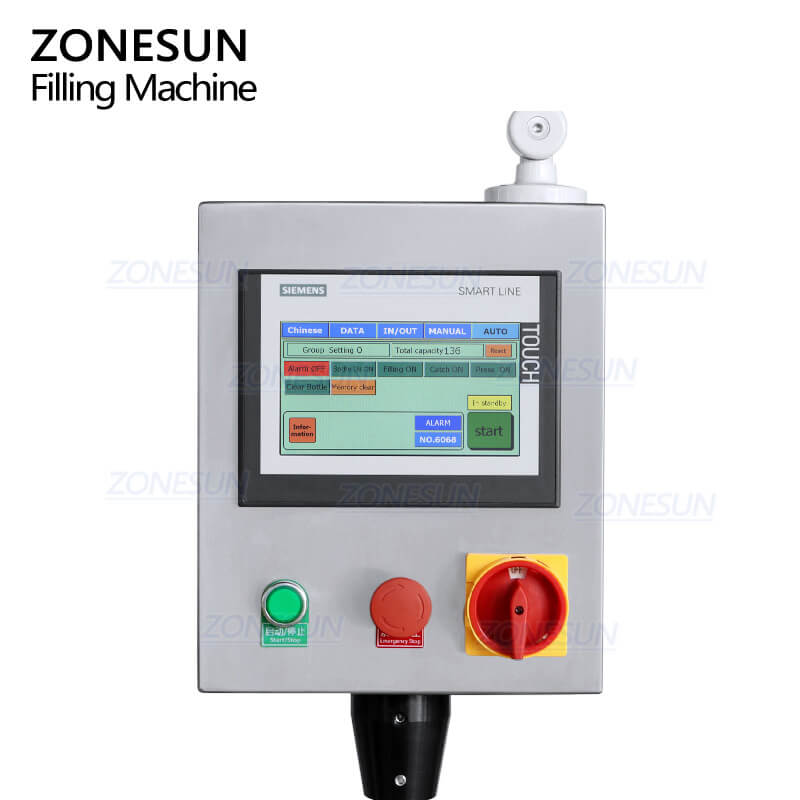

control panel of pocket perfume filling machine

Equipped with PLC control panel, it is convenient to set and adjust working parameters. The language of panel can be customized as your need.

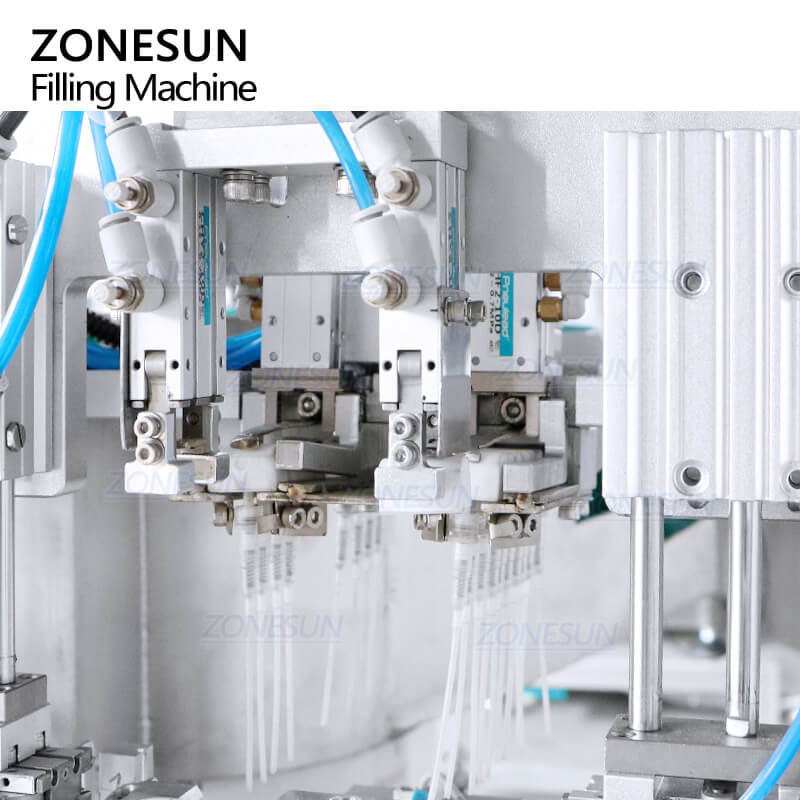

bottle feeding structure of pocket perfume filling machine

This component can pick up and place pocket bottles into fixing molds automatically, saving labor cost. The component can be customized according to your products.

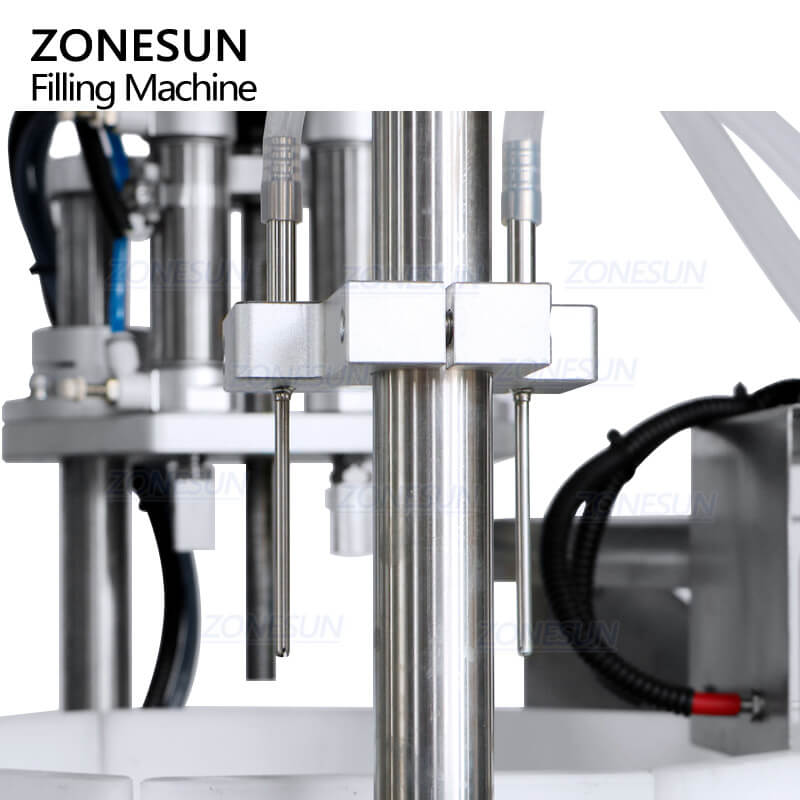

filling nozzle of pocket perfume filling machine

Equipped with peristaltic pumps, the liquid won’t pass through pumps during filling, ensuring its cleanliness. The filling range and nozzle quantity can be customized as production need.

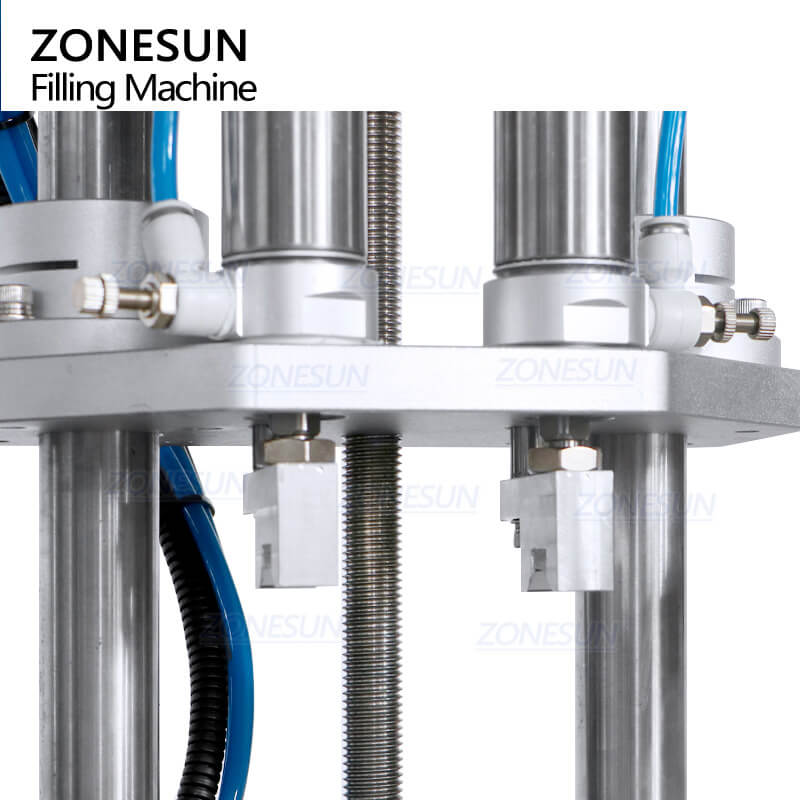

cap pressing structure of pocket perfume filling machine

These two components are designed for placing spray caps into bottles automatically. It is equipped with a component which can make dipping tubes straight, enabling it to drop into bottles smoothly. Ensure production efficiency.

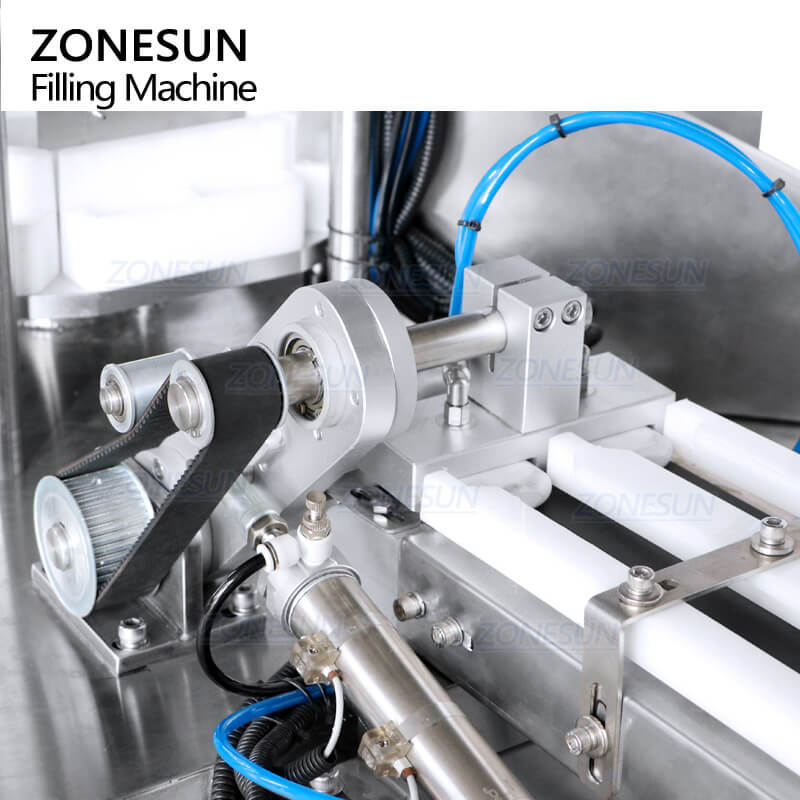

bottle conveying structure of pocket perfume filling machine

Driven by powerful cylinder, the component can run steadily and press spray caps well. It can be customized according to cap size.

pocket card spray bottle filling machine
