ZONESUN ZS-FMYG1 Full Automatic 3 Head Servo Motor Talcum Powder Instant Coffee Bottle Auger Powder Filling Capping Machine
Earn 0 points on this purchase.
Regular price
$27,249.00 USD
Regular price
$29,998.00 USD
Sale price
$27,249.00 USD
Save $2,749 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This powder filling line is consist of three heads powder filling machine, cap elevator,and cap pressing machine. This filling line is suitable for packaging fine powder, milk powder, talcum powder.
Filling Machine Parameter
- Model: ZS-FM4A
- Voltage: 380V 6KW
- Filling Range: 50-300g (customizable)
- Filling Nozzle Diameter: Customizable
- Number of Filling Heads: 3
- Filling Accuracy: ±1% g
- Machine Dimensions: Approx. 2800×1050×2300 mm
- Package Dimensions: Approx. 2590×1030×2230 mm
- Net Weight/Gross Weight: Approx. 600kg / 905kg
Capping Machine Parameter
- Model: ZS-XG21
- Voltage: 220V/110V 50-60Hz
- Motor Power: 180W
- Working Speed: Approx. 1000-3000 bottles/h (depending on bottle and cap size)
- Applicable Bottle Height: 100-380 mm
- Bottle Cap Diameter: 50-100 mm
- Conveyor Motor Power: 370W
- Machine Dimensions: Approx. 630×650×1500 mm
- Package Dimensions: Approx. 860×650×2100 mm
- Package Weight: Approx. 150kg
Equipped with touch screen control panel, the visual working date is more convenient to adjust the machine in real time, different operation language can be customized as need.

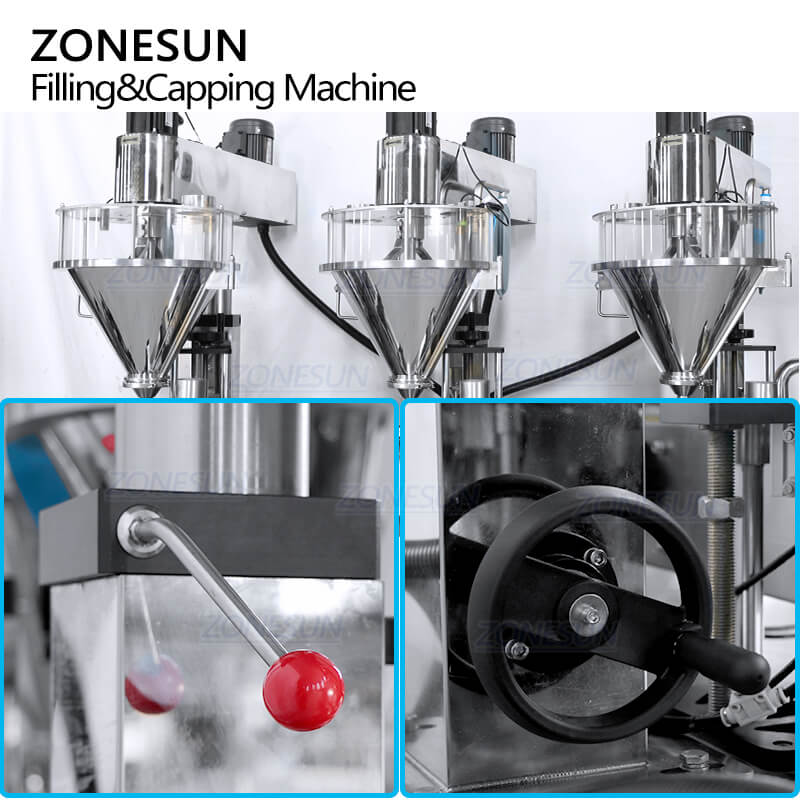

Multiple filling heads can be customized as production need, the size of filling nozzle will be customized according to bottle opening mouth, angle and height of filling nozzle by the rotary handle and knob.
Designed with the dust-proof component the height can be adjusted by the rotary knob, this component can ensure the production quality.

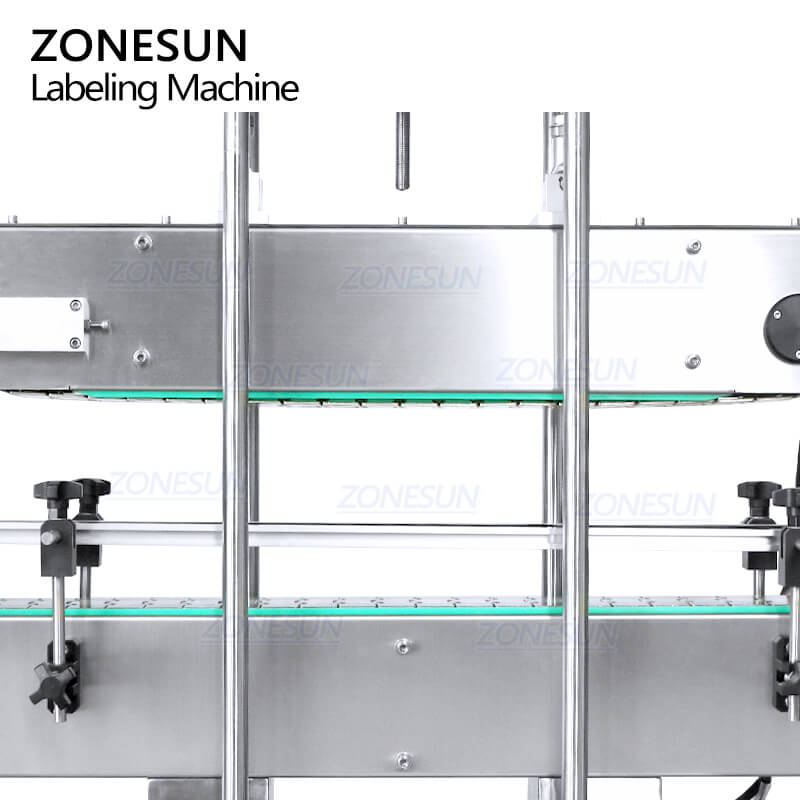

With stainless steel conveyor belt,it can transport products steadily. Its size can be customized as needed. The conveying speed and width of conveyor belt can be adjusted as needed.
With chain rail to press bottle caps, it can press multiple bottles at the same time, greatly improving efficiency. It can be customized according to your products.
