This mixing equipment is designed with a sealed tank and features an integrated system that includes wall-scraping mixing, high-efficiency homogenizing and emulsifying, jacketed heating and cooling, vacuum functionality, temperature control, internal lighting, and a sturdy support frame. By operating under vacuum conditions, it effectively eliminates air incorporation during mixing, resulting in superior homogenization and emulsification performance.
Parameter
- Machine Model: ZS-VMB200RH
- Voltage: 220V 50-60Hz
- Tank Capacity: 200L (customizable upon request)
- Wall Thickness: Inner layer: 5 mm
- Middle layer: 4 mm
- Outer layer: 3 mm
- Tank Material: Inner layer made of SUS316L; middle and outer layers made of SUS304
- Heating Power: 18 kW
- Mixing Motor Power: 2.2 kW
- Mixing Speed: Frequency-controlled, adjustable from 0 to 62 RPM
- Homogenizing Emulsifier Power: 5.5 kW
- Homogenizing Speed: Frequency-controlled, adjustable from 0 to 2,930 RPM
- Vacuum Pump Power: 1.45 kW
- Working Pressure: Vacuum pressure range: -0.09 to -0.02 MPa; Positive pressure: ≤ 0.3 MPa
- Dimension: About 1512*1026*2619 mm
- Package Size: About 1350*1060*2230 mm
- Package Weight: About 591 kg

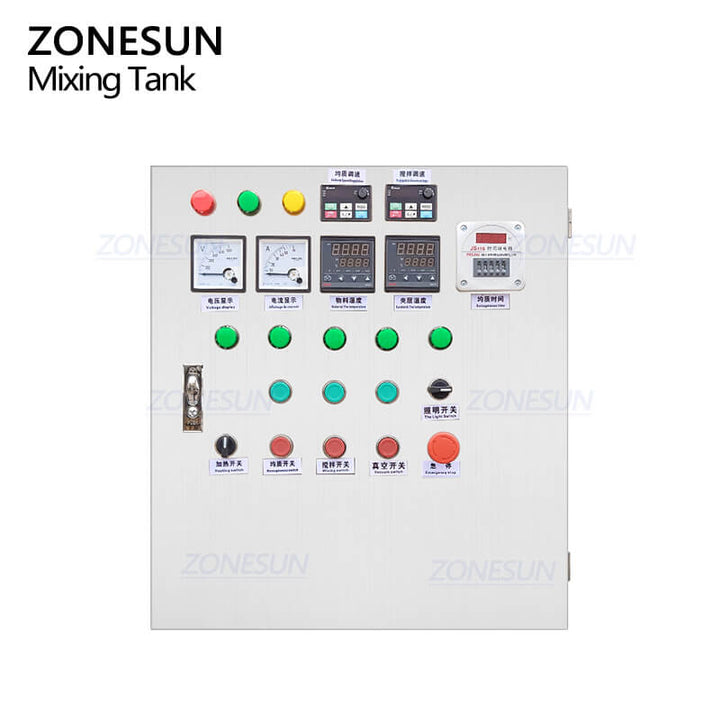

Control Panel
User-friendly interface with clearly labeled functions. Dual temperature control system allows for precise and stable temperature regulation.
Top Manway Cover
300×350 mm manway for manual feeding and easy cleaning of the mixing tank.

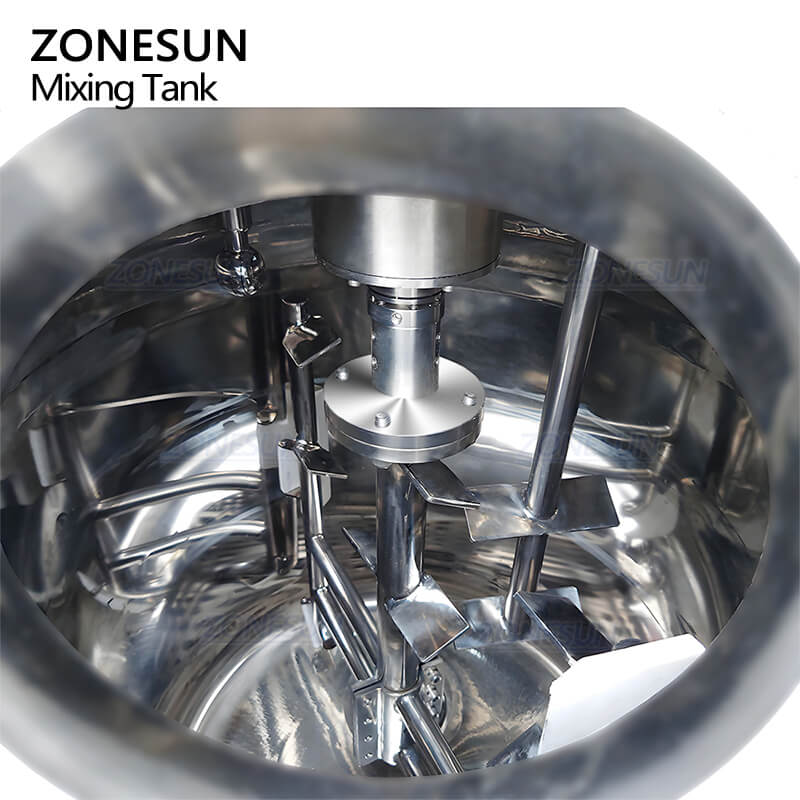

Frame-Type Wall-Scraping Agitator
Equipped with a frame-style agitator featuring baffles and side scrapers to ensure thorough, dead-zone-free mixing. Prevents material from sticking during heating.
LED Illumination
Integrated 3W LED light provides clear internal visibility during operation.

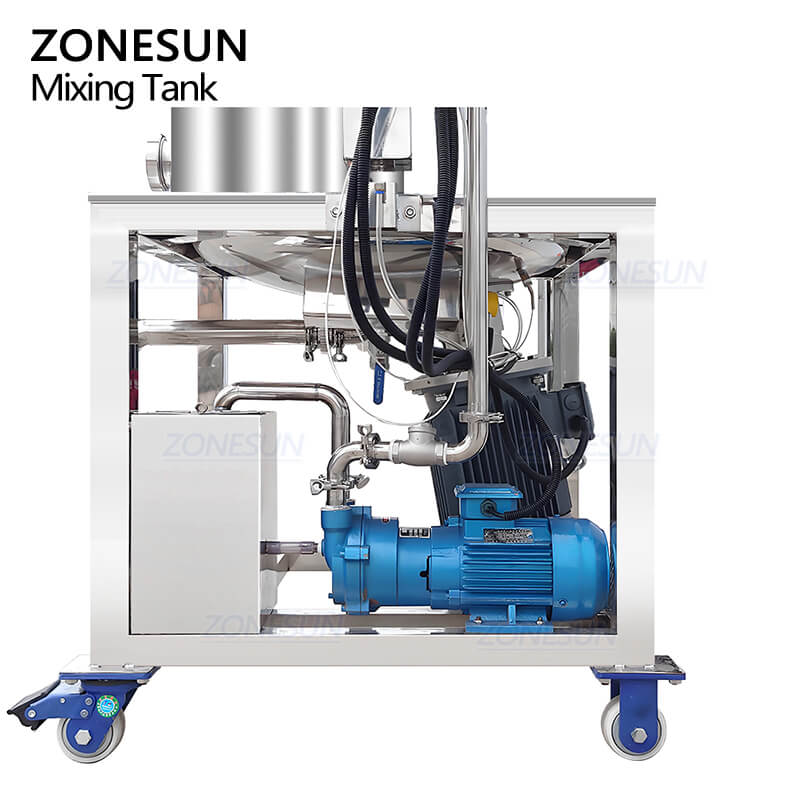

Vacuum Pump
Vacuum operation prevents air incorporation during mixing, ensuring a smooth and bubble-free final product.
