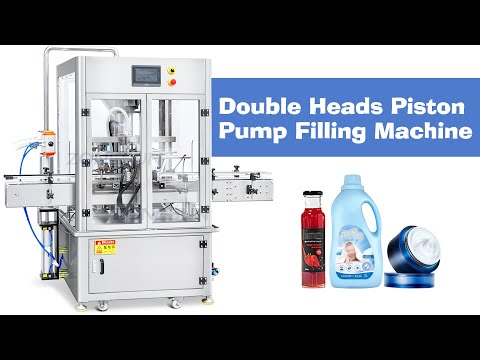

ZONESUN ZS-YT2T-2PXD Automatic 2 Heads Servo Piston Pump Shampoo Lotion Paste Filling Machine
Regular price
$7,999.00 USD
Regular price
$10,000.00 USD
Sale price
$7,999.00 USD
Save $2,001 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Controlled by a servo motor, the machine allows for precise filling volume settings via the control panel. It is suitable for viscous liquids such as shampoo, lotion, and laundry detergent. Equipped with a dust cover, it can also be integrated with other equipment for a complete production line.
Paste Filling Machine Parameter
- Machine Model: ZS-YT2T-2PXD
- Voltage: 110/220V 50-60HZ
- Power: 2KW
- Filling Heads: 2 Heads(Can be customized)
- Filling Range: 10-180 ml/30-500 ml/100-1000 ml (Can be customized)
- Filling Speed: About 20-40 bottles/min(depending on materials and bottle size)
- Hopper Capacity: 20L
- Filling Accuracy: ±1%
- Suitable Bottle Size: Customized
- Air Pressure: 0.5-0.8 Mpa
- Memory Function: Available
- Machine size: About 2156*986*1884 mm
Control Panel
Touch screen control panel makes parameter setting more intuitively, filling volume can be set through control panel directly.
Touch screen control panel makes parameter setting more intuitively, filling volume can be set through control panel directly.
Anti-dripping Filling Nozzles
Quantity of filling nozzles are customizable, anti-dripping design improves filling accuracy.
Quantity of filling nozzles are customizable, anti-dripping design improves filling accuracy.
Feeding Pump
Equipped with piston pump to feed filling material in time,liquid level sensor can detect and supply filling material in time.
Equipped with piston pump to feed filling material in time,liquid level sensor can detect and supply filling material in time.
Servo Motor
Filling work is controlled by servo motor, it improves filling accuracy.
Filling work is controlled by servo motor, it improves filling accuracy.
Electric Circuit
Electric circuit are arranged neatly, this ensures machine work stably and easier to maintain.
Electric circuit are arranged neatly, this ensures machine work stably and easier to maintain.
Chain Conveyor
Length and width are customizable as production need.Chain conveyor has larger weight capacity.
Length and width are customizable as production need.Chain conveyor has larger weight capacity.
