ZONESUN ZS-CQ2A Automatic 2 Heads Sunscreen Spray Aerosol Metal Can Gas Propellant Filling Machine
Regular price
$13,799.00 USD
Regular price
Sale price
$13,799.00 USD
Save $-13,799 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

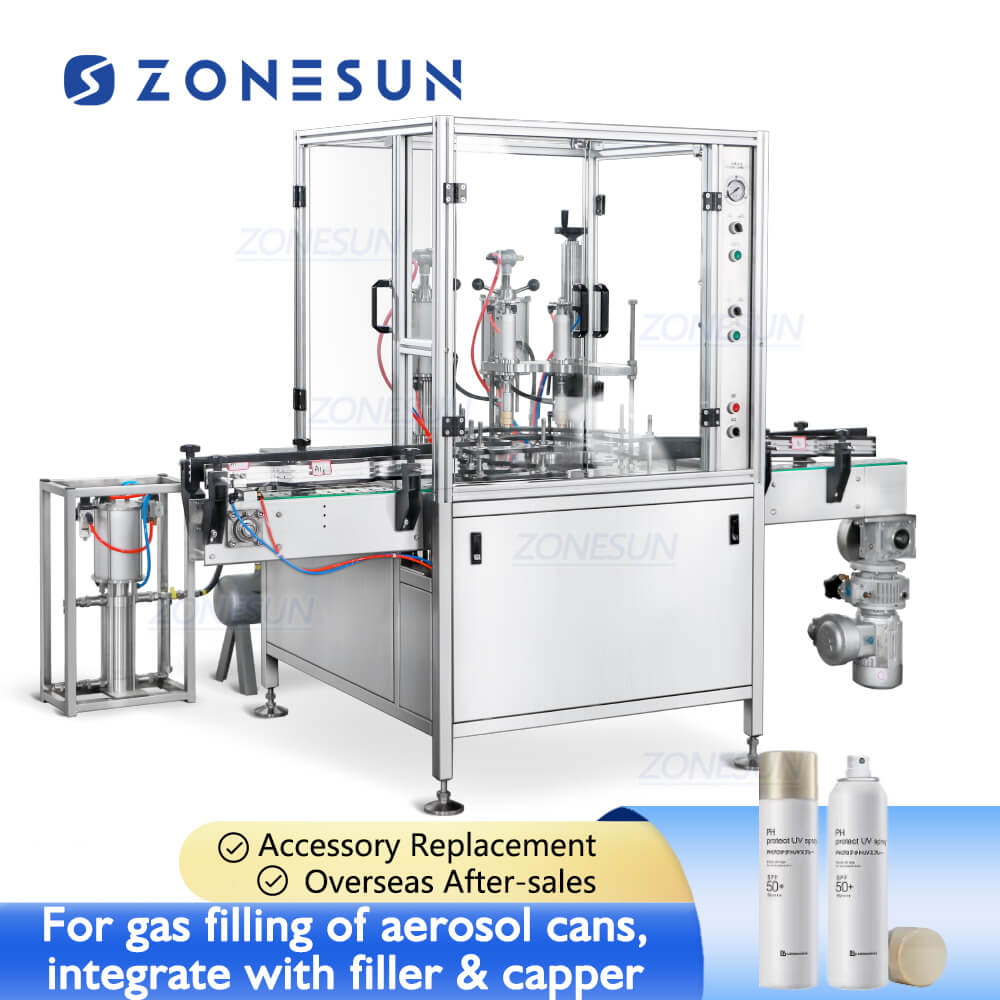

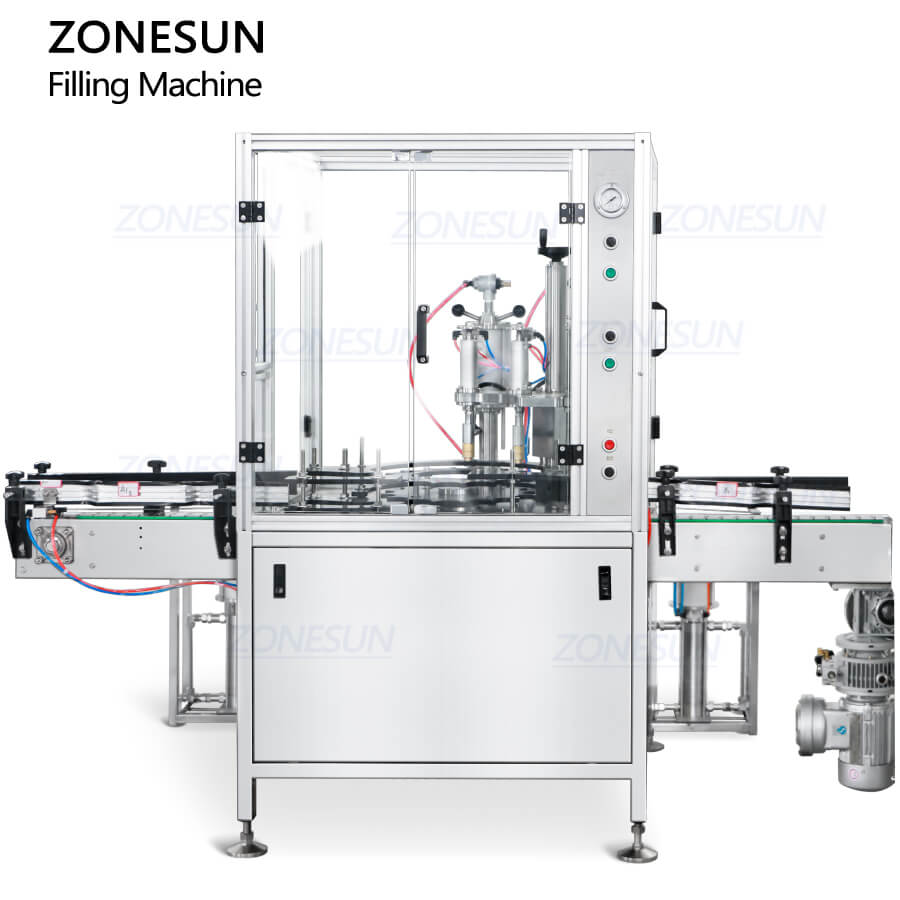

This aerosol can gas filling machine is designed for high-efficiency and high-precision gas charging for various types of aerosol cans. Powered by compressed air, it ensures safe and reliable operation with excellent sealing performance. The machine can integrate liquid filling capping machine to realize automated production, it is suitable for industries such as daily chemicals, cosmetic and food.
Aerosol Can Gas Filling Machine Parameter
- Machine Model: ZS-CQ2A
- Filling Capacity: 20-250 ml*2
- Filling Accuracy: ±1%
- Production Capacity: 30-40 BPM
- Aerosol Can Height: 90-315 mm
- Aerosol Can Diameter: Ø35-Ø65 mm
- Applicable Valve: 1 inch(25.4 mm)
- Working Pressure: 0.65-1.0 MPa
- Maximum Air Consumption: 3 m³/min
- Package Size: 1230*1110*1880 mm+610*660*810 mm
- Package Weight: 436 kg+78 kg=514 g
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

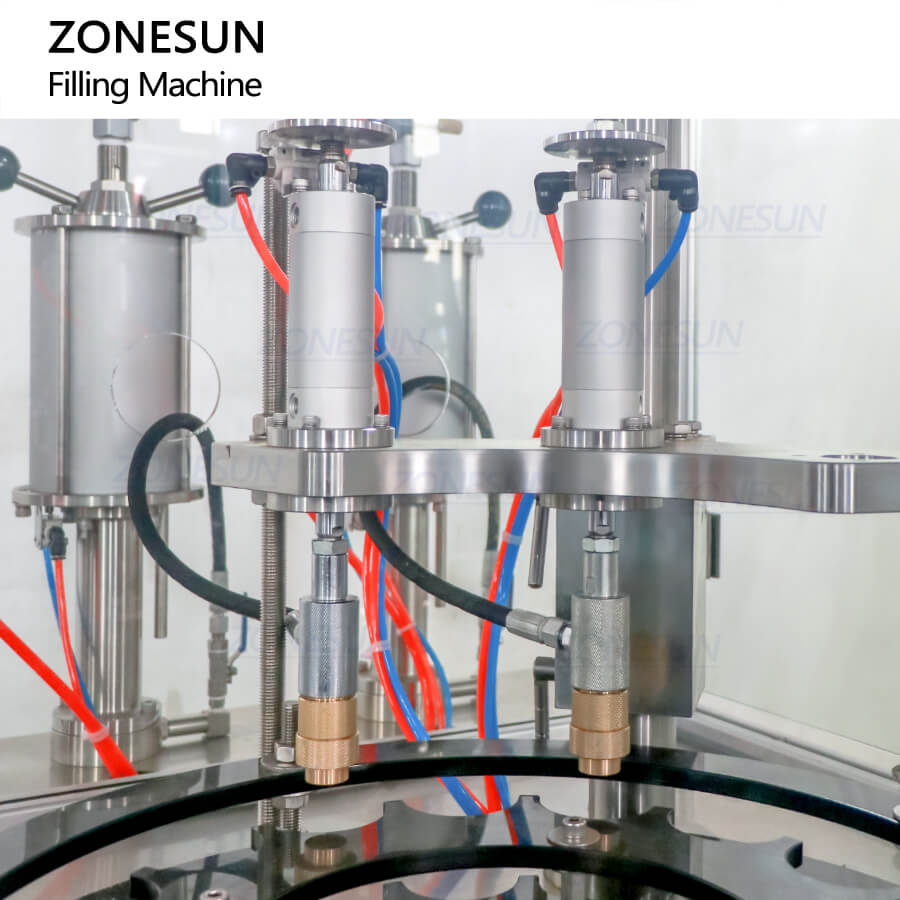

Gas Filling Head
Equipped with a volumetric metering system for precise gas dosage and leak-free performance.
Equipped with a volumetric metering system for precise gas dosage and leak-free performance.

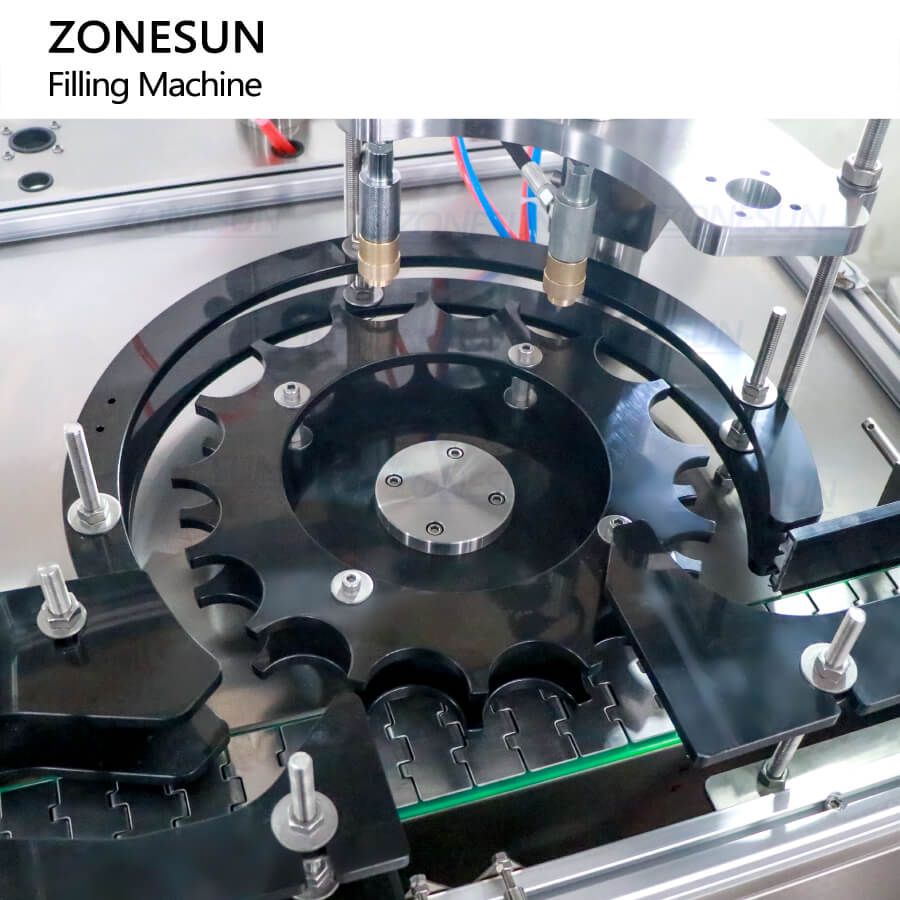

Starwheel
Accurately positions aerosol cans during gas filling for consistent alignment and smooth operation.
Accurately positions aerosol cans during gas filling for consistent alignment and smooth operation.
Dust-proof Cover
Protects the filling area from dust and contaminants, ensuring a clean and hygienic process.
Protects the filling area from dust and contaminants, ensuring a clean and hygienic process.

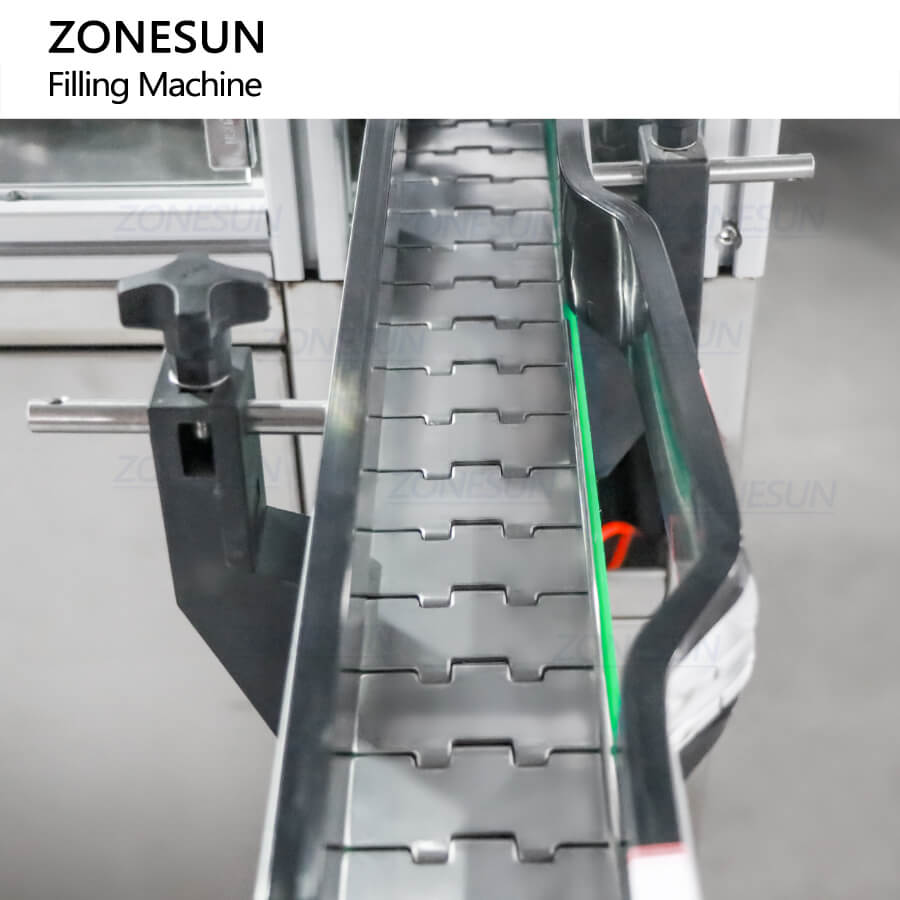

Conveyor Belt
Motor-driven belt for stable can transportation, ensuring seamless integration with other production equipment.
Motor-driven belt for stable can transportation, ensuring seamless integration with other production equipment.

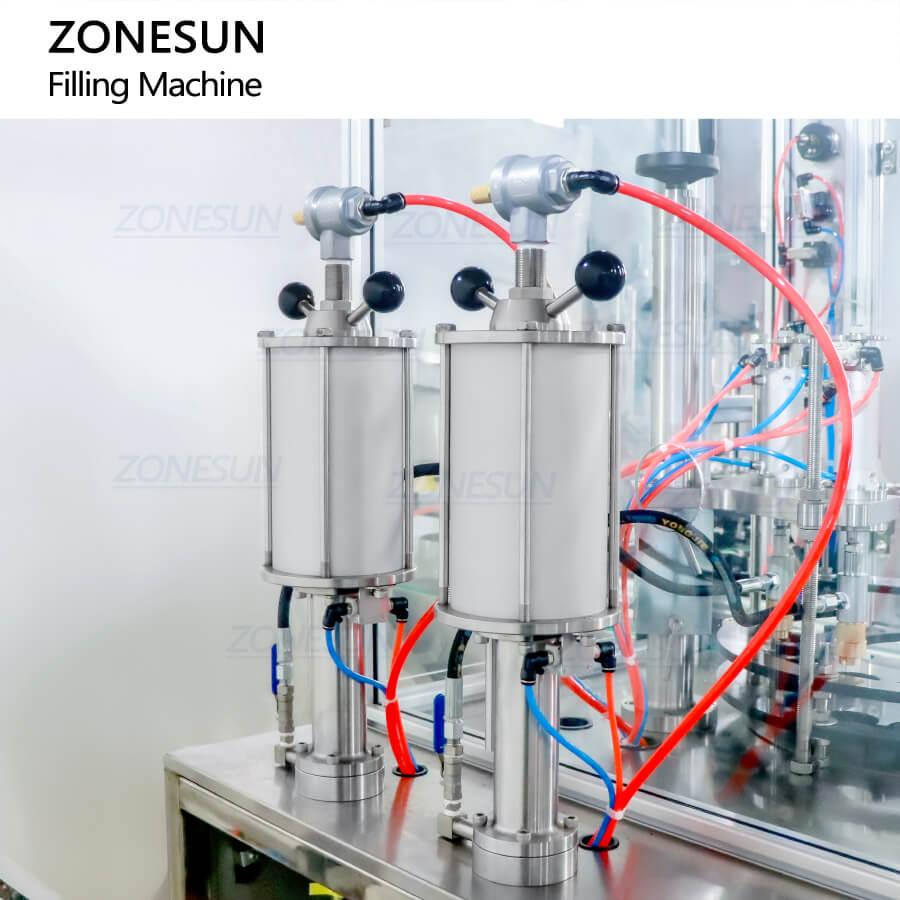

Air Cylinder
Designed to work with an air compressor, gas filling volume can be adjusted through air valve.
Designed to work with an air compressor, gas filling volume can be adjusted through air valve.
