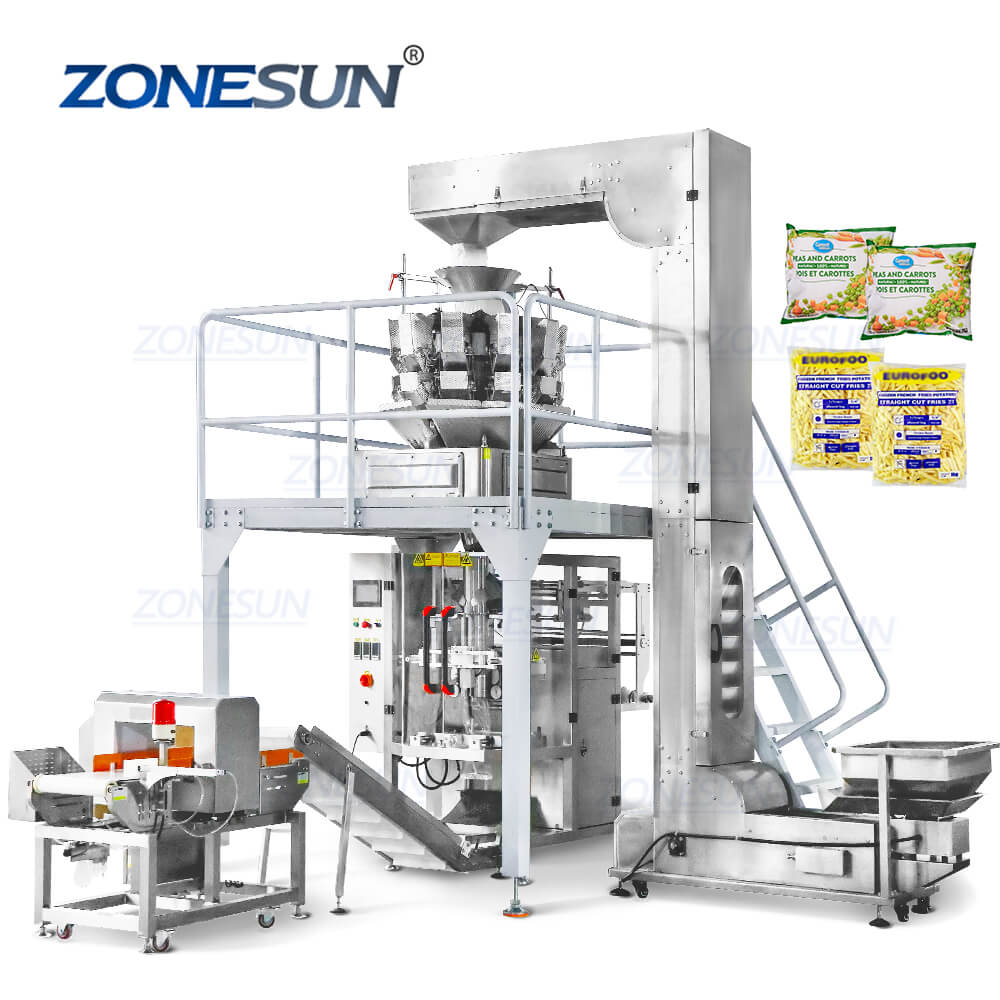

ZS-GW10 Automatic 10 Heads Biscuit Broccoli Granule Nuts Bag Vertical Form Weighing Filling Machine

10 Heads Vertical Form Weighing Filling Sealing Machine
Control Panel of 10 Heads Vertical Form Weighing Filling Sealing Machine
Sealing Structure of 10 Heads Vertical Form Weighing Filling Sealing Machine
Weighing Device of Automatic 10 Heads Weighing Filling Sealing Machine
Metal Detector of Weighing Device of Automatic 10 Heads Weighing Filling Sealing Machine
Z type Elevator of Weighing Device of Automatic 10 Heads Weighing Filling Sealing Machine

ZS-GW10 Automatic 10 Heads Biscuit Broccoli Granule Nuts Bag Vertical Form Weighing Filling Machine

Size
Voltage
Regular price $27,999.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

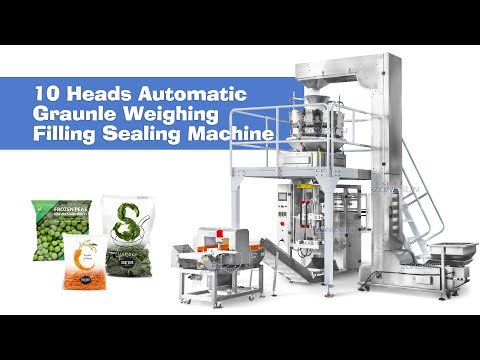

Click Video Link For Video

This vertical form filling sealing machine is used to package bagged granule or block shape material like coffee bean,broccoli, biscuit etc.It is equipped with Z type elevator which can supply material in time.This machine is widely used in food,daily chemical industries.

Parameter

Model:ZS-GW10
Power supply: 380V 50HZ
Power:5.5 kW
Air source:0.3cbm/min, 0.65Mpa
Sealing method:back side sealing
Measurement range:500-3000g
Bag size:length 100-400mm, width 100-300mm
Film width:Max 630mm
Film thickness:6-12C
Packing speed:15-30 packs/min
Machine size:About 6000*5000*5000mm
Packing weight:About 1800KG

10 Heads Vertical Form Filling Sealing Machine

Application of 10 Heads Vertical Form Filling Sealing Machine

Machine Details of 10 Heads Vertical Form Filling Sealing Machine

Navigation of 10 Heads Vertical Form Filling Sealing Machine

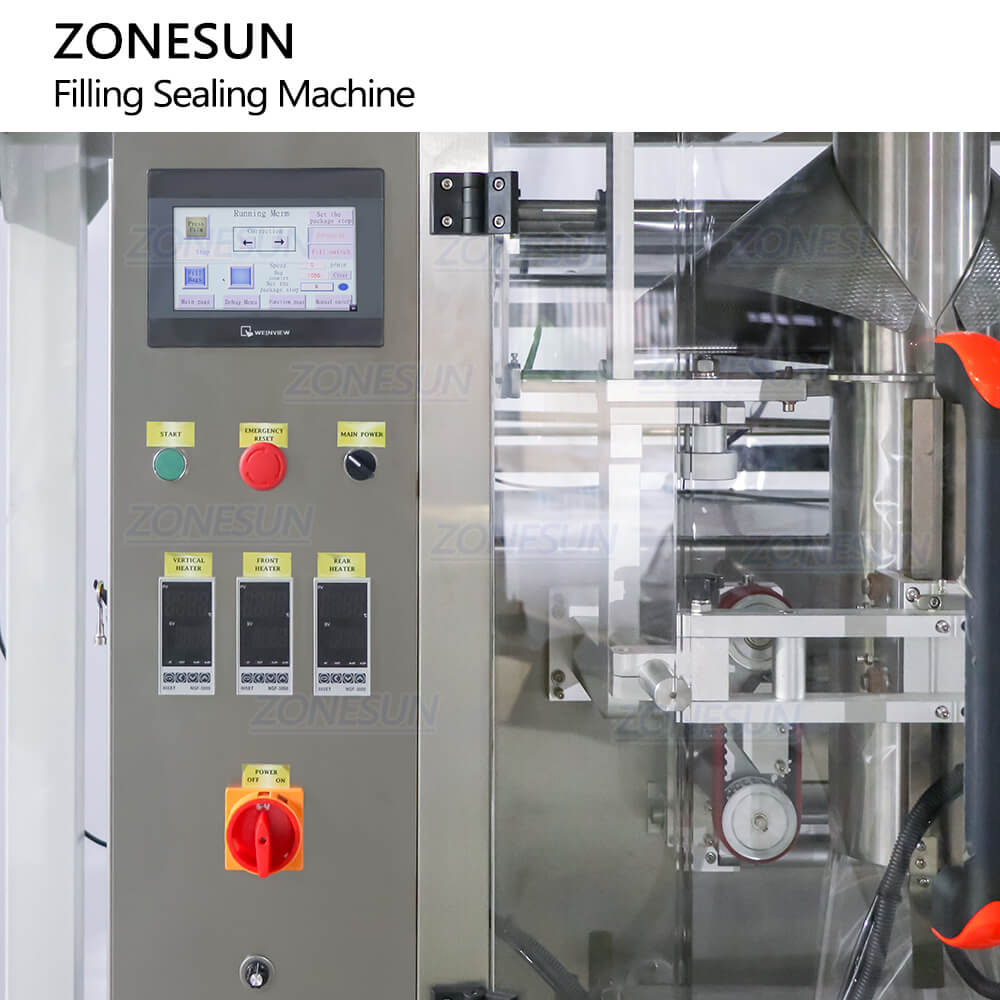

Control Panel of 10 Heads Vertical Form Filling Sealing Machine

Equipped with touch screen control panel, it is more convenient when debugging machine.Visual data helps to watch working status in time and easily.Different kinds of operation language can be customzied as needed.

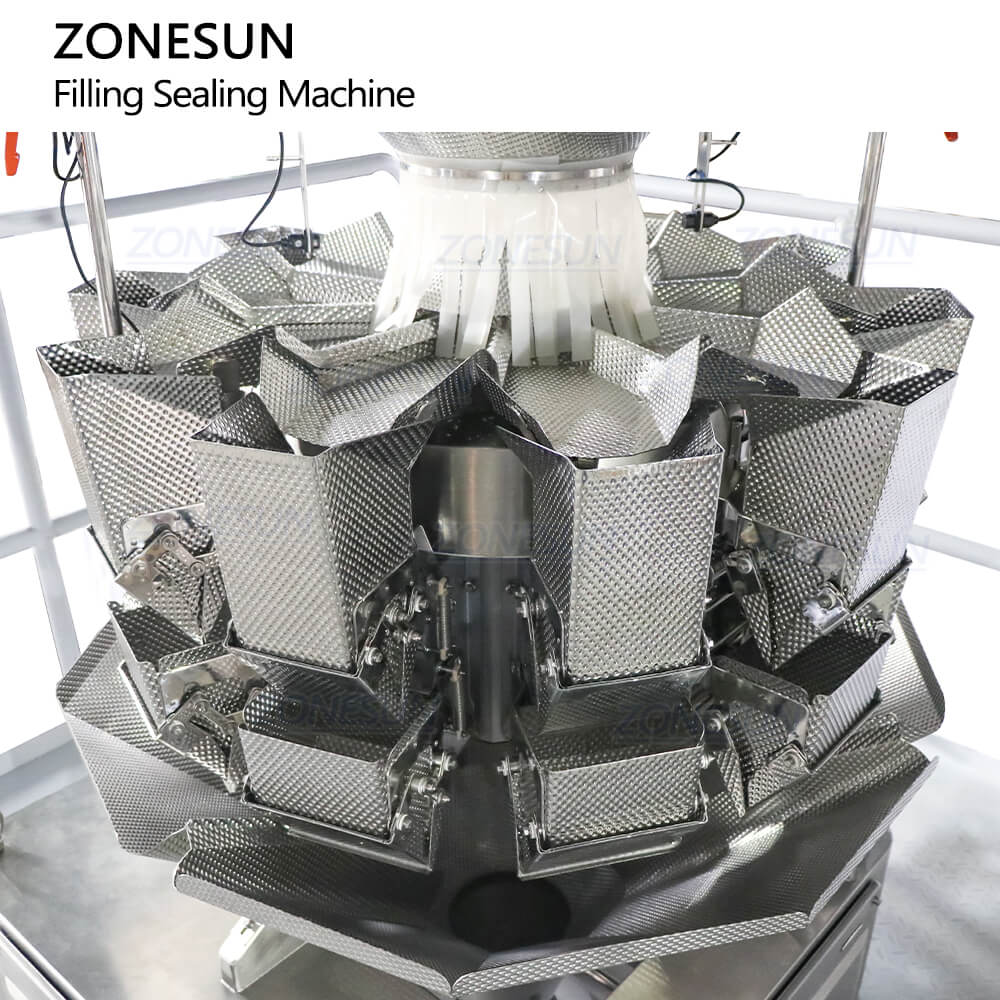

Weighing Device of 10 Heads Vertical Form Filling Sealing Machine

Equipped with 10 heads weighing device, this machine can control the amout of material poured from small hopper automatically,so as to ensure that the final filling amount is as consistent as possible with the set filling value.

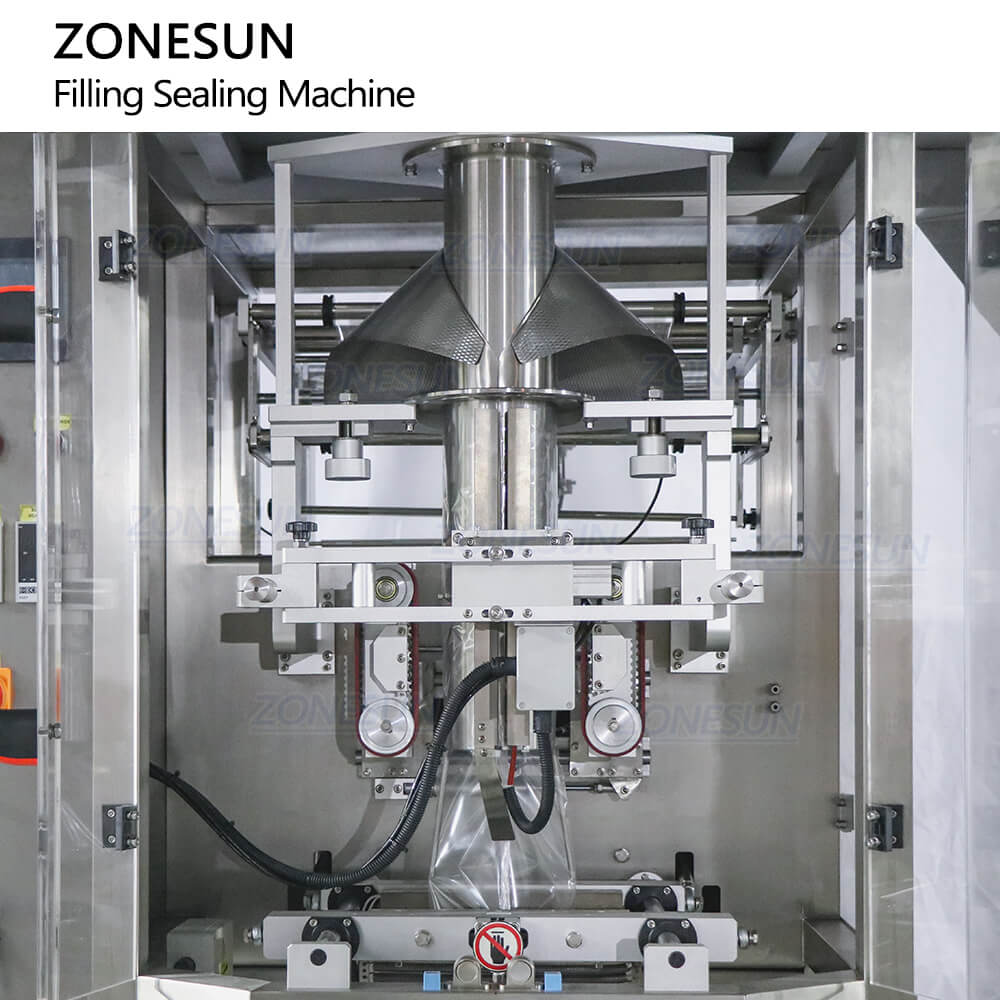

Sealing Structure of 10 Heads Vertical Form Filling Sealing Machine

This machine can form package bags and seal them.The sealing temperature can be adjusted according to different kinds of package film.Different kinds of sealing method can be customized as production need.

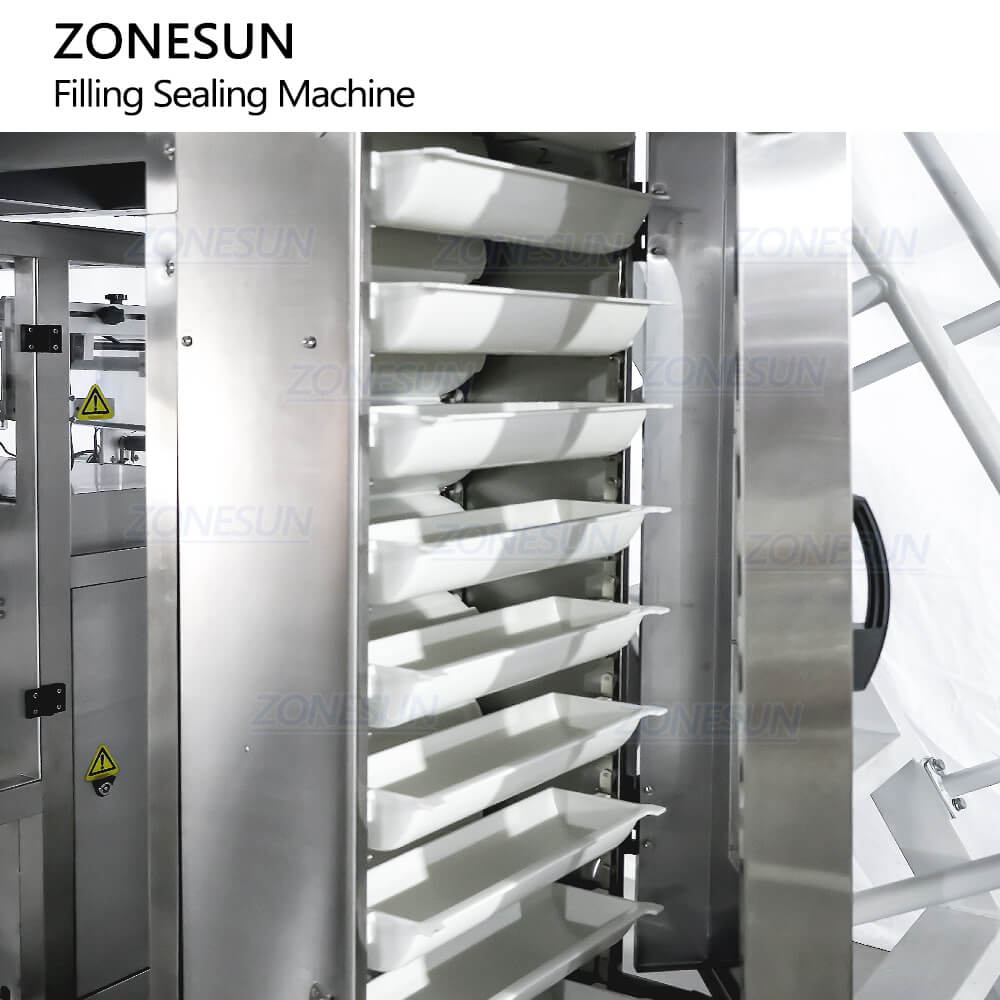

Z Elevator of 10 Heads Vertical Form Filling Sealing Machine

Equipped with Z type elevator, this can supply filling material in time.With this, operator can saves working labor and reduce production error.It realizes the full automated production.

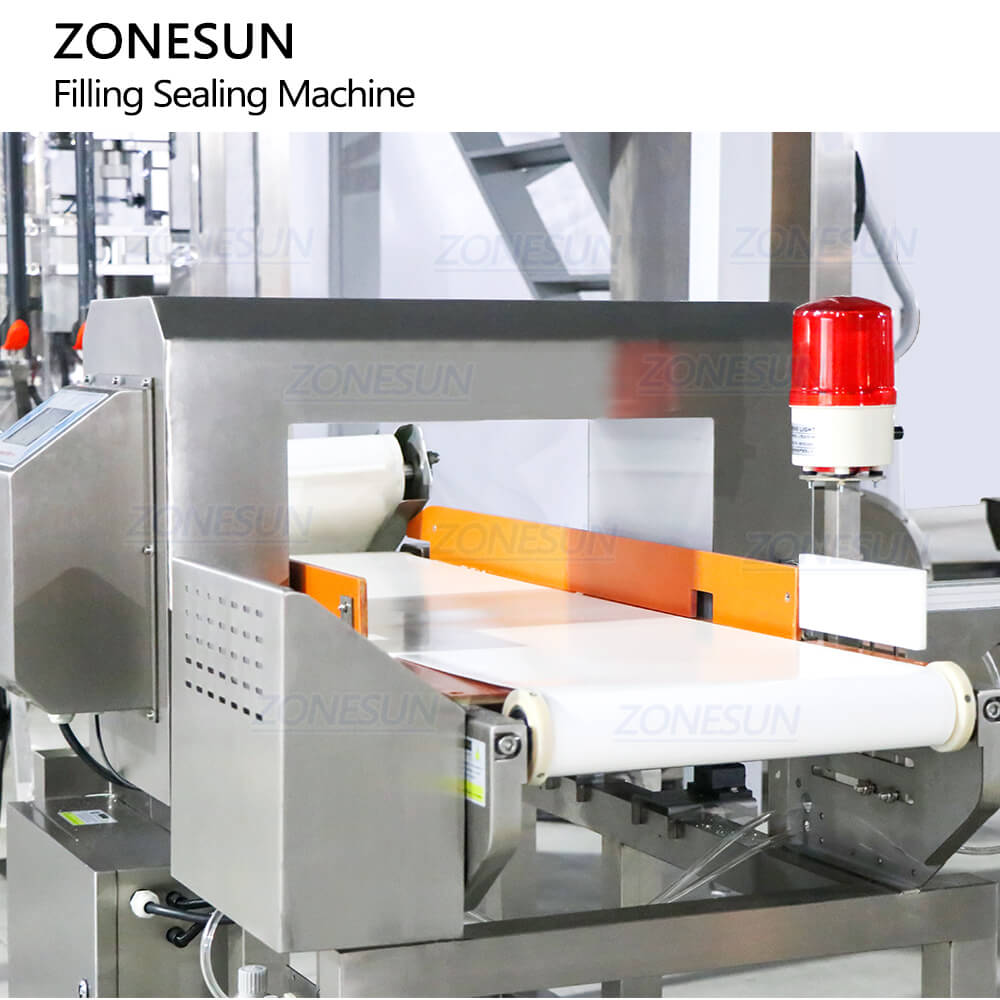

Metal Detector of 10 Heads Vertical Form Filling Sealing Machine

Work with the metal detecting machine, this can detect unqualified products containing metal components and improves production quality.

Automatic 10 Heads Vertical Form Filling Sealing Machine
