ZONESUN ZS-FK4000 Automatic Water Cooling Aluminum Foil Plastic Bottle Cap Continue Induction Sealing Machine

This cap induction sealing machine adopts the principle of electromagnetic induction heating, using non-contact induction heating to instantly melt the adhesive layer of the aluminum foil sealing film. After cooling, the sealing film adheres to the bottle mouth, completing the sealing process. It has fast sealing speed and excellent product sealing performance. It is suitable for sealing plastic, glass, and other non-metallic bottles, it is widely used in the food, beverage, oil, and daily chemical industries. Do not use this machine for flammable and explosive products or in hazardous environments.

Parameter

• Machine model: ZS-FK4000

• Machine power: 110/220V 50-60HZ 4KW

• Sealing diameter: φ20-φ150 mm (customizable)

• Sealing height: 20-400 mm

• Sealing speed: 150-500 BPM, 8-25 m/min

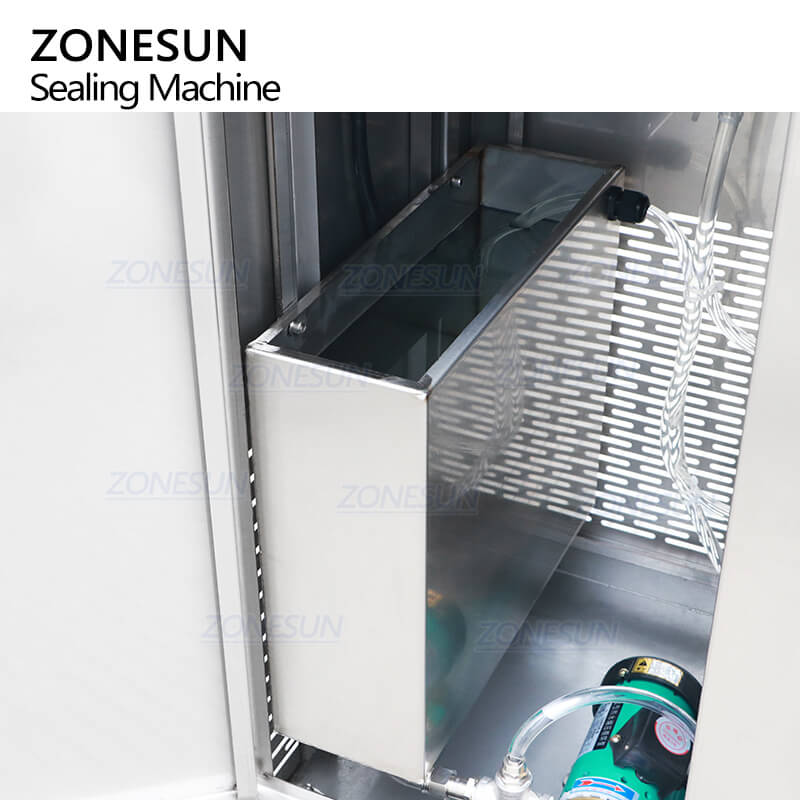

• Cooling method: Water cooling

• Machine size: About 920*610*1400 mm

• Machine weight: About 60 kg

• Packing size: About 740*510*1300 mm (L*W*H)

• Packing weight: About 85 kg
