Adhesive Sticker Beard Balm Bottle Flat Box Top And Bottom Side Labeler Double Sides Labeling Machines For Bags

Automatic Top Bottom Side Labeling Machine
Control Panel of Top Bottom Side Labeling Machine
Labeling Head of Top Bottom Side Labeling Machine
Pressing Structure of Automatic Top Bottom Side Labeling Machine
Label Sensor of Automatic Labeler
Conveyor of Automatic Labeler
Top Bottom Side Labeling Machine
Automatic Top Bottom Side Labeler

Adhesive Sticker Beard Balm Bottle Flat Box Top And Bottom Side Labeler Double Sides Labeling Machines For Bags

Regular price $8,399.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

This labeling machine is designed for labeling stickers on upper and bottom flat surface at the same time,this can improve working efficiency greatly and reduce production error.It is widely used in daily chemical,cosmetics,food and beverage industries.

Parameter

Machine Model:ZS-TB602
Voltage:220V 50-60Hz
Labeling Speed:About 30-60pcs/min(depending on product and label size)
Label Size:Can be customized
Suitable Product Size:Can be customized
Labeling Accuracy:±1mm
Machine Size:About 2410*879*1511mm
Machine Weight:About 220kg
Package Size:About 2100*900*1600mm
Package Weight:About 352kg

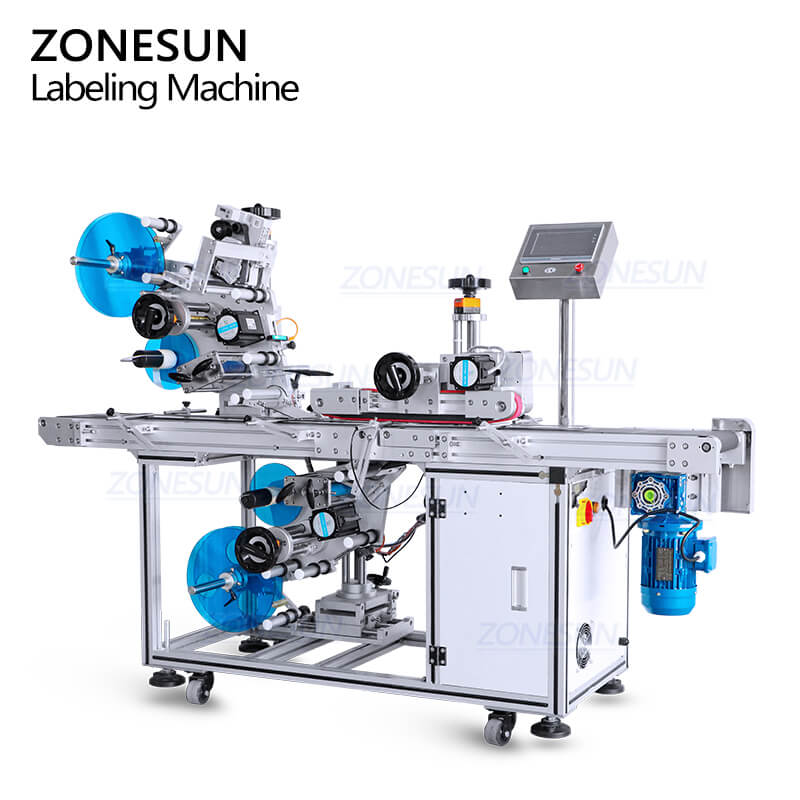

 Automatic Top&Bottom Side Labeling Machine

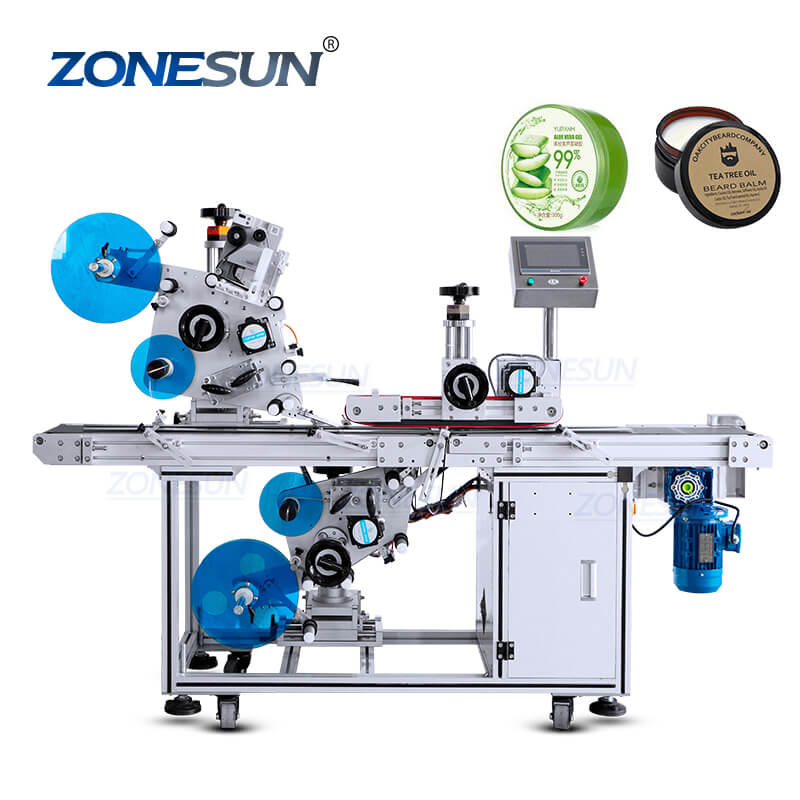

Application of Automatic Top&Bottom Side Labeling Machine

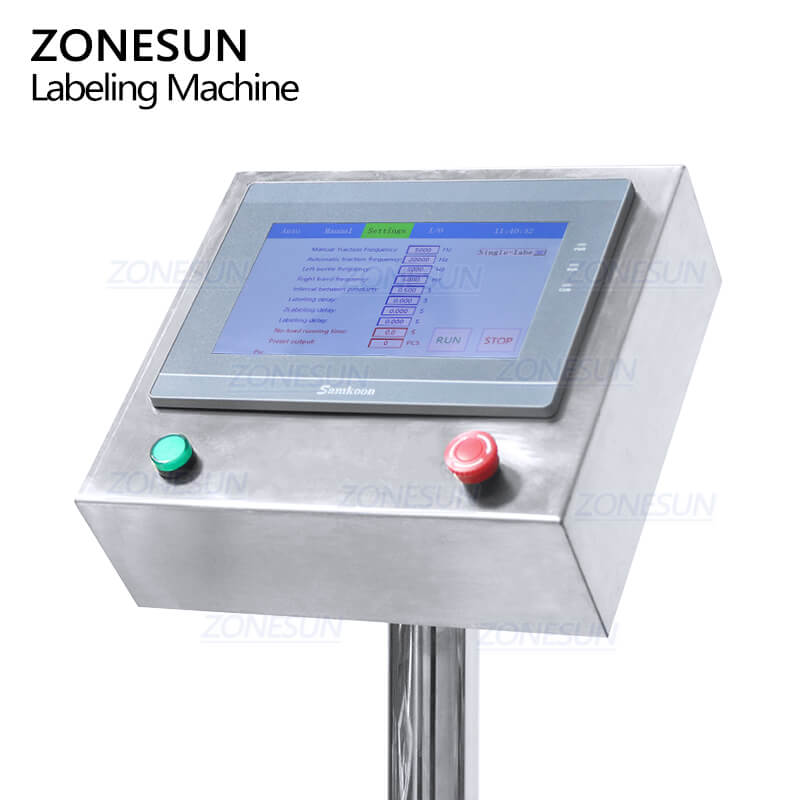

Control Panle of Top & Bottom Labeler

Through PLC control panel, it is easy to set or adjust working parameters. The language of panel can be customized as your need.

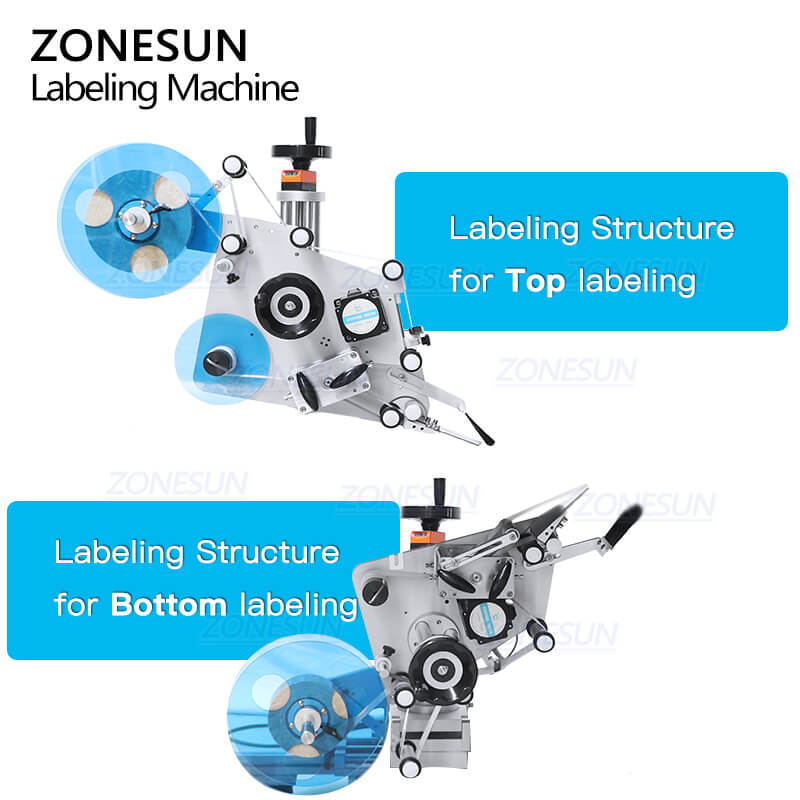

Labeling Head of Top & Bottom Labeler

Equipped with two labeling structures, it can be used for top and bottom labeling on products. The two structures can be controlled separately. Working height can be adjusted according to product size.

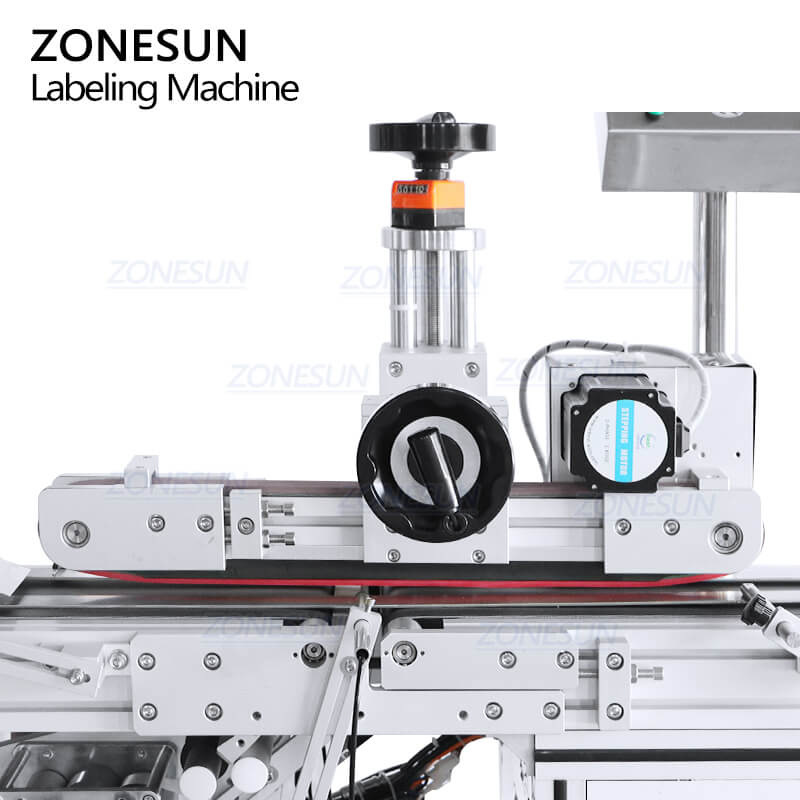

Pressing Structure of Top & Bottom Labeler
The component is designed for pressing products, making that they can be labeled well. Ensure labeling quality.

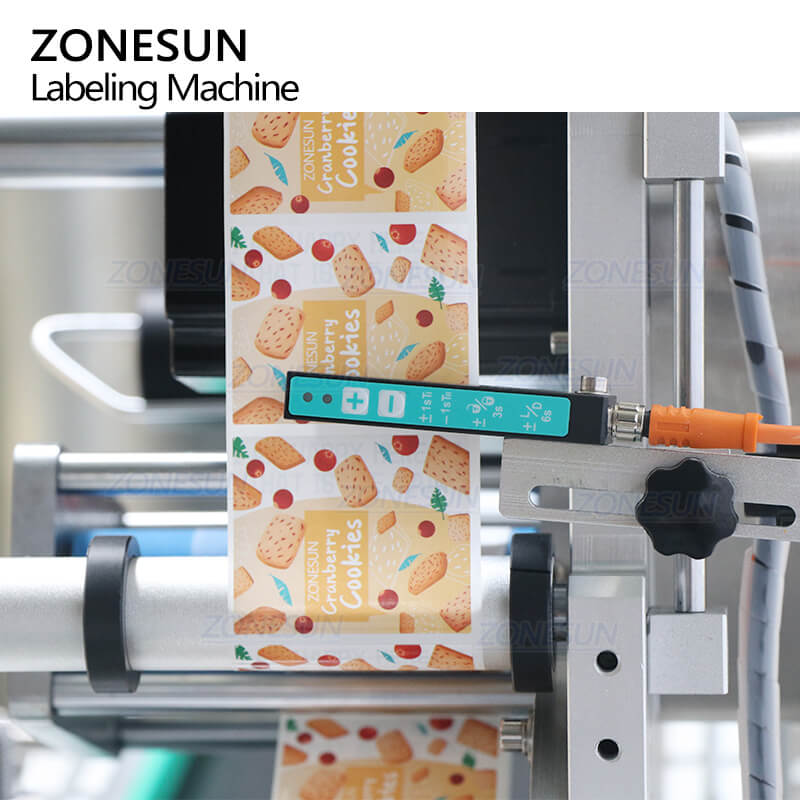

Label Sensor of Top & Bottom Labeler

With intelligent label sensor, it can detect labels accurately, preventing from missing or wasting labels. The sensitivity of it can be adjusted according to production need.

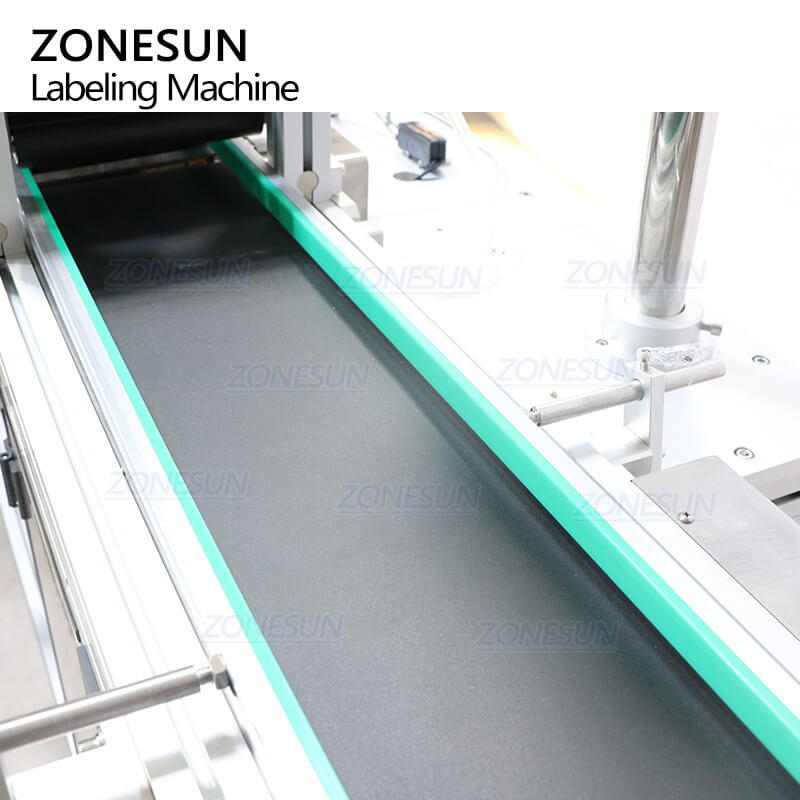

Conveyor of Top & Bottom Labeler

With high-quality conveyor belt, it can transport products steadily. The width of conveyor belt and conveying speed can be adjusted as needed.

Automatic Labeling Machine

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
