Name: ZONESUN ZS-DPYT6P 6 Heads Semi-automatic Liquid Filling Machine For Perfume Water Juice Oil Cosmetics
Brand: ZONESUN TECHNOLOGY LIMITED
Price: 384.99 USD
Availability: InStock

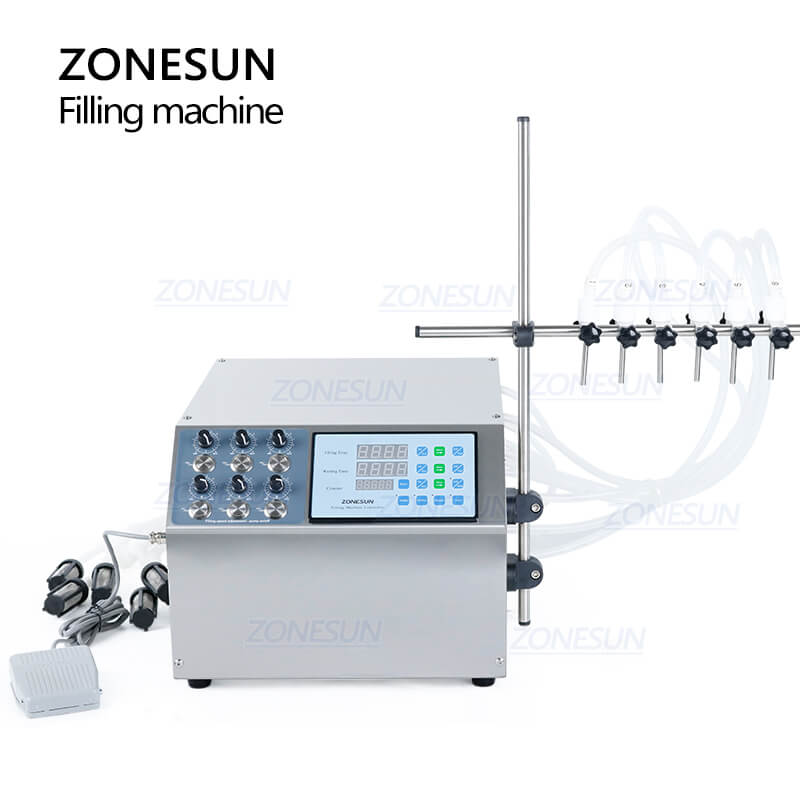

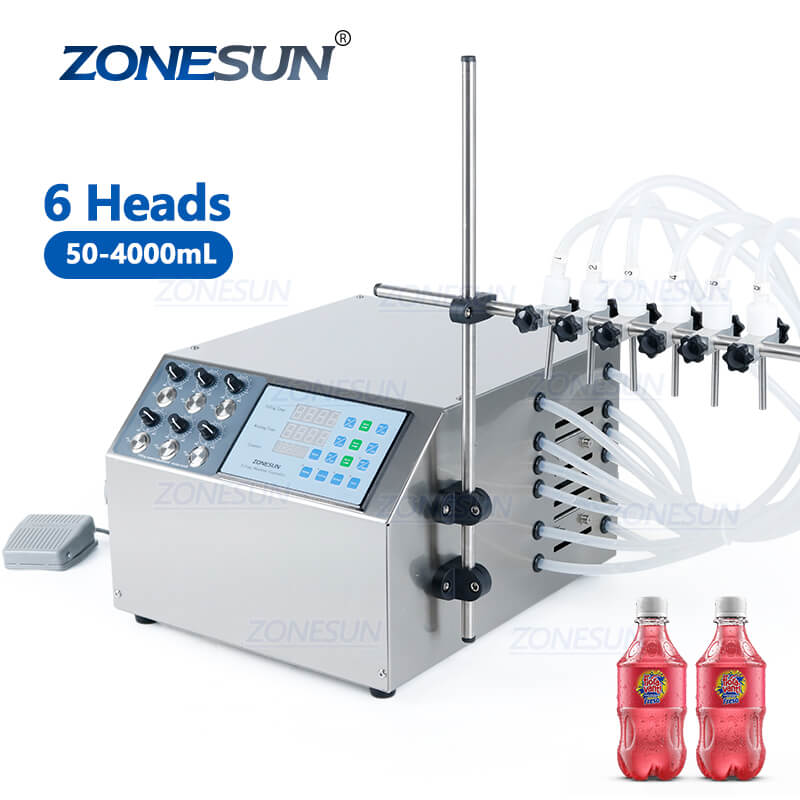

6 Nozzle Semi-automatic Liquid Filling Machine

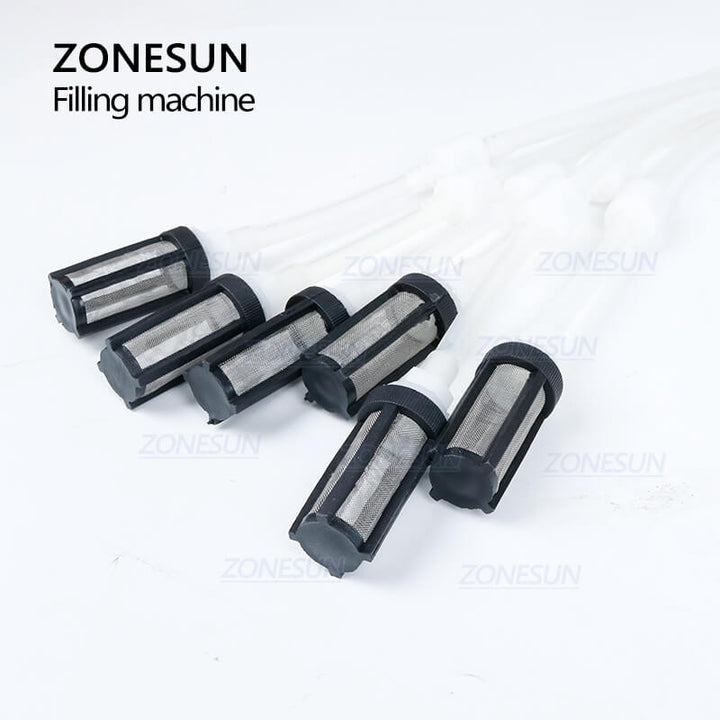

Filter of 6 Nozzle Semi-automatic Liquid Filling Machine

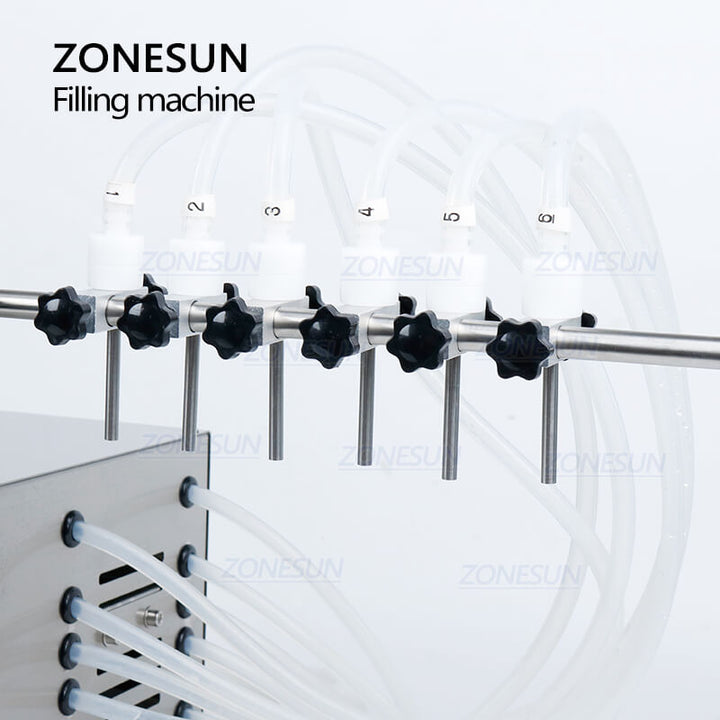

Filling Nozzle of 6 Nozzle Semi-automatic Liquid Filling Machine

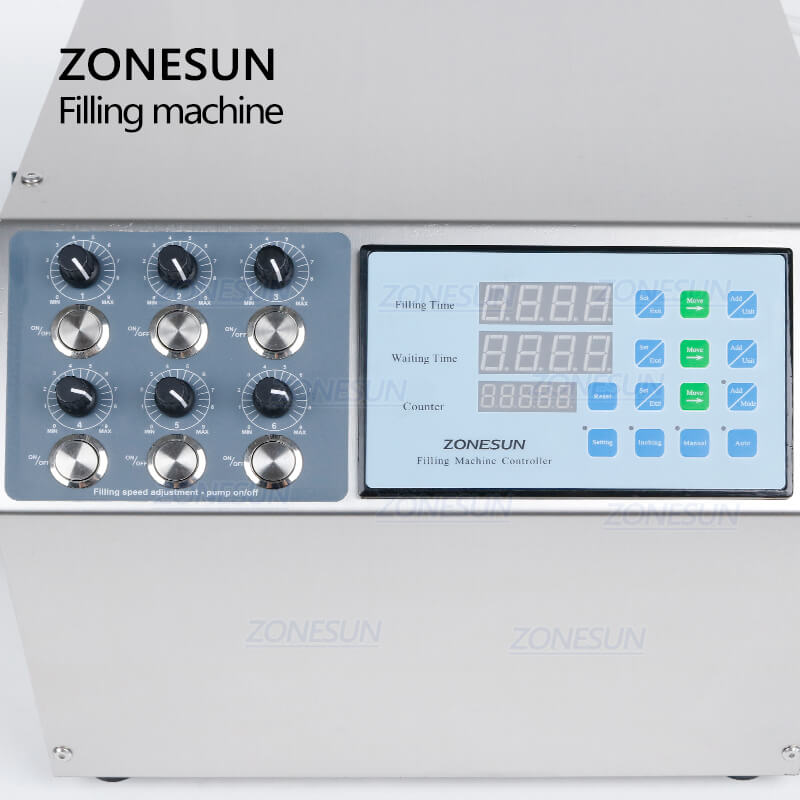

Operation Panel of 6 Nozzle Semi-automatic Liquid Filling Machine

Power

220V/50HZ

110V/60HZ

Plug

AU Plug

US Plug

EU Plug

BS Plug

Price Save $50

Multiple shipping method
Custom Service
Two Local Service Location
Secure payments

[{"id":40143855419541,"title":"220V\/50HZ \/ AU Plug","option1":"220V\/50HZ","option2":"AU Plug","option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ZONESUN ZS-DPYT6P 6 Heads Semi-automatic Liquid Filling Machine For Perfume Water Juice Oil Cosmetics - 220V\/50HZ \/ AU Plug","public_title":"220V\/50HZ \/ AU Plug","options":["220V\/50HZ","AU Plug"],"price":38499,"weight":16000,"compare_at_price":43499,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40143855517845,"title":"110V\/60HZ \/ US Plug","option1":"110V\/60HZ","option2":"US Plug","option3":null,"sku":"00100200018-ZS","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ZONESUN ZS-DPYT6P 6 Heads Semi-automatic Liquid Filling Machine For Perfume Water Juice Oil Cosmetics - 110V\/60HZ \/ US Plug","public_title":"110V\/60HZ \/ US Plug","options":["110V\/60HZ","US Plug"],"price":38499,"weight":16000,"compare_at_price":43499,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40143855583381,"title":"220V\/50HZ \/ EU Plug","option1":"220V\/50HZ","option2":"EU Plug","option3":null,"sku":"00100200019-ZS","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ZONESUN ZS-DPYT6P 6 Heads Semi-automatic Liquid Filling Machine For Perfume Water Juice Oil Cosmetics - 220V\/50HZ \/ EU Plug","public_title":"220V\/50HZ \/ EU Plug","options":["220V\/50HZ","EU Plug"],"price":38499,"weight":16000,"compare_at_price":43499,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40143855616149,"title":"220V\/50HZ \/ BS Plug","option1":"220V\/50HZ","option2":"BS Plug","option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"ZONESUN ZS-DPYT6P 6 Heads Semi-automatic Liquid Filling Machine For Perfume Water Juice Oil Cosmetics - 220V\/50HZ \/ BS Plug","public_title":"220V\/50HZ \/ BS Plug","options":["220V\/50HZ","BS Plug"],"price":38499,"weight":16000,"compare_at_price":43499,"inventory_quantity":665,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Introduction

This semi automatic filling machine is suitable for filling low viscosity liquid without particle like water,juice,milk,perfume etc.It fills liquid by controlling the filling time and speed,the time and speed are adjustable according to operation.There are 6 filling nozzles and each nozzle can be controlled separately.

Paramter

Machine Model:ZS-DPYT6P
Voltage:AC220V/110V 50-6OHz
Machine Power:141w
Filling Range:50-4000mL*6
Maximum Suction Distance:1.5m
Maximum Flow Rate:4L/min(based on water)
Repetitive Error: Smaller than 0.5%(depend on the density of product)
Diameter of Filling Nozzle:OD 6mm
Machine Weight:12.7kg
Machine Size:320*400*240mm(L*W*H)
Package Weight:15.6kg
Package Size:550*470*330mm(L*W*H)

Application of ZS-DPYT6P Filling Machine

Dimension of ZS-DPYT6P Liquid Filling Machine

Pump of ZS-DPYT6P Liquid Filling Machine

Details of ZS-DPYT6P Liquid Filling Machine

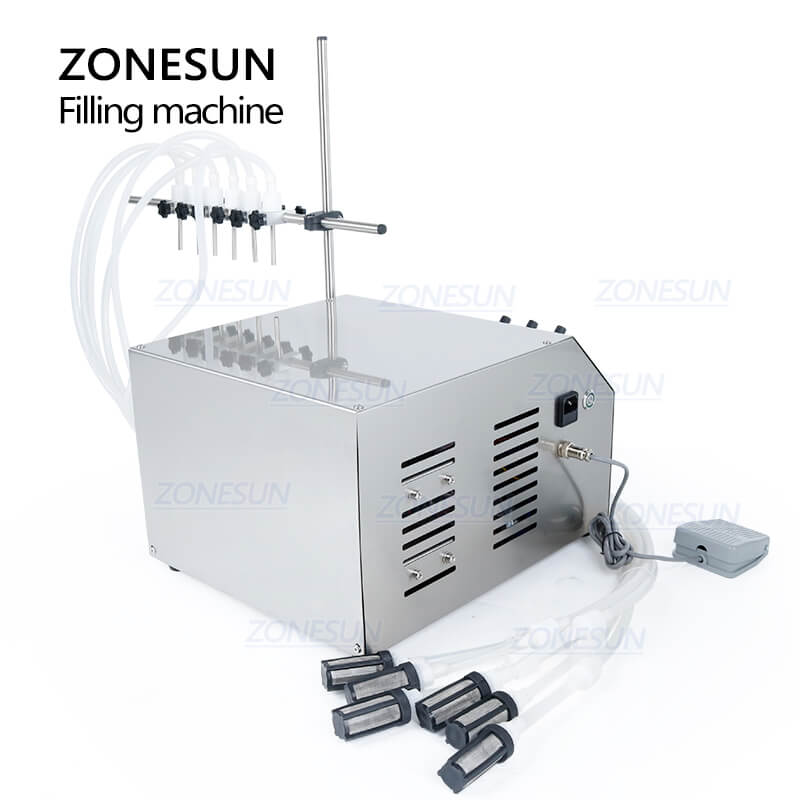

Real Shot of ZS-DPYT6P Liquid Filling Machine
