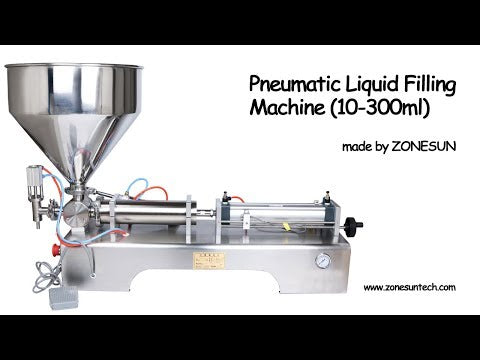

Click For Video

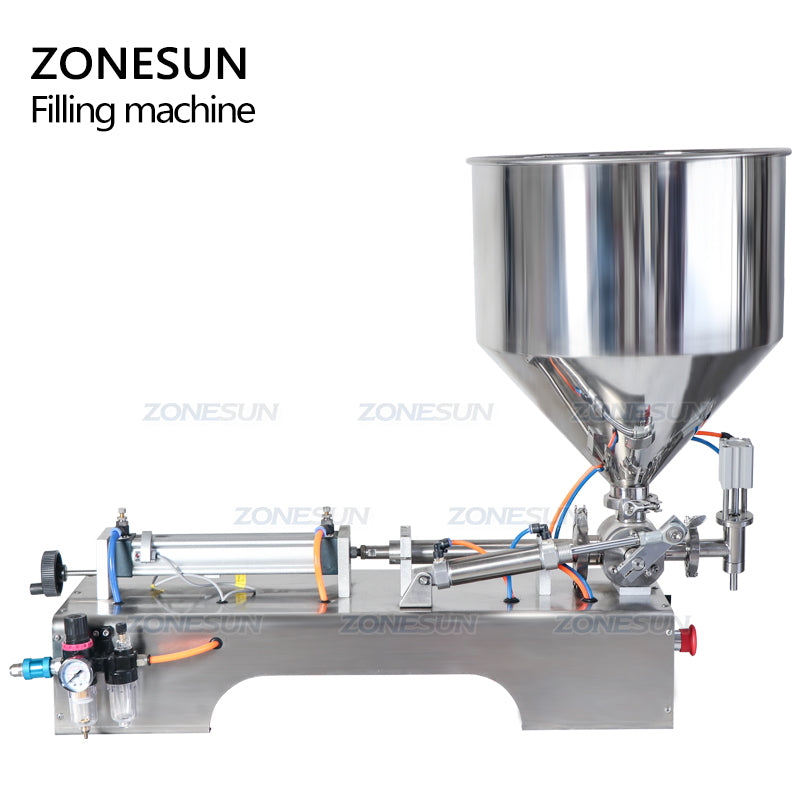

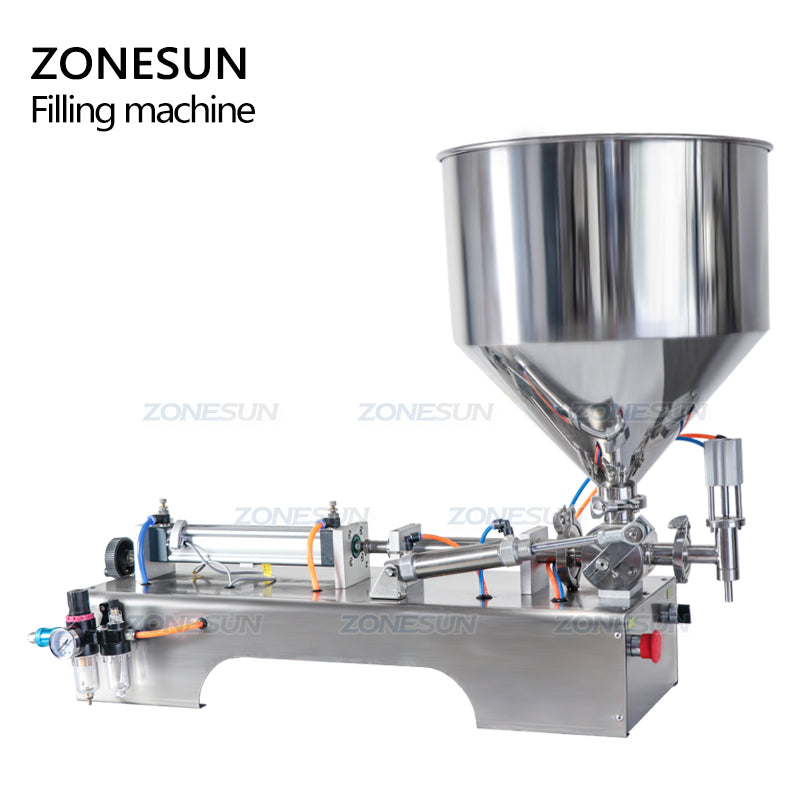

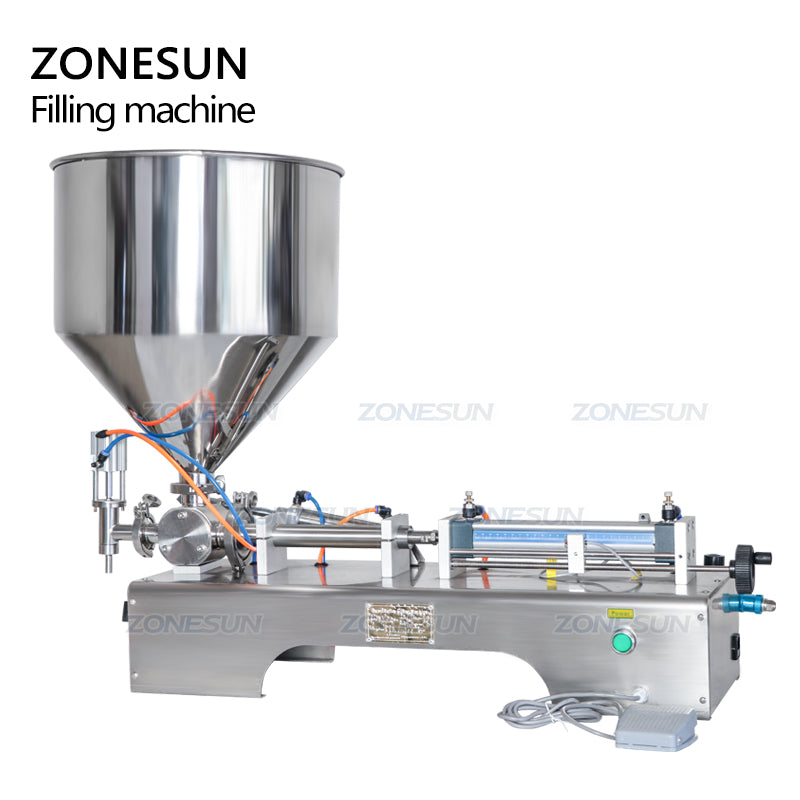

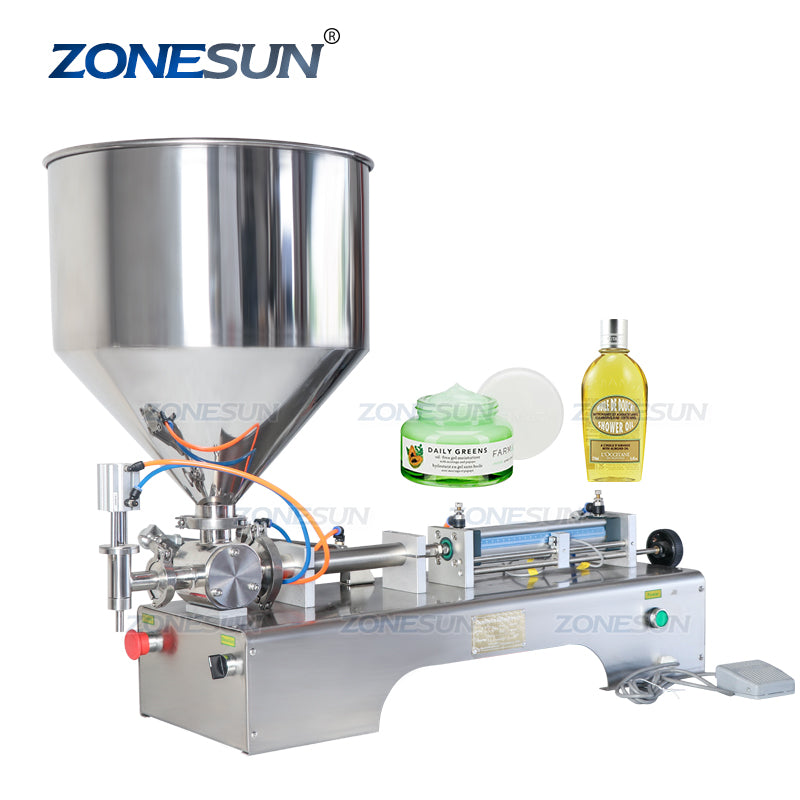

Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries.
Model:ZS-GT1 Paste Filling Machine
Voltage supply:220/110V 50/60Hz
Filling accuracy:≤ ± 0.5%
Filling speed:5-20bottles / min
Filling volume:10-100/10-200/30-300/50- 500/100-1000/500-2500/1000-5000m(choose based on your requirement)
Equipped with air pressure:0.4-0 .6 MPa
Size of air compressor connector:OD 8mm
Equipped with 30L large filling hopper,it is more convenient to pour filling material.Multiple functions can be customized like mixing and heating function ,if you need this please contact us.

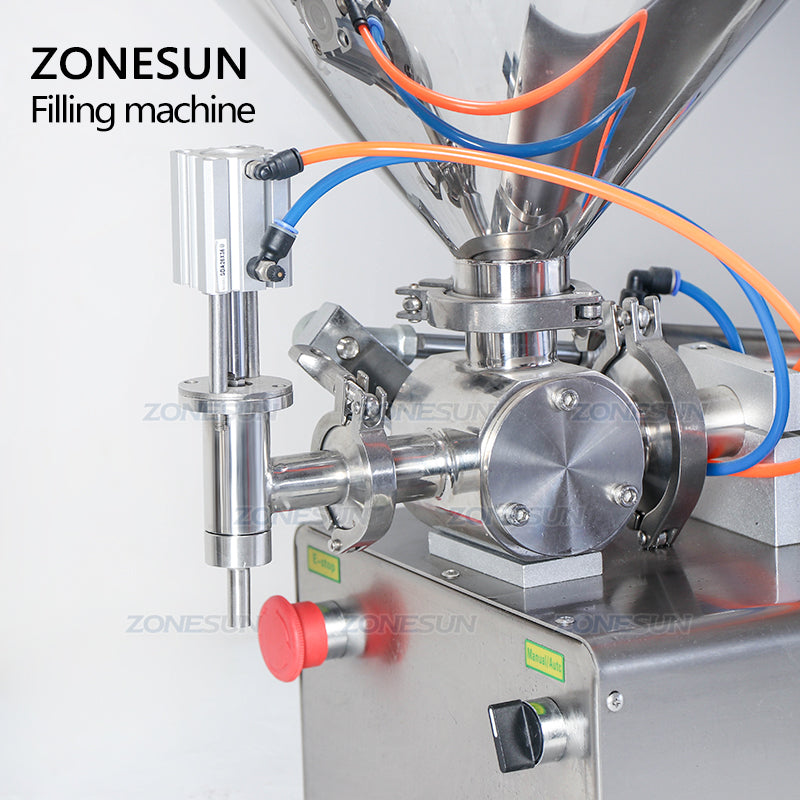

Equipped with pneumatic filling nozzle,these are with large power when filling paste or liquid,multiple filling nozzle can be customized according to operation need.

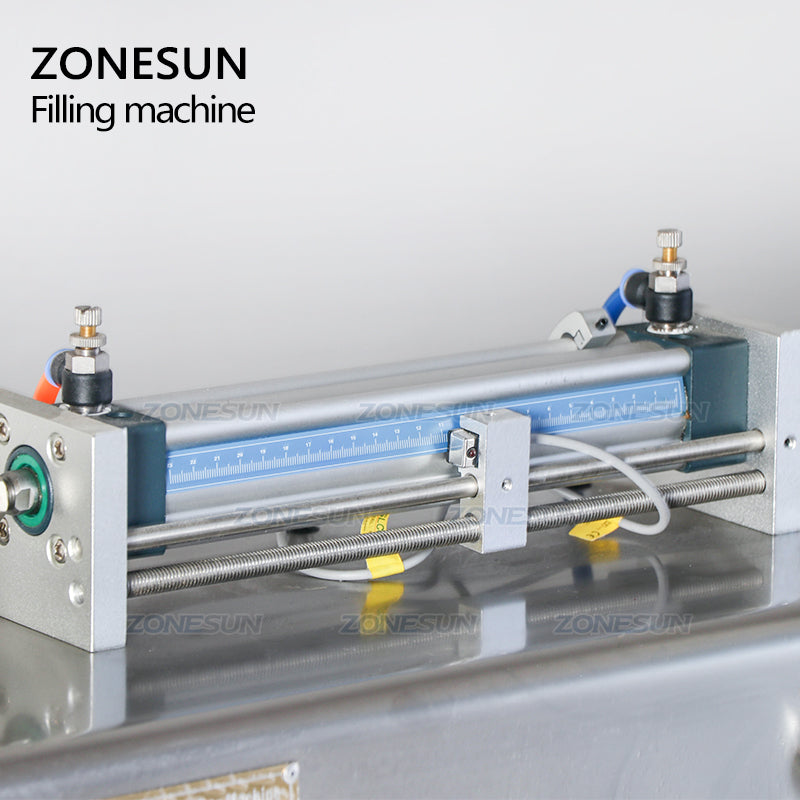

The filling speed and waiting time can be adjusted ,rotate knobs clockwise to slow down working speed. lf you use the automatic working mode,please lengthen the waiting time to make the machine works better.The larger rotary knob on the right side is designed for controlling the filling range,make it easier to operate and adjust the machine.
The oil-water separator is designed to watch the air pressure in real time and filter impurities,this machine need to work with air compressor(connector size is 10mm),you need to buy it separately.If you need this please contact us.
We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:
Whatsapp / Wechat / Phone:+86-18928646433
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
