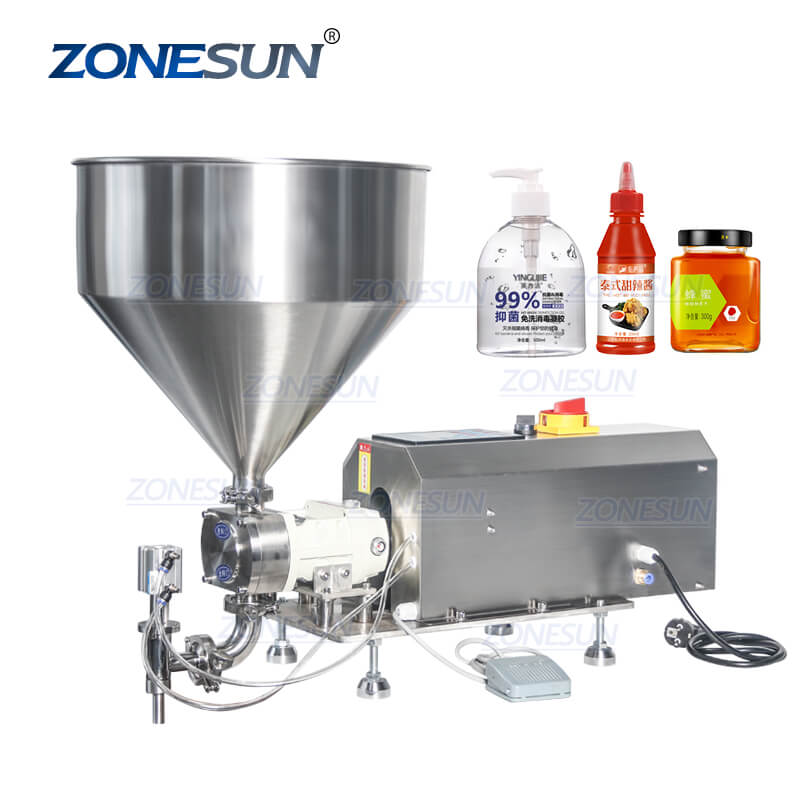

ZONESUN 5-5000ml Rotor Lobe Pump Ketchup Filler Jam Jar Lotion Cream Chili Sauce Filling Machine

Regular price $1,649.00 USD
Regular price $2,061.25 USD Sale price $1,649.00 USD
Save $412.25 USD
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

The rotor pump filling machine has advantage of high accuracy when filling thick liquid or paste like jam,noodle pulp,meat stuffing,tomato paste etc.It is widely used in food,cosmetics,daily chemical industries.


  • Machine model:ZS-RPGT900
  • Machine power:750W
  • Filling range:5-5000ml
  • Filling accuracy:≤±1%(When the filling volume is less than 100 ml, there will be an error of 2-5 ml. Please consult customer service for specific materials.)
  • Hopper size:30L
  • Working speed:10-60bottles/min(based on 250ml jam)
  • Machine size:About 840*240*640mm
  • Machine weight:About 41kg
  • Package size:About 1150*480*520mm
  • Package weight:About 59kg
jam filler
application of jam filler
jam filling machine

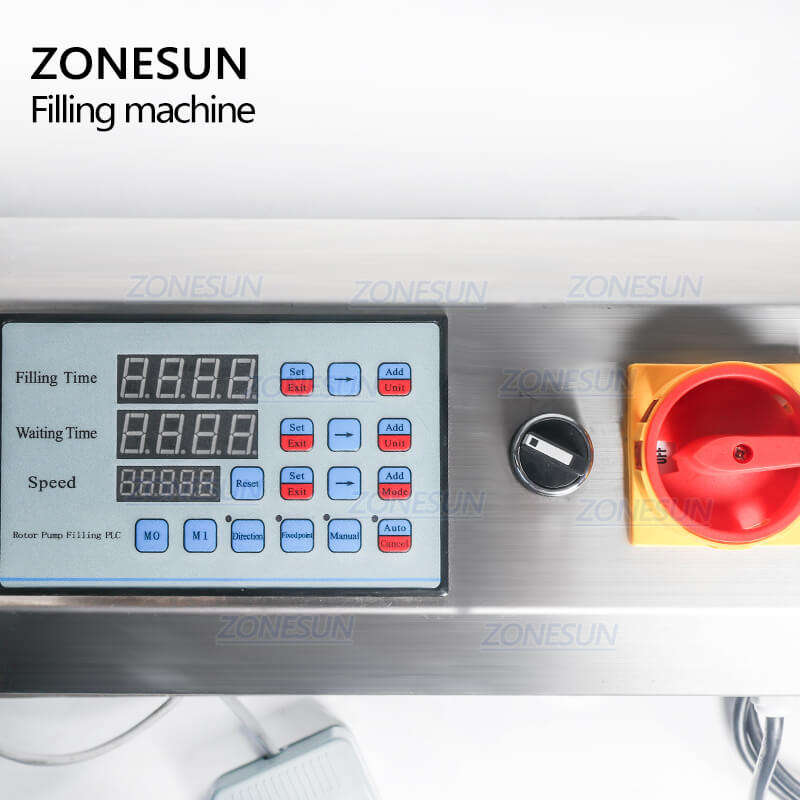

control panel of paste filling machine

Designed with simple control panel,the filling time and filling speed can be adjust easily.The working mode can be adjusted according to operation need as well.

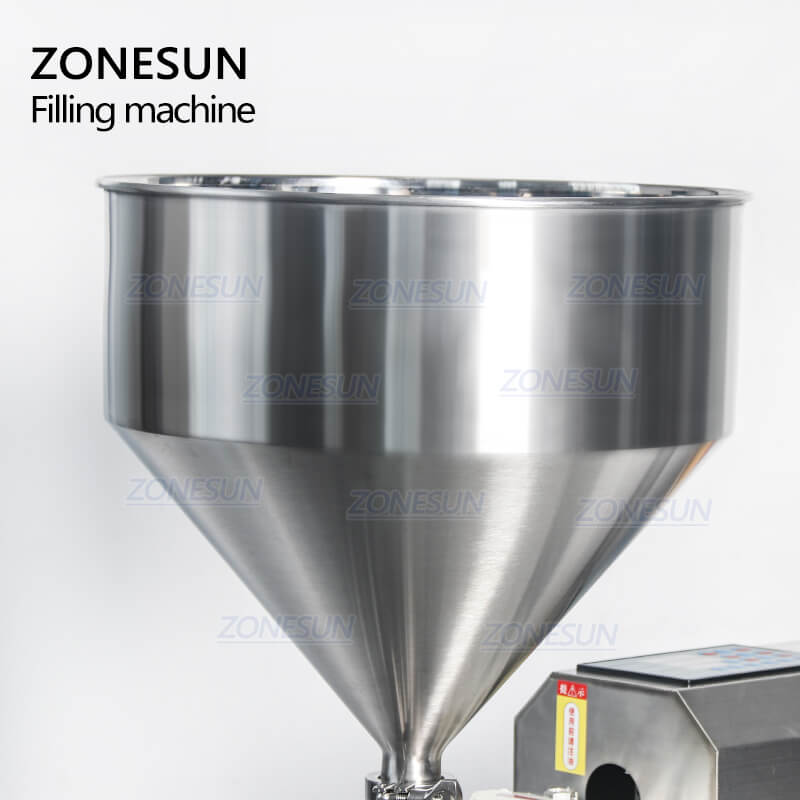

hopper of jam filler machine

The large hopper makes it easier to pour filling materials,improve working efficiency.

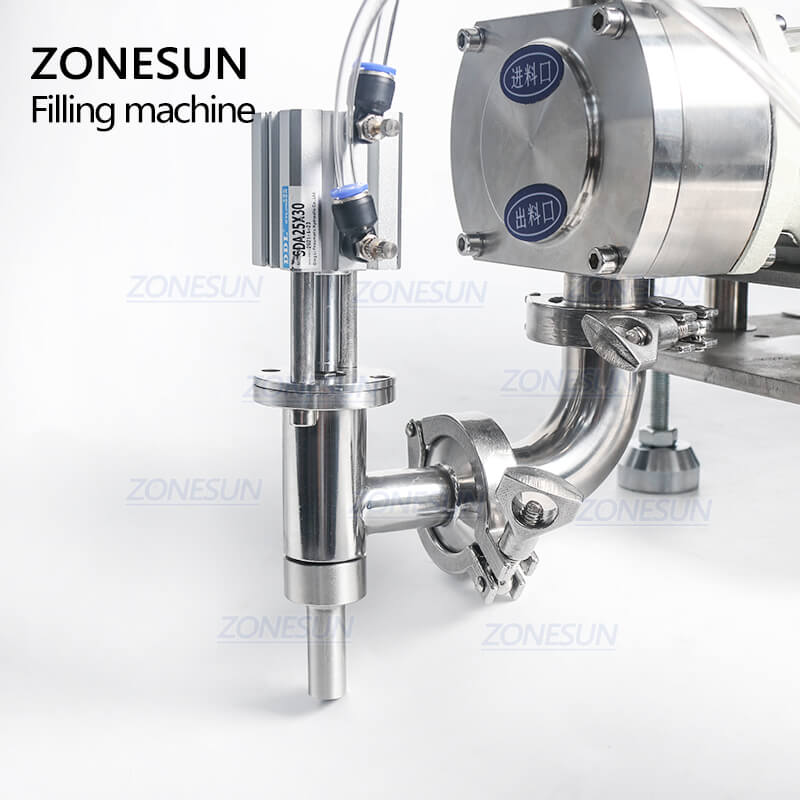

filling nozzle of  jam filler machine

With pneumatic filling nozzle,it has large power,and the pump can suck filling material back,ensures the filling accuracy.

rotor pump of  jam filler machine

Equipped with high quality rotor pump,this filling machine is a filling equipment composed of a servo motor and a cam rotor pump. The pump head is a metering pump with a positive displacement structure. The displacement per revolution is a fixed value. The servo motor can accurately control the speed for metering and filling.

pedal switch of  jam filler machine

The machine is with three working mode:inching mode,pedal switch control working mode.automatic working mode.You can adjust the suitable one according to operation need.

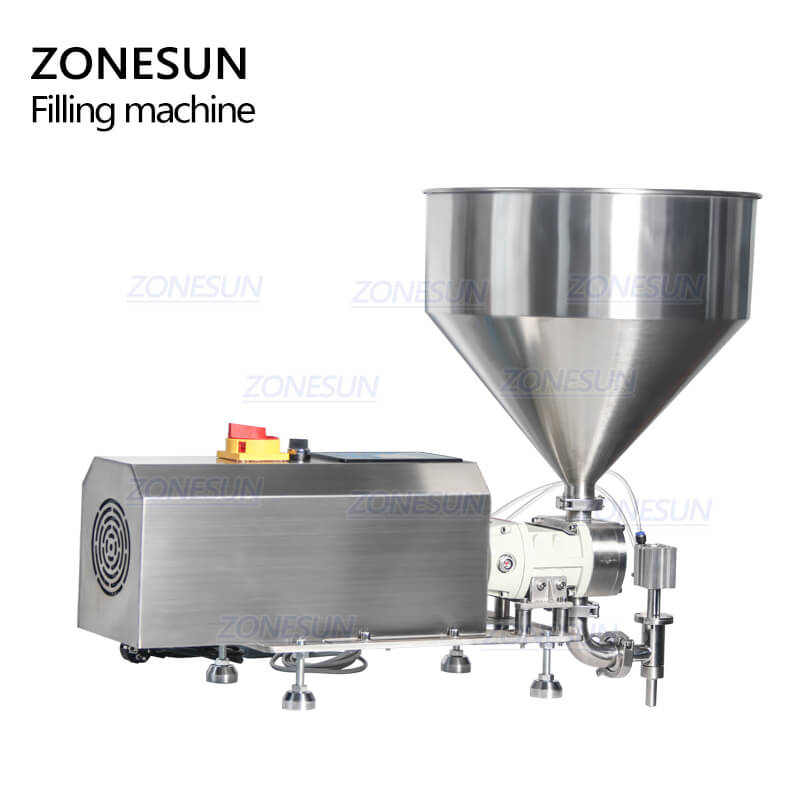

jam filler machine

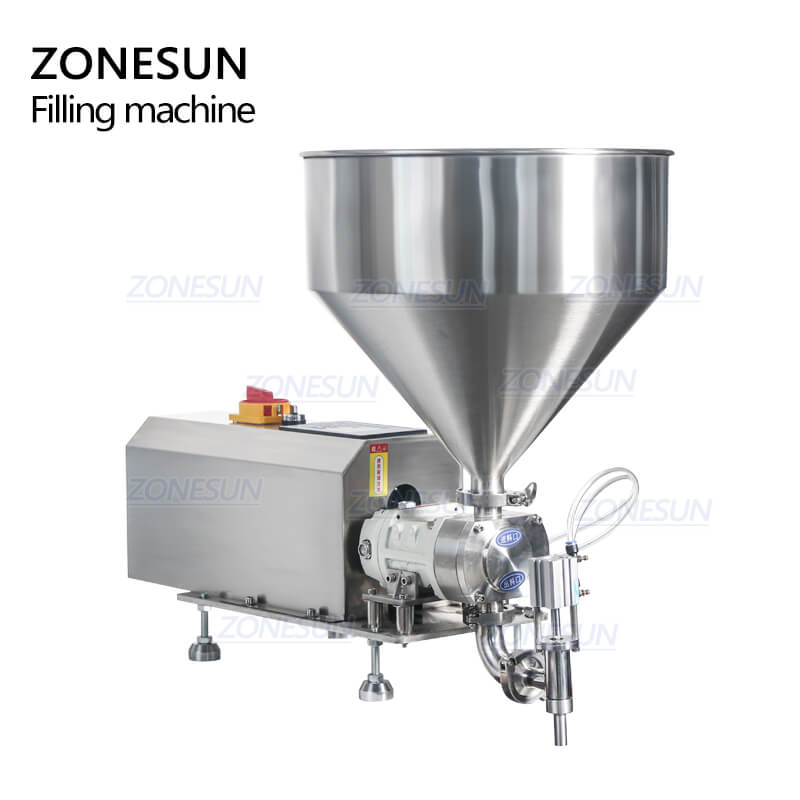

fruit jam filling machine
