ZONESUN ZS-YT4T-4PX Automatic Face Cream Lotion Body Gel Hair Spray Cosmetics Bottle Filling Machine

ZONESUN automatic lotion filling machine is equipped with feeding pump, this is more convenient for feeding filling material. Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need. This machine is suitable for filling lotion, cosmetic cream, shampoo, body gel etc.

Key Feature of Lotion Filling Machine

• The ZONESUN lotion filling machine is specifically designed for viscous and semi-fluid products, suitable for materials ranging from light lotions to thick creams.
• It adopts a servo-driven piston filling system, ensuring high accuracy and stable performance regardless of product viscosity.
• The machine allows operators to input and adjust filling volume directly through a touchscreen control panel, eliminating the need for repeated manual adjustments.
• It features dual-stage filling speed control, including an initial and final stage, improving both efficiency and filling quality. Multi-stage speed control can also be customized.
• Optional diving nozzles enable bottom-up filling, which helps reduce air gaps and minimize bubble formation. The actual performance may vary depending on the viscosity of the product.
• Anti-drip filling nozzles are available to prevent dripping and eliminate stringing, ensuring cleaner filling and improved precision.
• Multiple filling ranges (10–180 ml / 30–500 ml / 100–1000 ml / ＞1000 ml) can be customized to meet different production needs.
• The number of filling heads (1 / 2 / 4 / 6 / 8 / 10 / 12) can be configured based on required output capacity.

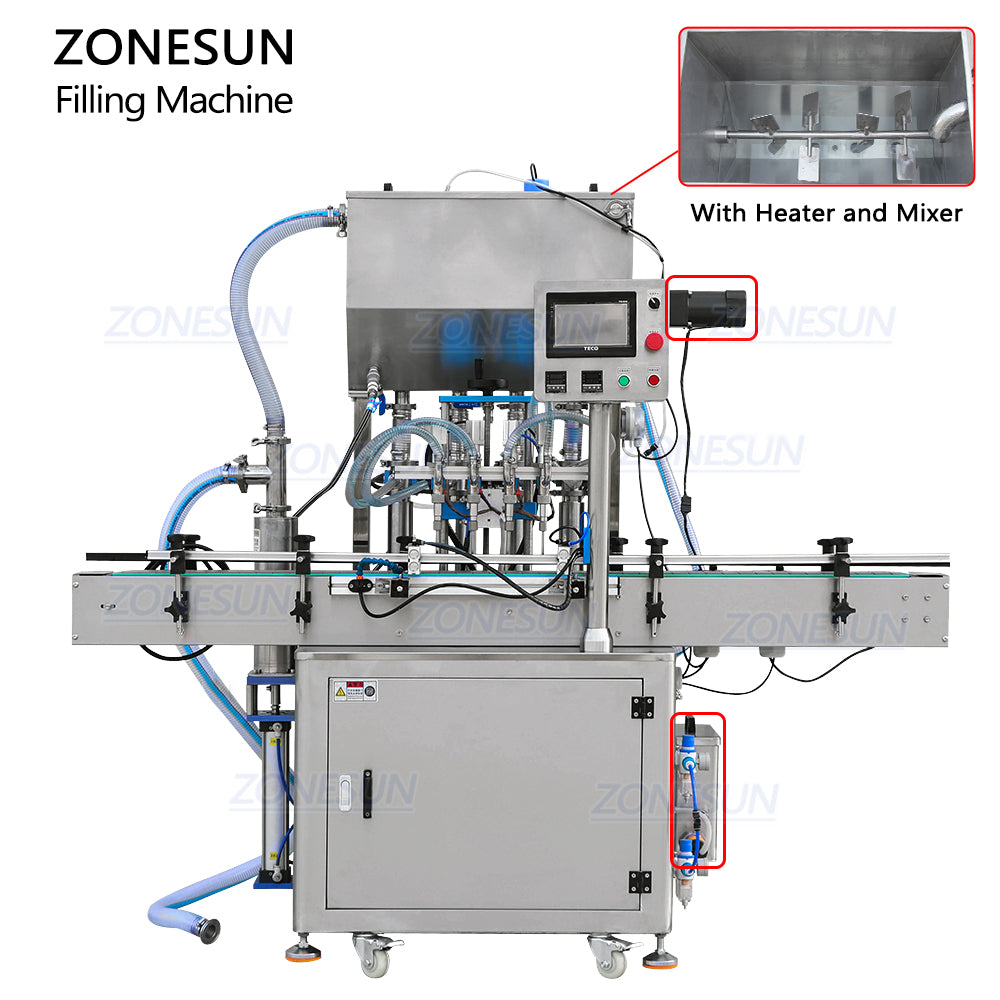

• The hopper can be optionally equipped with a mixing system to maintain product consistency, while an optional water circulation heating system helps improve material fluidity and ensures stable filling performance for viscous products.
• The machine comes standard with a feeding pump system, which enables continuous and timely material supply to the hopper, reducing manual labor and improving production efficiency.
• It can be integrated with upstream and downstream equipment such as mixing tanks, capping machines, labeling machines, and cartoning machines to form a complete automated production line.

Lotion Filling Machine Parameter

• Machine Model: ZS-YT4T-4PX
• Voltage: 110/220V 50-60HZ 2KW
• Filling Range: 10-180 ml/30-500 ml/100-1000 ml/＞1000ml（Customizable）
• Working Speed: About 30-50 Bottles/min

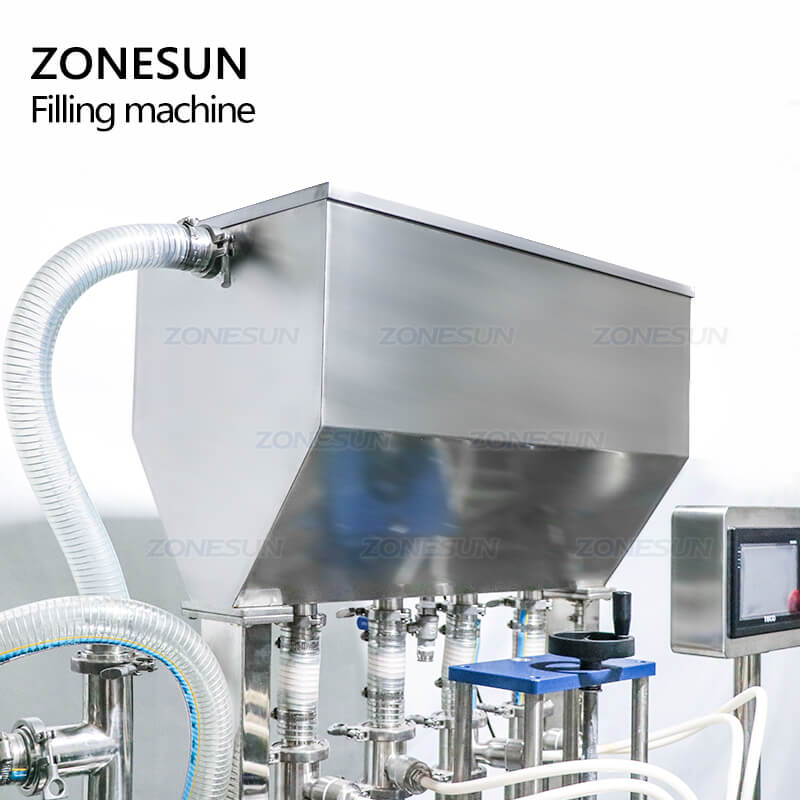

• Hopper Size: 90L (＜1000 ml filling range)
• Filling Pump: Piston Pump
• Feeding Pump: Piston Pump ot Diaphragm Pump(based on filling material)
• Air Pressure: 0.6-0.8 MPa
• Filling Accuracy: ±1%
• Filling Nozzle: 4(Can be customized)
• Machine Size: About 2000*800*1800 mm
• Machine Weight: About 200 kg
• Packaging Size: About 2070*960*2010 mm(100-1000 ml)
• Packaging Weight: About 392 kg(100-1000 ml)

*Specifications are for reference only and may vary by your product. Please confirm with us if required

The touch screen control panel can be customized in different kinds of language for convenient operation. Visual working data makes it easier to adjust the machine in real time.

The position of filling nozzle can be adjusted according to bottle size, multiple filling nozzle can be customized to improve working efficiency greatly according to production need.

Made of high quality conveyor belt, the chain conveyor has larger weight capacity, it can transport bottles faster and smoothly, the width and length can be customized as operation need.

Equipped with high quality electric eye, it can detect passing by bottles and control the machine to start work. This can prevent from missing bottles and ensure the automated production can be processed smoothly.

The feeding pump can supply filling material in time through the liquid level sensing device, this can saves working labor and improves working efficiency.

FAQ of This Filling Machine

1. Can the lotion filling machine handle different bottle sizes?

Yes, the ZONESUN lotion filling machine is adjustable and can handle different bottle sizes and shapes. Custom configurations are also available for specific production needs.

2. How does the machine prevent dripping?

The lotion filling machine is equipped with anti-drip nozzles, which effectively prevent dripping during filling.

3. Can this filling machine achieve bubble-free lotion filling?

ZONESUN lotion filling machine is designed with optional diving nozzles for bottom-up filling, which can significantly reduce air gaps in viscous products such as lotion and cream. However, the final filling result may still be affected by product viscosity and whether the material has been properly degassed before filling.

4. Can the machine be integrated into a full production line?

Yes, the ZONESUN lotion filling machine can be connected with mixing tanks, capping machines, labeling machines, and cartoning machines to create a fully automated production line.
