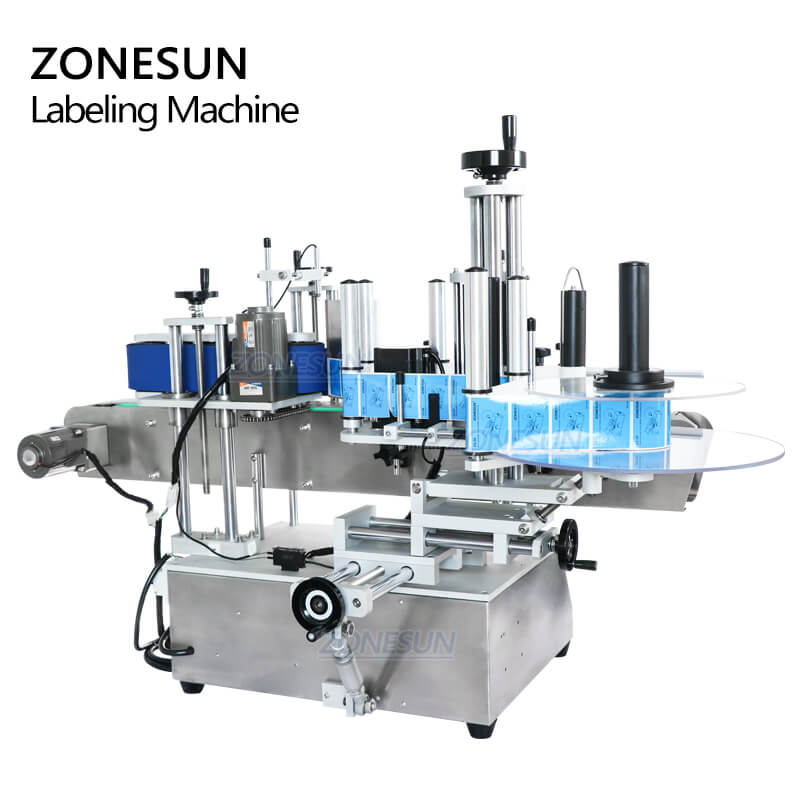

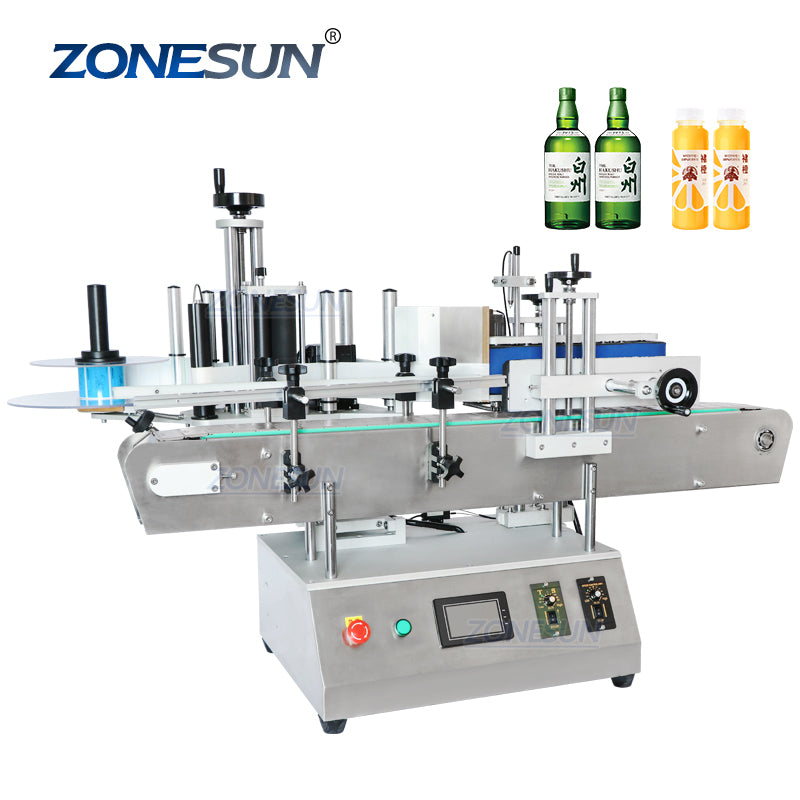

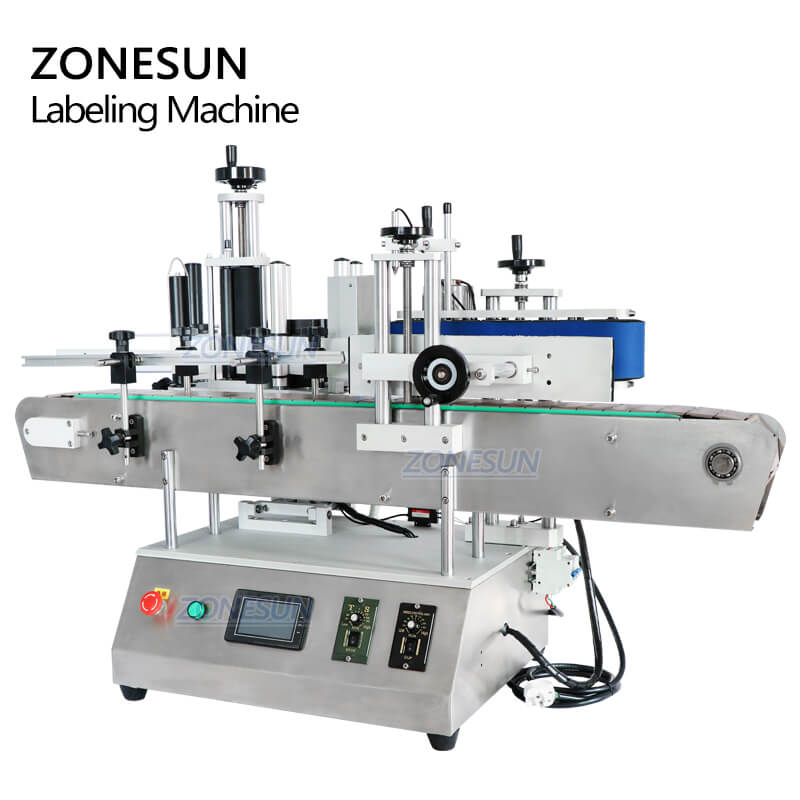

ZS-TB150A Tabletop Small Round Jar Bottle Label Applicator High Speed Labeling Machine

This automatic labeling machine is equipped with adjustable-speed motor and conveyor belt,the tabletop design saves a lot of space for production.It can label 60-200 bottles/min,the high working efficiency is ideal for small scale production.This machine is widely used in food,beverage,cosmetics,daily chemical industries.

Parameter

• Machine model:ZS-TB150
• Voltage:110V-60HZ/220V-50HZ
• Working speed:40-200 bottles/min
• Suitable labeling Size:15-140mm(W)x25-300mm(L)
• Roll inside diameter(mm):Φ75mm
• Roll outside diameter(mm):Φ250mm
• Suitable bottle diameter:About 30-100mm
• Conveyor size:About 1310*100mm
• Machine size:About 1310*880*950mm
• Machine weight:About 84.5kg
• Package size:About 1470*690*920mm
• Package weight:About 125kg

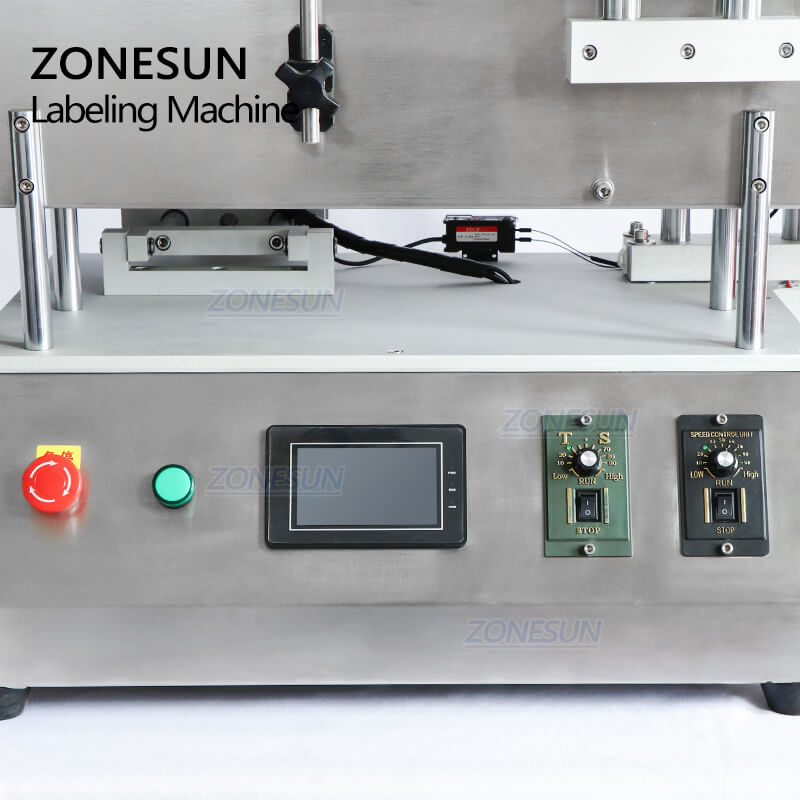

Designed in English touch screen control panel,the visual parameter makes it easier to test and adjust the machine.

High quality conveyor belt,the size of it is 1310*100mm(L*W),it can help to transfer bottles during working,improves working efficiency.The working speed of the conveyor can be adjusted according to production needs.

With label sensor and adjusting components,these ensure the sensitivity and accuracy,prevent from missing or wasting label stickers,improve labeling quality

With label sensor and adjusting components,these ensure the sensitivity and accuracy,prevent from missing or wasting label stickers,improve labeling quality

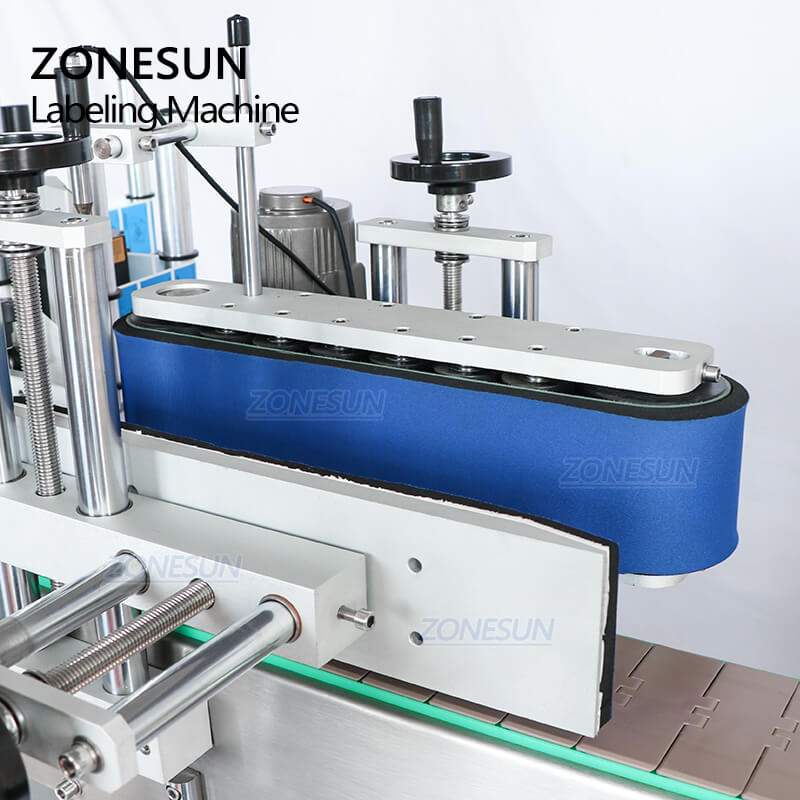

The elastic labeling belt can be adjusted according to labeling effect,ensure there is no bubble under the stickers,the tightness of the belt can be adjusted by loosing or tightening the screw.

The upgrade variable-speed motor makes the machine work stably and improve labeling speed,ensures the labeling accuracy at the same time.

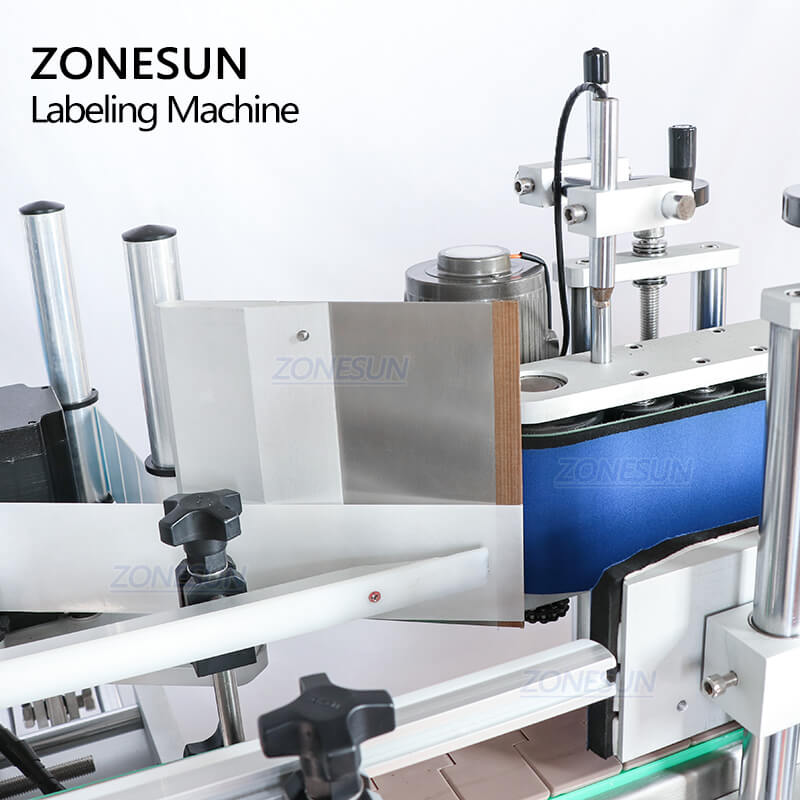

Rotary knobs can be used to controlled the position of the labeling wheel,label separating blade and winding bar,ensure the labeling accuracy and improve labeling quality.
