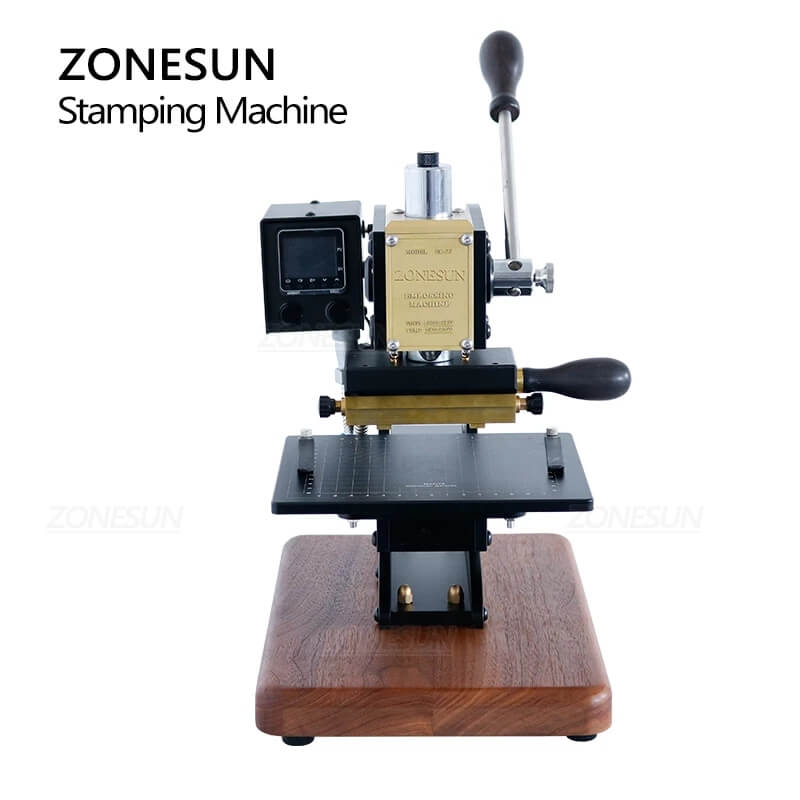

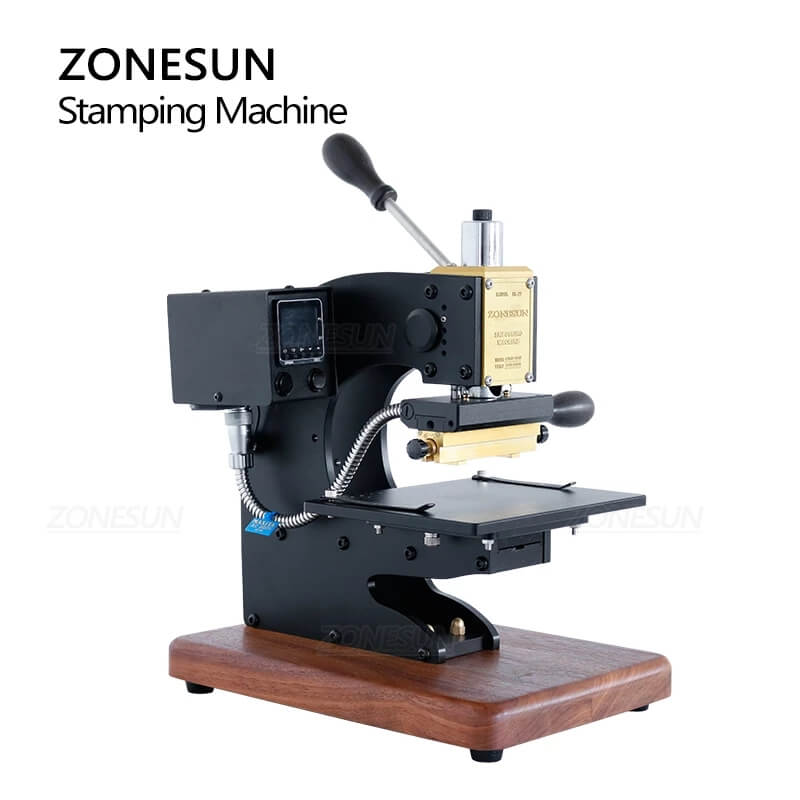

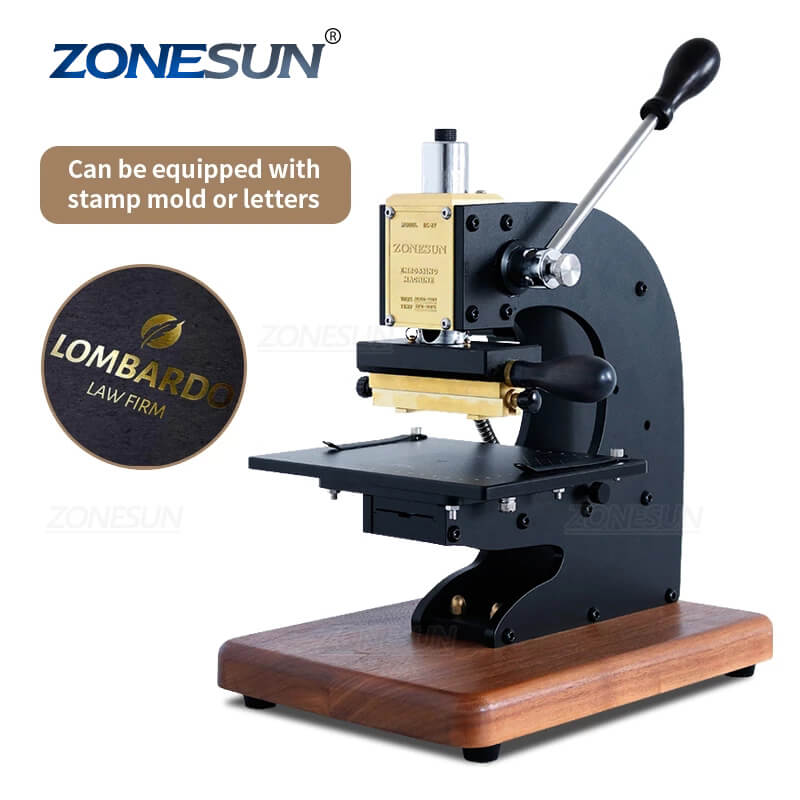

ZONESUN 5x7cm 8x10cm 10x13cm 500W hot stamping tool, manual logo embosser, wood leather book branding iron

$98.00
Unit price per

57 / 810 / 10*13cm Temparture adjustable 500W Handheld leather wood paper embossing tool,hot stamping machine tool, manual logo embosser, wood branding iron

Parameters:

Model: H57
Votalge: 220V/50Hz
Power: 500W
Stamping area: 5*7 /8*10 / 10*13cm
Temperature: 0-400°C
Net weight: 2.5kg
Gross weight: 3kg
Package size: 30x13x11cm

Application:

Embossed leather, wood products, handicrafts, handbags purses, sticker, stationery, footwear mark,plastic packaging, leather embossed branding, car seats, mobile phone sets, paper invitations, cards, notes, furniture, branding, gilt frames plastic stamping etc.

Please note this:

Please contact us if you need 110V/60Hz voltage, thank you!

Handle color ship at random.

This machine has one 4mm diameter hole at the heat plate, please contact us to customized mold with stem and screw so that you can install on the machine.

810_01

810_02 810_03 810_05

How to operate:

This machine has one 4mm diameter hole at the heat plate, contact us to customized mold with stem and screw so that you can install on the machine.

Step 1: Install the die with stem and fix it by screw.

Step 2: Connect the Plug to power (for 110V, a power transformer is needed, this machine is 220V)

Step 3: Pressthe red button to power it on.

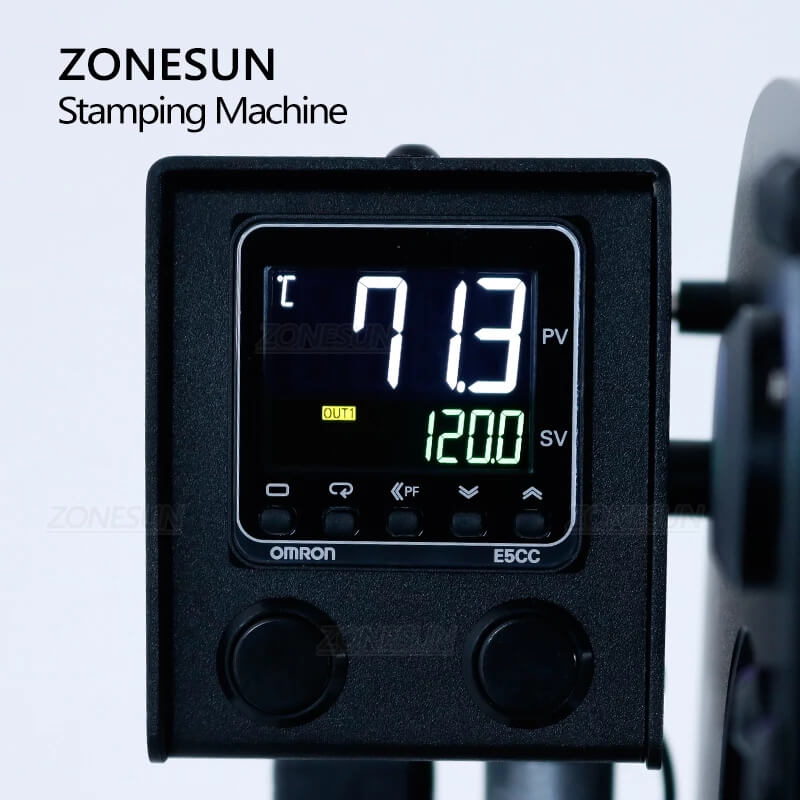

Step 4: Press set key to begin to setup the temperature

Step 5: Press < to select single digit

Step 6: Press the last two up and down buttons to adjust the temperature.

810_04

Stamping reference temperature:

Paper: 85-120°C

Soft plastic: 75-85 °C

Hard plastic: 35-100 °C

Man-made Leather: 75-85 °C

Creasing temperature: cowhide 120-150 °C

Soft PVC: 65-80 °C

Synthetic Leather: 160-180 °C

Wood mark: 350°C
