This automatic vial packing line combines an automatic filling capping machine with a side belt labeling machine to process vial packaging efficiently. The rotary filling system driven by a high-precision cam indexer and servo peristaltic pumps ensures accurate filling, while the integrated capping structure completes stopper feeding, cap placing, and sealing. Equipped with a laminar flow hood to improves packaging quality, the line reaches up to 3600 BPH, ideal for vial filling and packaging.
Filling Capping Machine Parameter
- Machine Model: ZS-AFC39
- Voltage: 110/220V 50-60 HZ
- Power: 3 KW
- Working Capacity: About 30-60 BPM(based on filling volume)
- Filling Pump: Peristaltic Pump
- Filling Nozzle Quantity: 2
- Filling Range: Customized
- Filling Accuracy: ±3%
- Machine Size: About 2330*1400*2100 mm(L*W*H)
- Machine Weight: About 900 kg
- Package Size: About 2530*1700*1930 mm(Main Machine) About 2200*1270*1680 mm(Laminar Flow Hood)
- Package Weight: About 1407 kg(Main Machine)+418 kg(Laminar Flow Hood)=1825 kg
Labeling Machine Parameter
- Machine Model: ZS-TB821
- Voltage: 220V/110V 50-60Hz
- Power: 570 W
- Labeling Accuracy: ±1.0 mm
- Labeling Speed: About 40-120 bottles/min (Depending on Label Size)
- Applicable Product Size: φ25-φ120 mm (Round Bottle)
- Label Size: (W)20-300 mm*(H)20-95 mm
- Label Roll ID: φ76 mm
- Label Roll OD: φ300 mm
- Machine Size: About 2040*1180*1370 mm(L*W*H)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

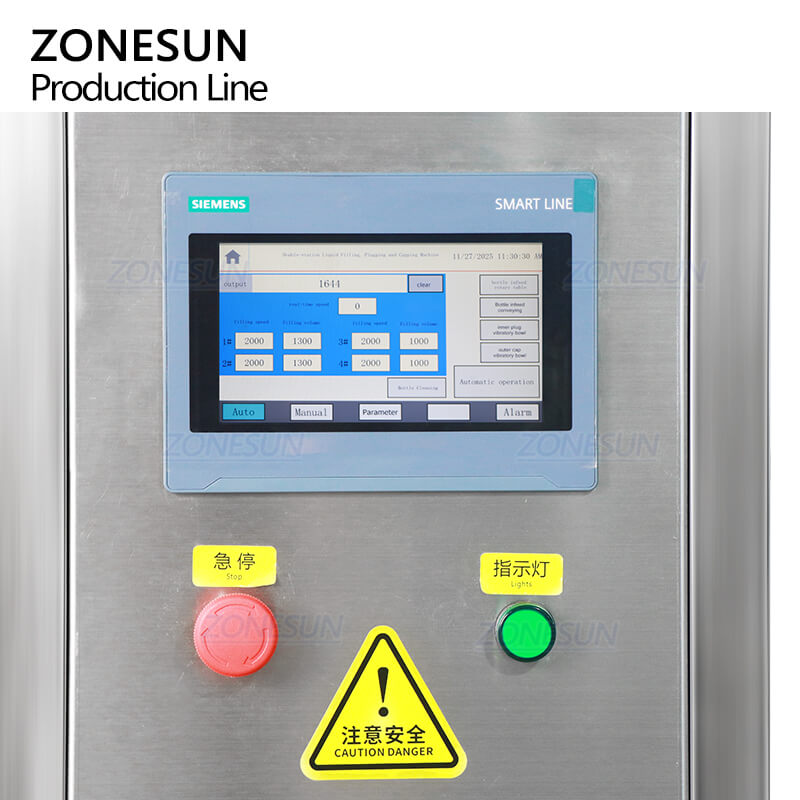

Touchscreen Control Panel
Provides intuitive parameter setting and real-time operation monitoring.
Provides intuitive parameter setting and real-time operation monitoring.

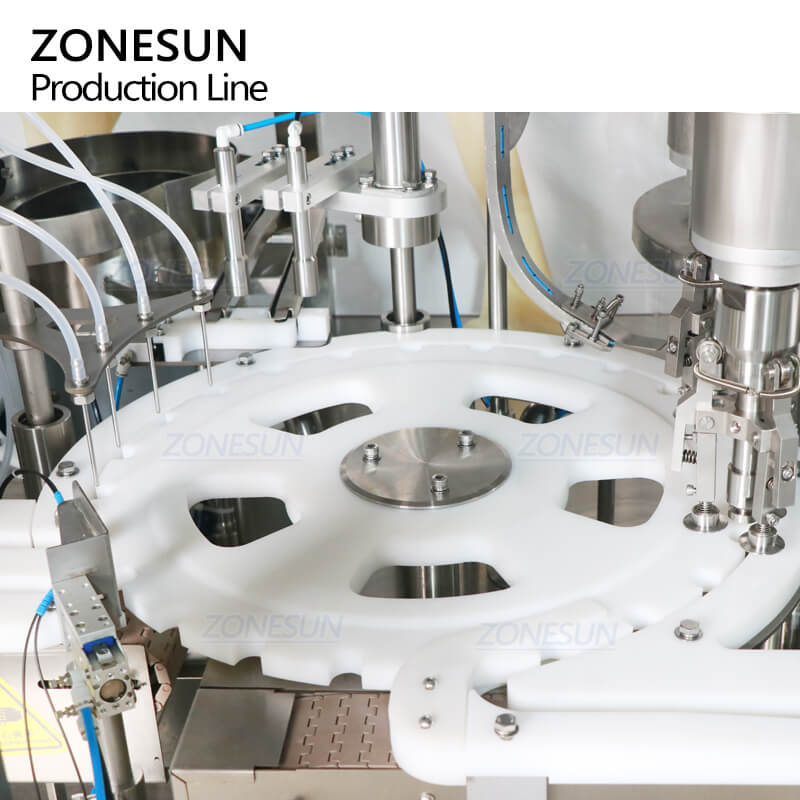

Integrated Filling Capping Module
Combines dosing, stoppering, and capping into a compact rotary system.
Combines dosing, stoppering, and capping into a compact rotary system.
Vibratory Bowl Feeding System
Automatically orients and feeds stoppers and caps for continuous production.
Automatically orients and feeds stoppers and caps for continuous production.
Laminar Flow Hood
Delivers clean airflow over critical areas to protect product quality.
Delivers clean airflow over critical areas to protect product quality.

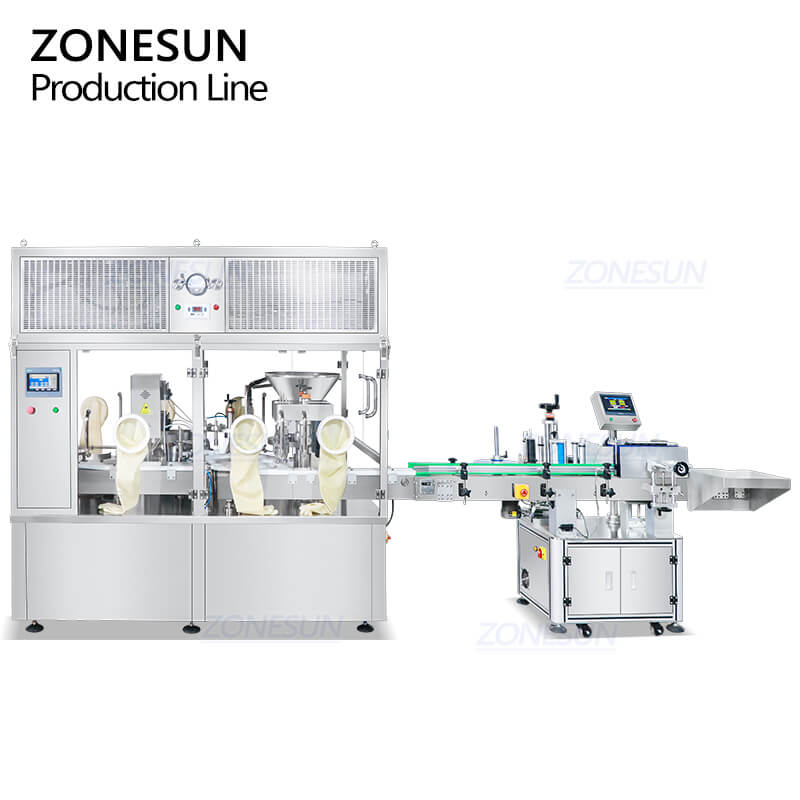

Automatic Vial Packing Line with Dust-Protection Enclosure
Reduces external contamination and improves overall line cleanliness.
Reduces external contamination and improves overall line cleanliness.

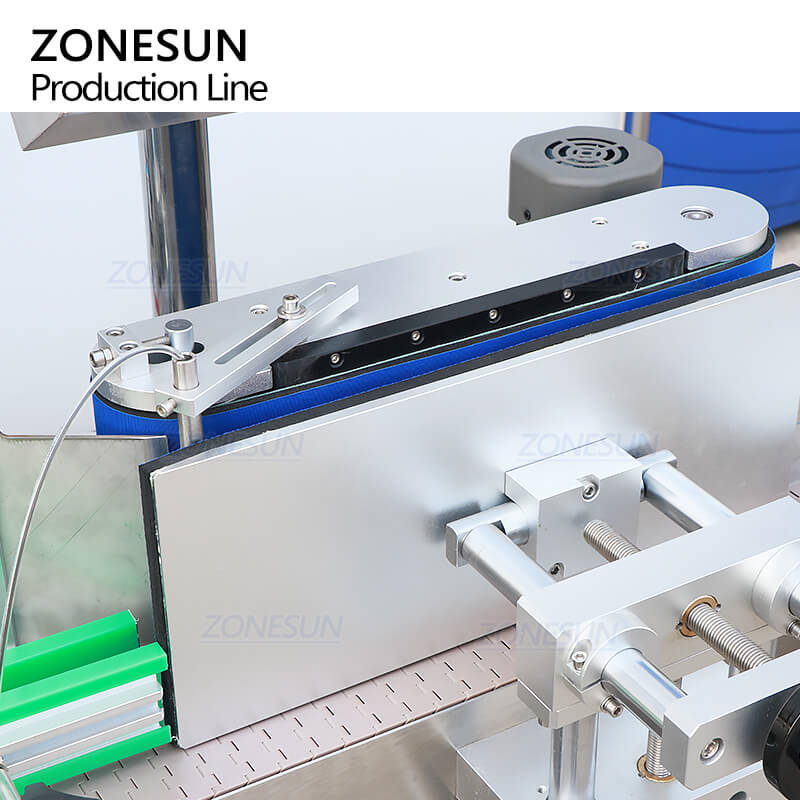

Side-belt Labeling Station
Applies high-speed wrap-around labels to small vials with precision.
Applies high-speed wrap-around labels to small vials with precision.

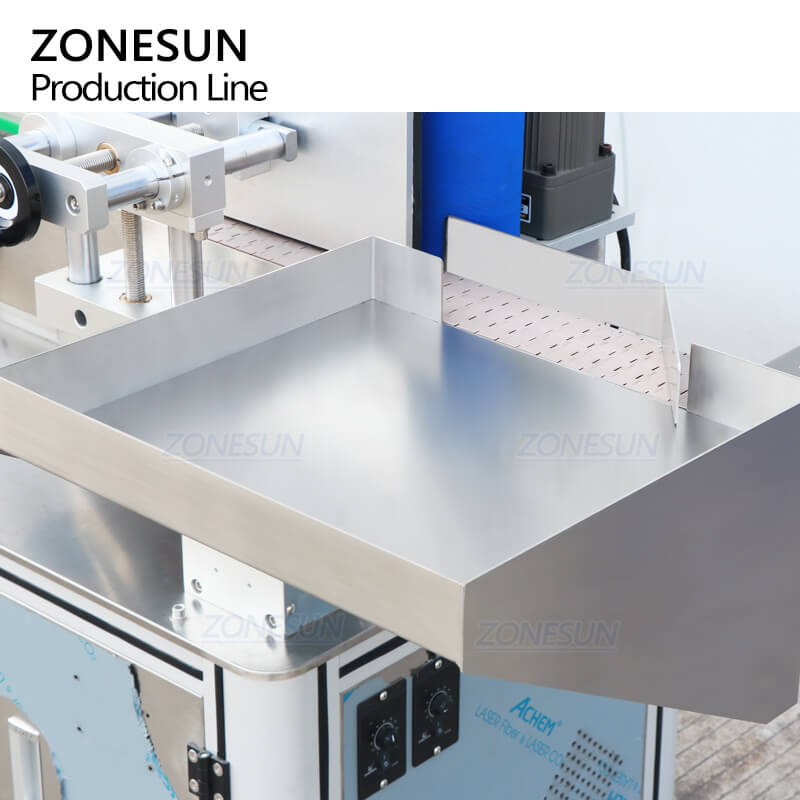

Collection Tray
Gathers finished vials for easy packing and downstream handling.
Gathers finished vials for easy packing and downstream handling.
