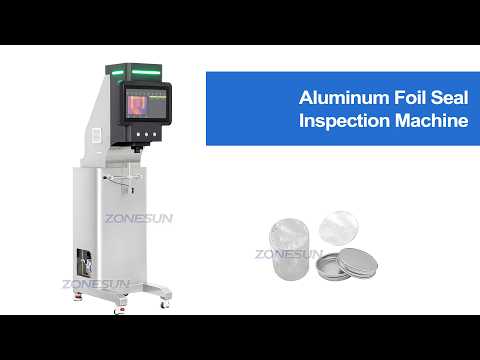

ZONESUN ZS-MD50 Automatic Bottles Caps Aluminum Foil Seal Infrared Thermal Imaging Inspection Machine

This aluminum foil seal inspection machine uses non-contact infrared thermal imaging to inspect induction or heat-sealed closures in real time. It accurately detects sealing defects without touching the product, making it ideal for cosmetics, food, and beverage production lines.

Aluminum Foil Seal Inspection Machine Parameter

• Machine Model: ZS-MD50
• Power Supply: AC 220V ±10%, 50/60Hz(Customizable)
• Power Consumption: ≤ 1 kW
• Applicable Cap Size: φ 10–150 mm
• Applicable Bottle Size: Height 50–350 mm; Diameter ≤ 300 mm
• Maximum Inspection Speed: 200 bottles/min (actual speed depends on product size)
• Pass Rate: ≥ 99.99%
• False Reject Rate: ≤ 0.5% (depends on packaging material and operating conditions)
• Image Accuracy: ± 0.03 mm
• Operating Temperature: –15°C to 65°C
• Camera Speed: 50 Hz, full temperature range
• Inspection Types: No cap, missing foil seal, skewed cap, high cap, loose cap, reversed foil, double foil, damaged foil at bottle rim, lifted foil edge, under-sealing due to low sealing power, over-sealing due to excessive sealing power
• Compressed Air Requirement: 0.6–0.8 MPa, ≥ 0.6 m³/min (supplied by user)
• Machine Dimensions: 600 (L)*450 (W)*1720 (H) mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
