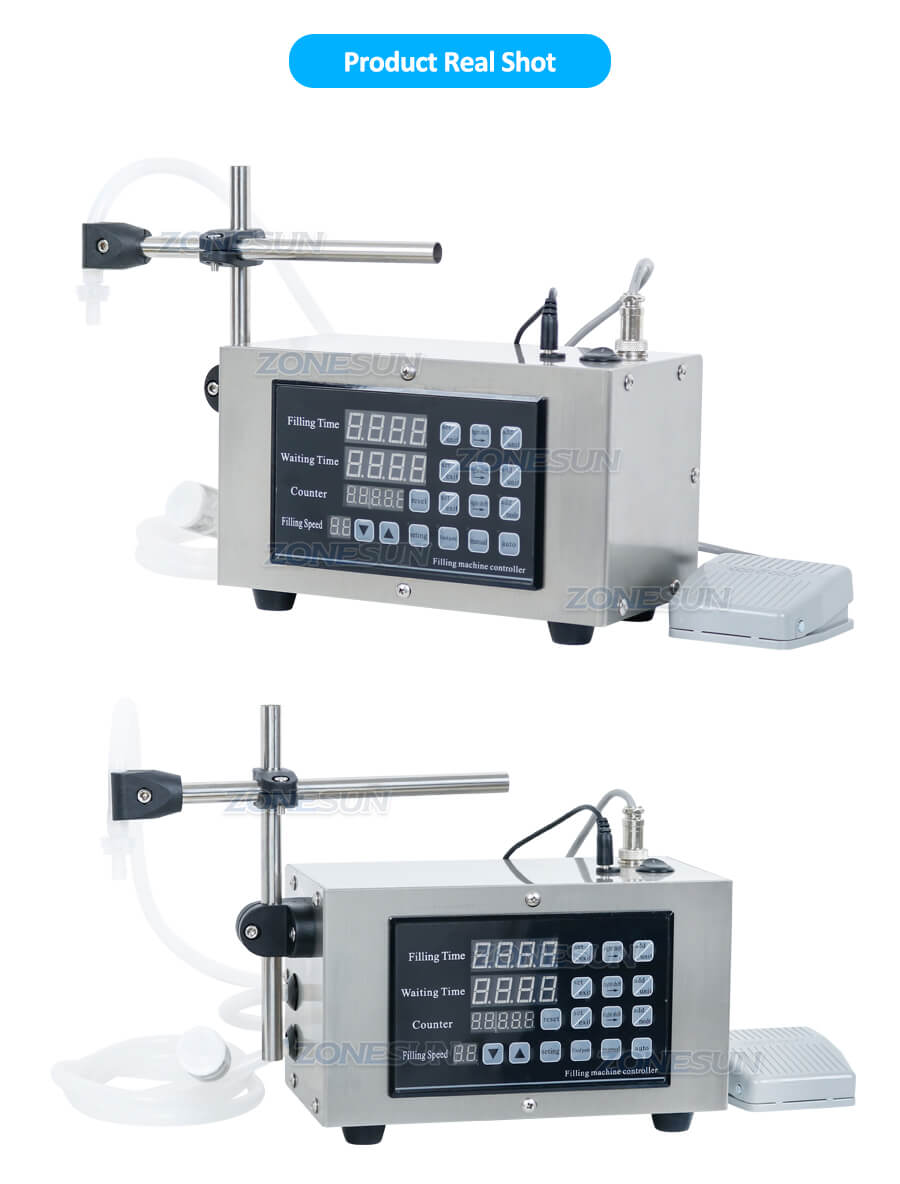

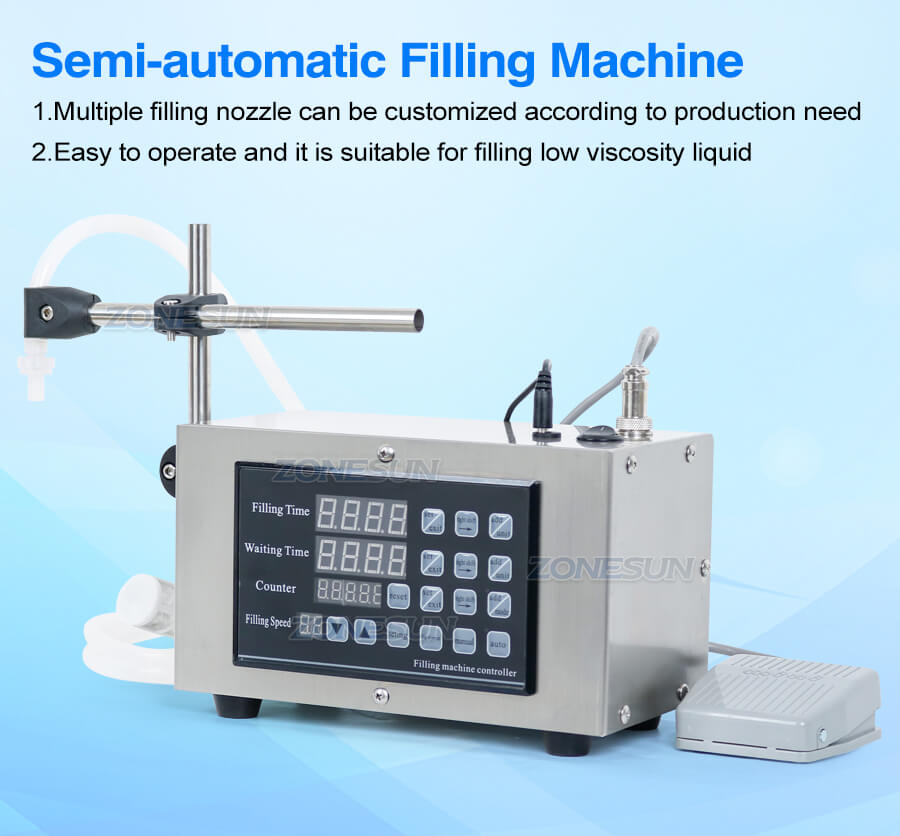

ZONESUN GFK-280 Semi-automatic Small Bottle Drinks Water Filler Edible Oil Fruit Juice Wine Soybean Milk Beverage Filling Machine

This semi-automatic filling machine is controlled by the diaphragm pump,its small machine body can help you save working space,the filling time and filling speed can be adjusted according to operation need.It is widely used in food,daily chemical and beverage industries.

 Parameter

• Machine Model: GFK-280

• Machine Voltage: 110V/220V 50/60HZ

• Filling Pump: Diaphragm Pump

• Machine Power: 40W

• Max Flow Rate: 2000 ml/M(Water)

• Recommend Filling Volume: 5 ml-1000 ml

• Filling Accuracy: ±2%

• Machine Size: About 233*120*132 mm

• Machine Weight: About 2.5 kg

• Package Size: About 270*215*150 mm

• Package Weight: About 3 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

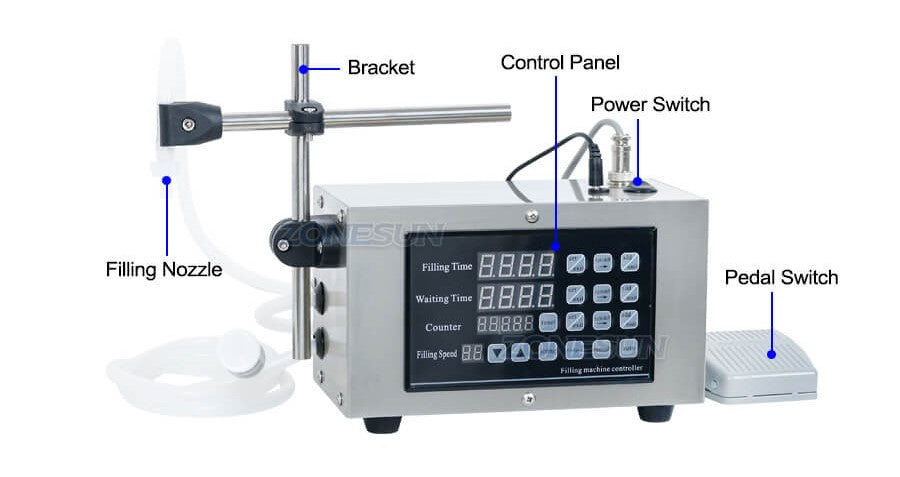

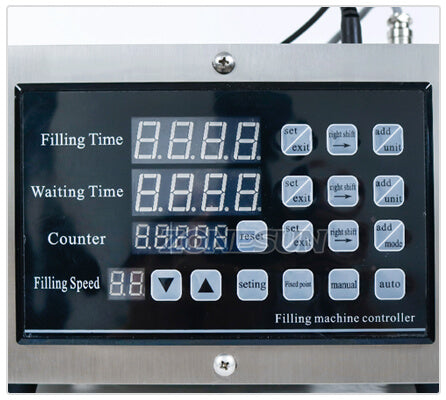

Simple control panel,the filling time and filling speed can be controlled easily. Set the waiting time and choose the automatic working mode, the machine can fill liquid automatically.

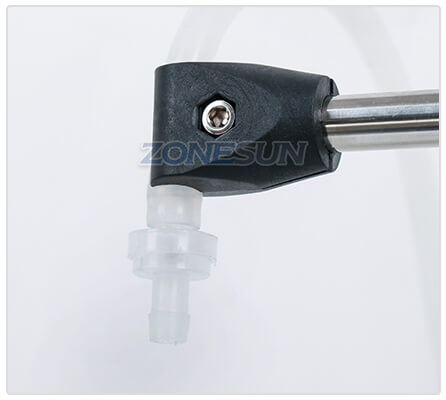

The filling nozzle is with anti-dripping function,this can ensure the filling accuracy. Multiple filling nozzle can be customized as operation need, each nozzle can be controlled separately.

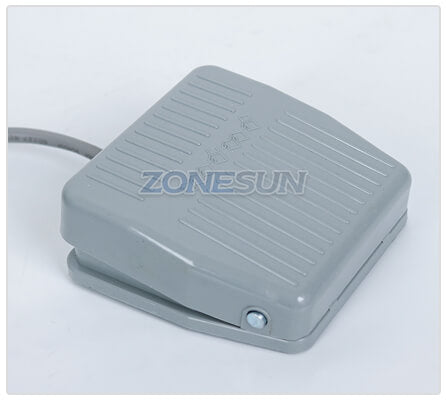

Equipped with pedal switch, this is good for adjusting working parameter when testing the machine, it can help to improve working accuracy.

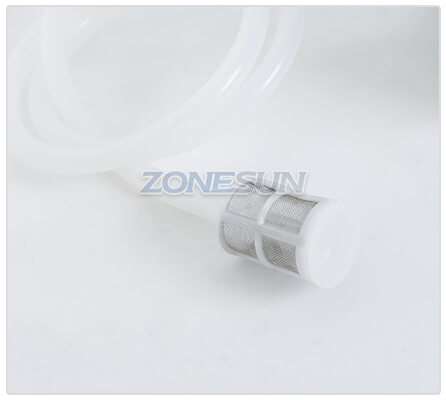

Designed with the filter,this can filter the impurities when filling liquid, it can prevent that the impurities to damage the filling pump, improves filling accuracy.
