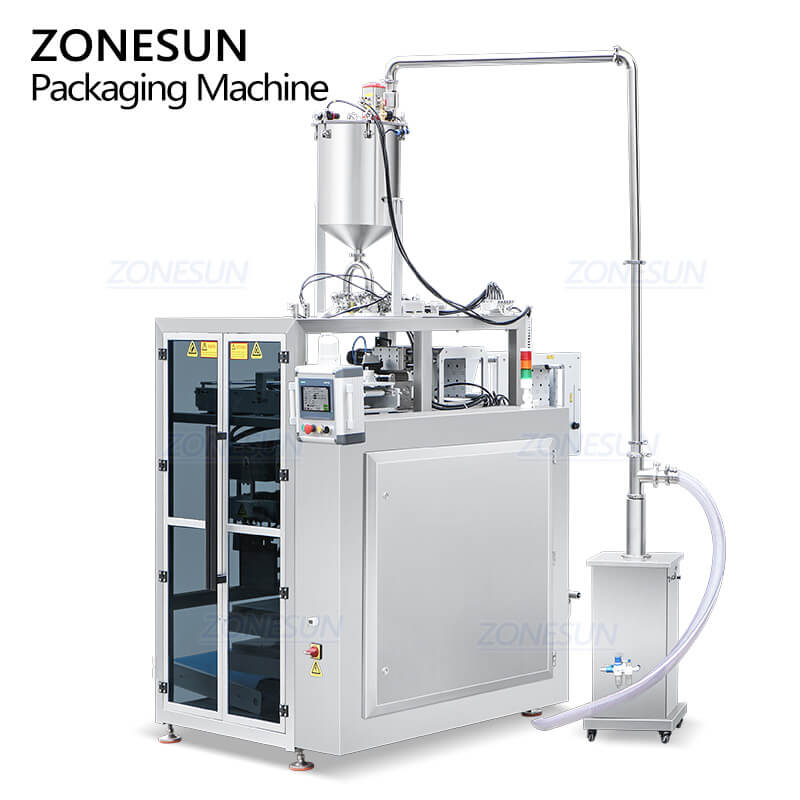

ZONESUN ZS-FS350Y-2 Automatic Dual-Lane 4 Side Seal Liquid Sachet Filling Packaging Machine For Sauce Honey Syrup
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

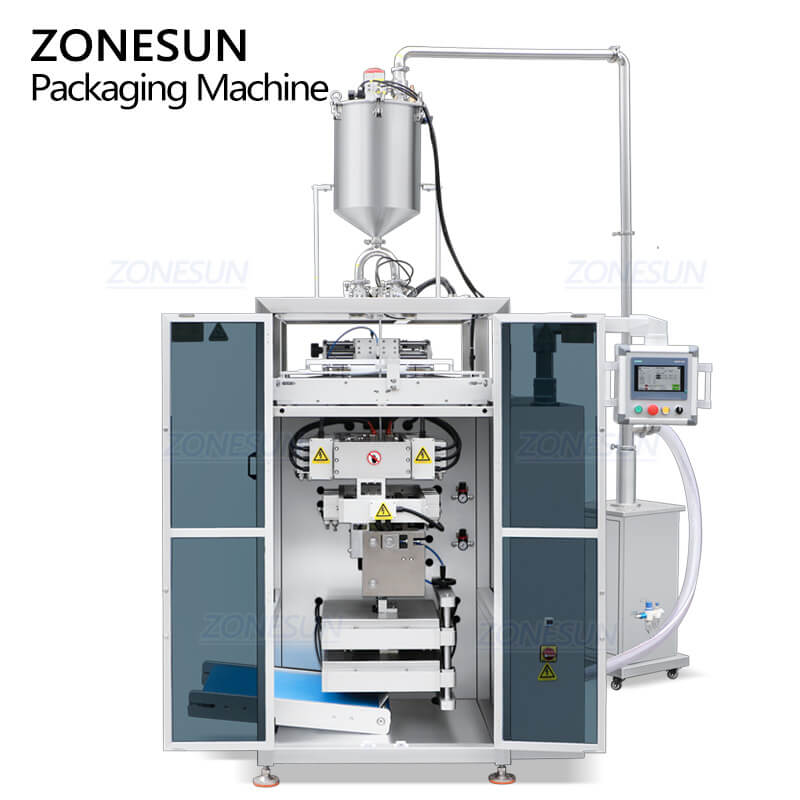

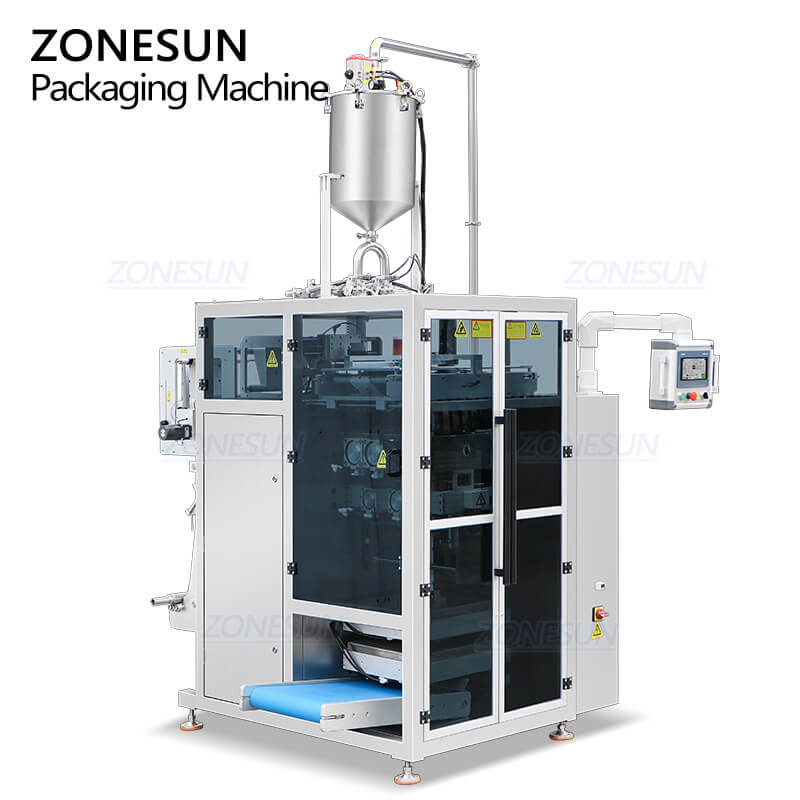

The ZONESUN liquid sachet packing machine is a dual-lane automatic packaging system designed for single-dose liquid and cream products from 1–12 ml, such as serums, facial creams, cleansers, hair oils, and travel-size cosmetics. It automatically completes feeding, dosing, pouch forming, filling, sealing, cutting, with optional coding and easy-tear functions. Using pneumatic ceramic piston pumps with anti-drip valves, it handles both medium- and high-viscosity products while preventing seal contamination. Product-contact parts are made of 316 stainless steel. A level sensor automatically signals the optional piston feeding pump for material replenishment, while the pressurized hopper ensures stable supply. Servo-driven film feeding delivers consistent sealing quality. Available in 2, 4, 6, 10, or 12-lane configurations, the machine supports four-side, three-side, or back sealing. Equipped with a Siemens PLC featuring recipe storage, self-diagnostics, and alarm functions, it achieves 60–100 sachets per minute and is suitable for cosmetic, pharmaceutical, food, and explosion-proof production environments.
Liquid Sachet Packing Machine Parameter
- Machine Model: ZS-FS350Y-2
- Power Supply: AC 380V / 50Hz / 60Hz
- Power Consumption: 6.8 kW
- Packaging Type: Four-side Seal
- Dosing Method: Pneumatic Ceramic Piston Pump (Customizable as Needed)
- Filling Range: 1-12 ml
- Filling Accuracy: ±5-7% (depending on product and packaging material)
- Bag Length: 40-180 mm
- Bag Width: 60 mm
- Packaging Speed: (30-50)*2 lane=60-100 bags/min (Depending on Product and Packaging Material)
- Optional Function: Date Coding, Easy-Tear Notch & Vacuum Feeding
- Air Pressure Requirement: ≥0.6 MPa
- Machine Size: About 2600*2000*3000 mm (L*W*H)
- Machine Weight: About 800 kg
- Package Size: About 2390*1750*2170 mm (L*W*H)
- Package Weight: About 1200 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
The Siemens PLC system supports fault alerts, data storage, and self-diagnostic functions for intuitive and user-friendly operation.

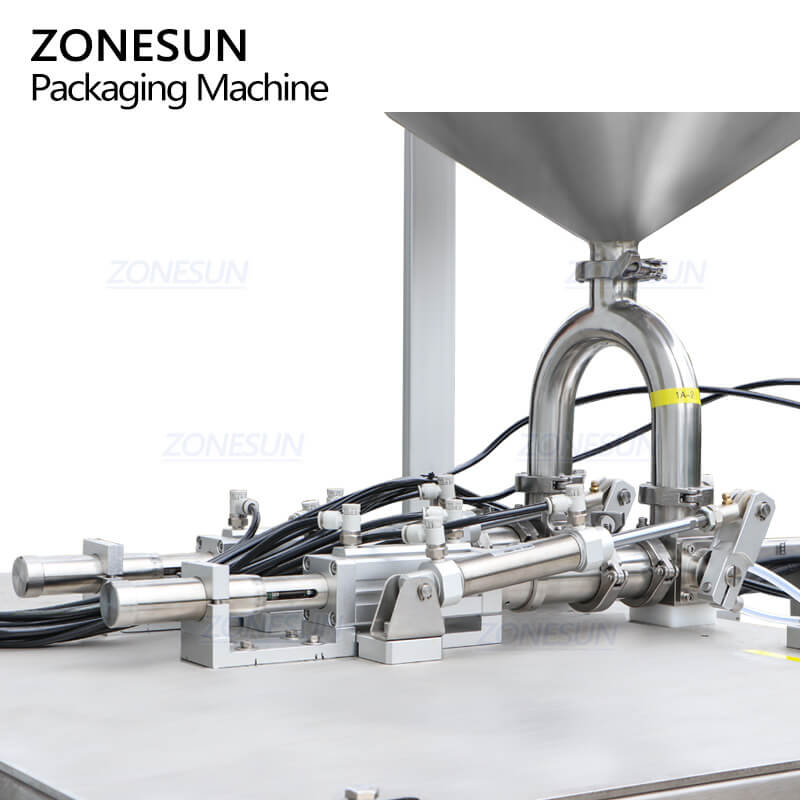

Pneumatic ceramic piston pumps enable precise filling from 1–12 ml, ideal for small-dose liquid products.

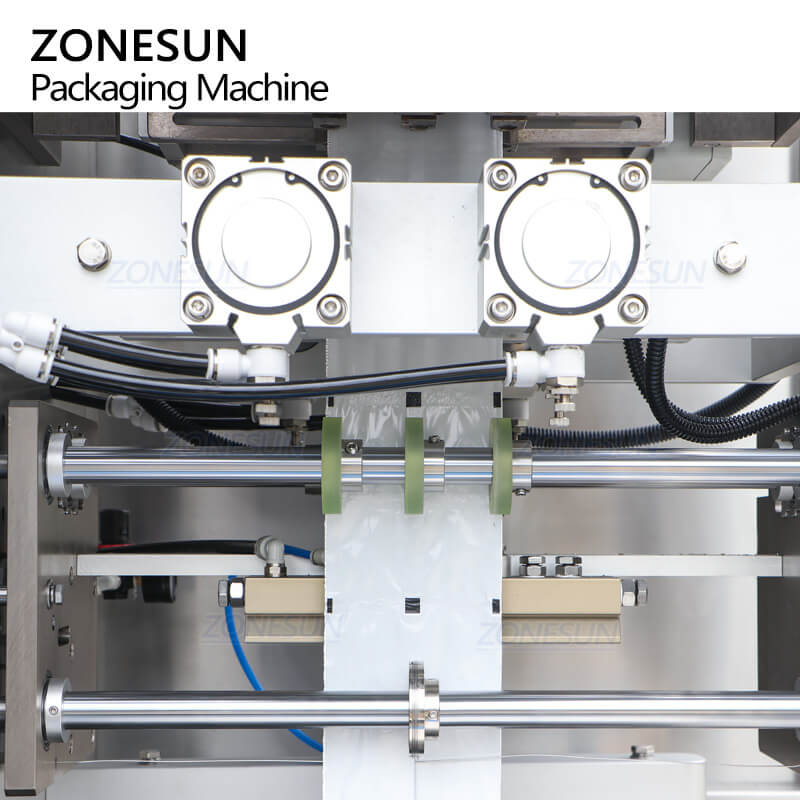

Upper metal separators and lower guide plates prevent multi-lane film adhesion and deviation, ensuring neat sachet forming and uniform spacing across all lanes.

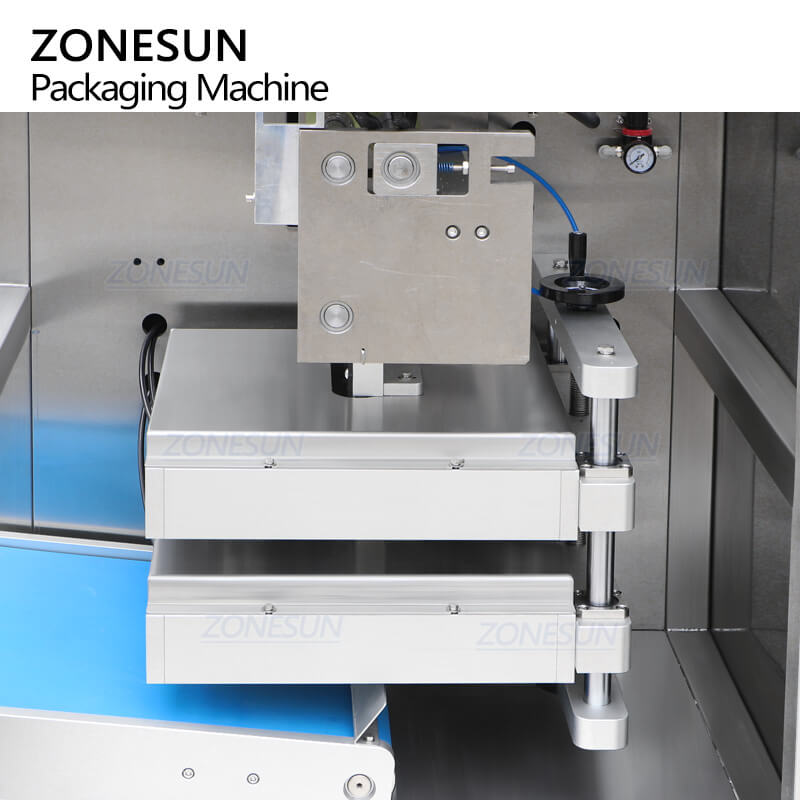

Uses independently removable cutting blades and optional tear-notch design for convenient sachet opening.

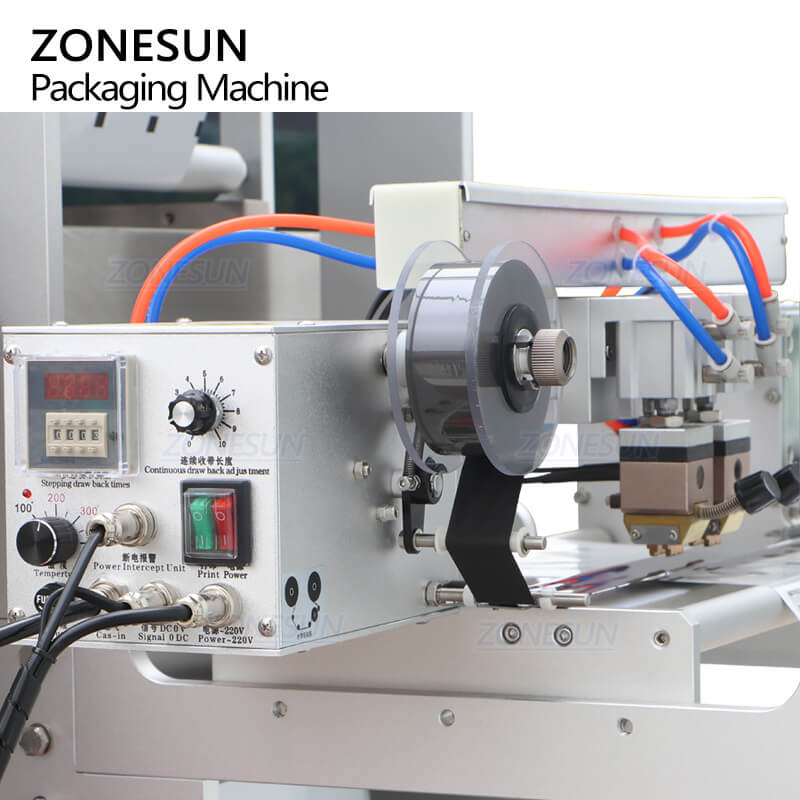

Prints batch numbers or production dates directly during the packaging process.
A Siemens servo motor combined with photoelectric sensors tracks color marks accurately for uniform bag length and pattern alignment.
Works with an optional piston feeder and level sensor for automatic material replenishment.
