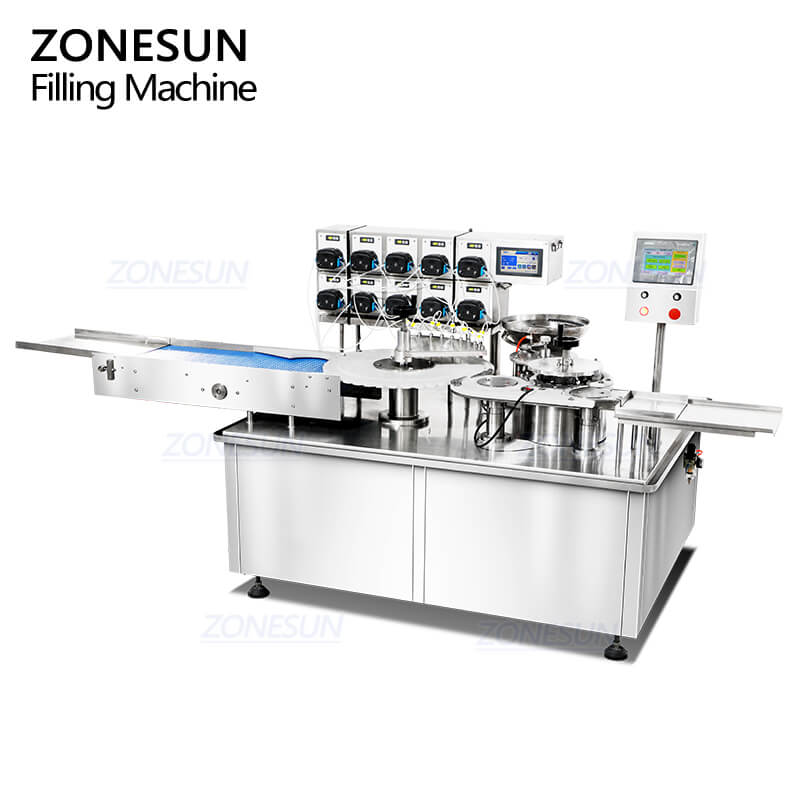

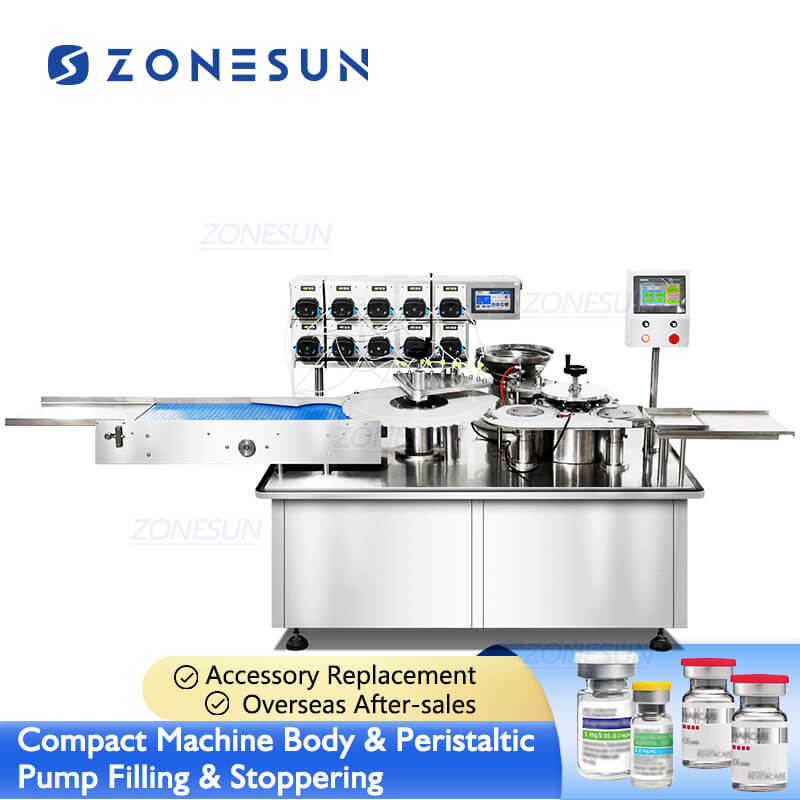

ZONESUN ZS-AFY1 Compact Automatic 10 Heads Peristaltic Pump Liquid Vial Small Bottle Filling Capping Machine
Harga reguler
$29,499.00 USD
Harga reguler
$32,000.00 USD
Harga penjualan
$29,499.00 USD
Menyimpan $2,501 USD
/
- Garansi satu tahun
- Manual pengguna
- Dukungan obrolan video satu-ke-satu
- Video Instal & Debug
- Solusi Paket Kustom
- Lokasi Layanan Lokal （Rumania /Serbia /Kazakhstan /Meksiko /Indonesia）

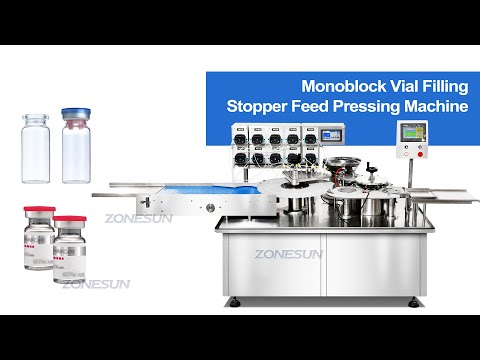

This automatic vial packaging machine is designed for small or medium volume packaging production. It combines bottle unscrambling, liquid filling (peristaltic pump), stopper sorting and inserting, stopper pressing, and vial collection into one compact unit. Bottles are precisely transported via a star wheel mechanism, ensuring accurate positioning throughout the process. Ideal for working with vial crimping machines for a complete production.
Automatic Vial Packaging Machine Parameter
- Machine Model: ZS-AFY1
- Machine Voltage: 220V 50HZ 4KW
- Filling Pump: Peristaltic Pump
- Filling Range: 2ml (Customizable)
- Filling Accuracy: ±1-2%
- Working Capacity: 12000 BPH
- Suitable Bottle Size: Customizable
- Suitable Cap Size: Customizable
- Machine Size: About 3060*1380*1480 mm
- Package Size: About 2390*1420*1620 mm
- Package Weight: About 1147 kg

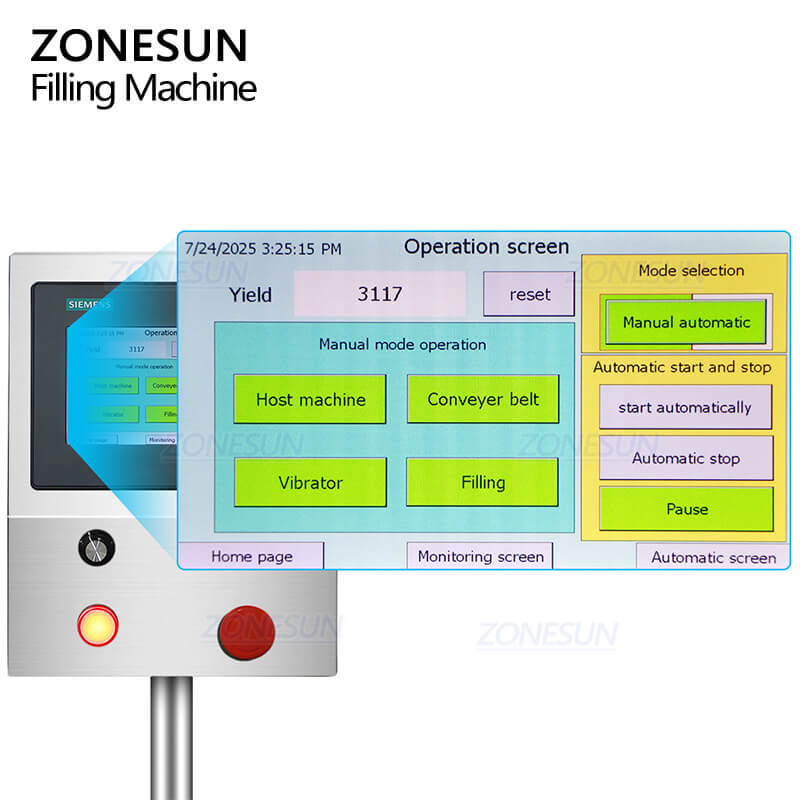

Touchscreen Control Panel
User-friendly interface for intuitive operation, parameter adjustment, and real-time monitoring.
User-friendly interface for intuitive operation, parameter adjustment, and real-time monitoring.

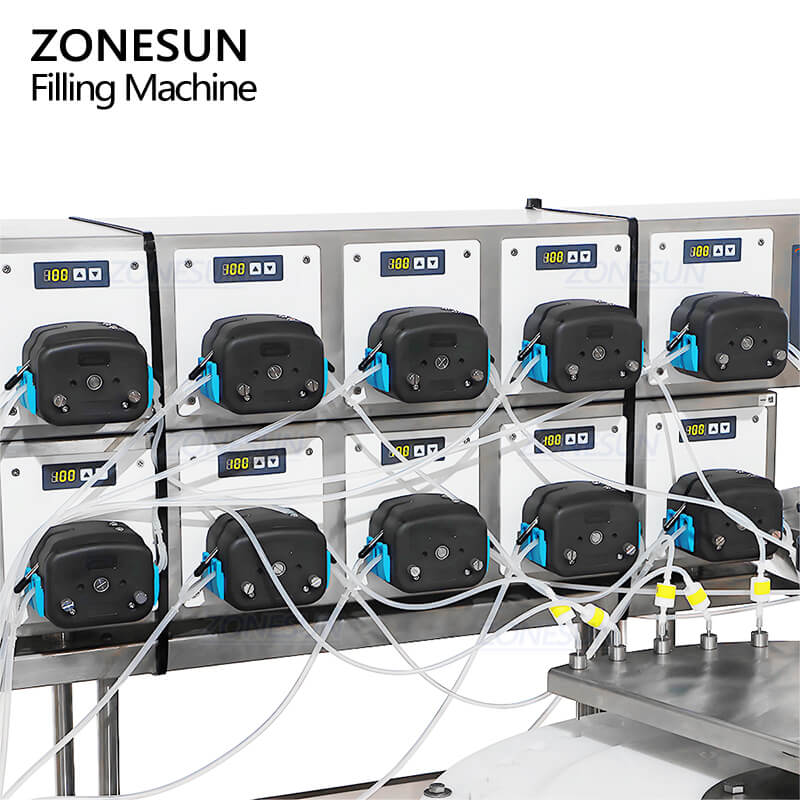

Peristaltic Pump Filling
Ensures high precision and clean dosing, idea for material changeover and avoid cross-contamination.
Ensures high precision and clean dosing, idea for material changeover and avoid cross-contamination.

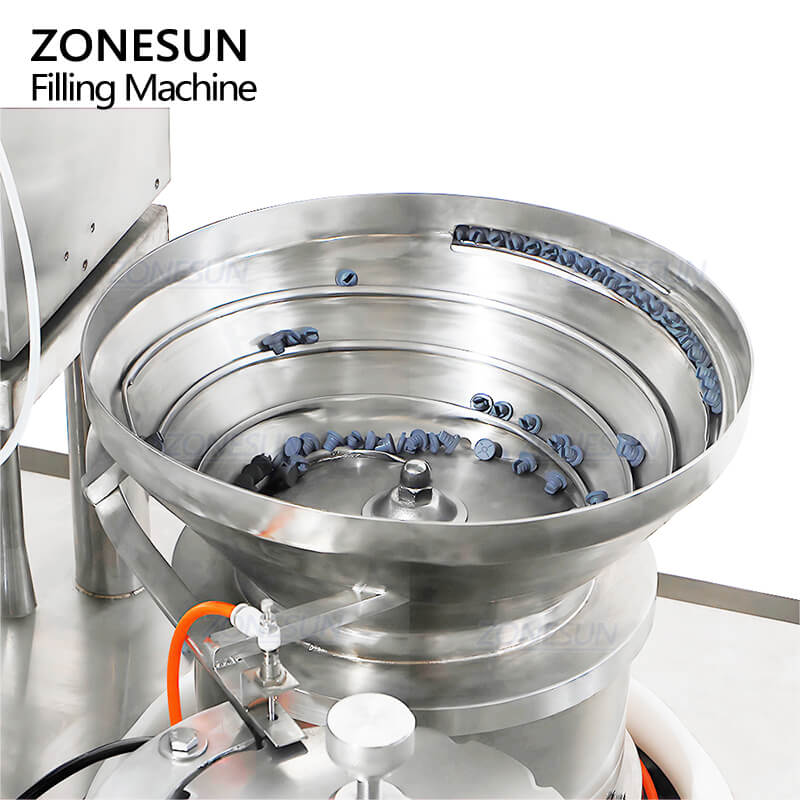

Electromagnetic Vibrating Bowl
Provides stable and low-noise feeding of rubber stoppers, improving working environment and accuracy.
Provides stable and low-noise feeding of rubber stoppers, improving working environment and accuracy.
Stopper Inserting & Pressing
Equipped with precise alignment and pressing units, stopper pressing depth is fully adjustable.
Equipped with precise alignment and pressing units, stopper pressing depth is fully adjustable.

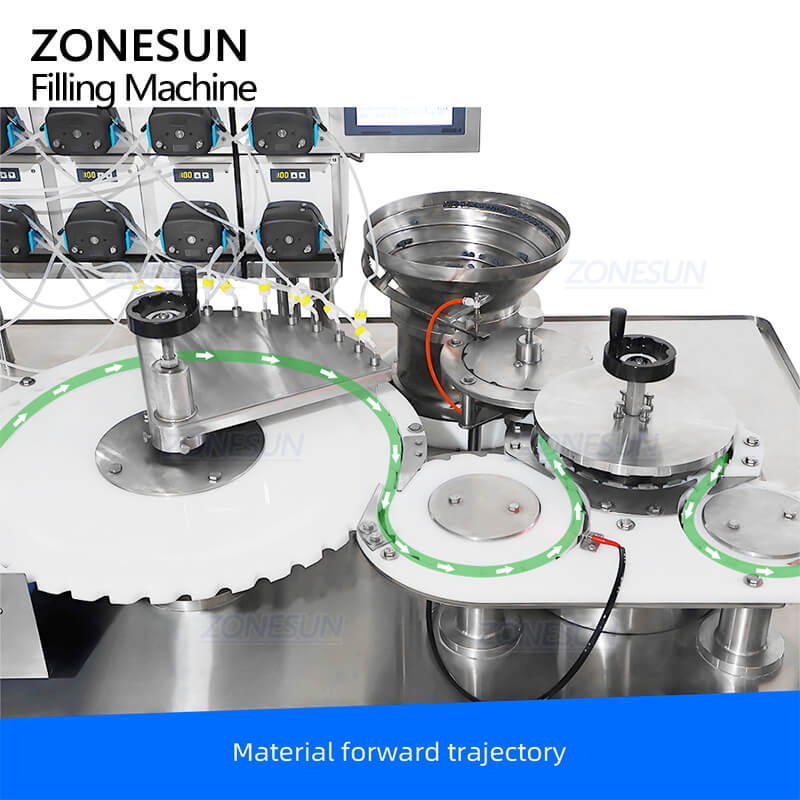

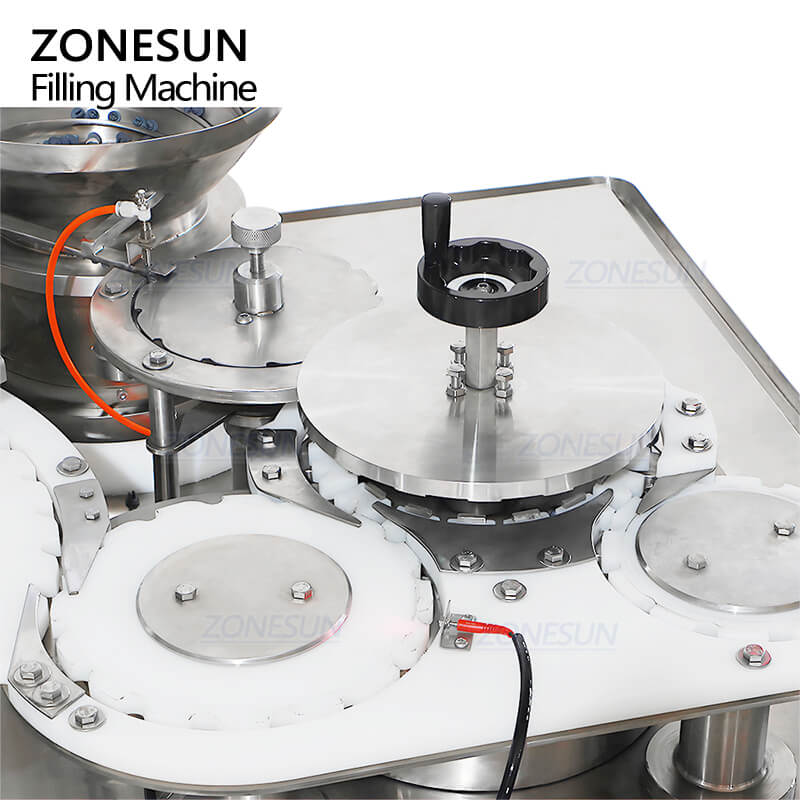

Starwheel Transporting
Bottles are conveyed smoothly and accurately via star wheel for synchronized processing across all stations.
Bottles are conveyed smoothly and accurately via star wheel for synchronized processing across all stations.

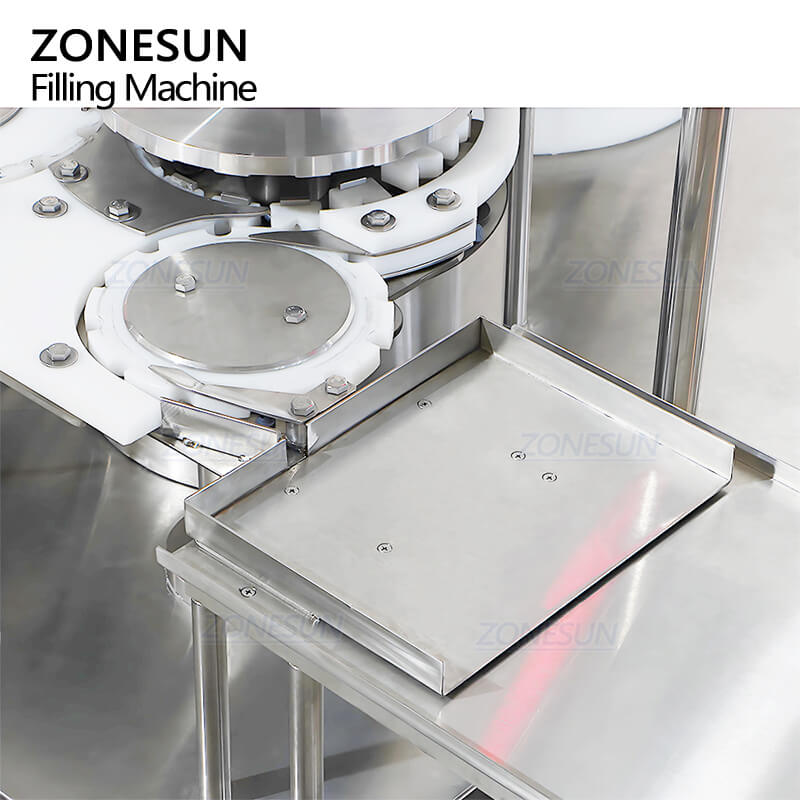

Vial Collecting Tray
Finished vials are automatically collected at the discharge area or directed to a capping unit for further processing.
Finished vials are automatically collected at the discharge area or directed to a capping unit for further processing.
