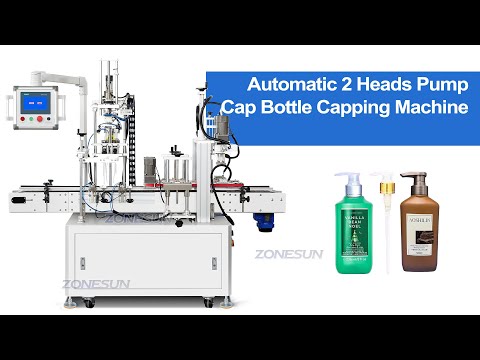

ZONESUN ZS-XG448S Automatic Dual Head Shampoo Pump Dispenser Cap Bottle Capping Machine With Cap Feeder
Harga reguler
$19,699.00 USD
Harga reguler
Harga penjualan
$19,699.00 USD
Menyimpan $-19,699 USD
/
- Garansi satu tahun
- Manual pengguna
- Dukungan obrolan video satu-ke-satu
- Video Instal & Debug
- Solusi Paket Kustom
- Lokasi Layanan Lokal （Rumania /Serbia /Kazakhstan /Meksiko /Indonesia）

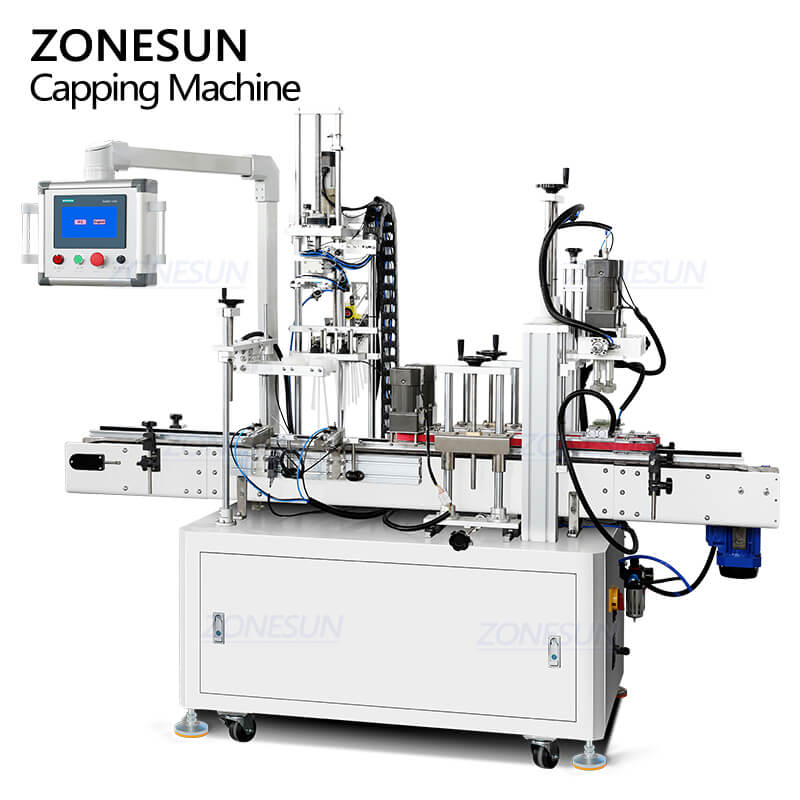

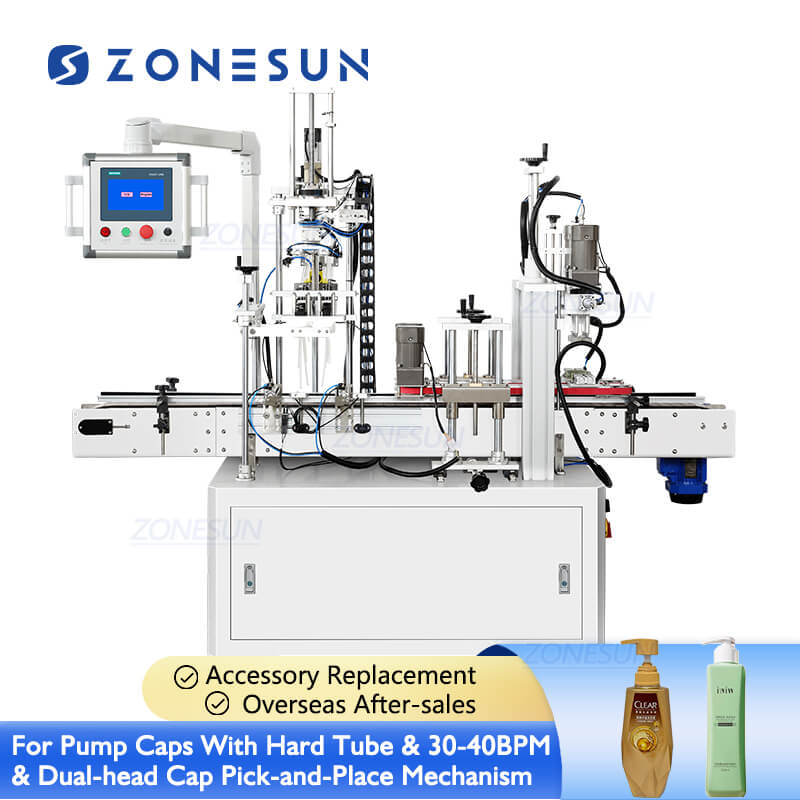

This automatic bottle capping machine is designed for pump caps with long rigid tubes, widely used in shampoo, shower gel, and lotion bottles. Equipped with a vibratory bowl, dual-head cap pick-and-place mechanism, it ensures accurate positioning and stable capping. Bottles are conveyed smoothly to complete the capping process efficiently.
Automatic Bottle Capping Machine Parameter
- Model: ZS-XG448S
- Working Voltage: AC 220V / 110V, 50–60Hz
- Power: 2.2 kW
- Bottle Cap Diameter: 20-35 mm
- Bottle Height: 75-250 mm
- Bottle Diameter: Ø40–100 mm
- Working Speed: 30-40 bottles/min (Depending on bottles and caps)
- Conveyor Length: 2200 mm
- Working Pressure: 0.4–0.6 MPa
- Machine Size: About 2200*1935*1575 mm (L*W*H)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

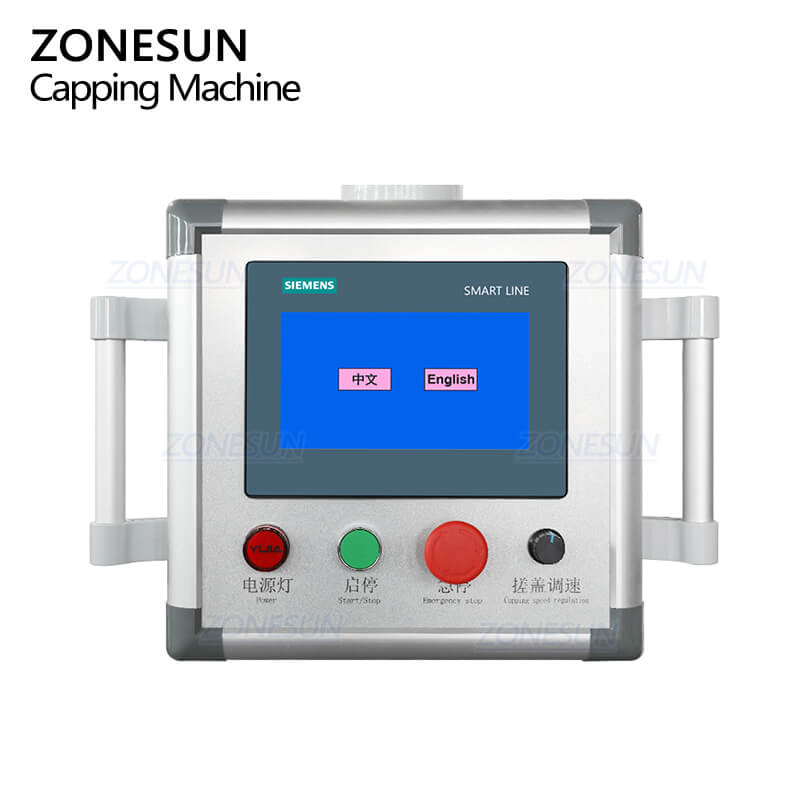

Control Panel
Swing-arm touch screen control panel makes parameter setting more intuitive, it realizes real-time machine monitoring.
Swing-arm touch screen control panel makes parameter setting more intuitive, it realizes real-time machine monitoring.

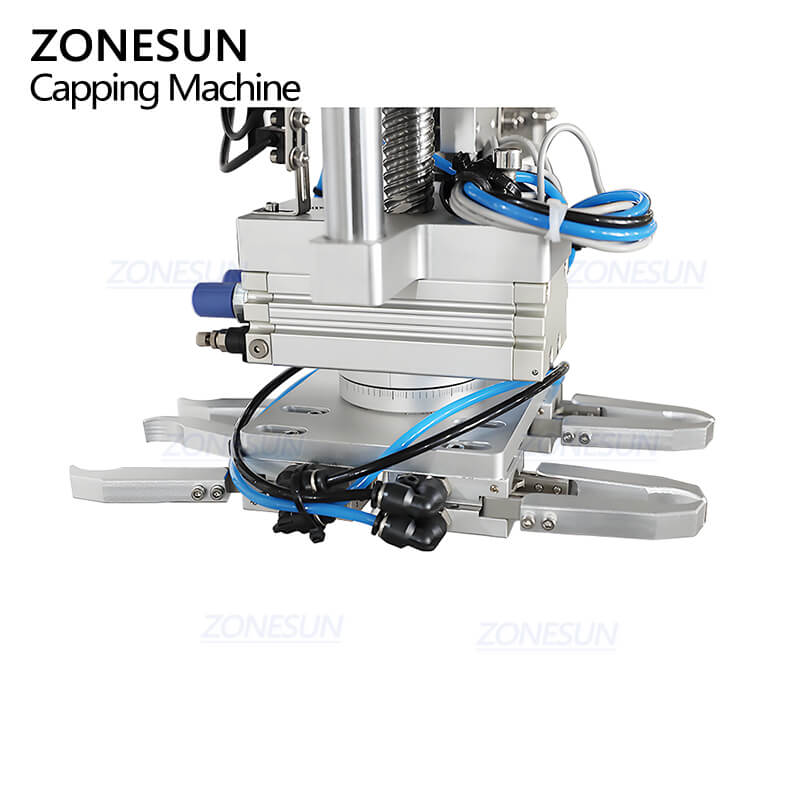

Dual-head Cap Pick-and-Place Mechanism
This mechanism features a dual-station rotary design that enables simultaneous cap picking and placing.
This mechanism features a dual-station rotary design that enables simultaneous cap picking and placing.

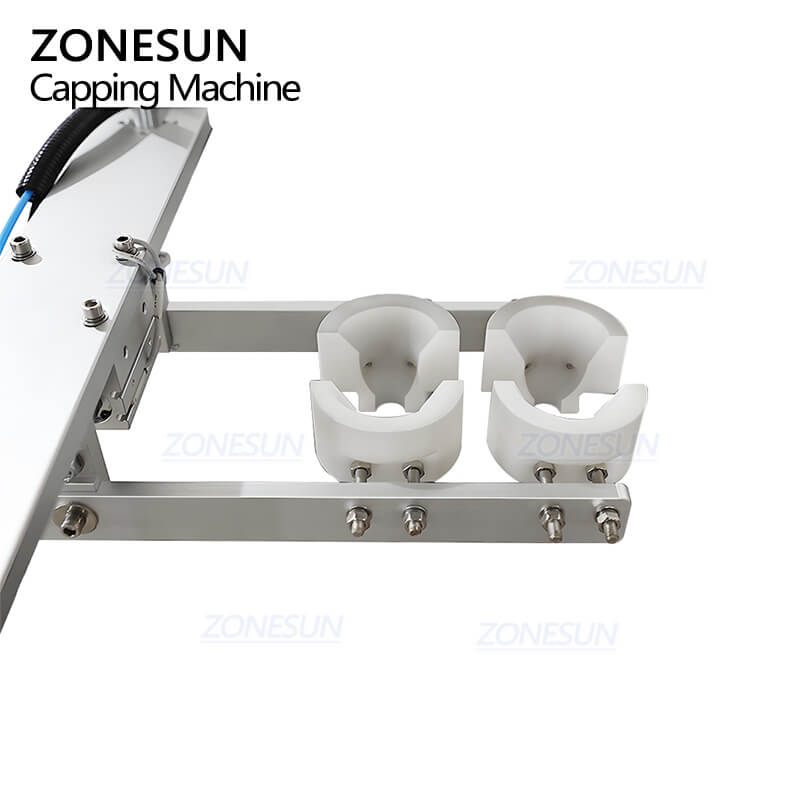

Cap Guide Housing
Guide housing is designed for positioning dispense pump caps, ensures the capping work can be processed smoothly.
Guide housing is designed for positioning dispense pump caps, ensures the capping work can be processed smoothly.

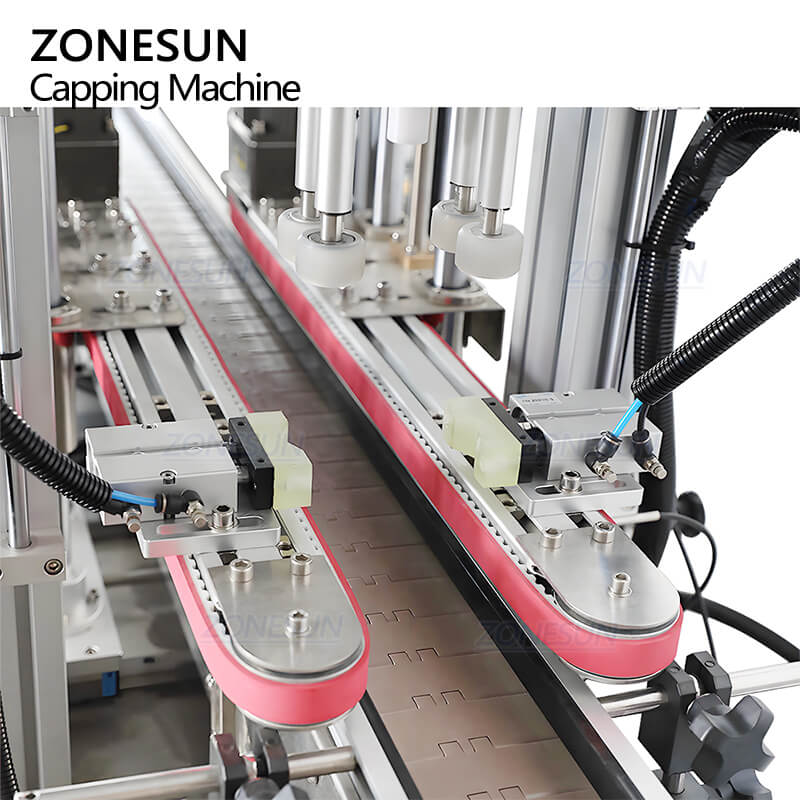

Capping Structure
With guiding conveyor to clamp bottles and finished capping work, working height and width are adjustable as bottle diameter.
With guiding conveyor to clamp bottles and finished capping work, working height and width are adjustable as bottle diameter.

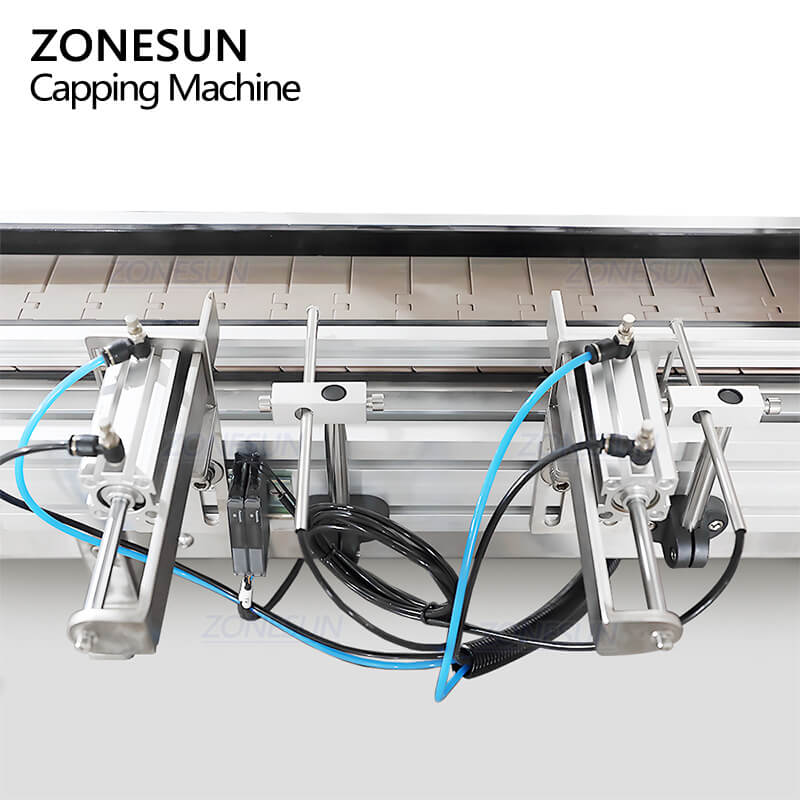

Conveyor Belt
Chain conveyor belt has large weight capacity, sensor can detect bottles and realize automated work.
Chain conveyor belt has large weight capacity, sensor can detect bottles and realize automated work.
