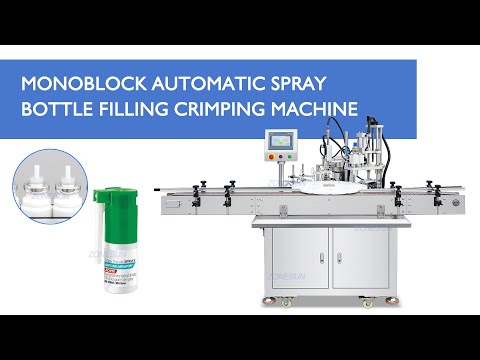

ZONESUN ZS-AFC51 Automatic Monoblock Peristaltic Pump Nasal Spray Bottle Filling and Crimping Machine with Vibratory Bowl Sorter
Κανονική τιμή
$11,999.00 USD
Κανονική τιμή
Τιμή πώλησης
$11,999.00 USD
Εκτός $-11,999 USD
/
- Εγγύηση ενός έτους
- Εγχειρίδιο χρήστη
- Υποστήριξη συνομιλίας βίντεο one-to-one
- Εγκαταστήστε και εντοπισμός εντοπισμού εντοπισμού εντοπισμού σφαλμάτων
- Λύση προσαρμοσμένου πακέτου
- Τοπική τοποθεσία τοπικής υπηρεσίας (Ρουμανία /Σερβία /Καζακστάν /Μεξικό /Ινδονησία）
This automatic nasal spray filling machine is designed for small-dose liquid packaging such as nasal spray bottles and oral spray products. The peristaltic pump filling system ensures that liquid only contacts the filling tube, making it suitable for hygienic pharmaceutical production. The machine integrates bottle positioning, filling, cap feeding, and cap crimping into one compact monoblock system, providing stable performance and efficient spray bottle packaging.
Nasal Spray Filling Machine Parameter
- Machine Model: ZS-AFC51
- Voltage: 110/220V 50-60HZ
- Power: 1.5 KW
- Filling Pump: Peristaltic Pump
- Recommended Filling Volume: 5-20 ml (Customizable)
- Maximum Flow Rate: 1.5L/minute for per nozzle (Water-based)
- Filling Nozzle Quantity: 2 (customizable)
- Production Capacity: 20-30 Bottles/minute
- Suitable Bottle Size: Customizable
- Suitable Cap Diameter: Customizable
- Machine Size: 2355*1567*1535 mm(L*W*H)
- Package Size: 1980*990*1630 mm(L*W*H)
- Package Weight: 450 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

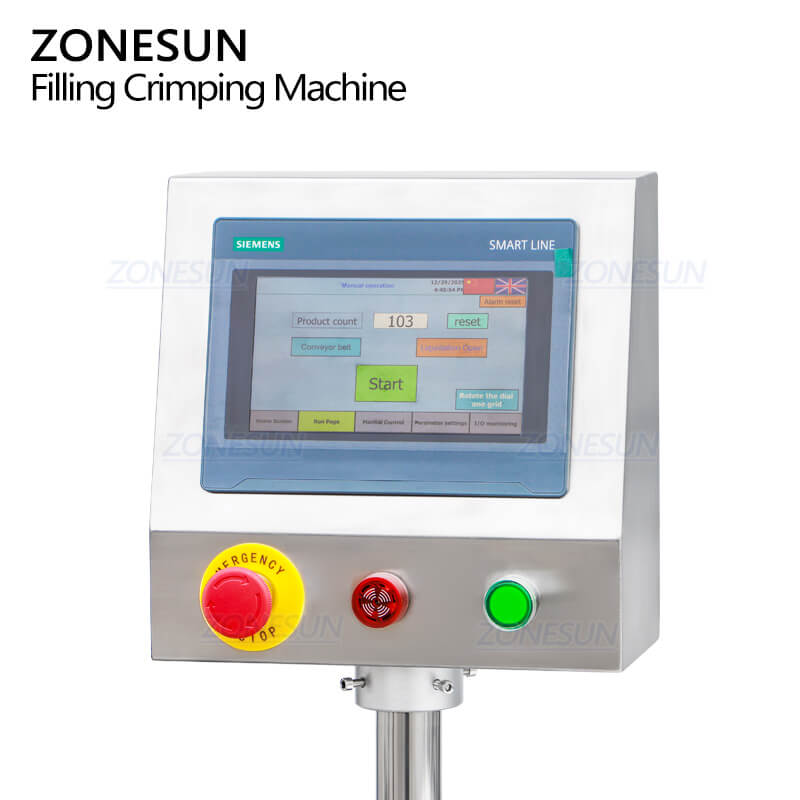

Touch Screen Control Panel
The intelligent touch screen control panel allows operators to easily adjust filling parameters, monitor machine status, and manage production settings in real time. The user-friendly interface simplifies operation and improves production efficiency.
The intelligent touch screen control panel allows operators to easily adjust filling parameters, monitor machine status, and manage production settings in real time. The user-friendly interface simplifies operation and improves production efficiency.
Peristaltic Pump Filling System
The machine adopts a precise peristaltic pump filling system, ensuring that liquid only passes through the filling tube without contacting the pump components. This design reduces contamination risk and is ideal for pharmaceutical liquids, nasal sprays, and oral spray products.
The machine adopts a precise peristaltic pump filling system, ensuring that liquid only passes through the filling tube without contacting the pump components. This design reduces contamination risk and is ideal for pharmaceutical liquids, nasal sprays, and oral spray products.

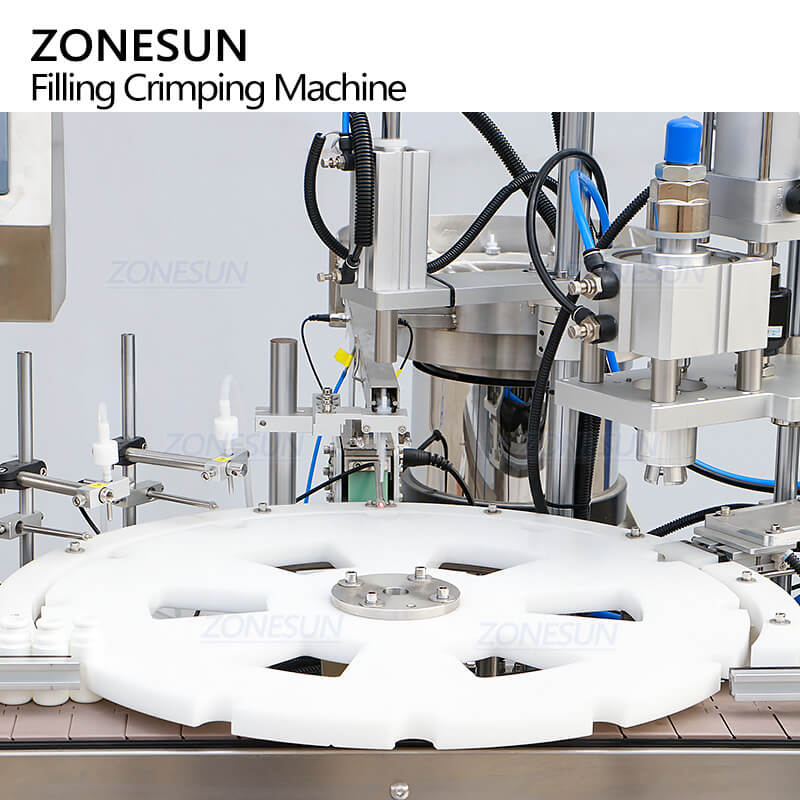

Starwheel Bottle Positioning
The customized starwheel is designed according to the bottle size to ensure accurate bottle positioning during filling and capping. It keeps bottles stable and improves filling accuracy throughout the production process.
The customized starwheel is designed according to the bottle size to ensure accurate bottle positioning during filling and capping. It keeps bottles stable and improves filling accuracy throughout the production process.

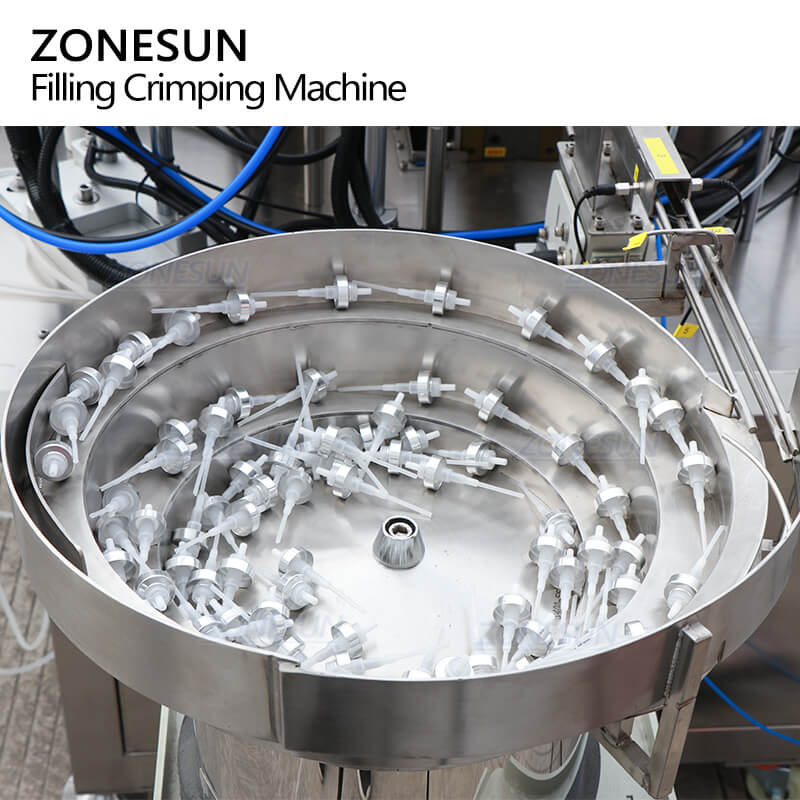

Vibratory Bowl Cap Feeder
The vibratory bowl automatically sorts and feeds caps in the correct orientation, enabling continuous and stable cap supply. This reduces manual labor and improves overall packaging efficiency.
The vibratory bowl automatically sorts and feeds caps in the correct orientation, enabling continuous and stable cap supply. This reduces manual labor and improves overall packaging efficiency.
Sensor Detection System
Sensors detect bottle presence and coordinate each working station automatically. This intelligent detection system helps prevent empty filling and ensures smooth and stable machine operation.
Sensors detect bottle presence and coordinate each working station automatically. This intelligent detection system helps prevent empty filling and ensures smooth and stable machine operation.
Cap Placing Structure
The cap placing mechanism accurately transfers and places caps onto bottles before the crimping process, ensuring smooth and consistent cap positioning.
The cap placing mechanism accurately transfers and places caps onto bottles before the crimping process, ensuring smooth and consistent cap positioning.
Crimping Structure
The crimping system securely seals the caps onto the bottle, providing tight and reliable closures for spray products such as nasal spray or oral freshener bottles.
The crimping system securely seals the caps onto the bottle, providing tight and reliable closures for spray products such as nasal spray or oral freshener bottles.
