ZONESUN ZS-XG21U Automatic T-Corker Cap Cork Stopper Insertion Machine for Liquor Bottles
- Einjährige Garantie
- Benutzerhandbuch
- Eins-zu-Eins-Video-Chat-Support
- Video installieren und debuggen
- Benutzerdefinierte Paketlösung
- Lokaler Dienststandort （Rumänien /Serbien /Kasachstan /Mexiko /Indonesien）

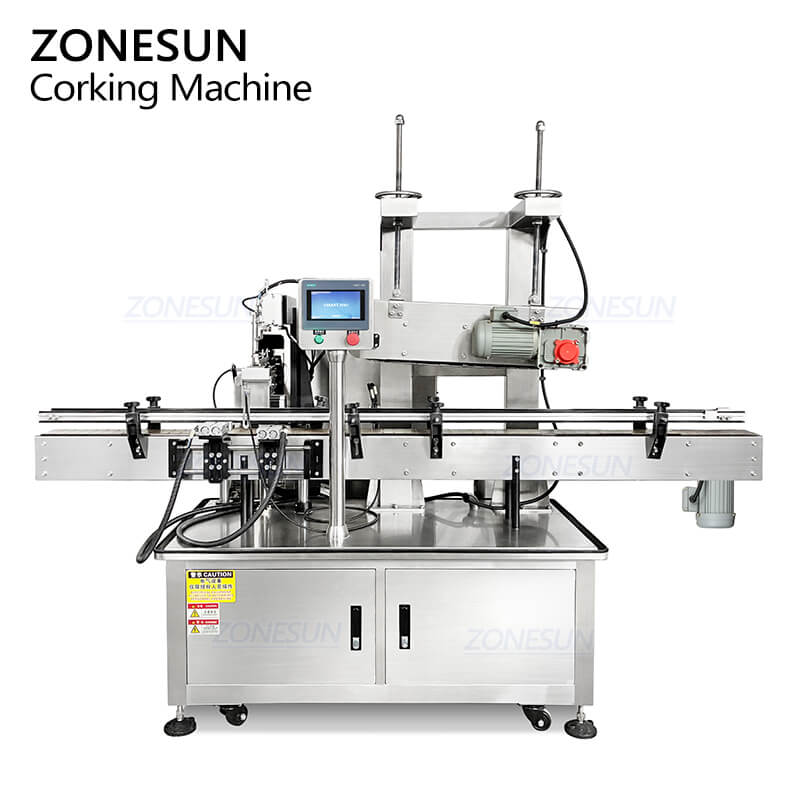

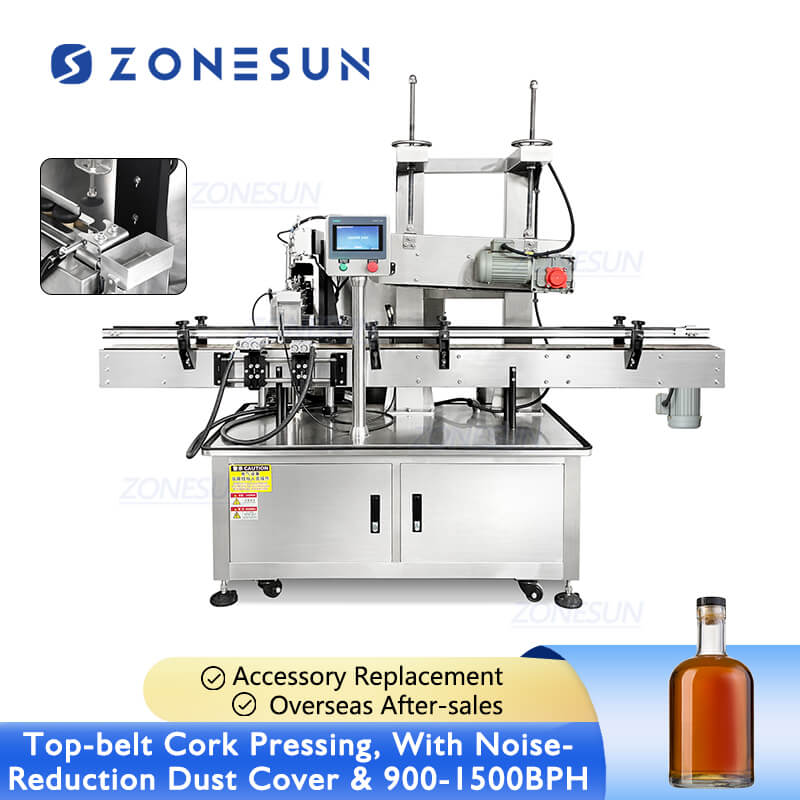

The ZONESUN automatic t-corker is designed for inserting bar-top (T-shaped) stoppers into bottles, widely used in packaging spirits such as whisky and gin. It features a vibratory bowl with a guide chute to automatically orient and feed stoppers to the capping position, with special treatment to prevent surface scratching and an optional noise-reduction dust cover. The machine adopts a top belt pressing structure for stable insertion at speeds of 900–1500 bottles per hour. A vacuum pick-and-place system assists stopper feeding, combined with a lubrication mechanism to ensure smooth pressing and prevent cork deformation or damage. The working height is adjustable for different bottle sizes, and the conveyor height can be customized for seamless integration into automated production lines.
Automatic T-Corker Parameter
- Machine Model: ZS-XG21U
- Machine Voltage:110/220/380 V, 50-60 HZ
- Machine Power: 3 KW
- Suitable Cap Size: Customizable
- Suitable Bottle Size: H≤300 mm (Customizable)
- Working Capacity: About 900-1500 BPM
- Machine Size: About 3000*1500*2500 mm(L*W*H)
- Package Size: About 2070*1130*2030 mm (Main Machine)+1430*910*950 mm (Vibratory Bowl Sorter)
- Package Weight: About 162+414 kg=576 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

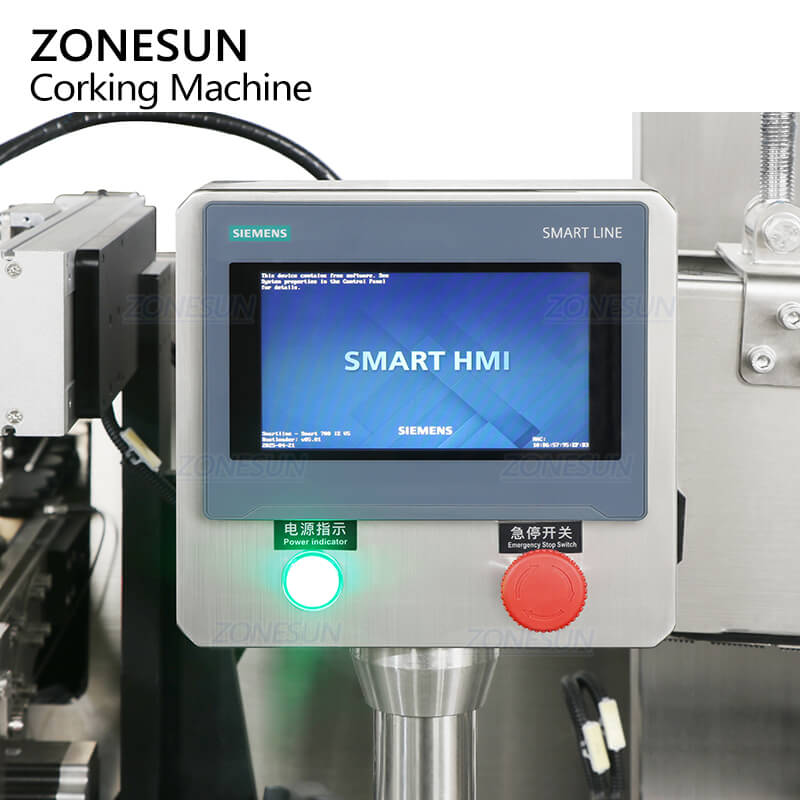

Offers responsive control and precise parameter adjustment for stable automatic t-corker operation.

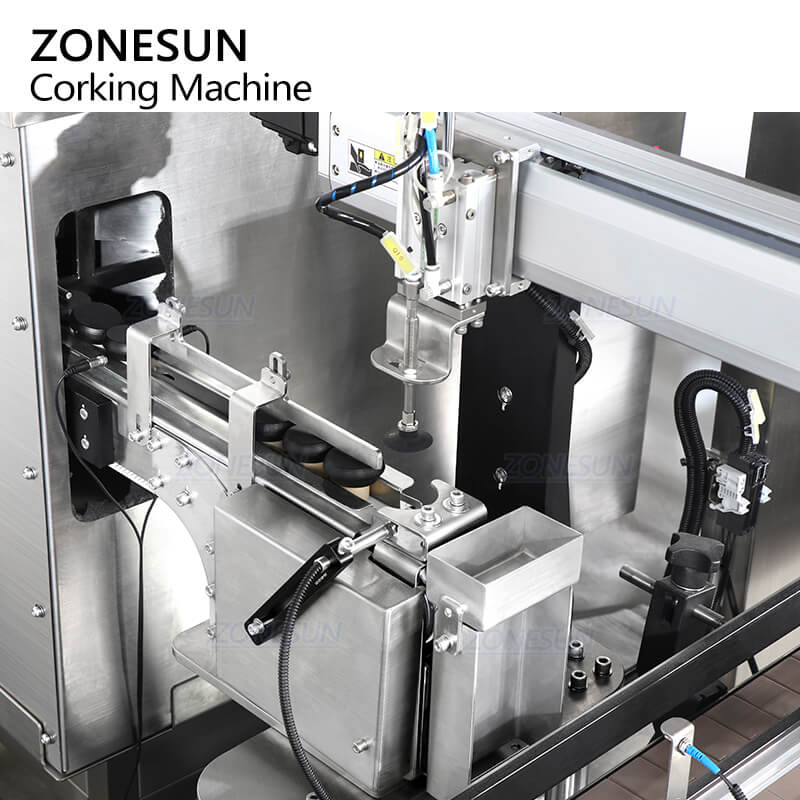

Accurately transfers T-bar stoppers to the bottle neck, lubricated cork insertion unit reduces friction during pressing.

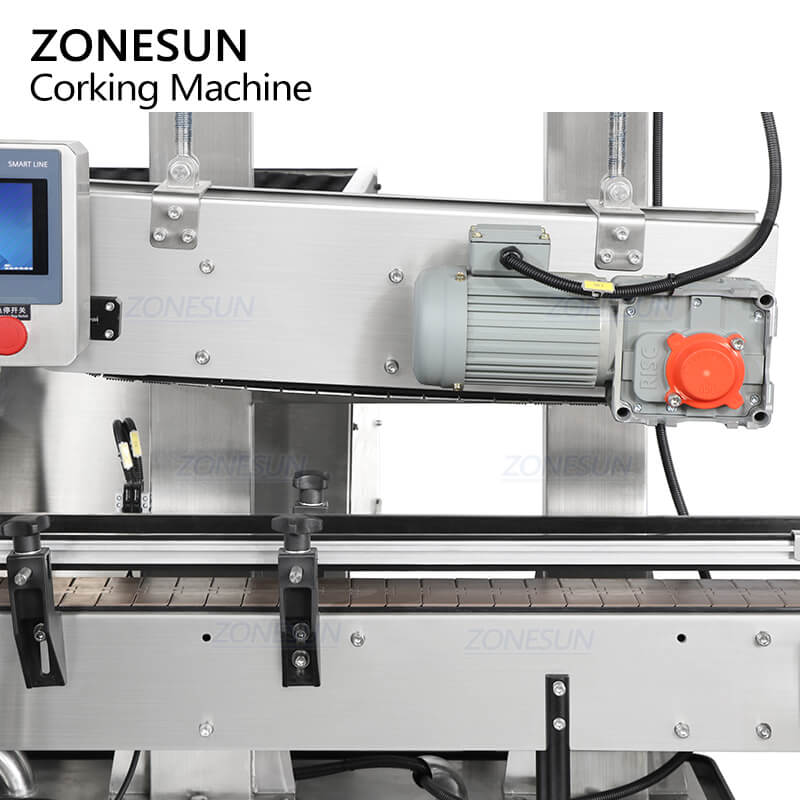

Applies uniform pressure to ensure consistent and reliable cork insertion.

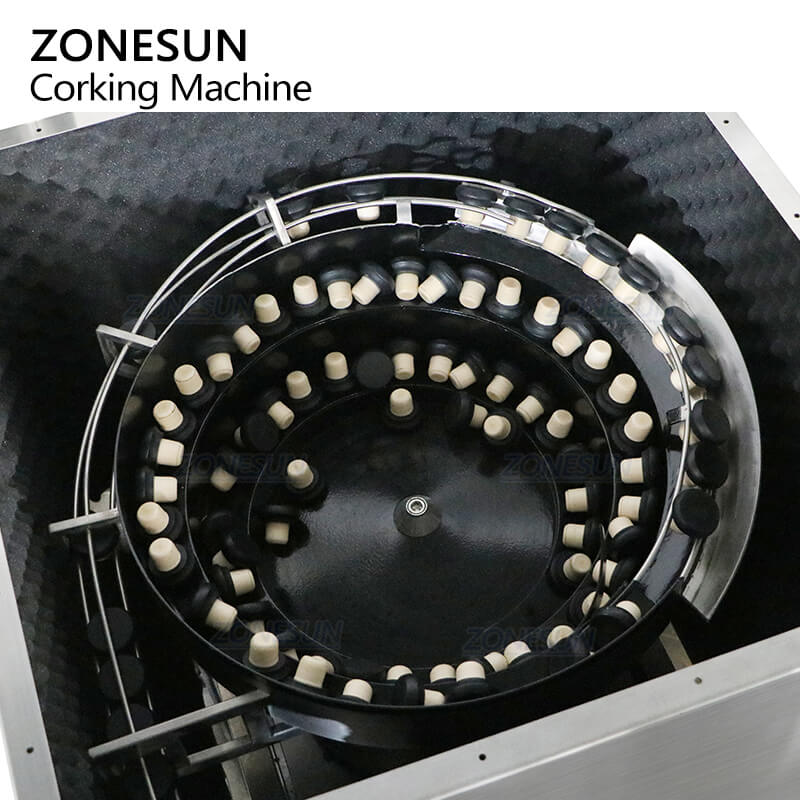

With noise reduction cover, it orients stoppers smoothly while minimizing noise and preventing surface scratches.

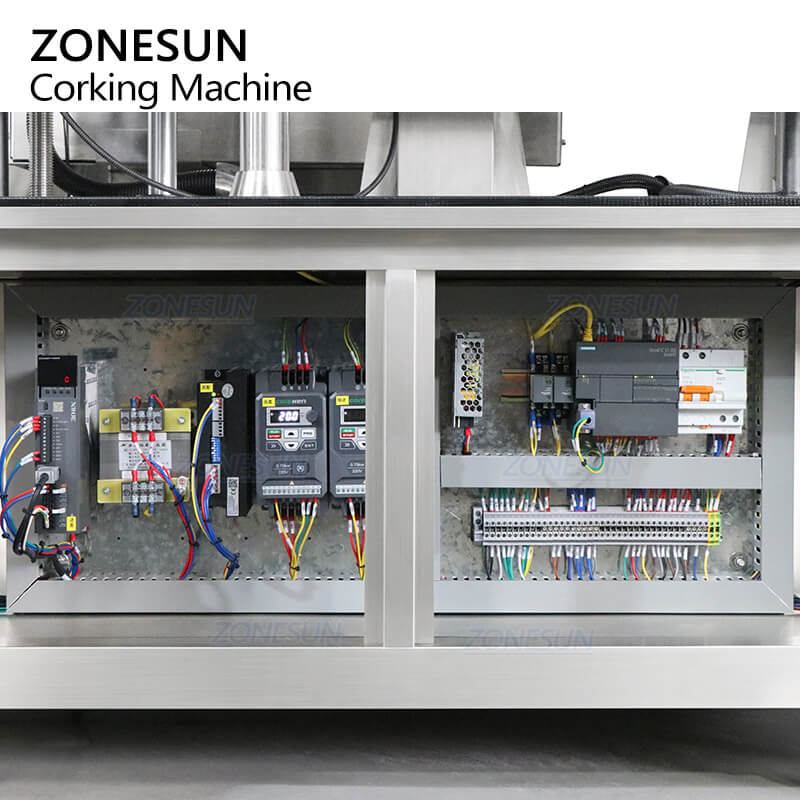

Ensure synchronized motion and stable performance throughout the machine operation.
