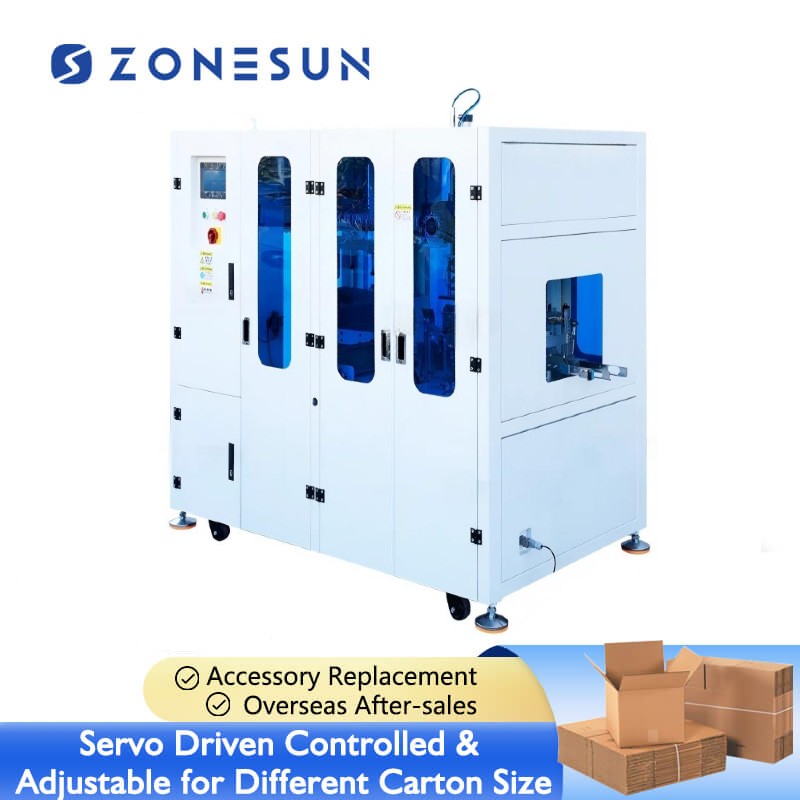

Introducing our fully automatic aircraft box folding machine, designed for efficient and precise box forming. The machine has automatic forming and buckling leaf shaping functions, making it ideal for a variety of carton sizes. Easily adjust different box sizes, the operation is user-friendly, no additional materials are required, labor costs are significantly reduced, and production efficiency is improved.
Parameters
Model: ZS-CSPM4
Voltage Power: Single-phase 220V, 50Hz, 1 KW
Control Voltage: DC24V
Air Pressure: 0.6 MPa
Air Consumption: 250 NL/min
Folding Speed: 7–9 boxes/min (depends on carton size)
Applicable Carton Size:
– Small: 75 × 125 × 36 mm
– Large: 123 × 125 × 35 mm
Bin Storage Capacity: 300 pieces (based on 1.5 mm cardboard thickness)
Machine Dimensions:
– L1800 × W1160 × H1700 mm (table height: 800 mm)
Machine Weight: 450 kg
Folding Error Range: ±0.2%
Carton Thickness: Single-layer corrugated paper ≥ 2 mm
Carton Strength: Bursting strength ≥ 1370 kPa
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
