ZONESUN ZS-PGF5 Semi-Automatic Tabletop Piston Pump Cosmetic Cream Filling Machine for Gel Capsule Cream
- การรับประกันหนึ่งปี
- คู่มือผู้ใช้
- การสนับสนุนวิดีโอแชทแบบหนึ่งต่อหนึ่ง
- ติดตั้งและแก้ไขปัญหาวิดีโอ
- โซลูชันแพ็คเกจที่กำหนดเอง
- สถานที่บริการท้องถิ่น (โรมาเนีย /เซอร์เบีย /คาซัคสถาน /เม็กซิโก /อินโดนีเซีย)

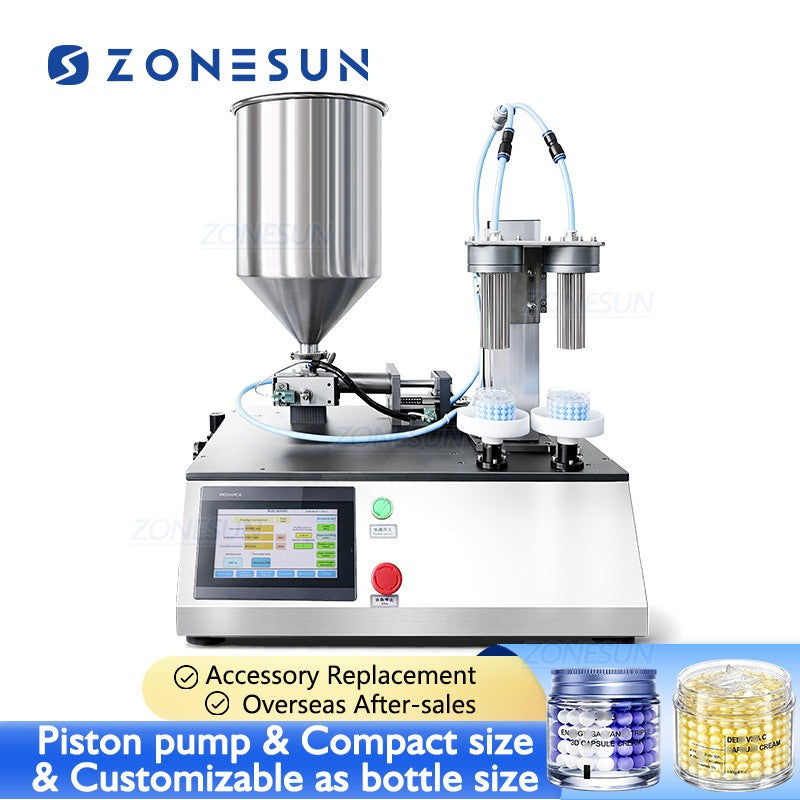

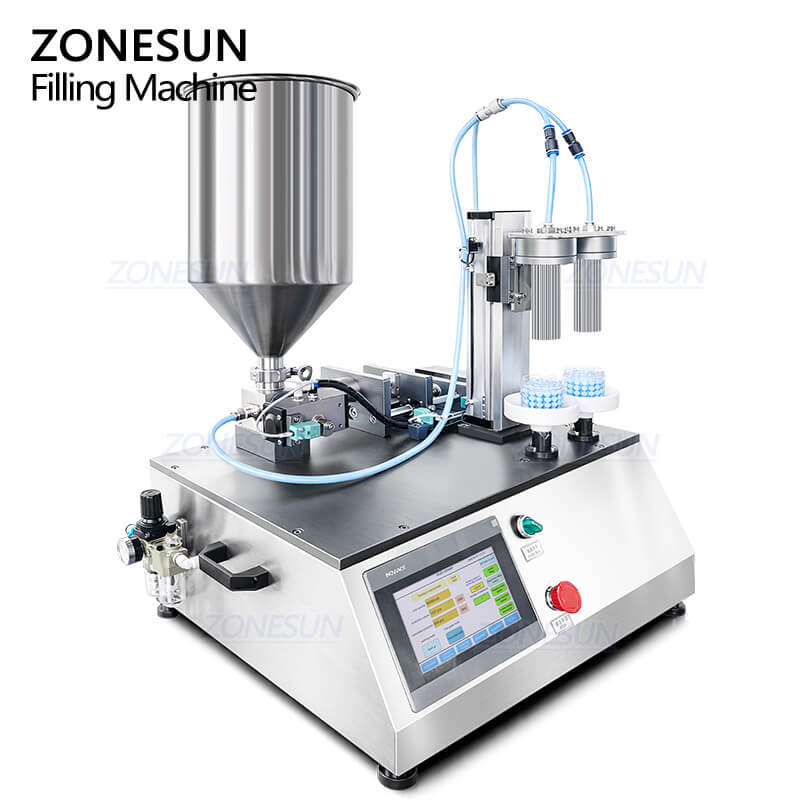

cosmetic cream filling machine is a semi-automatic piston filling machine designed for gel capsule creams and other viscous products. It uses a piston pump for controlled dosing and features two filling heads for simultaneous filling. The 5–80 ml filling range can be customized according to production requirements. Bottle molds are also customizable to match different container sizes. The 20L hopper can be configured with heating and mixing functions for specific products. Its compact 550 × 700 × 800 mm design suits small-batch production and limited production spaces.
Cosmetic Cream Filling Machine Parameter
- Machine Model: ZS-PGF5
- Power Supply: 220 V, 50 Hz, 2.3 kW
- Filling Pump: Piston Pump
- Filling Range: 5-80 ml
- Hopper Capacity: 20 L
- Suitable Bottle Size: Customizable
- Air Pressure: 0.3-0.6 Mpa
- Machine Size: About 550*700*800 mm (L*W*H)
- Machine Weight: About 50 kg
Machine Details

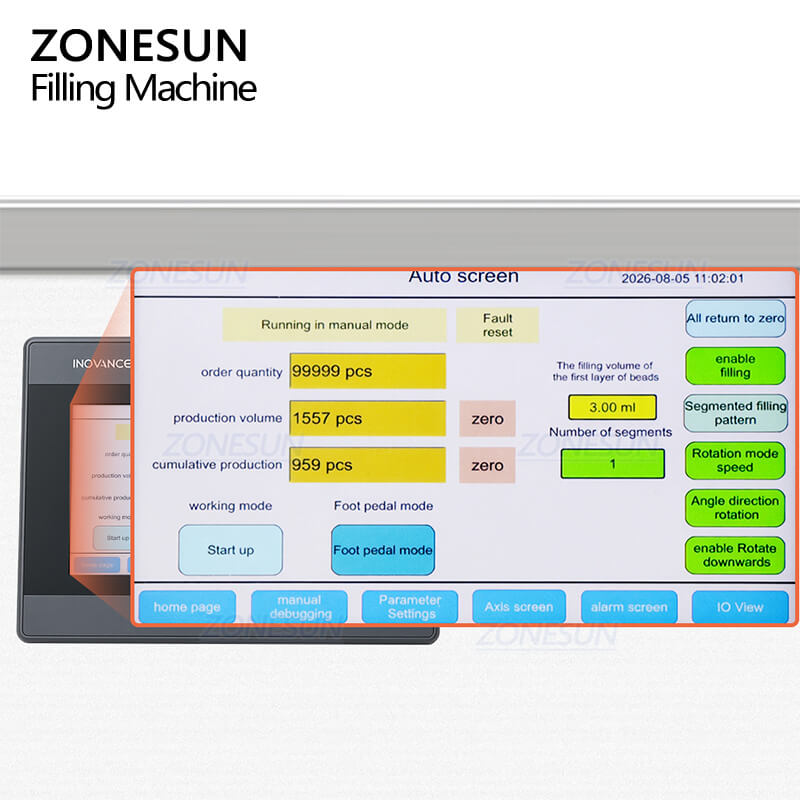

The touchscreen panel allows operators to adjust filling parameters and monitor machine status in real time. It provides convenient control for different cosmetic cream and paste filling requirements.

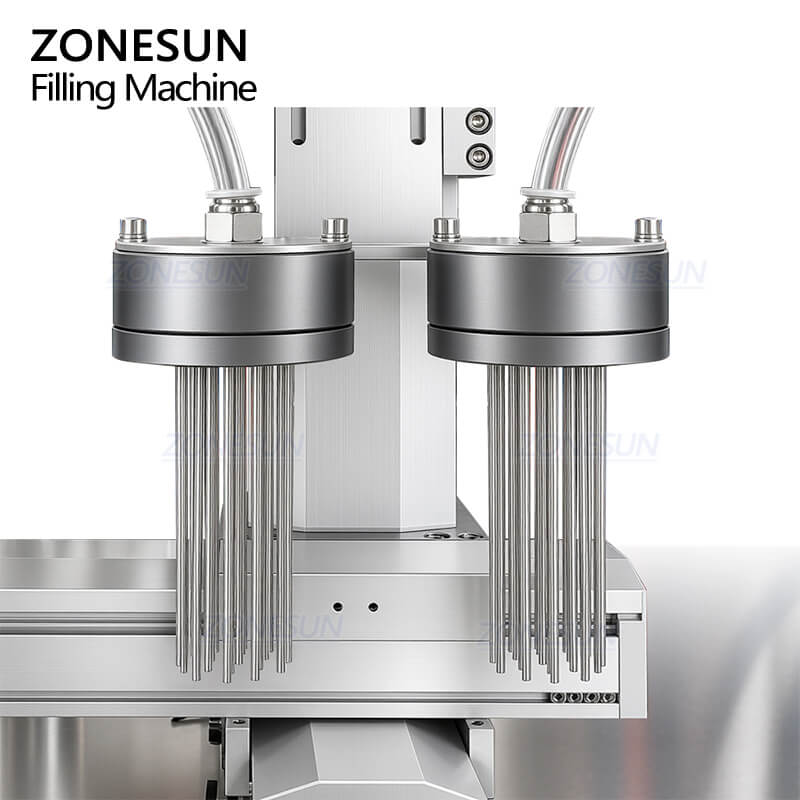

Two filling heads allow the machine to fill two containers at the same time. The filling heads work with the piston pump system to provide controlled dosing for small-batch cosmetic cream production.

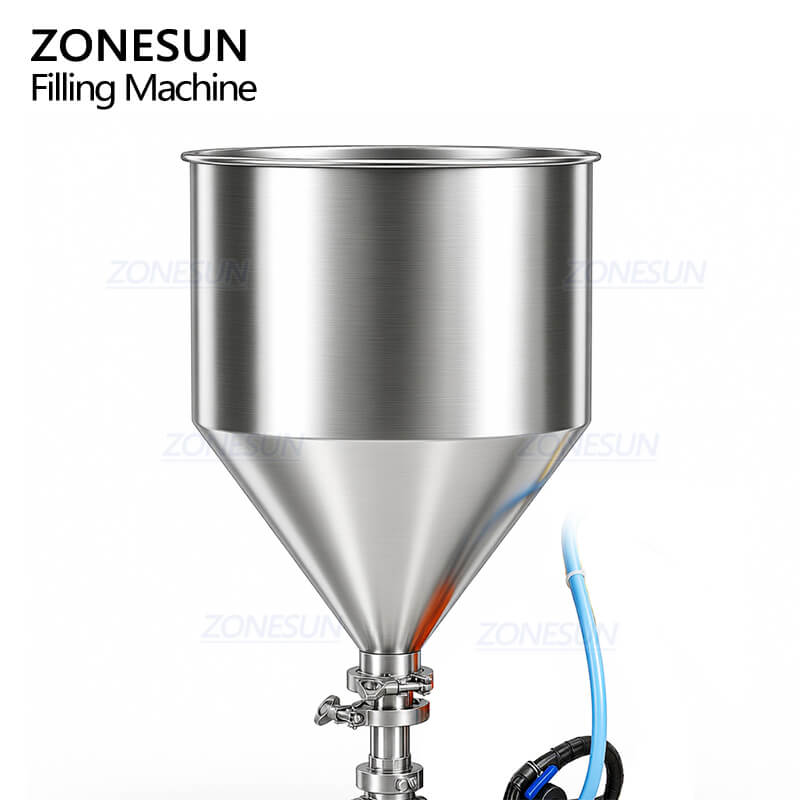

The 20L material hopper can be customized with heating and mixing functions according to the product. These options can support processing requirements for specific cosmetic creams and pastes.

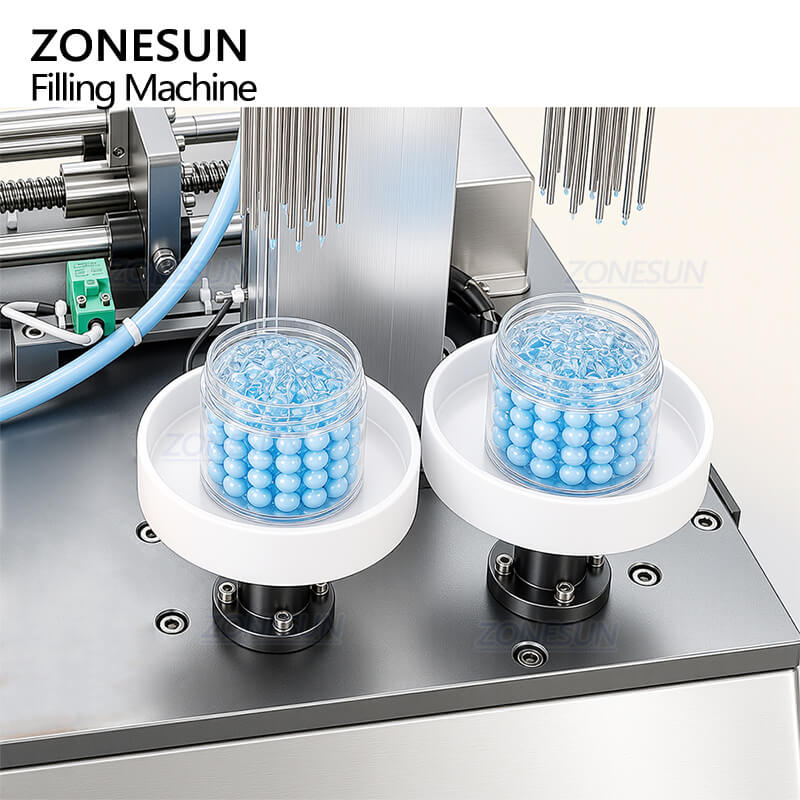

The bottle molds position containers during filling and can be customized according to bottle size. This design helps adapt the cosmetic cream filling machine to different container specifications.
Frequently Asked Questions
1. What products can this machine handle?
This machine is suitable for capsule creams, bead-containing creams, cosmetic gels, and other viscous products with suspended particles or capsules. Products with active ingredients that settle or separate may benefit from the optional mixing hopper.
2. What is the filling range?
Standard range is 5 to 80 ml. Ranges outside that window can be specified at order. Confirm the target fill volume before ordering rather than adjusting after delivery.
3. How many filling heads does the machine have?
Two. Both run simultaneously — two containers fill per cycle, which doubles throughput compared to a single-head configuration at equivalent cycle speed.
4. Can the bottle molds be customized?
Yes. Molds configure to match bottle diameter, height, and base geometry — keeping each container correctly positioned under the filling head during the fill cycle. A mold that doesn't match the container format causes positional drift between fills, which affects fill accuracy and nozzle alignment.
5. Can the hopper include heating and mixing functions?
Yes, as optional additions. Heating maintains product temperature and viscosity between refills for formulations that thicken at ambient temperature. Mixing keeps product composition consistent at the pump inlet for creams with particles or active ingredients that settle at rest. Both can be specified independently or together depending on the product.
6. What is the hopper capacity?
20L standard. For high-volume production runs, the reload frequency at 20L depends on the fill volume per container and the cycle rate — calculate the expected run time between refills before deciding whether a larger hopper is needed.
7. Does the machine require an air compressor?
Yes. An external air compressor supplies the pneumatic filling mechanism at 0.3 to 0.6 MPa operating pressure. This needs to be factored into the installation layout before commissioning.
8. Is this machine suitable for small production spaces?
Yes. Footprint is 550 × 700 × 800 mm, weight approximately 50 kg. For cosmetic workshops and small-batch production facilities where floor space is already allocated to other equipment, those dimensions fit a standard workbench installation.
9. What information is needed for customization?
The details that determine the configuration:
- Product type and viscosity characteristics
- Target fill volume
- Bottle dimensions and shape
- Whether heating or mixing functions are required
- Air compressor specifications already available on site
Physical product samples and bottle samples are recommended where possible — viscosity behavior, particle characteristics, and container fit tolerances all affect configuration decisions that drawings and specs alone don't fully capture.
