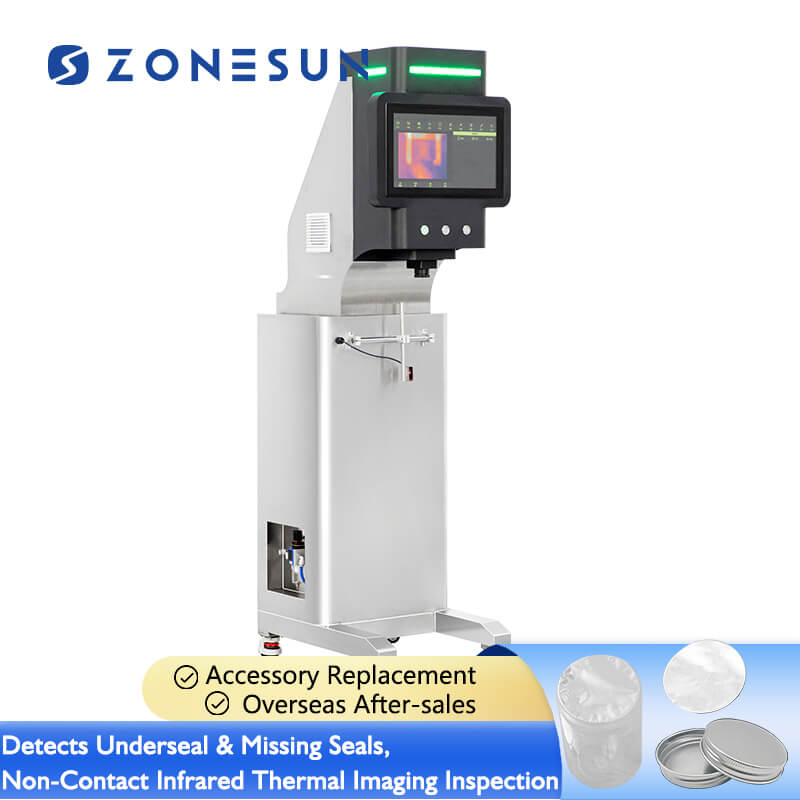

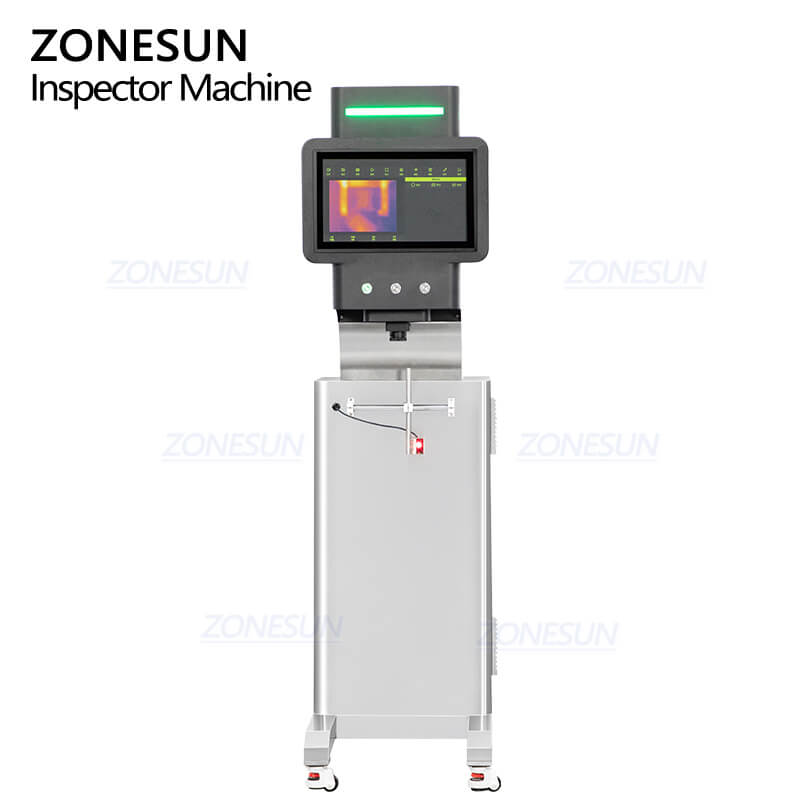

ZONESUN ZS-MD50 Automatic Bottles Caps Aluminum Foil Seal Infrared Thermal Imaging Inspection Machine
ราคาปกติ
$15,899.00 USD
ราคาปกติ
ราคาขาย
$15,899.00 USD
บันทึก $-15,899 USD
/
- การรับประกันหนึ่งปี
- คู่มือผู้ใช้
- การสนับสนุนวิดีโอแชทแบบหนึ่งต่อหนึ่ง
- ติดตั้งและแก้ไขปัญหาวิดีโอ
- โซลูชันแพ็คเกจที่กำหนดเอง
- สถานที่บริการท้องถิ่น (โรมาเนีย /เซอร์เบีย /คาซัคสถาน /เม็กซิโก /อินโดนีเซีย)
This aluminum foil seal inspection machine uses non-contact infrared thermal imaging to inspect induction or heat-sealed closures in real time. It accurately detects sealing defects without touching the product, making it ideal for cosmetics, food, and beverage production lines.
Aluminum Foil Seal Inspection Machine Parameter
- Machine Model: ZS-MD50
- Power Supply: AC 220V ±10%, 50/60Hz(Customizable)
- Power Consumption: ≤ 1 kW
- Applicable Cap Size: φ 10–150 mm
- Applicable Bottle Size: Height 50–350 mm; Diameter ≤ 300 mm
- Maximum Inspection Speed: 200 bottles/min (actual speed depends on product size)
- Pass Rate: ≥ 99.99%
- False Reject Rate: ≤ 0.5% (depends on packaging material and operating conditions)
- Image Accuracy: ± 0.03 mm
- Operating Temperature: –15°C to 65°C
- Camera Speed: 50 Hz, full temperature range
- Inspection Types: No cap, missing foil seal, skewed cap, high cap, loose cap, reversed foil, double foil, damaged foil at bottle rim, lifted foil edge, under-sealing due to low sealing power, over-sealing due to excessive sealing power
- Compressed Air Requirement: 0.6–0.8 MPa, ≥ 0.6 m³/min (supplied by user)
- Machine Dimensions: 600 (L)*450 (W)*1720 (H) mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

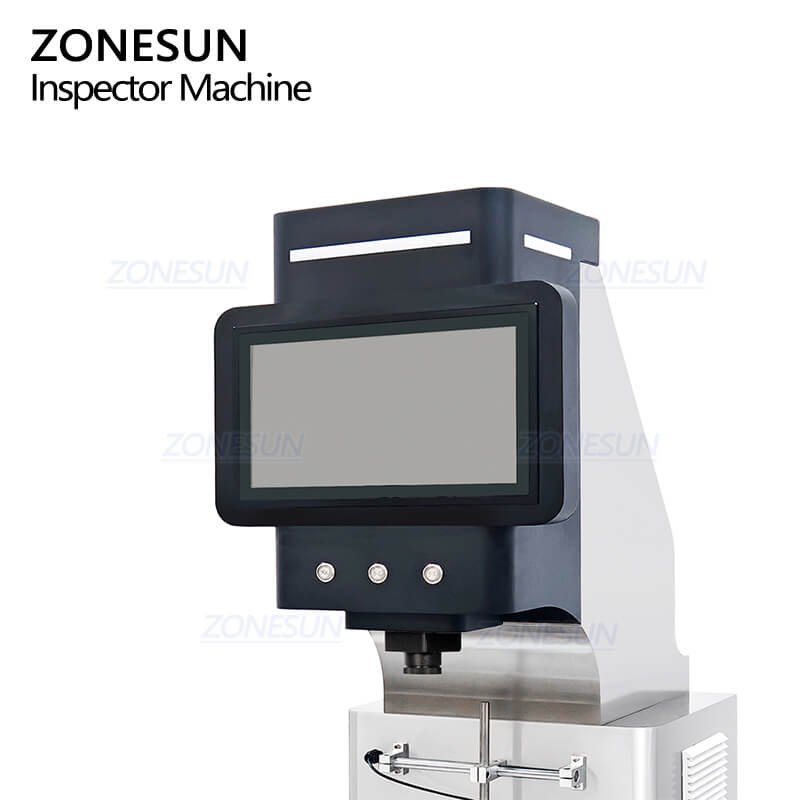

Touchscreen Control Interface
Displays thermal images, inspection results, alarms, and system status in real time.
Displays thermal images, inspection results, alarms, and system status in real time.

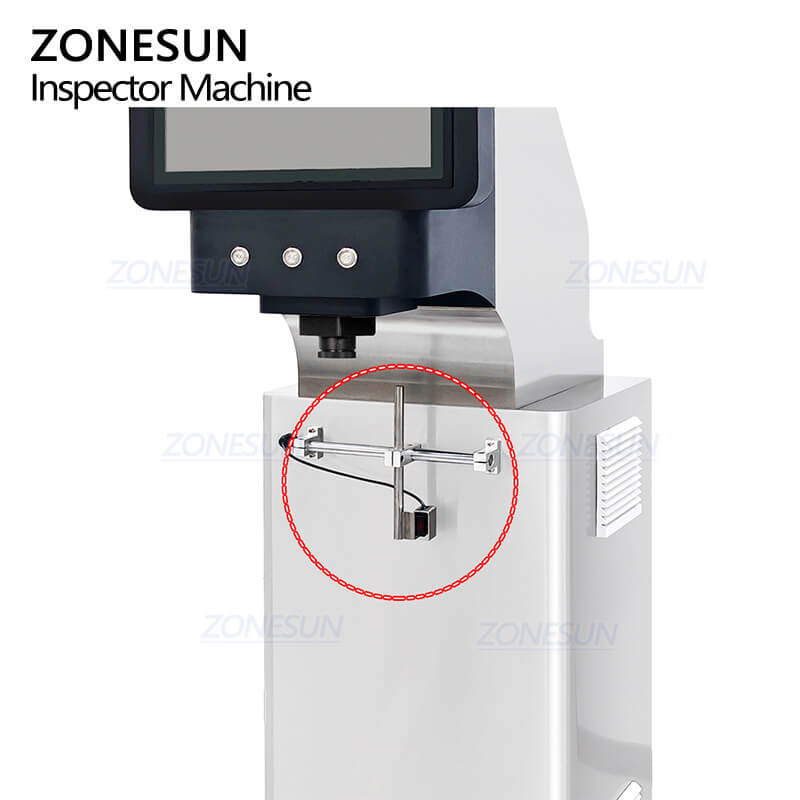

Sensor
This is designed for detecting passing by bottles and control the automated production.
This is designed for detecting passing by bottles and control the automated production.

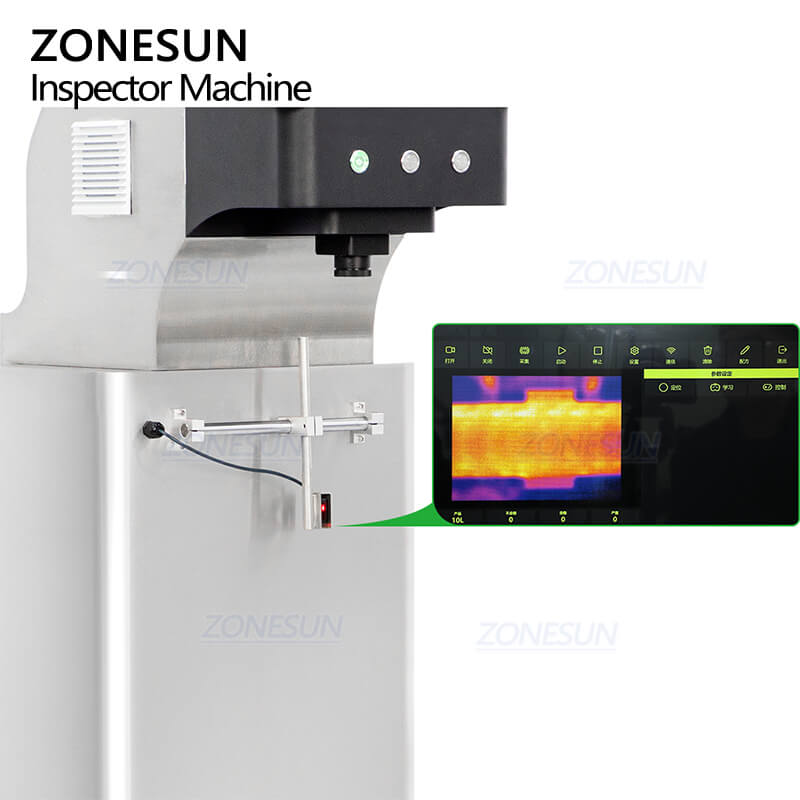

Infrared Thermal Imaging Camera
Scans the seal area without contact to detect temperature distribution and sealing quality.
Scans the seal area without contact to detect temperature distribution and sealing quality.

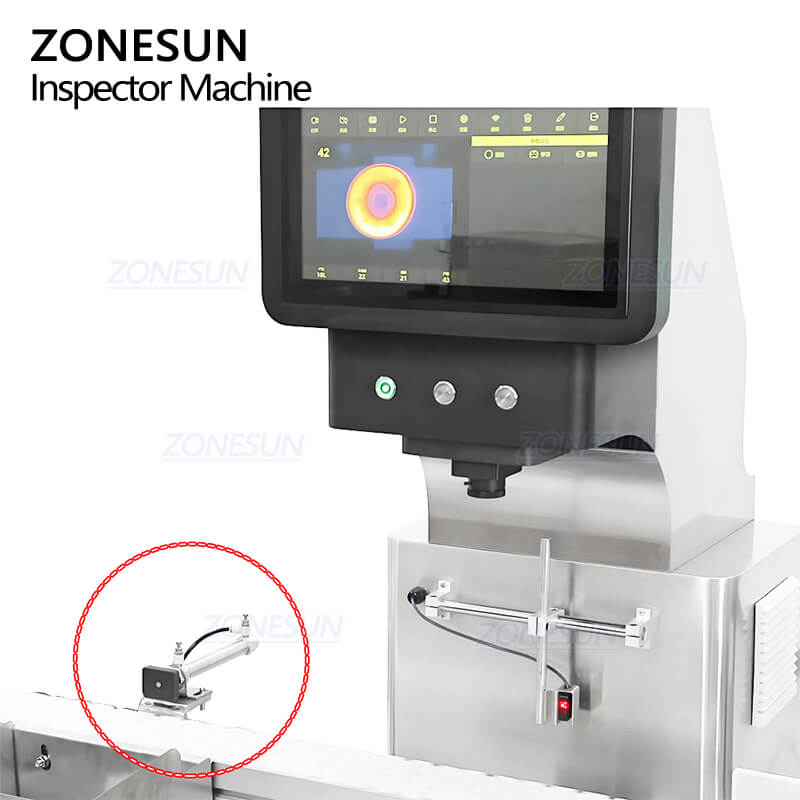

Rejection System Interface
Connects to reject mechanisms to automatically remove defective products.
Connects to reject mechanisms to automatically remove defective products.
