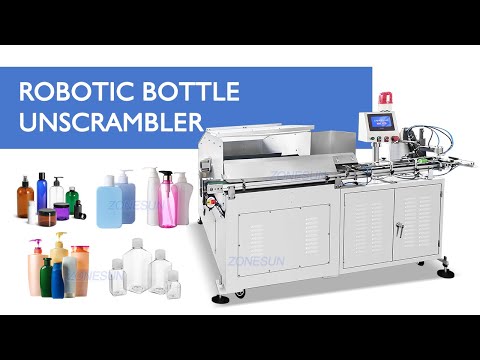

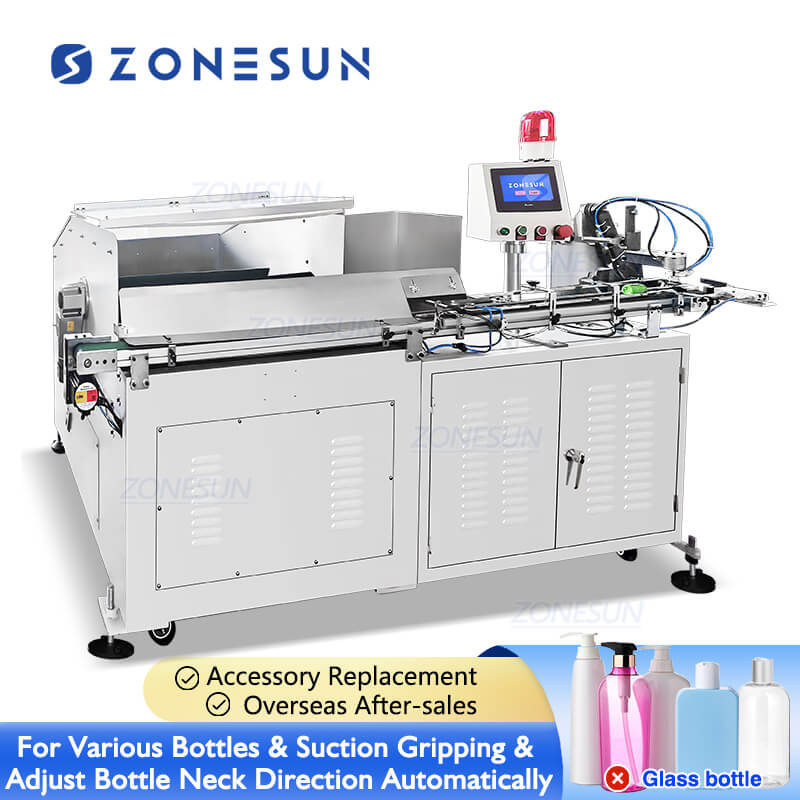

ZONESUN ZS-LP250S Automatic Plastic Bottle Unscrambler with Robot Arm Robotic Irregular Bottle Turntable Loading System
Reguler Reguler
$15,999.00 USD
Reguler Reguler
Rega adol
$15,999.00 USD
Ngirit $-15,999 USD
/
- Siji taun garansi
- Manual pangguna
- Dhukungan video siji-kanggo-siji
- Video Instal & Debug
- Solusi Paket Custom
- Lokasi Layanan Lokal (Romania / Serbia / Kazakhstan / Mexico / Indonesia)
This robotic bottle loading system handles a wide range of bottle shapes—including round, square, flat, conical, and irregular types—making it suitable for beverage,cosmetics, and daily chemical packaging lines. it automates bottle feeding to improve efficiency, reduce labor, and ensure stable continuous production.
Robotic Bottle Loading System Parameter
- Machine Model: ZS-LP250S
- Machine Voltage: 110/220V 50-60HZ
- Machine Power: 1.8 KW
- Working Capacity: 20-40 BPM
- Bottle Diameter: φ25-φ150 mm
- Air Consumption: 2.5 m³/h
- Machine Size: About 2500*1400*1500 mm
- Machine Weight: About 450 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

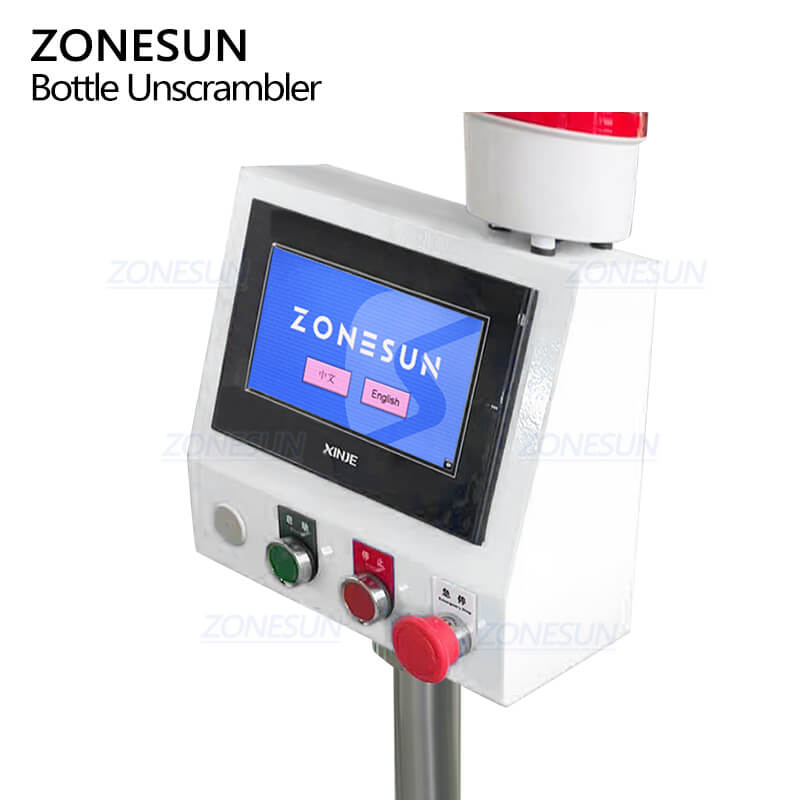

Touchscreen Control Panel
Provides intuitive setup, recipe adjustment, and full-status monitoring through a plc-based system.
Provides intuitive setup, recipe adjustment, and full-status monitoring through a plc-based system.

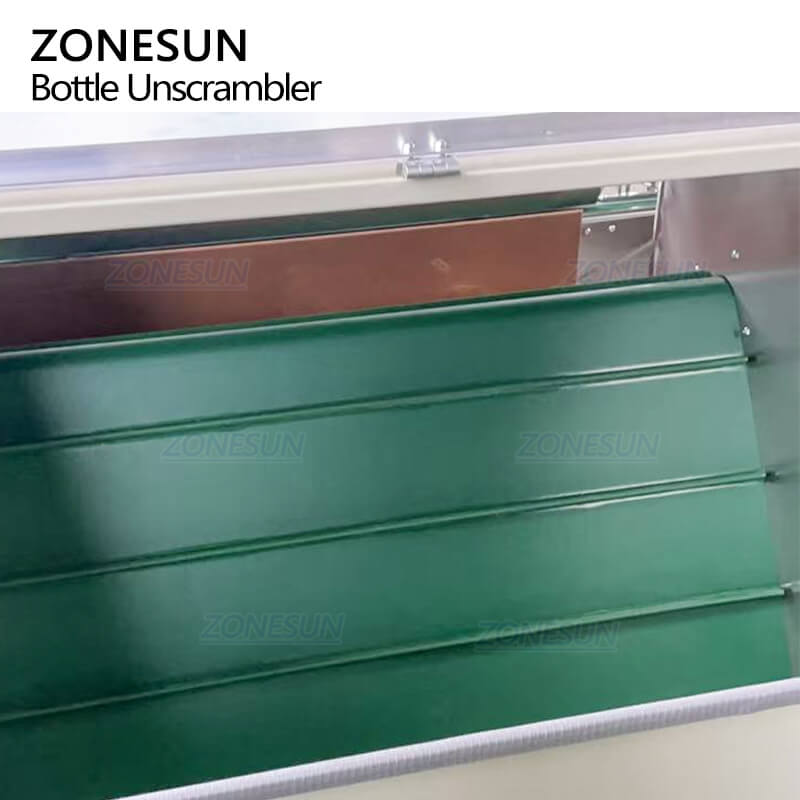

Bottle Loading Hopper
Stores bulk bottles and feeds them steadily into the sorting area to support continuous operation.
Stores bulk bottles and feeds them steadily into the sorting area to support continuous operation.

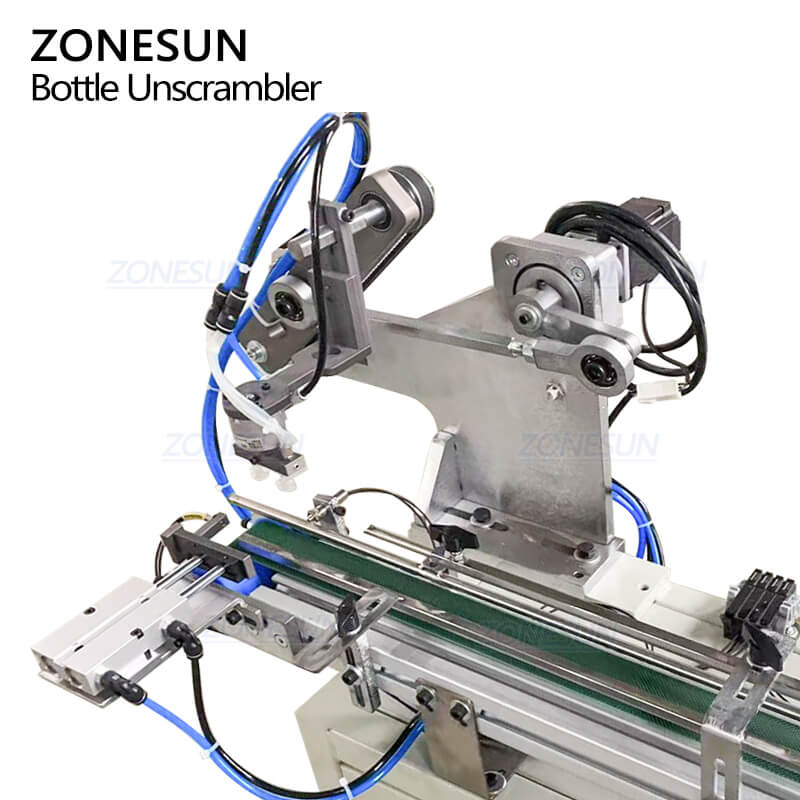

Robotic Bottle-Handling Arm
Uses suction cups to mimic manual gripping, flipping, and placing without damaging the bottle surface.
Uses suction cups to mimic manual gripping, flipping, and placing without damaging the bottle surface.

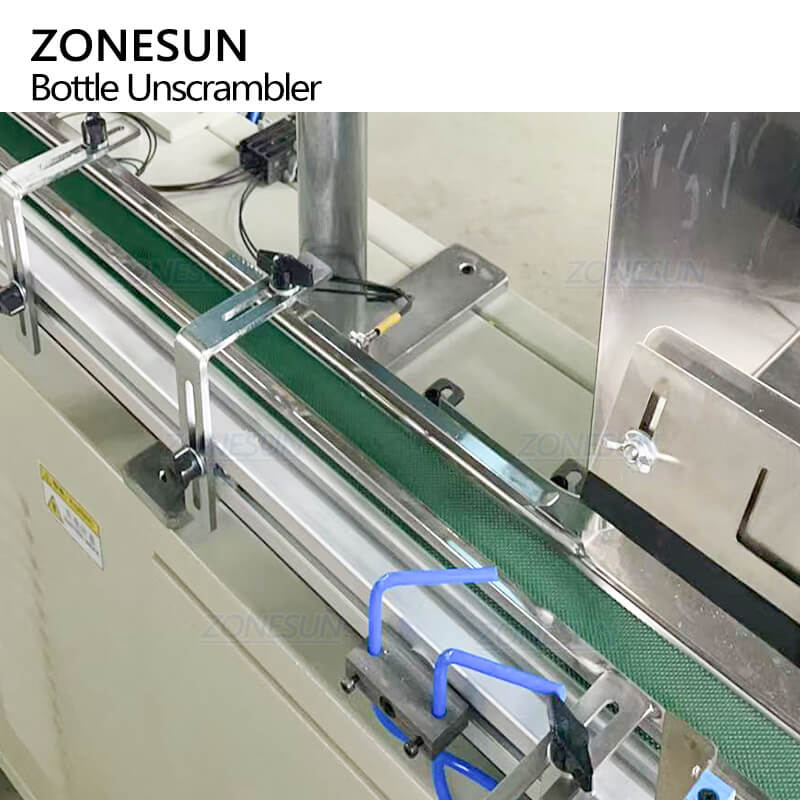

Fiber-Optic Detection Module
Identifies bottle positions with high precision to ensure correct gripping and orientation.
Identifies bottle positions with high precision to ensure correct gripping and orientation.
