ZONESUN ZS-FS350Y-2 Automatic Dual-Lane 4 Side Seal Sachet Filling Packaging Machine For Sauce Honey Syrup
Reguler Reguler
$29,999.00 USD
Reguler Reguler
Rega adol
$29,999.00 USD
Ngirit $-29,999 USD
/
- Siji taun garansi
- Manual pangguna
- Dhukungan video siji-kanggo-siji
- Video Instal & Debug
- Solusi Paket Custom
- Lokasi Layanan Lokal (Romania / Serbia / Kazakhstan / Mexico / Indonesia)

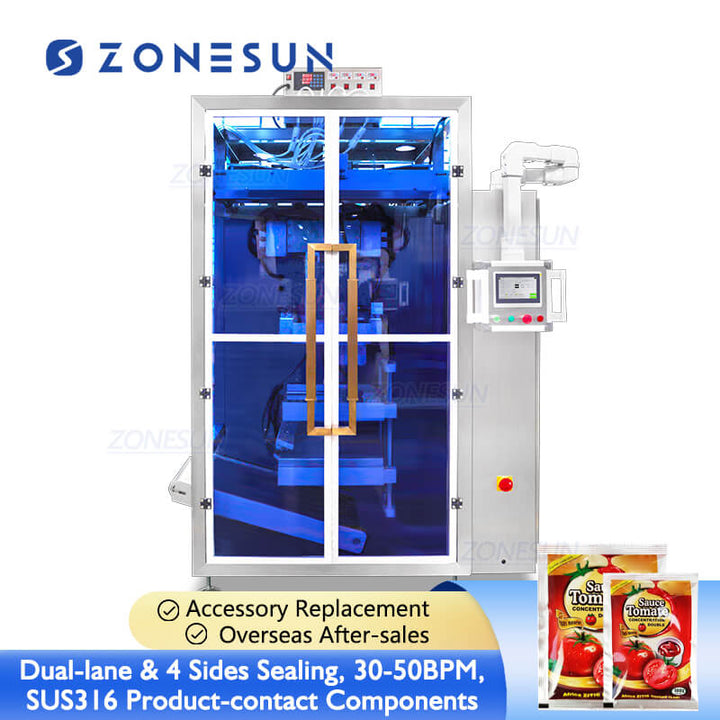

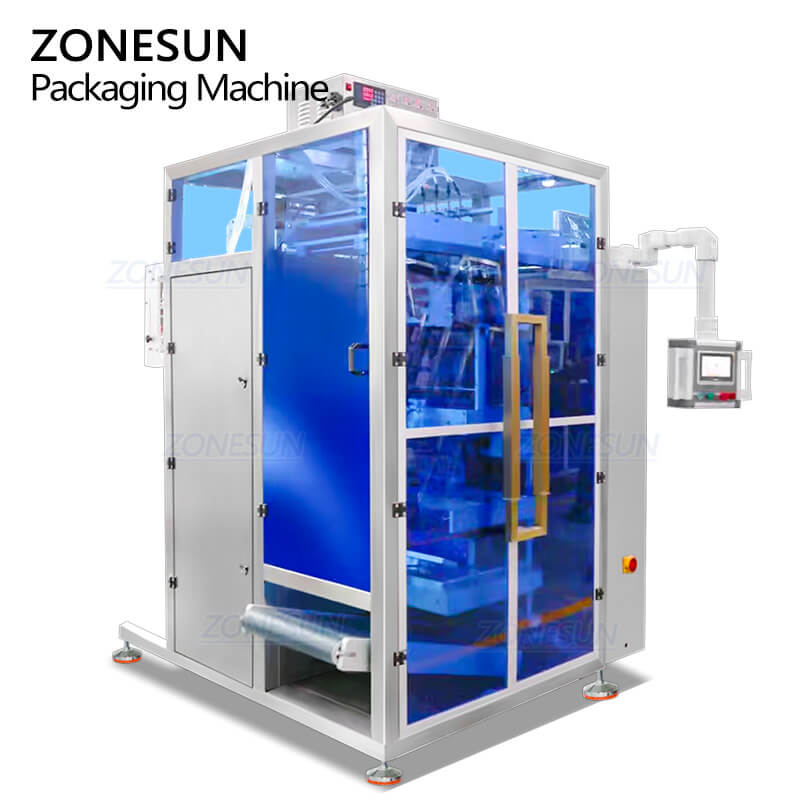

This dual-lane four-side seal sachet filling packaging machine is designed for small-dose liquid packaging. It features a Siemens PLC control system with fault alarm and data storage. Servo-driven film pulling and precise ceramic piston filling ensure stable operation at 30–50 sachets per minute.It is suitable for packaging sauce, honey, syrup and so on.
Sachet Filling Packaging Machine Parameter
- Machine Model: ZS-FS350Y-2
- Power Supply: AC 380V / 50Hz / 60Hz
- Packaging Type: Four-Side Seal
- Dosing Method: Pneumatic ceramic piston pump(Customizable as needed)
- Filling Range: 1-12 ml
- Filling Accuracy: ±5-7% (depending on product and packaging material)
- Bag Length: 40-180 mm
- Bag Width: 60 mm
- Packaging Speed: 30-50 bags/min (depending on product and packaging material)
- Power Consumption: 6.8 kW
- Air Pressure Requirement: ≥0.6 MPa
- Machine Dimensions: 1645*1279*2642 mm(L*W*H)
- Machine Weight: 800 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

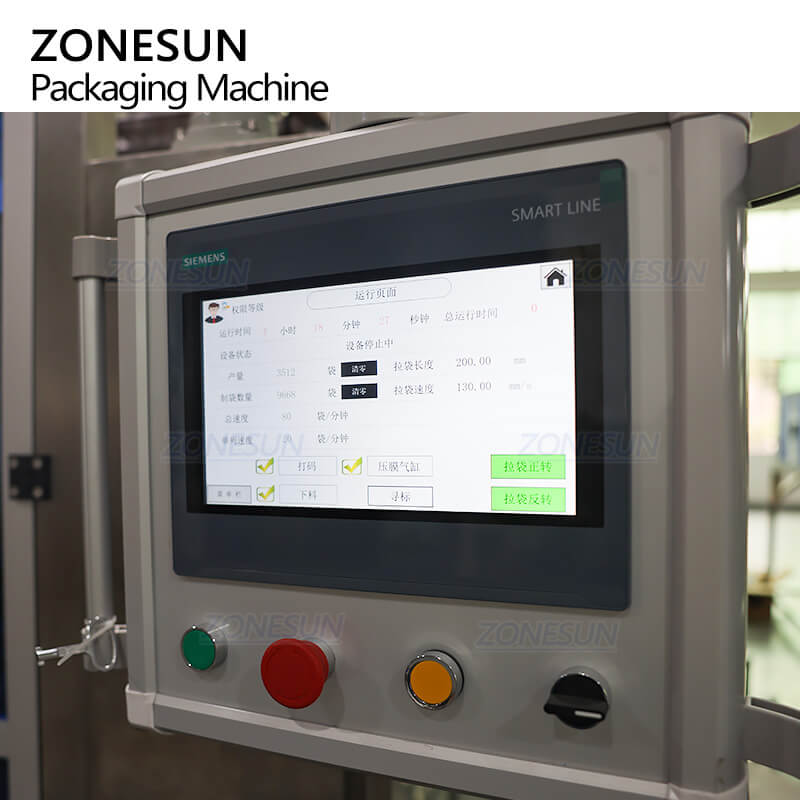

Control Panel
The Siemens PLC system supports fault alerts, data storage, and self-diagnostic functions for intuitive and user-friendly operation.
The Siemens PLC system supports fault alerts, data storage, and self-diagnostic functions for intuitive and user-friendly operation.

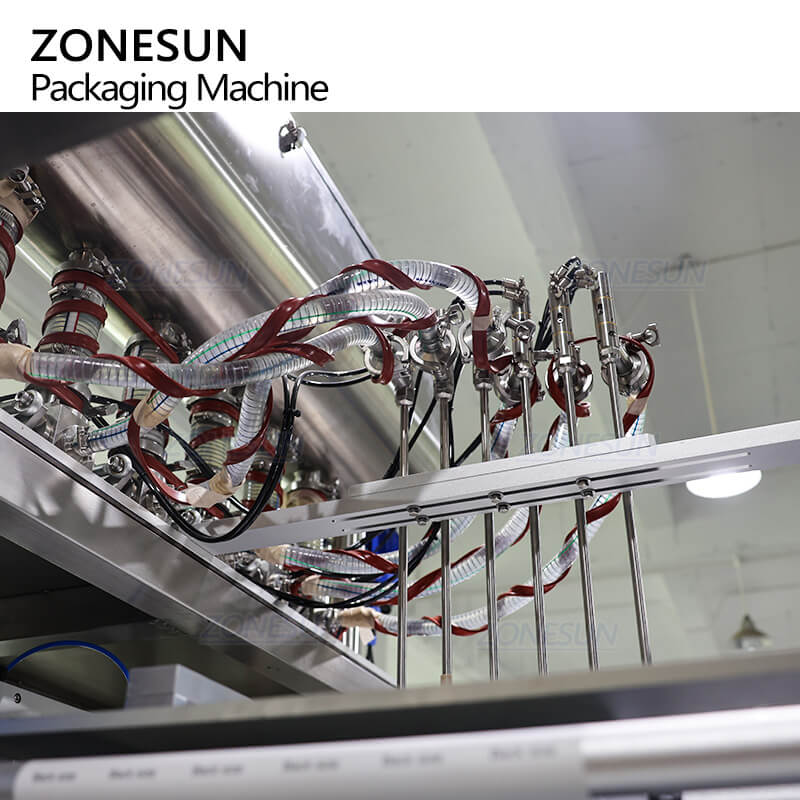

Filling System
Pneumatic ceramic piston pumps enable precise filling from 1–12 ml, ideal for small-dose liquid products.
Pneumatic ceramic piston pumps enable precise filling from 1–12 ml, ideal for small-dose liquid products.

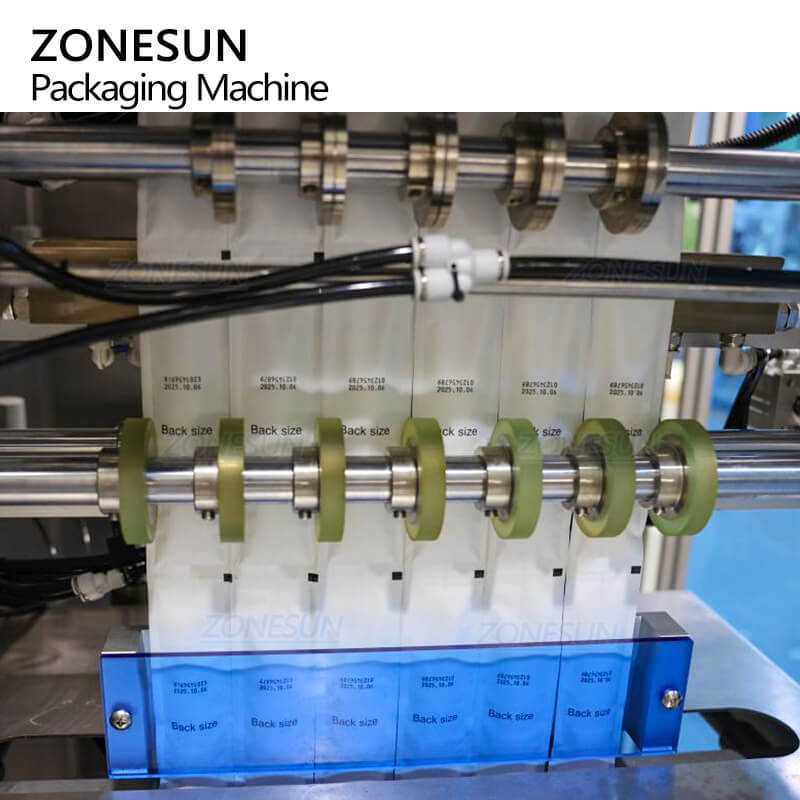

Lane Separation Assembly
Upper metal separators and lower guide plates prevent multi-lane film adhesion and deviation, ensuring neat sachet forming and uniform spacing across all lanes.
Upper metal separators and lower guide plates prevent multi-lane film adhesion and deviation, ensuring neat sachet forming and uniform spacing across all lanes.

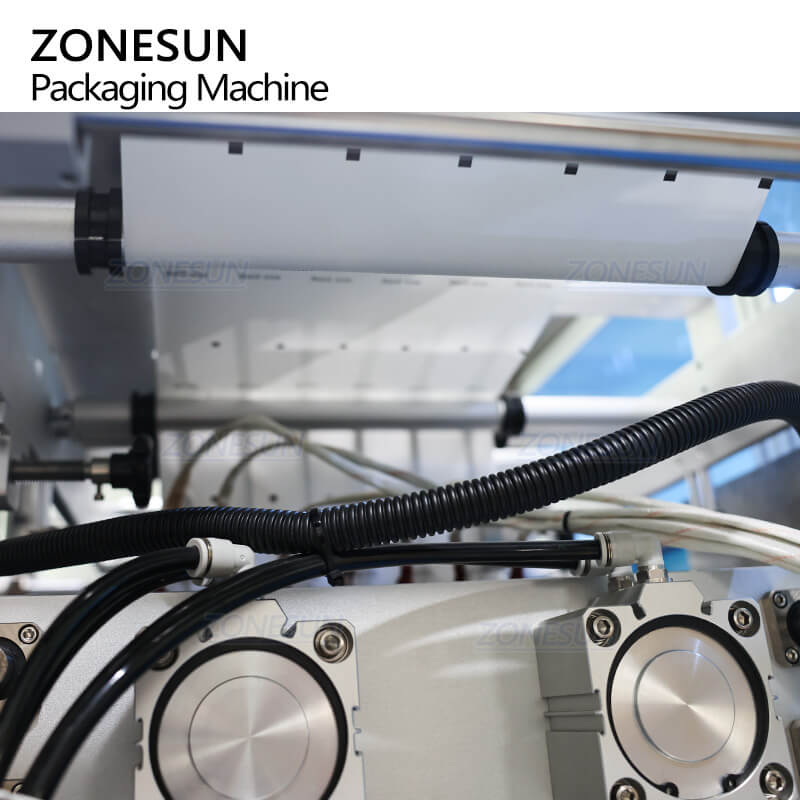

Film Pulling System
A Siemens servo motor combined with photoelectric sensors tracks color marks accurately for uniform bag length and pattern alignment.
A Siemens servo motor combined with photoelectric sensors tracks color marks accurately for uniform bag length and pattern alignment.
