ZONESUN ZS-GTC1000 Semi-Automatic Stainless Steel Laundry Detergent Sanitizer Liquid Soap Gable-Top Carton Filling Sealing Machine Packaging Equipment
Normaler Preis
$44,499.00 USD
Normaler Preis
$50,000.00 USD
Sonderpreis
$44,499.00 USD
Sparen $5,501 USD
/
- Einjährige Garantie
- Benutzerhandbuch
- Eins-zu-Eins-Video-Chat-Support
- Video installieren und debuggen
- Benutzerdefinierte Paketlösung
- Lokaler Dienststandort （Rumänien /Serbien /Kasachstan /Mexiko /Indonesien）

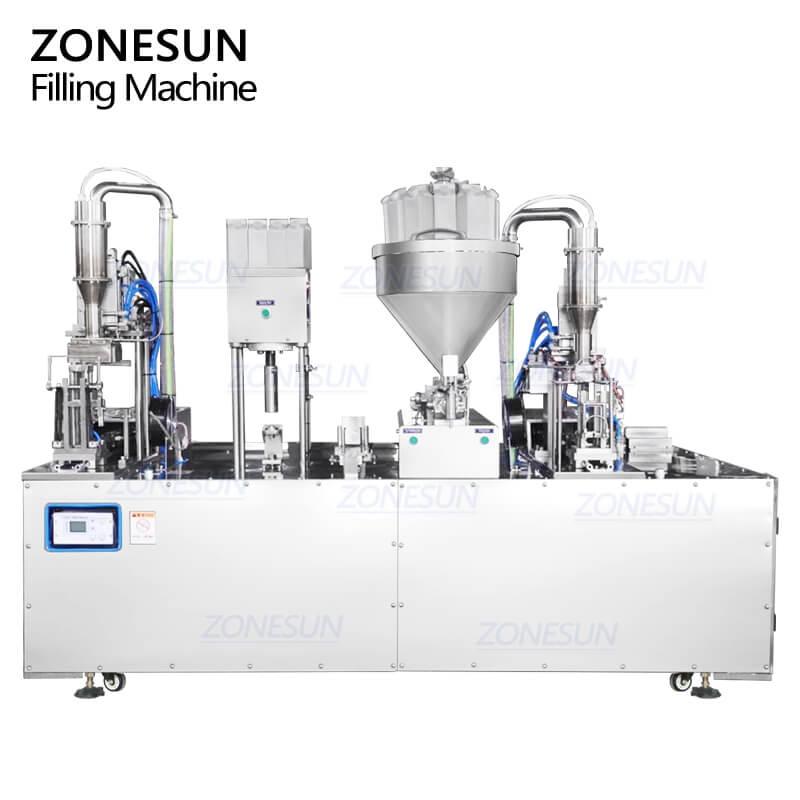

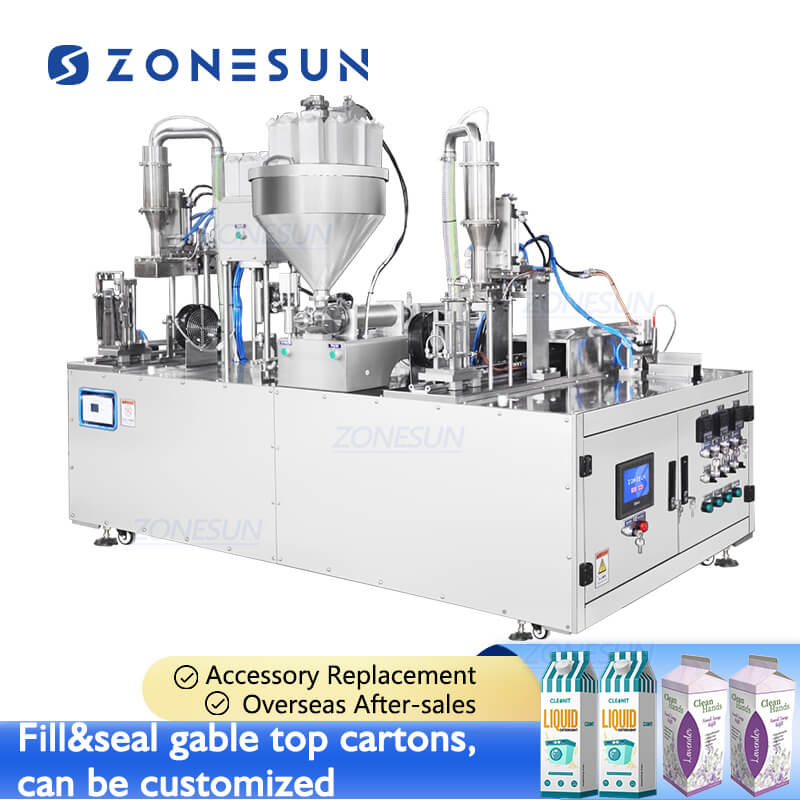

This gable-top carton packaging machine, made of food-grade stainless steel, integrates bottom sealing, capping, filling, top sealing, and date printing in one unit. Designed for cost-efficiency and labor savings, it is ideal for packaging liquid soap, hand sanitizer industries.
Gable-top Carton Packaging Machine Parameter
- Model: ZS-GTC1000 / ZS-GTC2000
- Voltage: 110/220V
- Power: 15kw
- Capacity: 200-1000ml / 1000ml-2000ml
- Packing Material: Cardboard Carton, Aluminum Foil Carton
- Filling Temperature: Cold Filling 2-50℃, Hot Filling 80-92℃
- Carton Packing Size: Customized
- Cap: Without cap（Optional）
- Compressed air pressure: 0.8-1.0 Mpa
- Flow Volume: ≥20L/min
- Machine Size: About 1600*1200*1800 mm
- Machine Weight: About 500 kg

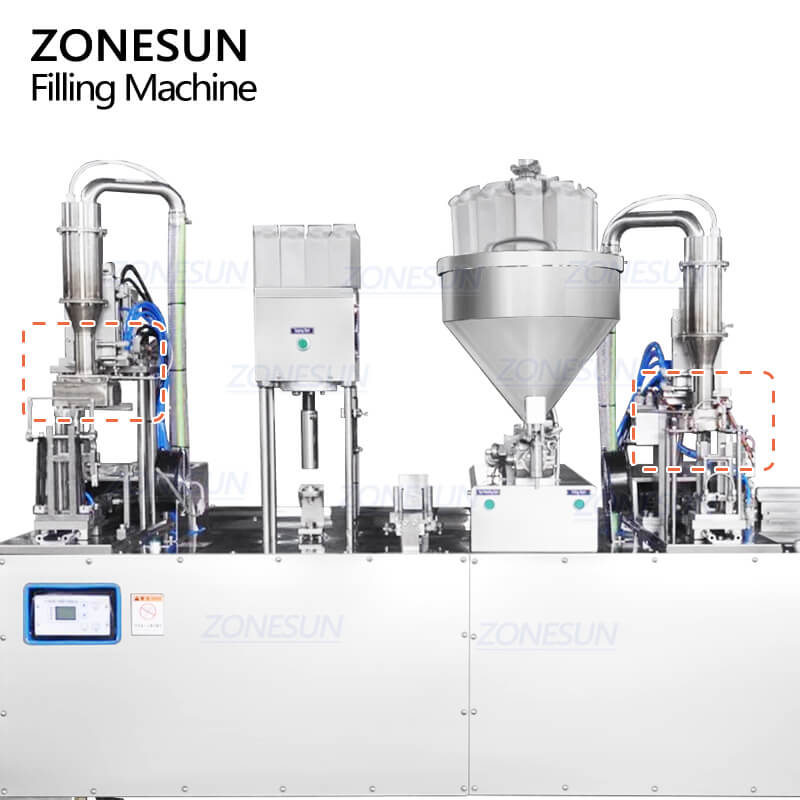

Heat Sealing Component
High-quality heat sealing components to ensure the sealing edge is exquisite and smooth.
High-quality heat sealing components to ensure the sealing edge is exquisite and smooth.

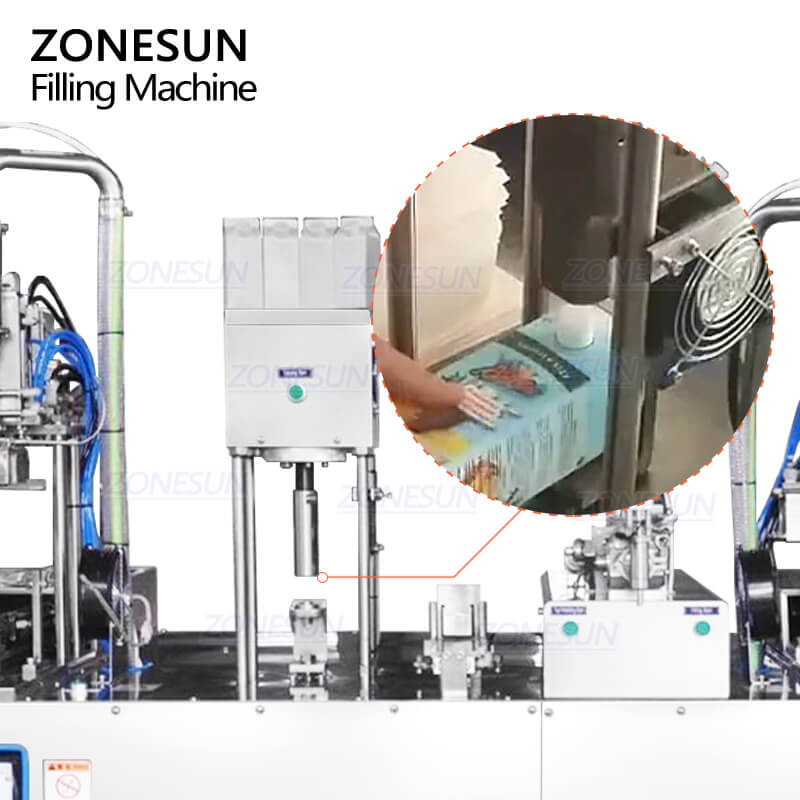

Pneumatic Capping Structure
Pneumatic sealing cap, capable of forming a tight seal when compressed to prevent liquid leakage.
Pneumatic sealing cap, capable of forming a tight seal when compressed to prevent liquid leakage.

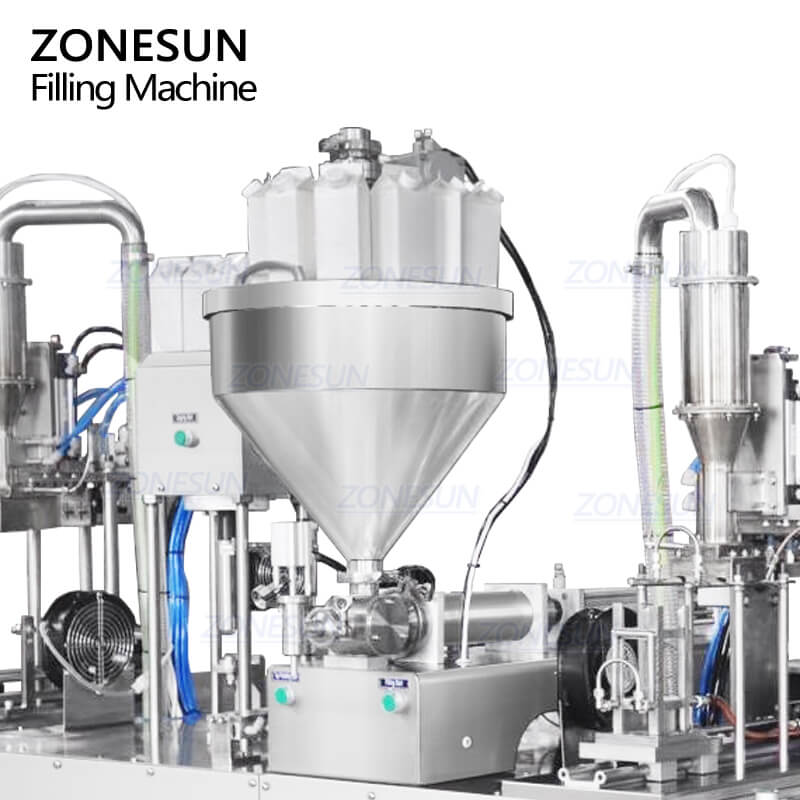

Large Hopper
With large capacity hopper, pneumatic accurate to filling liquid.
With large capacity hopper, pneumatic accurate to filling liquid.

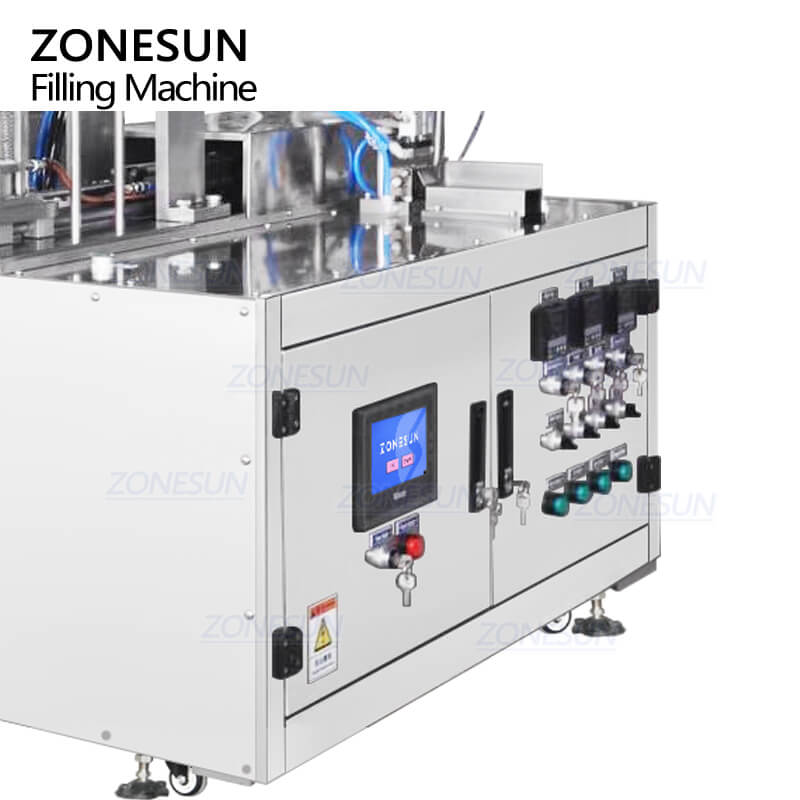

PLC Control Panel
With PLC control system,parameters can be adjusted according to the actual situation.
With PLC control system,parameters can be adjusted according to the actual situation.
