ZS-AFC7 Automatic Essential Oil EyeDrops Monoblock Rotary Filling Machine Capping Machine With Bottle Turntable

Desktop Essential Oil Bottle Filling Capping Machine
Bottle Turntable of Desktop Monoblock Filling Capping Machine
Magnetic Pump of Desktop Monoblock Filling Capping Machine
Rotary Plate of Desktop Monoblock Filling Capping Machine
Guide Housing of Desktop Monoblock Filling Capping Machine
Capping Head of Desktop Monoblock Filling Capping Machine
Essential Oil Monoblock Filling Capping Machine
Desktop Monoblock Filling Capping Machine

ZS-AFC7 Automatic Essential Oil EyeDrops Monoblock Rotary Filling Machine Capping Machine With Bottle Turntable

Size
Regular price $7,849.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

This filling capping machine is designed for the mini bottles like eyedrops bottles, essential oil bottles, perfume sample bottles.It can sort bottles, fill liquid into bottle ,tighten bottle caps.It is also equipped with cap vibratory bowl sorter which can feed bottle caps automatically, it saves production labor.

Parameter

Machine Model:ZS-AFC7
Machine power:1000W
Machine voltage:110/220V 50-60HZ
Filling pump:Magnetic Pump
Recommended filling range:10-200ml
Pump maximum flow rate:4L/min
Suitable bottle height:About 10-100mm
Suitable bottle diameter:About 15-100mm
Suitable cover size:φ=10-50mm
Working speed:About 30 bottles/min
Machine size:About 98cm*82cm*96cm(machine)
About 51cm*72cm*62cm(vibratory bowl sorter)
Machine weight:About 150+71kg
Package size:1060*750*1060mm+750*550*590mm
Package weight:175kg+90kg

Desktop Automatic Monoblock Filling Capping Machine

Application of Desktop Automatic Monoblock Filling Capping Machine

Machine Details of Desktop Automatic Monoblock Filling Capping Machine


Operation Panel of Desktop Automatic Monoblock Filling Capping Machine

The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.

Bottle Turntable of Desktop Automatic Monoblock Filling Capping Machine

The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.

Magnetic Pump of Desktop Automatic Monoblock Filling Capping Machine
The size of filling nozzle can be changed according to bottle opening mouth, this can prevent from spraying liquid out.Multiple filling nozzles can be customized as production need.The 316 stianless steel magetic pump has high filling accuracy and suitable for low viscosity liquid.
Rotary Plate of Desktop Automatic Monoblock Filling Capping Machine
The star wheel is customized according to bottle size.It can transport bottles to the next working process.There are electric eyes on each working structure, which can detect passing by bottles and control the machine to realize the automated work.

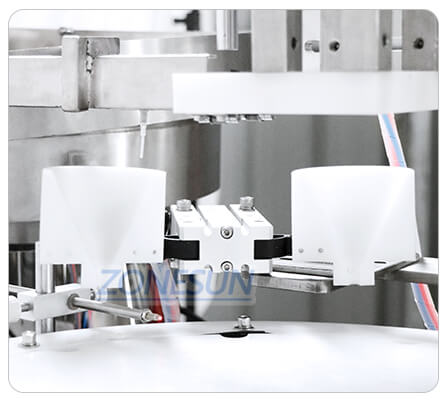

Guide Housing of Desktop Automatic Monoblock Filling Capping Machine
The cap feeding structure will drop bottles, the guide housing will help to make caps can be dropped into bottles correctly, this can reduce production labor.
Capping Head of Desktop Automatic Monoblock Filling Capping Machine
The torsion of capping structure can be controlled as production need.This kind of capping strcuture is suitable for bottle caps with screw threads.The bottle pushing structure is used to push bottle out in time, improves working efficiency.
Automatic Monoblock Filling Capping Machine



We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
