ZS-FK6000 Automatic Water-cooled Plastic Squeeze Bottle Cap Sealer Aluminium Foil Continues Induction Sealing Machine

Induction Sealing Machine
Control Panel of Bottle Induction Sealing Machine
Electric Box of Bottle Induction Sealing Machine
Sealing Structure of Bottle Induction Sealing Machine
Rotary Knob of Bottle Induction Sealing Machine
Bottle Induction Sealing Machine
Platic Bottle Cap Sealer
Automatic Induction Sealing Machine

ZS-FK6000 Automatic Water-cooled Plastic Squeeze Bottle Cap Sealer Aluminium Foil Continues Induction Sealing Machine

Voltage
Regular price $2,299.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

Click Video Link For Video

The working principle of the machine is that when a metal aluminum foil is close to the induction head, eddy current will be generated on the aluminum foil to generate heat and then seal the bottle mouth. The degree of heat generation is determined by the strength of the eddy current, the level of frequency and the length of action time. The whole machine has a self-check function to ensure the safety of work. The machine adopts a double water-cooled self-circulation cooling system, which can be used to cool the induction head and the power module of the machine host respectively.

Parameter

Machine Model:ZS-FK6000
Voltage:220V 50Hz
Power:3.6kW
Sealing Speed:About 0-80 bottles/min
Sealing Diameter:15-60mm(Can be customized)
Sealing Height:50-335mm
Cooling Method:Water Cooling
Application:Suitable for normal bottles and sharp mouth bottles, plastic and glass bottles. Inapplicable for glass caps, metal bottles or metal caps.
Machine Size:About 707*950*1510mm(L*W*H)
Machine Weight:About 76kg
Package Size:About 660*790*1430mm
Package Weight:About 106kg

Induction Sealing Machine



Application of Induction Sealing Machine

Machine Details of Induction Sealing Machine

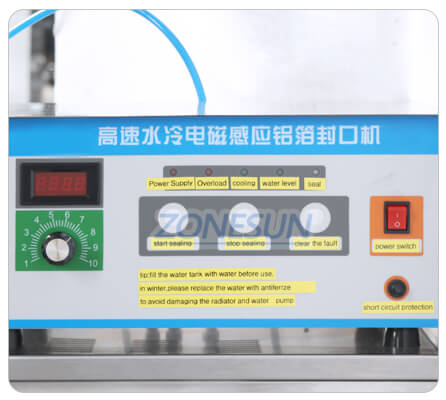

Control Panel of Induction Sealing Machine

With digital control panel, it is easy to control the machine. The power of machine can be adjusted according to production need.

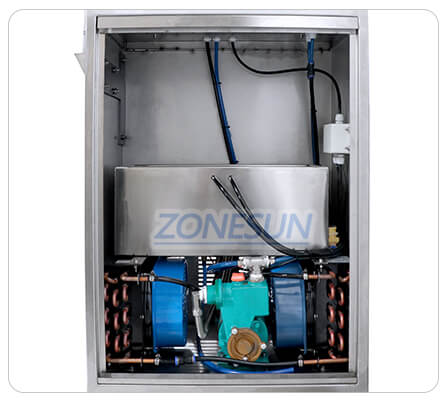

Distribution Box of Induction Sealing Machine

Adopting the way of water cooling, it can dissipate the heat effectively, ensuring safe production. In summer you can water into the tank, and in winter you can add antifreeze.

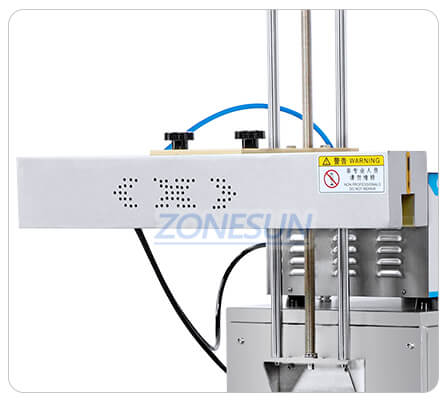

Sealing Component of Induction Sealing Machine

This machine can be widely used for normal bottles and sharp mouth bottles. The sealing temperature and sealing height can be adjusted as needed.

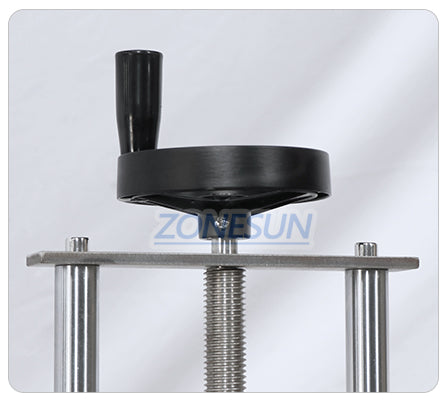

Rotary Knob of Induction Sealing Machine

Through rotating the handle, you can adjust the working height according to different bottles. Easy to operate.

Automatic Induction Sealing Machine

Automatic Bottle Induction Sealing Machine

Bottle Induction Sealing Machine

Plastic Bottle Induction Sealing Machine
